BMW Motorcycle Braking Components

When it comes to the performance and safety of your BMW motorcycle, few systems are as critical as the braking system. It’s the component that allows you to control your speed, react to hazards, and ultimately, stop safely. Understanding the individual parts that make up this vital system is paramount for any rider who wants to maintain their machine effectively or simply wants to be more informed about how their bike works. BMW motorcycles, known for their engineering prowess and rider-centric design, feature sophisticated braking systems that rely on a combination of high-quality components working in harmony.

The Core Components of a BMW Motorcycle Braking System

At its heart, a motorcycle's braking system is designed to convert the kinetic energy of the moving motorcycle into heat through friction. This heat is then dissipated, allowing the bike to slow down or stop. BMW employs advanced technologies and premium materials to ensure their braking systems are both powerful and reliable. Let's break down the key players:

Brake Discs (Rotors)

These are the large, circular metal plates that are attached to the motorcycle's wheel hubs. When you apply the brakes, the brake pads clamp onto these discs, creating the friction needed to slow the wheel. BMW motorcycles typically feature high-quality stainless steel discs. The material choice is crucial, as it needs to withstand immense heat and pressure without warping or failing. Some performance-oriented BMW models might even feature lighter, more exotic materials, but stainless steel remains the standard for its excellent balance of durability, heat resistance, and cost-effectiveness. The design of the discs can also vary; some are solid, while others are drilled or slotted to help with heat dissipation and to clear away water and brake dust, improving braking performance in adverse conditions.

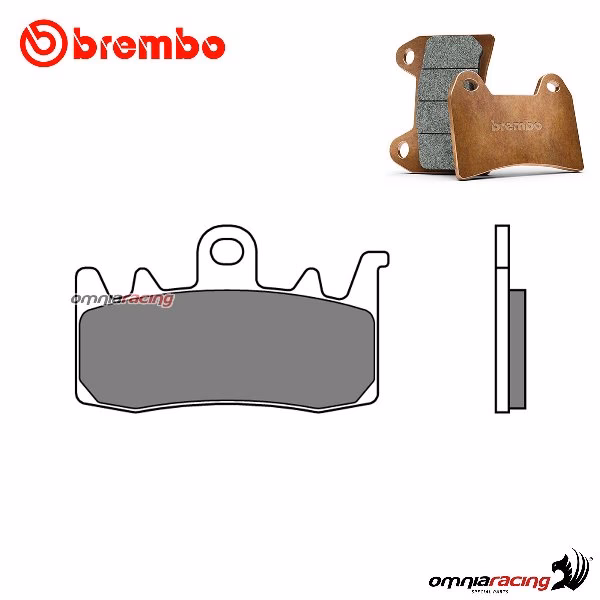

Brake Pads

These are the friction material that presses against the brake discs. Brake pads are consumables, meaning they wear down over time and will need to be replaced. The type of brake pad material significantly impacts braking performance and feel. BMW motorcycles can be fitted with several types of pads:

• Organic (Resin) Pads: These are generally quieter and gentler on discs, offering good initial bite in dry conditions. However, they can fade under heavy use and don't perform as well in wet weather.
• Sintered (Metallic) Pads: These are made from metallic compounds that are fused together at high temperatures. They offer superior stopping power, are more resistant to fading, and perform better in wet conditions. They tend to be noisier and can wear discs faster than organic pads. BMW often uses sintered pads for their performance and durability.
• Semi-Metallic Pads: A compromise between organic and sintered, offering a good balance of performance, durability, and disc wear.

When selecting replacement pads, it’s crucial to choose ones specifically designed for your BMW model and riding style. Using the wrong type can compromise braking performance and potentially damage the discs.

Brake Calipers

The caliper is the component that houses the brake pads and the hydraulic pistons. When brake fluid is pressurized, it pushes these pistons, forcing the pads to clamp onto the brake disc. BMW motorcycles often utilise advanced caliper designs, such as:

• Floating Calipers: These are more common on older or less performance-focused models. They have one or two pistons on one side, and the caliper slides on pins to centre itself on the disc.
• Monobloc Calipers: These are machined from a single piece of metal, offering greater rigidity and a more direct feel. They are typically found on higher-performance BMW models and contribute to superior braking precision.
• Radial-Mount Calipers: These are mounted to the fork or swingarm in a way that the pistons are aligned radially with the wheel. This design further enhances rigidity and braking feel.

The number of pistons in a caliper also plays a role; more pistons generally mean more even pressure distribution and greater stopping force.

Brake Master Cylinder

This is the component that converts the rider’s lever or pedal input into hydraulic pressure. When you pull the brake lever, a piston inside the master cylinder pushes brake fluid through the brake lines. The size and design of the master cylinder, including whether it's a conventional or radial master cylinder, influence the lever feel and the overall braking response. BMW riders often appreciate the precise feel offered by their master cylinders.

Brake Lines (Hoses)

These are the conduits that carry the pressurized brake fluid from the master cylinder to the calipers. BMW motorcycles typically use rubber hoses as standard. However, for improved performance and a firmer lever feel, many riders opt for stainless steel braided brake lines. These lines are reinforced with a layer of braided stainless steel, which prevents them from expanding under pressure, unlike rubber hoses which can balloon slightly. This expansion can lead to a spongy lever feel and reduced braking effectiveness. Braided lines offer a more direct and consistent transfer of hydraulic pressure.

Brake Fluid

Brake fluid is the hydraulic medium that transmits force from the master cylinder to the caliper pistons. It's essential that the brake fluid is of the correct type (e.g., DOT 4, DOT 5.1, as specified by BMW) and is kept clean and free of moisture. Brake fluid is hygroscopic, meaning it absorbs moisture from the atmosphere. Absorbed water lowers the fluid's boiling point, which can lead to brake fade under heavy use, as the heat generated can boil the fluid, introducing air into the system. Therefore, regular flushing and replacement of brake fluid, typically every two years, is a crucial part of motorcycle maintenance.

ABS (Anti-lock Braking System)

Most modern BMW motorcycles are equipped with ABS, a sophisticated electronic system designed to prevent wheel lock-up during heavy braking. ABS works by using sensors to monitor wheel speed. If a wheel is about to lock, the system momentarily reduces brake pressure to that wheel, allowing it to regain traction before reapplying pressure. This significantly improves safety, especially on slippery surfaces, by maintaining steering control and reducing stopping distances in many scenarios. The ABS unit itself is a complex electronic module, but the rider interacts with it through the standard brake lever and pedal.

Maintenance and Replacement Considerations

The longevity and effectiveness of your BMW motorcycle's braking system depend heavily on regular maintenance. Here are some key points:

Brake Pad Wear

Regularly inspect your brake pads for wear. Most pads have a wear indicator, or you can visually check the thickness of the friction material. If they are getting low, replace them promptly. Ignoring worn pads can lead to damage to the brake discs.

Brake Fluid Service

As mentioned, brake fluid should be flushed and replaced according to BMW's recommended service intervals, or sooner if contamination is suspected. Always use the specified fluid type.

Disc Condition

Check brake discs for signs of wear, such as deep grooves, scoring, or warping (which can be felt as a pulsing in the lever). Discs have a minimum thickness specification; if they fall below this, they must be replaced. Ensure discs are clean and free from debris.

Brake Line Integrity

Inspect brake lines for any signs of cracking, chafing, or leaks. If you've upgraded to braided lines, check the integrity of the braiding and the fittings.

Lever and Pedal Feel

Pay attention to the feel of your brake lever and pedal. A spongy feel often indicates air in the system or a need for fluid replacement. A gritty feel might suggest worn components or contamination.

Troubleshooting Common Braking Issues

If you experience any problems with your BMW's brakes, it's essential to address them promptly. Here are a few common issues and their potential causes:

Frequently Asked Questions

Q1: How often should I replace my BMW motorcycle's brake pads?

A1: This depends heavily on your riding style and conditions. A general guideline is to inspect them every 5,000-10,000 miles, but they may need replacement much sooner if you ride aggressively or in stop-and-go traffic. Always check the pad thickness.

Q2: What is the correct brake fluid for my BMW?

A2: Always refer to your BMW owner's manual. Most BMW motorcycles use DOT 4 or DOT 5.1 fluid. It's critical to use the specified type and not mix different types of fluid.

Q3: Can I upgrade my BMW's brake lines?

A3: Yes, upgrading to stainless steel braided brake lines is a popular modification that offers improved feel and performance. Ensure you purchase lines specifically designed for your BMW model.

Q4: What does it mean if my brake lever feels spongy?

A4: A spongy lever typically indicates air in the brake hydraulic system. This requires bleeding the brakes to remove the air.

Q5: Is it safe to ride with worn brake pads?

A5: No, it is not safe. Worn brake pads significantly reduce braking performance and can lead to damage to your brake discs, resulting in more expensive repairs and compromised safety.

In conclusion, the braking system of a BMW motorcycle is a finely tuned assembly of components designed for optimal performance and rider safety. By understanding these parts, performing regular maintenance, and addressing any issues promptly, you can ensure your BMW motorcycle stops as effectively as it goes, providing you with confidence and control on every journey. Remember, your brakes are your most important safety feature – treat them with the respect they deserve.
