Understanding Oil Consumption in BMW's N45 Engine
The BMW N45 engine, a staple in various 1 Series and 3 Series models produced between 2004 and 2012, is known for its relatively straightforward design as an atmospheric inline-four. However, a common concern among owners of these vehicles is excessive oil consumption. If you've noticed your N45 engine seeming to 'drink' oil, you're not alone. This article delves into the primary reasons behind this issue, offering insights into diagnosis and potential solutions.
The N45 Engine: A Brief Overview
Evolving from the N42, the N45 series engines were BMW's foray into more refined, yet in some cases simpler, powerplants. Notably, the N45 variant, unlike its predecessor, omits the Valvetronic system, opting for a more conventional distributed injection. This engine, found in models like the E87 1 Series and E46/E90 3 Series, came in various displacements, including the 1.6-litre N45B16 and a more potent 2.0-litre N45B20S used in the 320si. While generally considered robust, certain design elements and wear patterns can lead to increased oil consumption.
Common Culprits for Oil Consumption
1. Worn Valve Stem Seals
One of the most frequent offenders when it comes to oil burning in the N45 engine is worn valve stem seals. These small rubber seals sit around the valve stems, preventing oil from the cylinder head from seeping down into the combustion chambers. Over time and with heat, these seals can harden, crack, or become brittle, losing their effectiveness. This leads to oil entering the combustion process, often manifesting as blueish smoke, particularly on cold starts or during deceleration.
Diagnosis: A tell-tale sign is blue smoke from the exhaust, especially after the engine has been idling or when you first accelerate after a period of deceleration. Inspecting the spark plugs can also be revealing; if the electrodes and threads are coated in oil, it strongly suggests oil is entering the combustion chamber.
2. Piston Ring and Cylinder Wall Wear
While less common in well-maintained engines, wear on the piston rings or the cylinder walls themselves can also contribute to oil consumption. Piston rings form a crucial seal between the piston and the cylinder wall, preventing both combustion gases from escaping and oil from entering the combustion chamber. If these rings become worn, damaged, or lose their tension, oil can bypass them and be burned.
Diagnosis: A compression test can help identify issues with piston rings and cylinder sealing. Significantly low compression readings in one or more cylinders can indicate wear in these areas.
3. Crankcase Ventilation System (CCV) Diaphragm Failure
The N45 engine features a crankcase ventilation system designed to remove harmful blow-by gases and oil vapours from the crankcase. A key component of this system is a rubber diaphragm within the crankcase vent valve. If this diaphragm tears or fails, it can allow excessive oil vapour and even liquid oil to be drawn into the intake manifold and subsequently into the combustion chambers.

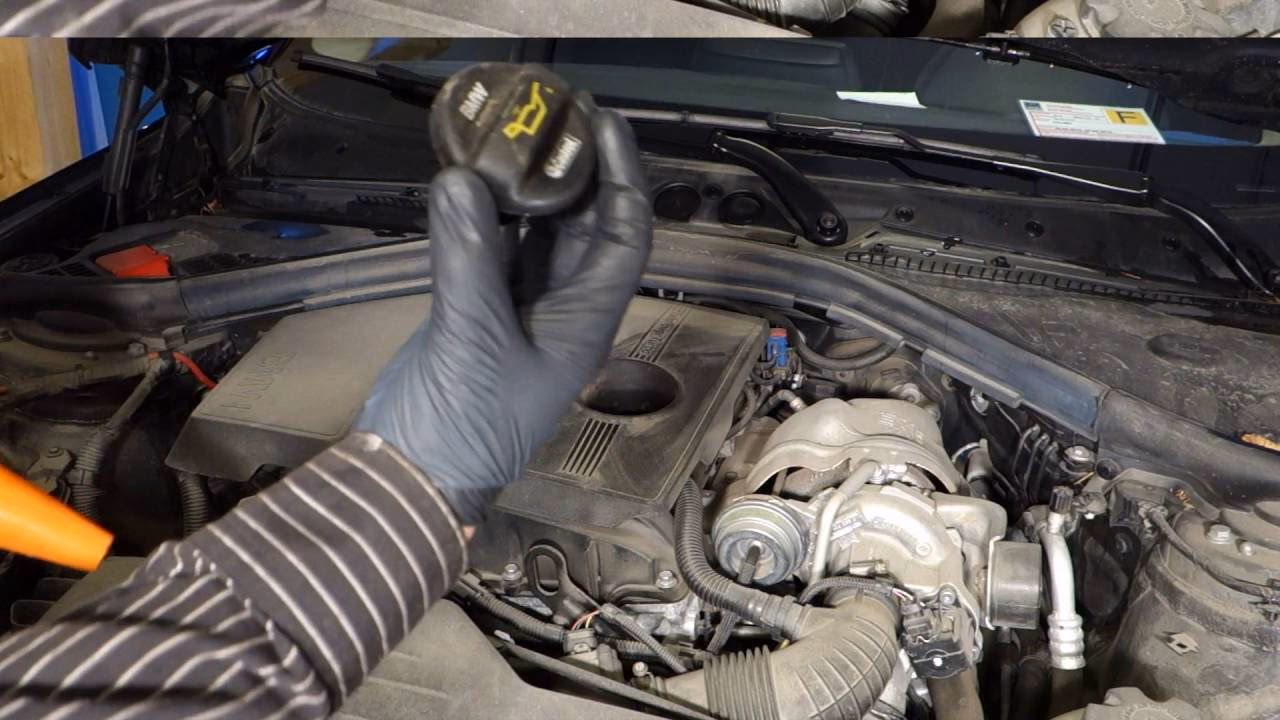

Diagnosis: A common test involves removing the oil filler cap on a running engine. If the diaphragm is intact, you should feel a slight vacuum pulling the cap down. If the engine shakes violently or the cap is easily lifted off, it can indicate a faulty diaphragm. On the N45, this diaphragm is integrated into the valve cover, meaning the entire cover often needs replacement, although aftermarket repair diaphragms are available.
4. Timing Chain Tensioner and Guide Issues
While not directly causing oil to enter the combustion chamber, problems with the timing chain system can indirectly lead to oil consumption or severe engine damage. The N45 engine's timing chain is known to stretch over time, typically around the 100,000 km mark. The tensioner, made from fluoroplastic, can also degrade, especially with high oil temperatures (up to 120°C). If the tensioner fails or the chain stretches excessively, it can cause the chain to hit the plastic guides, leading to their destruction. Fragments of these guides can then contaminate the oil system, potentially clogging the oil pickup screen and even damaging the oil pump and bearings. This can disrupt oil flow and lubrication, exacerbating wear elsewhere.
Table: Timing Chain System Components and Potential Issues
| Component | Potential Issue | Symptom |
|---|---|---|
| Timing Chain | Stretching | Rattling or clanking noises from the front of the engine, especially on startup. |
| Chain Tensioner | Wear, failure, jamming | Loss of chain tension, leading to rattling and potential damage to guides. |
| Guide Rails | Wear, breakage | Plastic fragments in the oil pan, potential oil starvation, incorrect timing. |
Diagnosis: Listen for distinct rattling or clanking noises from the front of the engine, particularly on cold starts. A stretched chain can also lead to timing-related fault codes.
5. Oil Leaks
While not strictly 'burning' oil, significant external oil leaks can give the impression of high oil consumption. The N45 engine is known for oil leaks from several common areas:
- Valve Cover Gasket: Often leaks from the rear of the cover, near the exhaust manifold.
- Vanos Solenoid Seals: The sealing rings under the Vanos solenoids can degrade.
- Oil Filter Housing Seal: The seal on the oil filter 'cup' can fail.
- Vacuum Pump Gasket: The vacuum pump can also develop leaks.
- Timing Chain Guide Tensioner Bolt Seal: The O-ring on the tensioner bolt can fail, leading to rapid oil loss.
Diagnosis: Regularly inspect the engine for visible signs of oil seepage or dripping, particularly after the engine has warmed up.
6. High Engine Operating Temperatures
The N45 engine's thermostat operates at a high temperature of 95°C. While this is beneficial for emissions and efficiency, it can also cause the engine oil to reach temperatures where it degrades more rapidly. Combined with factors like a dirty radiator or prolonged low-speed driving, this can accelerate oil breakdown and increase consumption. Using the correct, high-quality engine oil is crucial to mitigate this.
Addressing N45 Oil Consumption
The approach to fixing oil consumption depends heavily on the root cause:
- Valve Stem Seals: Replacement is the only effective solution. This can be a labour-intensive job.
- Piston Rings/Cylinder Walls: This typically requires an engine rebuild or replacement.
- CCV Diaphragm: Replace the valve cover or the diaphragm itself if you can source a reliable repair part.
- Timing Chain System: Replace the chain, tensioner, and guides as a complete kit. It's a preventative measure that can save significant costs down the line.
- Oil Leaks: Identify and replace the leaking gasket or seal.
- Oil Quality: Ensure you are using the manufacturer-recommended oil grade and change it at the recommended intervals, or even sooner if you frequently drive in demanding conditions.
Frequently Asked Questions
Q: Why does my N45 engine smoke on startup?
A: This is often due to worn valve stem seals or a faulty crankcase ventilation (CCV) diaphragm, allowing oil to pool in the combustion chambers overnight and burn off when the engine starts.
Q: How often should I check the oil level on my N45?
A: Given the potential for oil consumption, it's advisable to check the oil level frequently, perhaps every 1,000-2,000 miles, or as indicated by the car's oil level sensor.
Q: Can using the wrong oil cause oil consumption in my N45?
A: Yes, using oil that is too thin or of poor quality can contribute to oil consumption, especially at higher engine temperatures. Always use the BMW-approved oil specification (typically a 5W-30 synthetic).
Q: Is oil consumption normal for the N45 engine?
A: While some minimal oil consumption is normal for any engine, excessive consumption that requires frequent top-ups is not. It indicates a problem that needs to be addressed.
Q: What is the lifespan of the N45 timing chain?
A: The timing chain is generally expected to last around 100,000 to 150,000 km before stretching becomes a concern. However, this can vary based on driving conditions and maintenance.
Conclusion
Oil consumption in the BMW N45 engine is a common issue with several potential causes, ranging from relatively minor leaks and seal failures to more significant internal wear. By understanding these potential problems and performing regular checks, you can help maintain your N45 engine and address issues before they lead to more costly repairs. If you suspect your engine is consuming excessive oil, it's best to have it inspected by a qualified mechanic to accurately diagnose the problem and implement the correct solution.
