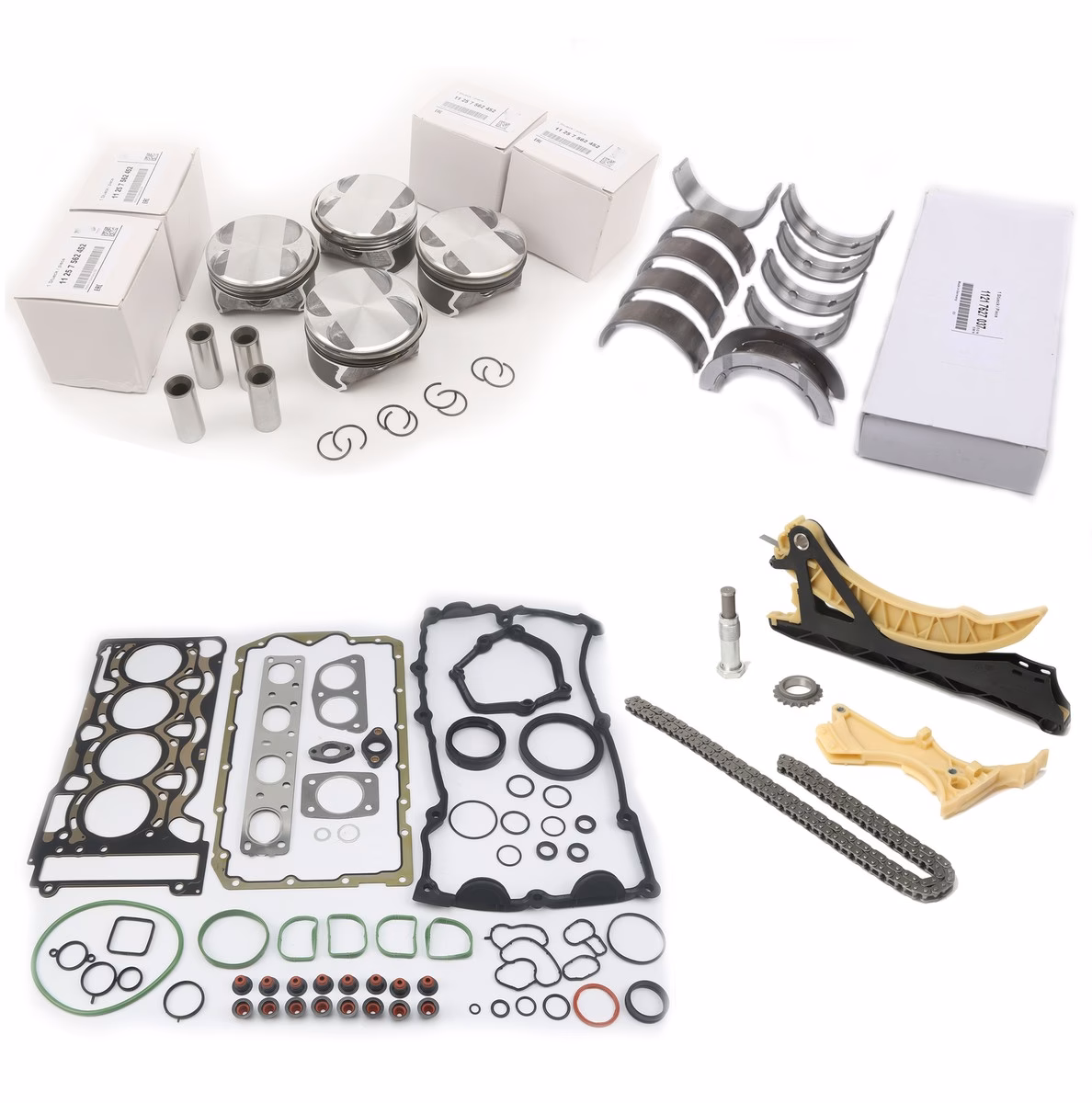

The BMW N42 and N46 twin-cam petrol engines, found in numerous models from the early 2000s onwards, represent a significant leap in automotive engineering. These 1.8 and 2.0-litre power units are not just conventional internal combustion engines; they incorporate highly sophisticated variable valve timing and lift systems: Vanos and Valvetronic. Understanding how these intricate systems operate, and crucially, how to maintain them correctly, is paramount for any BMW owner or mechanic aiming to ensure the longevity and performance of these remarkable engines.
These engines were designed to offer an optimal balance of power, fuel efficiency, and reduced emissions, a feat largely achieved through the dynamic interplay of their valve control technologies. However, this sophistication also introduces a level of complexity that demands specific knowledge and specialist tooling for any maintenance or repair work involving the timing system.
The Role of Vanos: Variable Camshaft Timing
Vanos, short for 'VAriable NOckenwellenSteuerung' (variable camshaft control), is BMW's system for continuously adjusting the timing of the camshafts. In the N42 and N46 engines, Vanos units are present on both the inlet and exhaust camshafts. This means the engine's ECU can independently alter the opening and closing points of both sets of valves, optimising valve overlap for different engine speeds and loads.
At lower RPMs, Vanos might advance the inlet camshaft and retard the exhaust camshaft to increase valve overlap. This helps to create an internal exhaust gas recirculation effect, improving idle stability and low-end torque, whilst also reducing nitrogen oxide emissions. As engine speeds increase, Vanos adjusts the timing to reduce overlap, allowing for better cylinder filling and emptying, which translates to increased power output at higher RPMs. The system operates hydraulically, using engine oil pressure directed by solenoid valves, which are controlled by the engine's electronic control unit (ECU). These solenoids precisely regulate the oil flow to the Vanos units, which then rotate the camshafts relative to their sprockets.
Unpacking Valvetronic: Variable Valve Lift
While Vanos adjusts *when* the valves open and close, Valvetronic revolutionises *how much* they open. This groundbreaking system, unique to BMW for many years, essentially replaces the conventional throttle body as the primary means of air intake control. Instead of using a throttle plate to restrict airflow into the engine, Valvetronic varies the lift of the inlet valves.
At low loads, the inlet valves open only a small amount, creating a narrow opening that increases the velocity of the incoming air, improving combustion efficiency. As engine load increases, the Valvetronic system increases the lift of the inlet valves, allowing more air into the cylinders. This is achieved through an eccentric shaft, controlled by an electric motor, which in turn adjusts the pivot point of intermediate levers between the camshaft and the inlet valves. By precisely controlling valve lift, Valvetronic significantly reduces "pumping losses" – the energy wasted by the engine having to draw air past a partially closed throttle plate. The result is a notable improvement in fuel economy and engine responsiveness.
The Symphony of Vanos and Valvetronic
The true brilliance of the N42 and N46 engines lies in the seamless integration of Vanos and Valvetronic. Valvetronic primarily dictates the volume of air entering the cylinders by varying valve lift, effectively acting as a throttle-less air management system. Vanos then fine-tunes the valve timing to optimise the gas exchange process for that specific air volume and engine condition. For instance, Valvetronic might provide minimal valve lift for light cruising, while Vanos simultaneously adjusts timing to maximise fuel efficiency. Under heavy acceleration, Valvetronic ensures maximum valve lift for full power, with Vanos adjusting timing to ensure optimal cylinder filling and scavenging.
This sophisticated interplay allows the engine to operate with remarkable precision across its entire RPM range, delivering power when needed and conserving fuel when cruising. It's a testament to BMW's engineering prowess, but it also highlights the critical importance of these systems functioning perfectly in unison.
Why Specialist Tools are Absolutely Essential
Given the extreme precision required for the correct operation of Vanos and Valvetronic, any work involving the camshafts, timing chain, or Valvetronic assembly necessitates the use of specialist timing tools. Attempting to service these components without the correct equipment is not only incredibly difficult but can lead to catastrophic engine damage. The N42 and N46 engines are interference engines, meaning that if the camshafts are incorrectly timed relative to the crankshaft, the valves can collide with the pistons, resulting in bent valves, damaged pistons, or even a destroyed cylinder head.
The specific kit mentioned, designed for removal, installation, dismantling, and rebuilding of the camshaft carrier bracket / Valvetronic assembly, is crucial. It includes tools to handle OEM numbers such as 11 9 310, 11 9 301, 11 9 320, 11 9 302, 11 9 303, and 11 9 390. These tools perform vital functions:
- Camshaft Locking Tools: These ensure the camshafts are held in their correct timed position while the timing chain or other components are being worked on.
- Crankshaft Locking Pin: This locks the crankshaft at Top Dead Centre (TDC), establishing the fundamental timing reference point for the entire engine.
- Valvetronic Eccentric Shaft Setting Tool: Critical for correctly setting the Valvetronic eccentric shaft to its base position, which is essential for the system's calibration and proper functioning.
- Chain Tensioner Tool: Used to apply correct tension to the timing chain during assembly, ensuring proper chain engagement and preventing slack.
This specialist kit is often used in conjunction with a main timing tool kit, such as Part No. 4419, which provides the foundational tools for timing the engine when, for example, changing the cam chain or camshafts themselves. Without these precision tools, achieving the exact timing and calibration required by these engines is virtually impossible, leading to rough running, reduced performance, poor fuel economy, and ultimately, costly repairs.
Common Issues and Maintenance Considerations
While robust, the Vanos and Valvetronic systems in N42/N46 engines can develop issues over time, often due to wear and tear or inadequate maintenance. Recognising the symptoms early can prevent more significant problems.
Table: Common Symptoms of Timing System Issues
| System Affected | Common Symptoms | Potential Causes |
|---|---|---|
| Vanos | Rough idle, reduced power (especially low RPM), increased fuel consumption, engine rattling noise (often on cold start), 'Check Engine' light with Vanos-related fault codes. | Worn Vanos seals, faulty Vanos solenoids, low oil pressure, sludge build-up. |
| Valvetronic | Rough idle, stalling, reduced engine power, hesitation during acceleration, 'Check Engine' light with Valvetronic-related fault codes (e.g., eccentric shaft sensor, Valvetronic motor), unusual clicking or whirring noises from the cylinder head area. | Faulty Valvetronic motor, worn eccentric shaft sensor, worn intermediate levers or eccentric shaft bearings, wiring issues. |
| General Timing | Engine misfires, poor performance, excessive engine noise, engine not starting, severe engine damage (if timing jumped). | Stretched timing chain, worn chain guides, failed chain tensioner, incorrect timing during previous repair. |
Regular oil changes with the correct specification of high-quality engine oil are absolutely critical for the longevity of both Vanos and Valvetronic. These systems rely heavily on clean oil and adequate oil pressure for their hydraulic and mechanical functions. Neglecting oil changes or using substandard oil can lead to sludge build-up, blocking oil passages and accelerating wear on critical components like Vanos seals and Valvetronic bearings.
Furthermore, prompt attention to any oil leaks, such as those from the vacuum pump seal or the oil filter housing gasket, is important. While not directly part of the timing system, these leaks can lead to reduced oil levels or pressure, indirectly affecting the performance and lifespan of the Vanos and Valvetronic units.
Affected BMW Models and Engine Codes
The N42 and N46 engines, with their integrated Vanos and Valvetronic systems, were widely used across various BMW models. If you own one of these vehicles, understanding its timing system is particularly relevant:
- BMW 1 Series: (2004 - 2014)
- BMW 3 Series: (2001 - 2014)
- BMW 5 Series: (2007 - 2010)
- BMW X1: (2010 - 2012)
- BMW X3: (2005 - 2010)
- BMW Z4: (2004 - 2009)
The specific 1.8L and 2.0L engine codes that feature these systems are: N42, N46, and N46T (the 'T' denoting a technical update). Identifying your engine code is crucial when sourcing parts or specialist tools.
Frequently Asked Questions (FAQs)
Q: Can I replace Vanos seals or the Valvetronic motor myself?
A: While possible for a competent DIY mechanic, it requires a comprehensive understanding of the N42/N46 engine, patience, and critically, the correct specialist timing tools. Without these tools, accurate reassembly and timing calibration are impossible, potentially leading to severe engine damage.
Q: What happens if the timing on my N42/N46 is incorrect?
A: Incorrect timing can lead to a variety of issues, from rough running, reduced power, and poor fuel economy to catastrophic engine failure if the valves collide with the pistons. The ECU will often detect timing discrepancies and illuminate the 'Check Engine' light.
Q: How often should I service the Vanos or Valvetronic systems?
A: There isn't a fixed service interval for these components. They should be serviced or repaired when symptoms arise (e.g., rattles, fault codes, rough running). Proactive maintenance includes regular, high-quality oil changes and addressing any oil leaks promptly.
Q: Is the Valvetronic system reliable?
A: Generally, yes. However, components like the Valvetronic motor and eccentric shaft sensor can wear out over time, especially in high-mileage engines. The system's complexity means that when issues do arise, diagnosis and repair can be intricate.
Q: Does the N42/N46 engine have a timing belt or chain?
A: The BMW N42 and N46 engines utilise a timing chain, which is designed to last the lifetime of the engine. However, like all timing chains, they can stretch or their guides can wear over very high mileage, necessitating replacement.
Conclusion
The BMW N42 and N46 engines, with their advanced Vanos variable camshaft timing and Valvetronic variable valve lift systems, represent a pinnacle of engineering aimed at efficiency and performance. While incredibly sophisticated, their complexity demands precise maintenance and the use of dedicated specialist tools for any work involving the timing system. Understanding how these systems work, recognising potential issues, and ensuring proper servicing with the correct equipment will help keep these remarkable BMW engines performing optimally for years to come. Always remember: when it comes to engine timing, precision is paramount.
