The brake caliper is a critical component of your vehicle's braking system, responsible for clamping the brake pads onto the rotor to slow or stop your car. When a caliper fails, it can lead to a significant reduction in braking performance, uneven braking, or even a complete loss of braking ability on one wheel. Recognising the signs of a faulty caliper – such as a soft brake pedal, pulling to one side when braking, or a burning smell – is the first step towards ensuring your vehicle remains safe on the road. Replacing a brake caliper might seem daunting, but with the right tools, a methodical approach, and a commitment to safety, it's a job many home mechanics can tackle. This comprehensive guide will walk you through the process, ensuring you understand each step from preparation to the final test drive.
Understanding Your Braking System
Before diving into the replacement, it's helpful to understand the role of the caliper within the larger braking system. Your car uses a hydraulic braking system. When you press the brake pedal, it pushes fluid through brake lines to the calipers. Inside each caliper, pistons are forced out by this fluid pressure, pushing the brake pads against the spinning brake disc (rotor). This friction converts the vehicle's kinetic energy into heat, slowing it down. A faulty caliper can have seized pistons, leaking seals, or damaged guide pins, all of which compromise its ability to perform this crucial function effectively.
Essential Tools and Materials
Having the correct tools to hand will make the job much smoother and safer. Here's what you'll typically need:
- New brake caliper (ensure it's the correct one for your vehicle's make, model, and side)
- New brake pads (always replace pads when replacing a caliper)
- Brake fluid (check your owner's manual for the correct DOT rating, e.g., DOT3, DOT4)
- Socket set and spanners (e.g., 10mm, 12mm, 14mm, 17mm, 19mm, etc., for caliper bolts and bleed nipple)
- Torque wrench (essential for tightening bolts to manufacturer specifications)
- Jack and axle stands (never work under a car supported only by a jack)
- Wheel chocks
- Wire brush
- Brake cleaner spray
- Drain pan or container for old brake fluid
- Rubber gloves and safety glasses
- Rag or shop towels
- Brake line clamp (optional, but highly recommended to minimise fluid loss)
- Bleeder bottle kit or a helper for bleeding the brakes
- Copper washers (often supplied with the new caliper's banjo bolt)
- Small hammer and punch (for retaining pins, if applicable)
Safety First: Prioritise Your Well-being
Working with brakes involves handling corrosive brake fluid and working under a vehicle. Always adhere to these safety precautions:
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves. Brake fluid can damage paintwork and irritate skin.
- Ensure the vehicle is on a flat, level surface.
- Engage the parking brake and use wheel chocks on the wheels that will remain on the ground.
- Lift the vehicle safely using a jack and immediately support it with sturdy axle stands. Never rely solely on the jack.
- Allow the vehicle to cool down if it has been driven recently, as brake components can be extremely hot.
- Do not smoke or use open flames near brake fluid, as it is flammable.
Step-by-Step Brake Caliper Replacement
1. Preparation and Wheel Removal
With your safety gear on and tools ready, begin by loosening the wheel nuts on the wheel you'll be working on while the vehicle is still on the ground. Once loosened, jack up the vehicle and secure it firmly on axle stands. Now, you can fully remove the wheel nuts and carefully take off the wheel, setting it aside.
2. Accessing the Old Caliper
You'll now have a clear view of the brake caliper, rotor, and brake line. Before proceeding, give the area a quick clean with a wire brush to remove any loose dirt or rust, which can help prevent contaminants from entering the brake system.
3. Disconnecting the Brake Line
This is a crucial step. Locate the banjo bolt that connects the brake line to the caliper. Have your drain pan ready beneath the caliper to catch any fluid. If you have a brake line clamp, now is the time to carefully clamp the flexible brake hose just above the caliper to minimise fluid loss. Using the correct spanner, carefully loosen and remove the banjo bolt. Be prepared for brake fluid to drip out. Discard the old copper crush washers on either side of the banjo bolt.

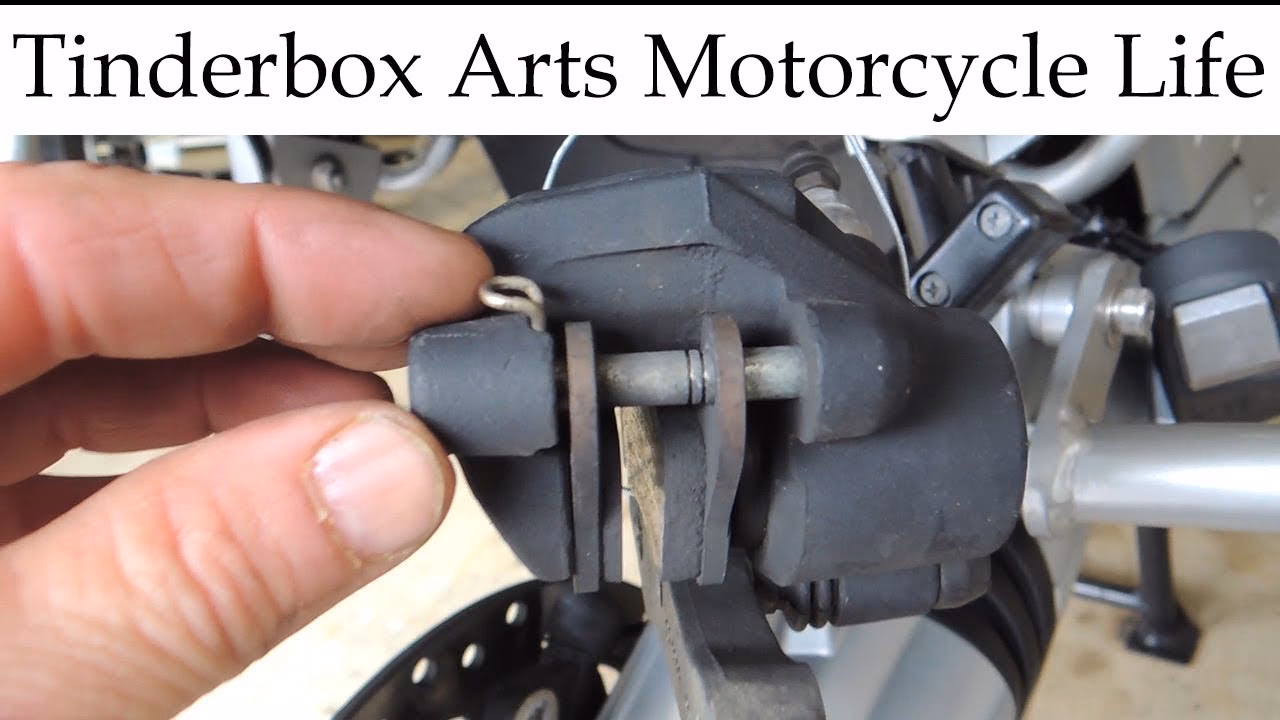

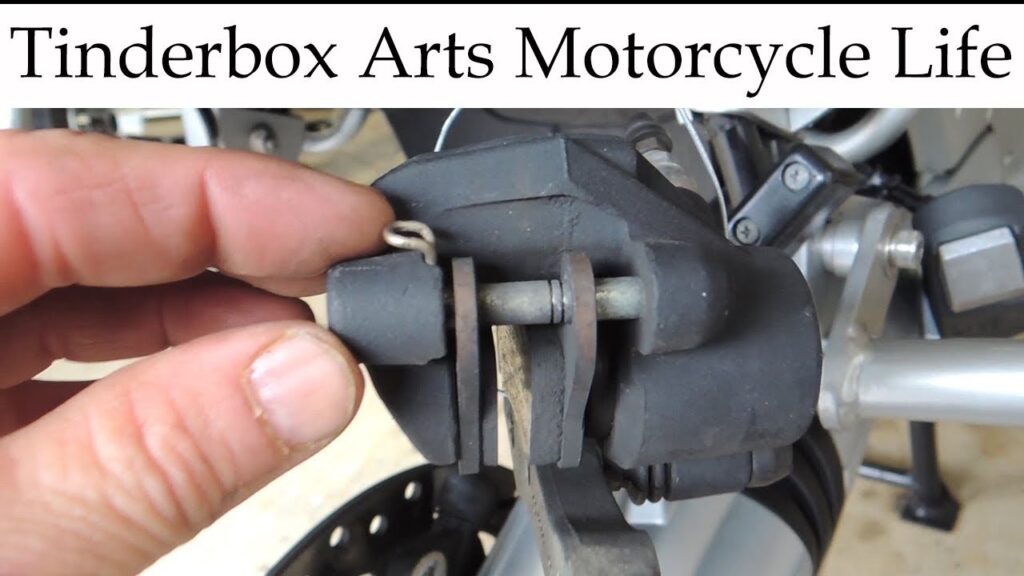

4. Removing the Old Caliper
The caliper is typically held in place by two guide pin bolts or mounting bolts. These are usually located on the back side of the caliper. Use your spanner or socket to loosen and remove these bolts. Once the bolts are out, the caliper should be free. You may need to wiggle it slightly or compress the pistons a little if it's still gripping the rotor. Carefully remove the old caliper, ensuring the brake line doesn't get damaged or twisted if you haven't clamped it.
5. Inspecting Associated Components
Now is a good opportunity to inspect the brake rotor (disc) and the flexible brake hose. Look for deep grooves, cracks, or excessive wear on the rotor. If the rotor is significantly worn or damaged, it should also be replaced. Check the brake hose for any cracks, bulges, or signs of wear. If the hose looks compromised, it's best to replace it as well to avoid future leaks.
6. Installing the New Caliper
Take your new caliper. Ensure it matches the old one in terms of mounting points and brake line connection. If your new caliper comes with a bracket, you might need to transfer the guide pins from the old bracket or install new ones if provided. Lubricate the guide pins with a suitable brake-specific lubricant. Position the new caliper over the brake rotor.
Align the brake line connection on the new caliper with the flexible brake hose. Install the banjo bolt with new copper crush washers on either side of the banjo fitting. Tighten the banjo bolt to the manufacturer's specified torque. This is critical to prevent leaks. If you used a brake line clamp, you can now remove it.
Next, it's time to install the new brake pads. Slide the new pads inside the caliper. Make sure that the back end of each pad is well seated inside the notch on the caliper piston or caliper bracket. If your caliper uses retaining pins, slide the retaining pin through the brake pad holes. You may want to use a socket extension and a small hammer to push the pin from the other side until it's fully seated. Install any lock pins or clips that secure the retaining pin. Ensure the pads are free to move slightly within the caliper but are securely held.
Finally, install the caliper mounting bolts (guide pin bolts). Tighten these to the manufacturer's specified torque using your torque wrench. These bolts are vital for securing the caliper and must not be overtightened or undertightened.
7. Cleaning the Disc Brake
Before putting the wheel back on, it's good practice to clean the brake disc. Spray the disc brake with some brake cleaner to remove any grease, dirt, or debris that may have accumulated during the process. This ensures optimal contact between the new pads and the clean rotor surface.
8. Bleeding the Brakes
This is arguably the most critical step after any work that opens the brake system. Air will have entered the brake line, and it must be removed to restore proper pedal feel and braking performance. There are several methods for bleeding brakes, but the most common is the two-person method:
- Ensure the brake fluid reservoir under the bonnet is full to the 'MAX' line.
- Have your helper sit in the driver's seat.
- Attach a clear tube to the bleed nipple on the newly installed caliper and place the other end in a container with a small amount of fresh brake fluid.
- Tell your helper to press the brake pedal down firmly and hold it.
- While they hold the pedal down, quickly open the bleed nipple for a second or two to allow fluid and air to escape into the container. You'll see bubbles if there's air.
- Close the bleed nipple tightly.
- Tell your helper to release the pedal.
- Repeat this process (press, hold, open, close, release) until no more air bubbles appear in the fluid coming out of the bleed nipple.
- Throughout the process, frequently check and top up the brake fluid reservoir. Never let it run dry, as this will introduce more air into the system.
- Once no more bubbles appear, tighten the bleed nipple securely.
If you're replacing multiple calipers, bleed the brake system starting with the wheel furthest from the master cylinder (usually the rear passenger side), then the rear driver's side, front passenger side, and finally the front driver's side.
9. Final Checks and Test Drive
After bleeding, pump the brake pedal several times. It should feel firm and consistent. Check for any leaks around the banjo bolt and the bleed nipple. Top up the brake fluid reservoir to the 'MAX' line. Reinstall the wheel, tighten the wheel nuts by hand, lower the vehicle, and then tighten the wheel nuts to the manufacturer's specified torque in a star pattern.
Before driving, pump the brake pedal a few more times to ensure the pads are seated against the rotor. Take the car for a cautious test drive at low speeds in a safe area. Listen for any unusual noises and check for proper braking action. Avoid sudden, hard braking initially. You'll need to bed in the new pads and rotors (if replaced) by performing a series of moderate stops from increasing speeds to ensure optimal performance and longevity. Consult the pad manufacturer's instructions for the specific bedding-in procedure.
Types of Brake Calipers: Fixed vs. Floating
Understanding the two main types of brake calipers can help you appreciate their function and design:
| Feature | Floating Caliper (Sliding Caliper) | Fixed Caliper |
|---|---|---|
| Design | Single or dual piston(s) on one side; slides on guide pins. | Multiple pistons (2, 4, 6, or more) on both sides of the rotor. |
| Operation | Piston(s) push one pad against the rotor, pulling the caliper body and the other pad into contact. | Pistons on both sides push pads simultaneously against the rotor. |
| Complexity | Simpler, less expensive to manufacture. | More complex, higher manufacturing cost. |
| Performance | Good for most road cars; can be prone to uneven wear if guide pins seize. | Superior braking force and feel, better heat dissipation; common in performance and heavy-duty vehicles. |
Common Issues and Troubleshooting
- Spongy Brake Pedal: Almost always indicates air in the brake lines. Re-bleed the system thoroughly.
- Brake Fluid Leak: Check all connections, especially the banjo bolt and bleed nipple. Ensure new crush washers were used and torqued correctly.
- Pulling to One Side: Could be a sign of air in the line on one side, or a remaining issue with the caliper (e.g., sticking guide pins if not properly lubricated, or a faulty new caliper).
- Grinding Noise: If this persists after replacement, it could indicate a problem with the new pads (incorrect installation, poor quality) or a severely warped or damaged rotor that needs replacement.
Maintaining Your Brake System
Regular maintenance can significantly extend the life of your brake calipers and other components:
- Brake Fluid Checks: Periodically check the brake fluid level and condition. Brake fluid absorbs moisture over time, which can lead to corrosion inside the brake system. It should be flushed and replaced according to your vehicle manufacturer's recommendations (typically every 2-3 years).
- Caliper Guide Pin Lubrication: During pad changes, inspect and re-lubricate caliper guide pins with high-temperature silicone grease to ensure smooth operation.
- Visual Inspections: Regularly inspect your brake lines, calipers, and pads for any signs of leaks, damage, or excessive wear.
Frequently Asked Questions (FAQs)
Q: When should I replace a brake caliper?
A: Replace a caliper if it's leaking fluid, the piston is seized (causing the car to pull or pads to wear unevenly), the guide pins are seized, or if the caliper housing is damaged. Often, uneven pad wear or a vehicle pulling to one side when braking are key indicators.
Q: Can I replace just one brake caliper?
A: While technically possible, it's generally recommended to replace calipers in pairs (both front or both rear) to ensure balanced braking performance across the axle. However, if one caliper has failed due to a specific impact or isolated issue, and the other side is in perfect condition, some mechanics might replace only one. Always replace brake pads on both sides of the axle when replacing a caliper.
Q: How long does it take to replace a brake caliper?
A: For an experienced DIY mechanic, replacing one caliper might take 1-2 hours, including bleeding. For a novice, it could take significantly longer, especially the bleeding process. Professional garages can often do it quicker due to specialised tools and experience.
Q: Is it hard to bleed brakes?
A: Bleeding brakes can be challenging if you've never done it before, especially getting all the air out. It often requires two people, or a one-person bleeder kit. Patience is key, and ensuring the reservoir doesn't run dry is crucial.
Q: What type of brake fluid do I need?
A: Always refer to your vehicle's owner's manual. Most modern cars use DOT3 or DOT4 brake fluid. Using the wrong type can cause serious damage to your braking system components.
Replacing a brake caliper is a significant maintenance task that, when done correctly, restores your vehicle's braking integrity and your confidence on the road. By following these detailed steps and prioritising safety, you can successfully tackle this repair and ensure your car remains a reliable and safe mode of transport.
