Unleashing the Beast: Tuning Your BMW M57

The BMW M57 engine, a stalwart of diesel performance, has long been revered by enthusiasts for its robust design and significant tuning potential. If you're pondering a performance project for your BMW, the M57 offers an incredibly fertile ground to cultivate serious power and driving pleasure. From subtle tweaks to comprehensive overhauls, this straight-six diesel can be transformed into a true powerhouse, far exceeding its factory specifications.

This guide delves into the world of M57 tuning, exploring the modifications that yield the most impressive gains and providing practical advice for a successful project. We'll cover everything from the foundational importance of ECU remapping to the intricate details of hardware upgrades, ensuring you have a clear roadmap to unleash your M57's full potential.

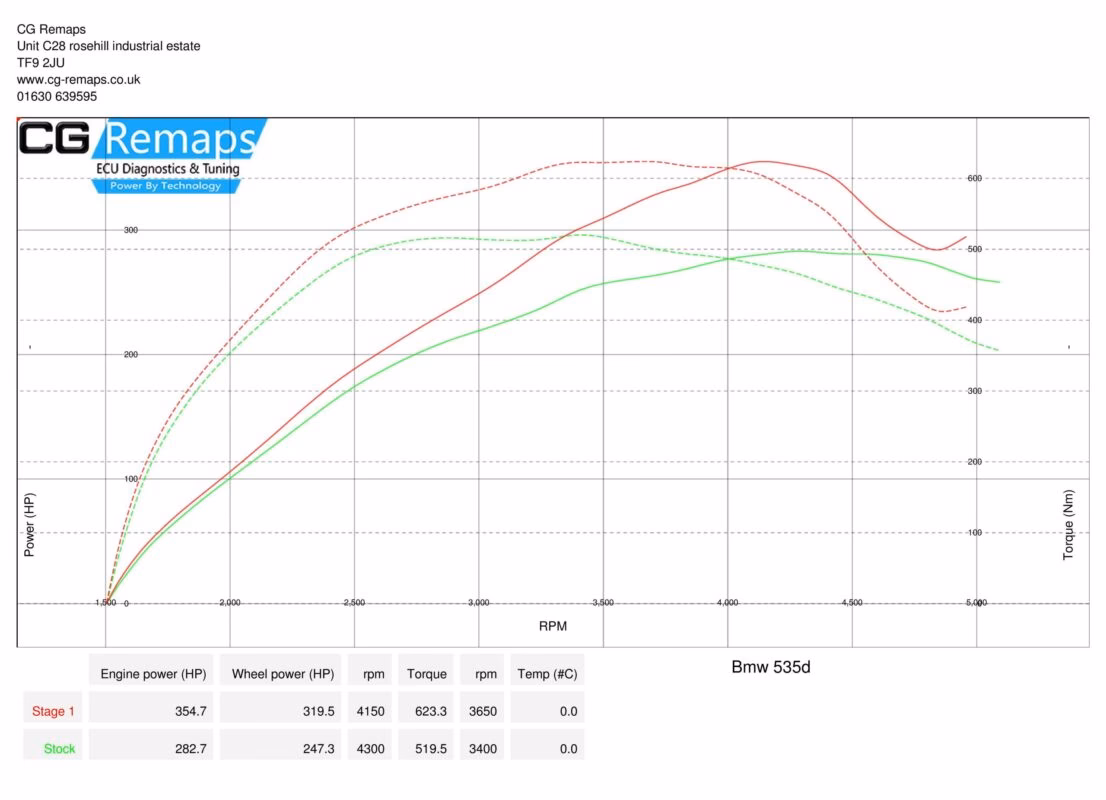

Is the BMW M57 a Good Engine for a Tuning Project?

Absolutely, the BMW M57 is an excellent choice for a tuning project. Its inherent reliability and robust construction make it a fantastic platform for extracting significant power gains. Unlike some engines that are pushed to their limits from the factory, the M57 was often over-engineered, providing a strong foundation that can handle increased power output with the right modifications and diligent maintenance. Owners consistently praise its durability, even when subjected to considerable performance enhancements.

With a well-planned approach, which typically includes ECU remapping, turbocharger upgrades, and judicious hardware improvements, the M57 can offer a truly exhilarating driving experience. Its natural torque delivery, combined with the potential for substantial horsepower increases, makes it a rewarding engine for any performance enthusiast in the UK.

The Cornerstone of Power: ECU Remapping

ECU (Engine Control Unit) remapping, often referred to as flashing or chipping, is arguably the most vital step in any M57 tuning project. It's the process by optimising the engine's software to fully capitalise on any hardware modifications you've made, or simply to unlock latent power within a stock setup. For turbocharged vehicles like those fitted with the M57, remapping alone can yield impressive gains, typically in the range of 30-40% more power. On naturally aspirated (NASP) engines, gains are usually around 10-20%, but the M57 is exclusively turbocharged, making it particularly responsive to this modification.

It's crucial to understand that not all remaps are created equal. While generic 'flash and forget' services exist, the best results come from custom maps tailored specifically to your vehicle's condition and the modifications installed. Reputable tuners utilise a 'live tuning emulator' to make real-time adjustments to the ECU's firmware, ensuring the tune is as effective and safe as possible, without pushing the engine beyond its limits. This bespoke approach accounts for variations in engine health, turbo condition, and other factors that influence power output, ensuring optimal performance and longevity.

DPF Removal and ECU Remapping

A common inquiry, particularly for M57 owners in the UK, revolves around the Diesel Particulate Filter (DPF). Many performance enthusiasts opt to replace the DPF with a freer-flowing downpipe to reduce exhaust back pressure and improve overall engine performance. If you choose to remove the DPF, an ECU remap is absolutely essential. The engine's computer needs to be reprogrammed to account for the absence of the DPF, preventing error codes and ensuring the engine operates correctly. Attempting to run the car without a DPF but without the corresponding ECU software will lead to serious issues and reduced performance.

However, it is paramount to understand the legal implications in the UK. A vehicle with its DPF physically removed will not pass a UK MOT (Ministry of Transport) emissions test. While it is technically possible to remap the ECU back to a DPF-on setting, the physical absence of the DPF means your vehicle will fail its emissions test. DPF delete downpipes are explicitly designed for motorsport use only and are not road legal in the UK. This is a critical consideration for any M57 owner contemplating DPF removal for performance gains.

Hardware Upgrades: Supporting the Power

While ECU remapping lays the foundation, hardware upgrades are vital for maximising the M57's potential and ensuring its long-term reliability under increased stress. These modifications work in harmony to improve air intake, fuel delivery, and exhaust flow, allowing the engine to produce more power efficiently.

Air Intake and Exhaust System

Any restriction in the intake or exhaust path will hinder your M57's performance. Upgrading to a high-flow panel air filter or a full induction kit allows the engine to breathe more freely. Similarly, a sports exhaust system can significantly improve exhaust gas flow, especially when pushing higher power levels. For optimal power gains, exhaust bore sizes typically range from 1.5 to 2.5 inches; going too large can actually slow exhaust gas velocity, which isn't ideal for power.

The primary restriction in many factory exhausts, particularly on diesel engines, is the emissions control equipment, such as the DPF and catalytic converter. Replacing these with high-performance, freer-flowing alternatives can unlock considerable power, though as mentioned, this comes with MOT implications.

Turbocharger Upgrades

Given the M57 is a turbocharged engine, upgrading the turbocharger is one of the most effective ways to achieve substantial power gains. More air forced into the engine means more fuel can be burnt, leading to increased power and torque. However, simply bolting on a larger turbo isn't always the answer.

Larger turbo units typically suffer from 'turbo lag' at lower RPMs, taking longer to spool up before delivering power. Smaller turbos spool faster but lack the top-end horsepower potential. Modern advancements, such as variable vane turbo units, mitigate lag by adjusting the vane profile according to engine speed. Twin-scroll turbo units also help by separating exhaust gases into different channels, improving efficiency and scavenging effects.

It's also important to consider the limitations of the OEM air flow sensor (MAF/MAP). When significantly more air is drawn into the engine, the stock sensor might become a bottleneck. Upgrading to a 4-bar air sensor, for example, can accommodate much larger power gains where the OEM sensor would limit performance.

Fuelling System Upgrades

Increased air supply demands a corresponding increase in fuel. Neglecting the fuel system when tuning can lead to dangerously lean conditions and engine damage. Upgrading the fuel pump and injectors is crucial to ensure adequate fuel delivery for higher power outputs. As a general rule of thumb, it's wise to specify injectors with about 20% more capacity than initially calculated to account for deterioration and provide a buffer for future modifications. Always ensure your fuel injectors are compatible with the type of fuel your vehicle uses.

Internal Engine Components and Head Modifications

While the M57 is robust, pushing it to extreme power levels will expose weaknesses in stock components. For Stage 3 and beyond, upgrading internal engine components such as pistons, connecting rods, and crankshafts becomes necessary to handle the increased stress. This includes engine balancing and blueprinting for optimal smoothness and durability.

Head modifications, such as porting and polishing the cylinder head, performing 3 or 5-angle valve jobs, and fitting bigger valves, significantly improve air and fuel flow into the cylinders. These modifications boost torque and amplify the gains from other upgrades like camshafts and forced induction.

Tuning Stages for the BMW M57

Tuning projects are often categorised into stages, indicating the level of modification and expected power increase. Here’s a breakdown of common M57 tuning stages:

Stage 1 Modifications

Stage 1 focuses on relatively simple, bolt-on modifications that work well with an ECU remap to provide noticeable improvements without major hardware changes.

• ECU Remap: The primary component, optimising fuel, boost, and timing.
• Panel Air Filter: A high-flow replacement for the stock filter.
• Sports Exhaust: A less restrictive cat-back system (without DPF removal).
• Lighter Flywheel: Improves throttle response.
• Suspension Upgrade: Lowering springs (e.g., 30-40mm drop) and potentially uprated dampers for improved handling.
• Alloy Wheels: Lighter wheels can reduce unsprung weight, improving acceleration and handling.

Stage 2 Modifications

Stage 2 builds upon Stage 1, introducing more significant hardware upgrades to support higher power levels, often necessitating further ECU calibration.

• High-Flow Fuel Injectors & Fuel Pump Upgrades: To meet increased fuel demands.
• Fast Road Camshaft: Optimises valve lift and duration for improved mid-range and top-end power.
• Ported & Polished Head: Improves airflow through the cylinder head.
• Performance Intercooler: A larger, more efficient intercooler (e.g., a 'stepped' front mount intercooler) to cool the denser charge air.
• Power/Sport Clutch: Essential for manual transmissions to handle increased torque.
• DPF Delete Downpipe & Sports Catalyst: For maximum exhaust flow, strictly for motorsport use in the UK.
• EGR Delete/Blank & Swirl Flap Delete/Blank: Often recommended for improved airflow and reliability, requiring software deletion.
• xHP Transmission Software: For automatic transmissions, optimises gear shifts and torque limits.

A typical Stage 2 package for an M57 30D might yield around 320BHP and 650Nm, while a 35D could reach 380BHP and 720Nm.

Stage 3 Modifications

Stage 3 represents the pinnacle of M57 tuning, involving extensive internal engine work and significant forced induction upgrades to achieve maximum power output.

• Internal Engine Upgrades: Forged pistons, stronger connecting rods, and upgraded crankshaft to handle extreme power and torque.
• Competition Camshaft: More aggressive cam profile for maximum high-RPM power, potentially sacrificing some low-end drivability.
• Larger Turbocharger or Twin-Charging: Significant turbo upgrades or the addition of a supercharger (twin-charging) for massive air delivery.
• Engine Balancing & Blueprinting: Precision machining and balancing of engine components for optimal performance and durability.
• Sports Gearbox: Uprated or sequential gearbox for race applications.
• Crank and Piston Upgrades to Alter Compression: Tailoring compression ratios for forced induction.

These stages are cumulative, meaning Stage 2 includes Stage 1 modifications, and Stage 3 includes elements of both previous stages.

Weak Spots and Common Issues on a Tuned M57

While the M57 is known for its robustness, pushing it beyond factory specifications inevitably introduces potential weak points. Being aware of these and taking preventative measures is crucial for a reliable tuned engine.

• Turbochargers: Stock turbos can be a weak link under sustained high boost. Upgrading to a larger or hybrid turbo is common for higher stages.
• Clutch: For manual transmission cars, the stock clutch will likely slip under increased torque. An uprated sports clutch is a necessity.
• Internal Engine Components: At very high power levels (Stage 3), stock pistons, rods, and crankshafts can become a failure point.
• Fuel System: The fuel pump and injectors can be overwhelmed if not upgraded to match the power output.
• Regular Maintenance: More than ever, regular oil changes with high-quality oil are absolutely vital for a tuned M57. Increased heat and stress demand meticulous servicing.

Which ECU is Used on BMW M57 Engines?

BMW diesel engines use a system called DDE (Digital Diesel Electronics) for their ECU. The M57 engine has seen several iterations of DDE modules throughout its production lifespan, corresponding to different Bosch EDC (Electronic Diesel Control) versions:

• DDE 4 (Bosch EDC15C4): This was the initial DDE version for the M57 range of 6-cylinder engines (2.5L to 3.0L displacement). It's a Common Rail system.
• DDE 5 (Bosch EDC16): An update for the M57 and M67 diesel engines, this second-generation Common Rail system increased rail pressures from 1350 BAR (DDE4) to 1600 BAR and complied with EU3 emissions standards.
• DDE 6, DDE 6.2, and DDE 6.3 (Bosch EDC16C1 / EDC16C31 / EDC16C35 (Solenoid Injection) and EDC16CP35 (Piezo Injection)): Used on M57 and M67 engines from 2005 onwards, these versions maintained the 1600 BAR Common Rail system and met EU4 emissions standards.

Understanding which DDE/Bosch EDC version your specific M57 uses is crucial for tuners to apply the correct software modifications.

History of the BMW M57 Engine and its Variants

The M57 is a straight-six diesel engine, a successor to the M51. It was produced in various displacements and power outputs, finding its way into a wide range of BMW models and even some other marques. Its longevity and widespread use are testaments to its successful design.

Here's a brief overview of some key M57 variants and their applications:

Frequently Asked Questions About M57 Tuning

Do I need a tune to remap an M57?

Yes, the term "tune" and "remap" are often used interchangeably in the context of ECU software modification. To significantly alter the engine's performance parameters, such as boost pressure, fuel delivery, and ignition timing, a remap (or tune) of the ECU software is required.

Is ECU flashing permanent on an M57?

No, ECU flashing is not necessarily permanent. A professional tuner can usually flash the ECU back to its original factory settings if required. However, if you've made physical modifications like a DPF delete, simply reflashing to stock software won't make your car road-legal or emissions-compliant again without physically reinstalling the DPF.

What is a BMW M57 Stage 2 tuning package?

A Stage 2 tuning package for the M57 typically includes an ECU remap combined with specific hardware upgrades designed to work together for significant performance gains. Common components in a Stage 2 package include a DPF delete downpipe, an uprated panel air filter, a 'stepped' front mount intercooler, and often optional extras like an EGR delete/blank and swirl flap delete/blank. It also usually includes a bespoke Stage 2 ECU software calibration and sometimes xHP transmission software for automatics. Power figures often reach 320BHP for 30D models and 380BHP for 35D models.

Can I remap my M57 back to DPF-on for MOT after a DPF delete?

While a tuner can often re-flash your ECU with software that expects a DPF to be present, this will not help you pass a UK MOT if the DPF has been physically removed. The MOT test includes a visual inspection to ensure the DPF is present where fitted from the factory, and an emissions test that a vehicle without a DPF will fail. DPF delete is strictly for off-road or motorsport use in the UK.

Are there any specific M57 models that respond better to tuning?

Generally, all M57 variants respond well to tuning due to their strong base design. However, the higher displacement and twin-turbo M57D30TÜTOP engines (like those found in 335d and 535d models) often yield the most impressive power figures due to their larger turbos and more robust components from the factory.

Tuning your BMW M57 can be an incredibly rewarding experience, transforming a capable diesel into a truly formidable performance machine. By understanding the key areas of modification, respecting the limitations, and always prioritising professional installation and bespoke ECU calibration, you can enjoy a significantly enhanced driving experience with confidence.
