BMW M30: The Big Six Reimagined

BMW has long been synonymous with automotive excellence, and at the heart of this reputation lies a lineage of truly exceptional engines. Among these, the M30 straight-six stands as a titan, a legendary powerplant that defined performance and reliability for decades. Often referred to as the 'Big Six' or 'Senior Six', this engine's journey from its inception in 1968 to its eventual phasing out in the mid-1990s is a testament to its enduring design and engineering prowess. This article delves deep into the world of the BMW M30, exploring its origins, specifications, various iterations, tuning capabilities, and the common issues that owners might encounter.

The Genesis of the Big Six

In the late 1960s, BMW recognised the limitations of its four-cylinder M10 engine and sought to create a more powerful and refined offering. The solution was to expand upon the M10's architecture, essentially adding two more cylinders to create their first six-cylinder engine – the M30. While sharing some design DNA with the smaller M20 engine, the M30 was a more robust and larger displacement unit, designed for greater performance. Its architecture, though tracing its roots back to pre-war inline-six designs, benefited from significant refinement and upgrades throughout its production life, extending its relevance for an impressive 27 years.

Design and Specifications: A Foundation of Strength

The M30 engine is a testament to robust engineering, featuring a cast-iron block and an aluminium cylinder head. Its Single Overhead Camshaft (SOHC) design, with two valves per cylinder, was a tried-and-tested configuration that offered a good balance of performance and simplicity. The original bore was 86mm, with a stroke of 80mm, contributing to its initial displacements. Weighing in at around 320 lbs, it was a substantial piece of engineering. The M30's capabilities were considerable, with later versions, such as the 3.5-litre variants, producing upwards of 218 horsepower and 225 lb-ft of torque. This combination of a strong block, proven valvetrain, and a robust crankshaft made it an excellent platform for both everyday driving and high-performance applications.

Key M30 Engine Specifications:

A Spectrum of M30 Variants

BMW produced several iterations of the M30 engine over its long lifespan, each offering different displacement and performance characteristics. These engines found their way into a wide array of iconic BMW models, from the E23 7 Series and E24 6 Series coupes to the E28 and E34 5 Series saloons. The high-performance M88 version, in particular, powered legendary cars like the E9 CSL and the E24 M635CSi, showcasing the M30's formidable potential.

Notable M30 Engine Versions:

• M30B25: A 2.5-litre version, often equipped with Bosch L-Jetronic fuel injection, producing around 148hp. Found in models like the E28 525i.
• M30B28: Initially carburetted and later fuel-injected, this 2.8-litre engine delivered around 181hp. It powered early models like the E3 2800 and E9 2800 CS.
• M30B30: A 3.0-litre variant that offered approximately 194hp, featuring both D-Jetronic and L-Jetronic fuel injection systems. This engine was used in E9, E12, and E32 models.
• M30B32: A 3.2-litre engine, which in US markets often featured Motronic digital fuel injection, producing around 194hp. It was a common powerplant for the E24 633CSi.
• M30B34: This 3.4-litre engine was a significant performer, offering around 215hp in European markets and 182hp in North America. It was produced from 1982 to 1988.
• M30B35: The most powerful naturally aspirated variant, a 3.4-litre engine producing 218hp and 225 lb-ft of torque. This engine was produced from 1988 to 1993 and is a popular choice for enthusiasts.

Tuning and Performance Enhancements

The M30 engine's robust construction and relatively low compression ratio (in many variants) make it an excellent candidate for performance tuning. Its ability to accept forced induction without immediate internal upgrades is a significant advantage.

Turbocharging the M30

BMW itself experimented with turbocharging the M30, producing the M102 and M106 engines. For enthusiasts looking to add a turbocharger, a Garrett GT35 turbo kit is a popular option. With stock internals, running around 11-14 psi of boost can yield approximately 400 horsepower. This is a significant power increase that transforms the driving experience.

Exhaust System Upgrades

When increasing an engine's power output, a restrictive exhaust system can become a bottleneck. Upgrading to a sports exhaust system is crucial to allow the engine to breathe more freely, maximising the gains from other modifications. However, it's important to avoid excessively large exhaust diameters, which can actually reduce exhaust gas velocity and hinder performance. A pipe diameter in the 1.5 to 2.5-inch range is generally recommended for optimal flow.

Stroker Kits and Internal Upgrades

For those seeking even more power, stroker kits are available that can increase the M30's displacement to around 4 litres. This typically involves a longer-stroke crankshaft, modified connecting rods, and an increased bore size, often coupled with forged pistons for enhanced durability. While these kits can be expensive, they offer a substantial increase in torque and power. Other popular modifications include shaving the cylinder head to increase compression, installing a cold air intake, reinforcing rocker arms, fitting performance headers, and the aforementioned performance exhaust system. These bolt-on modifications can easily push an M30's output to around 250 horsepower.

Common M30 Engine Problems and Solutions

Despite its inherent strength, the M30 engine, like any engine that has been in service for decades, can develop certain issues. Understanding these common problems can help owners proactively maintain their engines and address issues before they become severe.

1. Overheating: This is a common issue across many straight-six engines, and the M30 is no exception. Causes can include a clogged radiator, a faulty thermostat, a failing water pump, or air trapped within the cooling system. Overheating can lead to severe damage, including cylinder head warping. Regular maintenance of the cooling system, including flushing and replacing coolant, is vital.
2. Cylinder Block Cracks: While less common than overheating, cracks can develop in the engine block, particularly around threaded bolt holes in the cylinder head. This can occur if oil is not properly managed during engine disassembly and reassembly. Symptoms include excessive coolant consumption and an "emulsion" appearance in the engine oil. The only definitive solution is to replace the engine block.
3. Valvetrain Issues: Due to age and mileage, wear in the valvetrain is not uncommon. The M30 features unadjustable valves, meaning that wear necessitates replacement of components like bushing sets, worn valves, and rocker arm eccentrics. Regular oil changes with high-quality oil can help prolong the life of these components.
4. MAF Sensor Issues: While not exclusive to the M30, Mass Air Flow (MAF) sensor problems can affect engine performance and fuel delivery. Cleaning or replacing a faulty MAF sensor is a common diagnostic step for running issues.

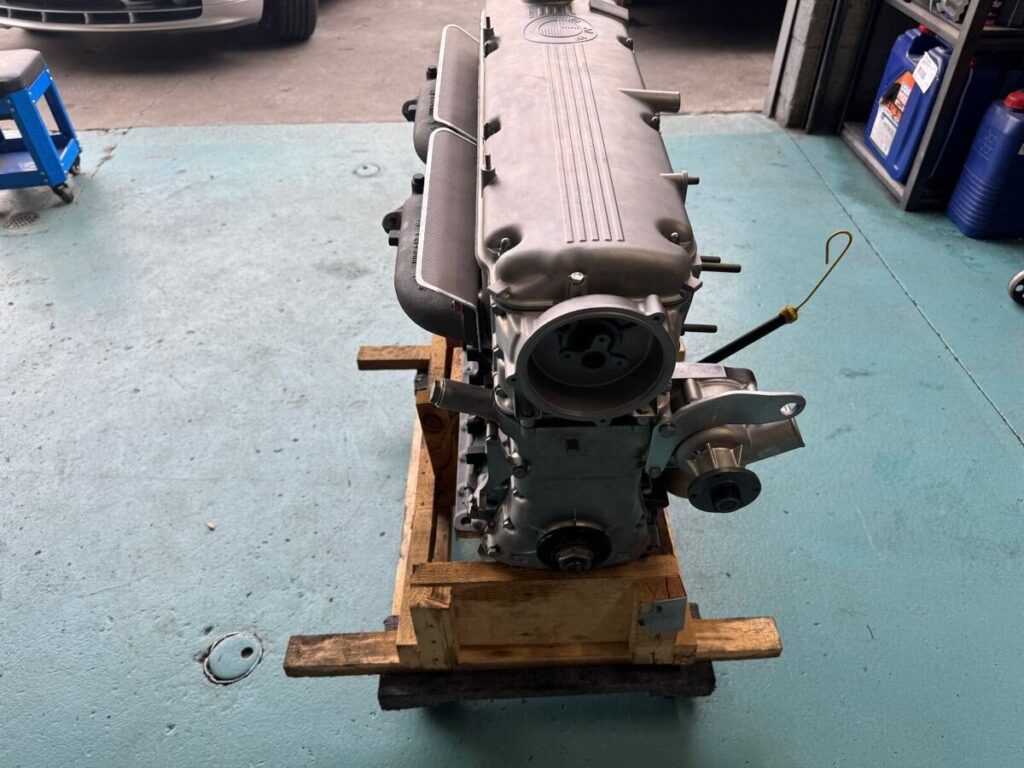

Can a BMW CS Rebuild an M30?

Yes, a BMW CS (Coupe Sport Leichtbau) is a classic BMW model that often came equipped with M30 engines, particularly performance-oriented variants. Rebuilding an M30 engine in a BMW CS is a common and rewarding undertaking for enthusiasts. The robust nature of the M30 makes it a prime candidate for a comprehensive rebuild, restoring its performance and reliability. This process typically involves:

• Complete engine disassembly.
• Thorough cleaning and inspection of all components.
• Machining of the cylinder block and head (honing, decking, valve seat grinding).
• Replacement of worn parts such as pistons, rings, bearings, valves, valve guides, and gaskets.
• Reassembly with meticulous attention to tolerances and torque specifications.

For a BMW CS, a well-executed M30 rebuild can bring the car back to its former glory, enhancing its driving dynamics and preserving its classic status.

Making a BMW M30 with a Turbo

As previously mentioned, the M30 is an excellent base for turbocharging. The process involves carefully selecting compatible turbocharger components, exhaust manifolds, fuel injectors, and engine management systems. For an M30B35, for example, a turbo kit with a boost pressure of 11-14 psi is a good starting point for around 400bhp. It's crucial to ensure the cooling system is in top condition and to consider upgrading the fuel system to cope with the increased demand. A properly installed turbocharger can transform the M30 into a truly potent engine, delivering exhilarating acceleration and power.

Frequently Asked Questions

What is the most powerful M30 engine?

The M30B35, with its 3.4-litre displacement and 218 horsepower output, is generally considered the most powerful naturally aspirated M30 variant. However, with tuning and forced induction, M30 engines can achieve significantly higher power figures.

How long do M30 engines last?

With regular maintenance and proper care, M30 engines are known for their longevity, often exceeding 300,000 miles without requiring a major overhaul. However, as with any engine of its age, potential issues like overheating or valvetrain wear need to be addressed promptly.

Can an M30 be bored out?

Yes, the M30 block can be bored out to accommodate larger pistons, which is a common practice when building a stroker engine. For example, increasing the bore to 93.5mm is part of some stroker kits to achieve larger displacements.

What cars used the BMW M30 engine?

The M30 engine was used in a wide range of BMW models, including the 2500/2800 sedans, E3, E9 (including CSL variants), E12, E24 (6 Series), E23 (7 Series), E28 (5 Series), and E32 (7 Series).

Conclusion

The BMW M30 'Big Six' is an engineering masterpiece that has left an indelible mark on the automotive world. Its blend of power, refinement, and durability has cemented its status as a legendary powerplant. Whether in its original form or modified for enhanced performance, the M30 continues to captivate enthusiasts. With diligent maintenance and a willingness to address potential issues, this iconic engine can provide decades more of driving pleasure, a true testament to BMW's engineering heritage.
