Keeping Your E46 M3 S54 Roaring: A Deep Dive

The BMW E46 M3, often hailed as one of the finest driving machines ever produced, owes much of its legendary status to its formidable S54 inline-six engine. This naturally aspirated masterpiece delivered a visceral driving experience that captivated enthusiasts worldwide. However, like many high-performance, race-bred engines adapted for road use, the S54 isn't without its quirks and common issues, particularly as the miles accumulate. Understanding these challenges and knowing how to address them is crucial for any E46 M3 owner.

For those wondering about its debut, the BMW M3 E46 model was introduced in Europe in 2000, with its arrival in the UK shortly thereafter. It quickly set new benchmarks for performance and handling in its class, becoming an instant classic.

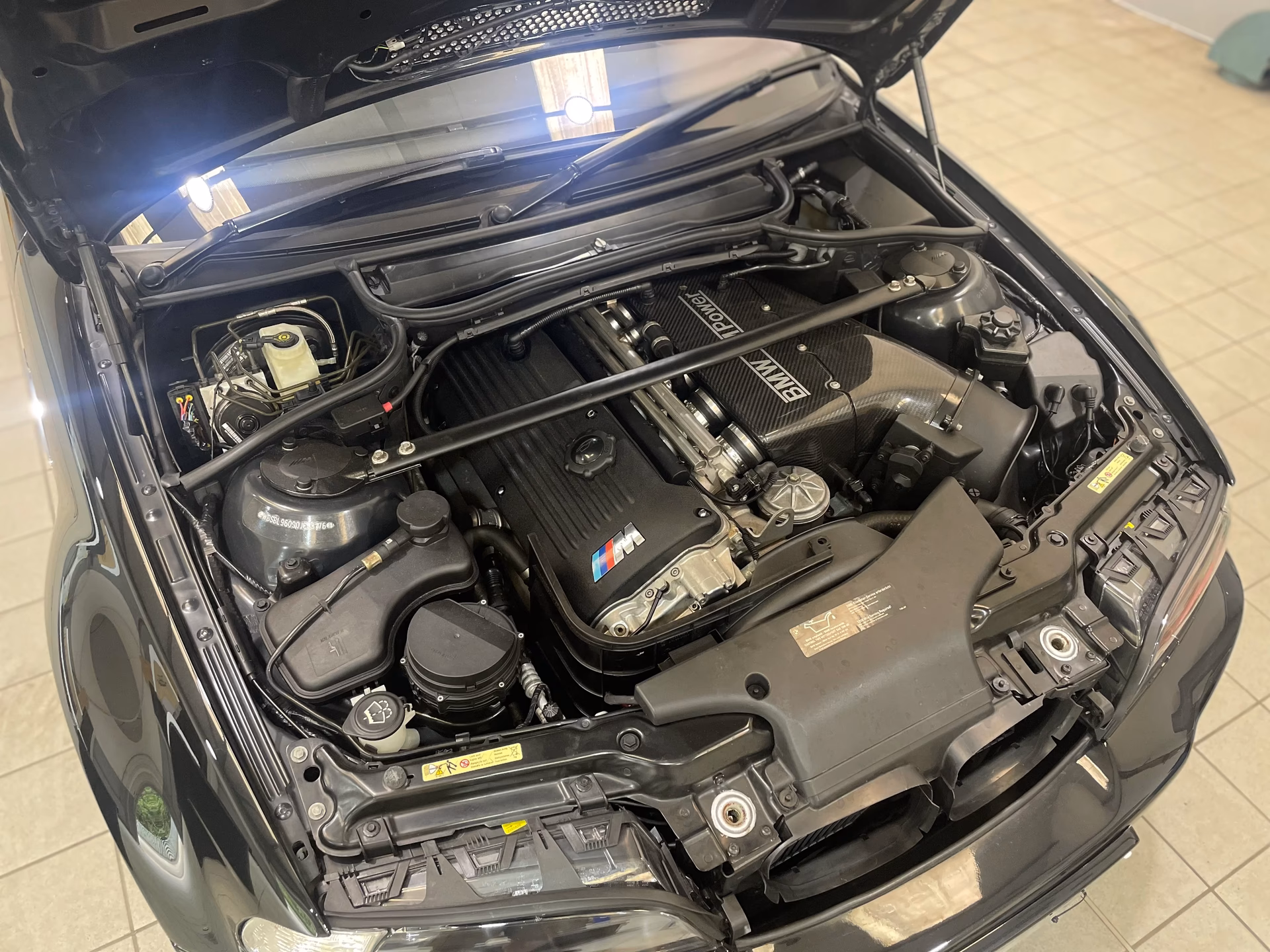

The Majestic S54 Powerplant: An Engineering Marvel

The S54 engine in the E46 M3 was a technical tour de force for its time. It featured advanced engineering that contributed to its impressive output and high-revving nature. Key attributes included:

• Individual throttle bodies for precise air intake control and immediate throttle response.
• Sophisticated Double VANOS (variable valve timing) on both intake and exhaust camshafts, optimising power delivery across the entire rev range.
• A stout 333 horsepower (European specification often quoted slightly higher at 343 PS) delivered at a screaming 7,900 rpm.
• An exhilarating 8,000 rpm redline, encouraging drivers to explore the upper echelons of the power band.

These features combined to create an engine that was both potent on the track and engaging on the open road. Yet, its complex design and high-stress operation meant certain components were prone to wear, leading to common problems.

Navigating Common S54 Engine Woes

While the S54 is a marvel, two significant issues frequently plague higher-mileage examples: VANOS unit failures and connecting rod bearing wear. Both can lead to costly repairs if not addressed proactively.

VANOS System Malfunctions

The Double VANOS system is critical for the S54's performance. It precisely adjusts the camshafts to optimise valve overlap, improving torque and horsepower across the rev range. However, the VANOS unit's internal components, such as the oil pump, seals, and solenoids, can degrade over time. Symptoms of a failing VANOS unit can include a loss of power, rough idle, increased fuel consumption, and ticking or rattling noises from the front of the engine. Fortunately, many specialist repair kits and upgraded components are available to rebuild or replace the VANOS unit, restoring its functionality and preventing further damage.

The Notorious Connecting Rod Bearing Failures

Perhaps the most talked-about Achilles' heel of the S54 engine, particularly in earlier models (roughly 2000-2003 production years), is premature connecting rod bearing wear. This issue stems from a combination of factors, including the original bearing design being too narrow and too tight, and inadequate retention mechanisms that could allow them to spin under extreme conditions. The consequence of a complete rod bearing failure is often catastrophic engine damage, usually signalled by a distinct knocking sound from the engine.

As noted from our own experience with a 2004 M3, even models outside the primary affected range can succumb to this issue, especially with rigorous track use. The sentiment among experts is clear: mileage is the biggest killer. An engine with over 100,000 miles is simply not expected to endure sustained track abuse without a comprehensive refresh or rebuild. The S54 demands to be treated as the high-performance sports car engine it is, not a mundane commuter engine.

The Rebuild Journey: A Case Study in S54 Revival

When faced with a notorious engine knock, as was the case with our Project M-Track3r, a full engine overhaul becomes necessary. Entrusting such a critical task to experienced hands is paramount. Our choice of Michael Essa, a 2013 Formula Drift champion and a renowned S54 specialist at Essa Autosport, underscores the importance of expertise. Essa’s ability to run his S54 engine at 1,100 horsepower for two years without a rebuild speaks volumes about his knowledge and the quality of his work.

Upon teardown, the good news was that the engine wasn't entirely beyond redemption. The factory crankshaft, known for its near-indestructible nature, only required micro-polishing and balancing for the new rotating assembly. This component is robust enough for stock stroke builds, regardless of the power level targeted.

Key Components for an S54 Engine Rebuild

A successful S54 rebuild involves meticulous attention to detail and the selection of high-quality components. Here’s a breakdown of the parts utilised in our project, illustrating a robust approach to addressing the S54's weaknesses and enhancing its durability:

The Rebuild Process: Precision and Attention to Detail

The rebuild process is a testament to precision engineering. Installing components like the King Bearings XP Series main bearings requires exact alignment and proper lubrication. The ARP main stud kit, step-torqued to a final value of 60 ft-lbs, ensures the crank remains firmly in place. For the rotating assembly, Carrillo's off-the-shelf PRO-H-beam connecting rods, forged from a special alloy, are paired with JE Pistons. These pistons, despite maintaining a stock compression ratio (ideal for light boost applications like our 9 psi), are incredibly durable, capable of handling immense power outputs if desired.

Sealing the combustion chambers is critical, and the JE Pro Seal head gasket, with its unique copper rings, provides an excellent seal without the added cost of O-ringing the block. Affixing the cylinder head is done with ARP 2000 head studs, torqued to 105 ft-lbs, ensuring the head stays put under extreme pressures. While the stock cylinder head, cams, and valvetrain are robust enough to be reused, upgrading the valves to Ferrea stainless steel units offers enhanced durability and performance, installing directly with existing springs and retainers.

A final inspection of the VANOS system, post-rebuild, confirmed the S54 engine was ready for reinstallation, promising many more thrilling track days for our E46 M3.

Can You Buy a Used BMW M3 Engine?

Yes, it is certainly possible to purchase a used BMW M3 engine, including the S54 powerplant. You'll often find these listed in various automotive parts marketplaces, specialist breakers, and online forums dedicated to BMW M cars. However, doing so comes with significant considerations.

Given the S54's known issues, particularly connecting rod bearing wear and VANOS problems, buying a used engine can be a gamble. Unless the engine comes with comprehensive service records detailing recent rebuilds or preventative maintenance (like rod bearing replacements), you are essentially acquiring an engine with unknown wear and tear. A 'low mileage' engine might sound appealing, but without a clear history, it could still be susceptible to the very failures that led you to seek a replacement. Many enthusiasts opt for a full rebuild of their existing engine or a professionally rebuilt unit rather than risking a potentially problematic used engine. It’s always advisable to have any prospective used engine thoroughly inspected by a reputable BMW specialist before purchase.

The Legacy of the M3 Convertible: E30 Roots

While our focus here is on the E46 M3's engine, it's worth acknowledging the broader heritage of BMW M Convertibles. The concept of a high-performance, open-top M car didn't begin with the E46, but rather with the E30 M3 Convertible. This was a landmark model, being the very first M car in BMW's history to be fitted with a folding roof as standard. The E30 M3 Convertible perfectly embodied the symbiosis of high-performance driving and the exhilaration of fresh-air motoring. It was equally at home on winding country roads as it was on the racetrack, a characteristic that continues to define all BMW M vehicles today. This lineage highlights BMW M's enduring commitment to delivering uncompromised driving pleasure, whether with a fixed roof or open to the elements.

Frequently Asked Questions About the E46 M3 S54 Engine

When did the BMW M3 E46 come out?

The BMW M3 E46 was launched in Europe in 2000, reaching the UK market shortly thereafter.

What are the most common problems with the E46 M3 S54 engine?

The two most common and significant issues are failures of the VANOS (variable valve timing) unit and premature wear of the connecting rod bearings. Other less critical issues might include coil pack failures or general sensor malfunctions common to older vehicles.

Is it worth rebuilding an S54 engine?

For many enthusiasts, rebuilding an S54 engine is absolutely worth it. It allows for addressing known weaknesses with upgraded components, effectively giving the engine a new lease on life. Given the increasing value and desirability of the E46 M3, a well-rebuilt engine significantly enhances the car's longevity and performance potential, making it a sound investment.

Can a high-mileage S54 engine be reliable for track use?

Generally, a high-mileage S54 engine (e.g., over 100,000 miles) is not recommended for sustained track use without a prior comprehensive inspection and likely a rebuild or significant refresh. The stresses of track driving accelerate wear, particularly on components like rod bearings. As experts advise, these engines need to be treated as high-performance units, and mileage is a critical factor in their durability under extreme conditions.

Who should work on my M3 engine?

It is highly recommended to have your M3 engine worked on by specialists with extensive experience with BMW M cars, particularly the S54 engine. Garages like Essa Autosport, run by experts such as Michael Essa, possess the specific knowledge, tools, and understanding of the engine's intricacies to perform effective diagnostics, maintenance, and rebuilds. While general mechanics can handle basic service, complex engine work requires a dedicated M car professional.

Conclusion

The BMW E46 M3 S54 engine truly is a masterpiece, offering an unparalleled driving experience that continues to captivate. Its high-strung nature, however, demands respect and diligent maintenance. Understanding common issues like VANOS and rod bearing failures, and knowing when to seek professional intervention for a comprehensive rebuild, are key to preserving this automotive icon. With the right care and the expertise of specialists, your E46 M3 can continue to deliver its legendary performance for many years and many miles to come, cementing its place as a truly special M car.
