BMW M Sport Braking System: Unpacking the Power

In the realm of high-performance automotive engineering, the ability to stop with precision and confidence is just as crucial as the power to accelerate. For a marque like BMW, renowned for its commitment to dynamic driving experiences, the braking system is far more than a mere safety feature; it is an integral component of the vehicle's overall performance character. This is where the BMW M Sport braking system comes into its own, representing a pinnacle of stopping technology designed to complement the prodigious power and agility of models such as the new BMW 8-Series Coupe.

The M Sport braking system is not simply an upgrade; it's a meticulously developed, high-performance solution tailored to meet the exacting demands of spirited driving. It is engineered to provide an exceptionally powerful, highly precise, and responsive braking experience, essential for a vehicle that can unleash formidable power and navigate corners with supreme agility. Its development draws upon BMW's extensive racing know-how, ensuring that every aspect, from materials to integration, is optimised for superior performance.

The Core Technology: Calipers, Discs, and Pads

At the heart of the M Sport braking system lies a sophisticated configuration of calipers and discs. All versions of this advanced system feature a combination of four-piston, fixed-caliper brakes at the front axle and single-piston, floating-caliper brakes at the rear. This specific setup is chosen for a reason: fixed calipers at the front provide strong initial bite and consistent, unwavering pressure, crucial for handling the majority of braking forces and ensuring direct, predictable deceleration. The multi-piston design distributes the clamping force more evenly across the brake pad, leading to more consistent wear and improved performance. At the rear, the floating calipers offer a balance of effectiveness and cost-efficiency, while still providing ample stopping power and allowing for efficient integration of the electronic parking brake.

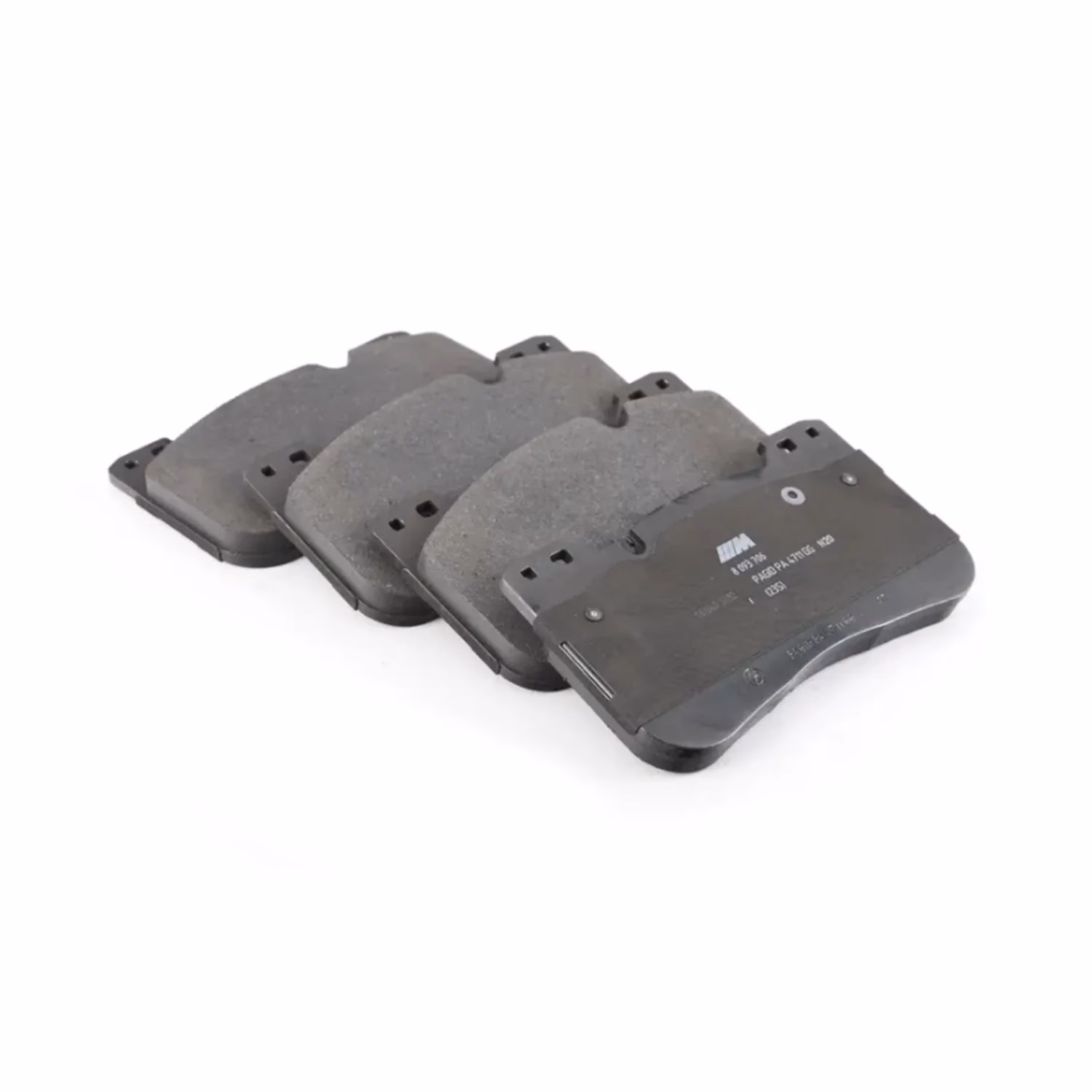

Complementing these powerful calipers are inner-vented brake discs, fitted to both the front and rear axles. The ventilation design is critical for high-performance applications, as it allows for rapid dissipation of the intense heat generated during braking. This internal cooling mechanism actively prevents brake fade, a condition where braking effectiveness diminishes due to excessive heat build-up, ensuring consistent and reliable stopping power even under prolonged, strenuous use. Furthermore, the system incorporates model-specific brake pads, which are formulated to work in perfect harmony with the discs, optimising friction characteristics, noise reduction, and thermal resistance for peak performance.

Advanced Engineering: Cooling, Lightweighting, and Integration

Beyond the fundamental components, the M Sport braking system incorporates several advanced engineering solutions to further enhance its capabilities. Directional cooling air ducts are strategically integrated to channel airflow precisely over the brake discs. This targeted cooling ensures that temperatures remain within optimal operating ranges, even during the most demanding driving scenarios, thereby preserving the system's performance integrity and longevity.

A significant aspect of the M Sport braking system's design is its commitment to lightweight construction. The friction rings of each brake disc are innovatively riveted to an aluminium drum. This BMW-patented construction concept, combined with the use of aluminium brake calipers, significantly reduces unsprung masses. Unsprung mass refers to the weight of components not supported by the vehicle's suspension (e.g., wheels, tyres, brakes). By minimising this weight, the M Sport braking system contributes directly to improved suspension response, allowing the wheels to follow the road surface more accurately. This translates into enhanced agility, superior ride comfort, and a more responsive and precise steering feel, all of which are hallmarks of BMW's dynamic driving philosophy.

Moreover, the electronic parking brake, conveniently operated via a button on the centre console, is seamlessly integrated into the rear brake calipers. This not only offers a clean and modern interior aesthetic but also contributes to the overall efficiency and packaging of the braking system. Critically, the entire braking system is integrated with the vehicle's Dynamic Stability Control (DSC) system. This intelligent networking ensures exceptionally precise braking response, optimal braking control, and effective brake boosting. The DSC system can modulate individual wheel braking to enhance stability, traction, and cornering performance, making the M Sport brakes an active participant in the vehicle's dynamic handling capabilities.

Model-Specific Applications and Visual Identity

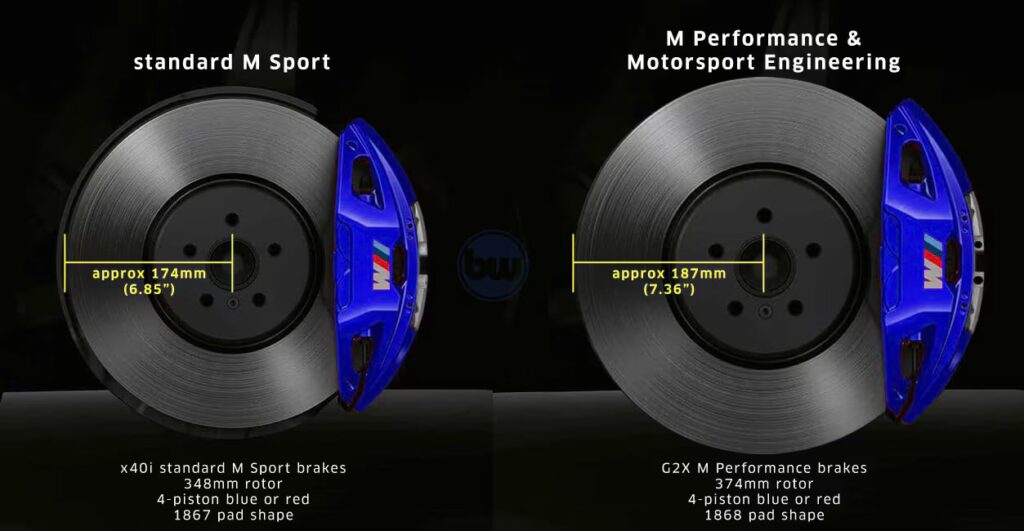

The BMW M Sport braking system is not a 'one-size-fits-all' solution; its specifications are tailored to the performance profile of the specific BMW model. For instance, the high-performance BMW M850i xDrive Coupe comes with a particularly powerful version of the M Sport braking system as standard, featuring substantial 395 mm diameter brake discs at the front. For models like the BMW 840d xDrive Coupe, the M Sport Package offers an M Sport braking system with 374 mm discs, providing a significant performance upgrade over standard brakes. Furthermore, opting for the M Technic Sport Package on the BMW 840d xDrive Coupe elevates the braking capability even further, equipping it with the larger 395 mm brake discs, mirroring the stopping power of the M850i.

Visually, both versions of the M Sport braking system are instantly recognisable by their distinctive blue calipers, prominently featuring the iconic M logo. This visual cue not only signifies the enhanced performance capabilities within but also aligns with the aesthetic language of BMW's M Performance and M Sport models, underscoring their dynamic character.

M Sport Braking System Specifications (BMW 8-Series Coupe)

The M Philosophy: Performance and Feel

The ultimate goal of the M Sport braking system, imbued with BMW M GmbH's racing know-how, is to provide not just raw stopping power but also a sophisticated and engaging driving experience. This is achieved through three key attributes: high thermal stability, fast response, and excellent feel.

• High Thermal Stability: This ensures that the brakes can withstand repeated, heavy use without succumbing to fade. Whether navigating challenging winding roads or performing emergency stops, the system maintains its performance, providing unwavering confidence to the driver.
• Fast Response: The immediate and decisive action of the brakes when the pedal is pressed allows for precise control and contributes significantly to active safety. This rapid engagement is crucial in situations requiring split-second decisions and maximum deceleration.
• Excellent Feel: This refers to the tactile feedback through the brake pedal. An M Sport system provides a firm, progressive, and highly communicative pedal feel, allowing the driver to accurately modulate braking force. This precision in control enhances the overall driving experience, making the vehicle feel more connected and responsive to driver inputs. It’s this blend of power and finesse that truly sets the M Sport braking system apart.

Frequently Asked Questions (FAQs)

What distinguishes the BMW M Sport braking system from standard brakes?

The BMW M Sport braking system is distinguished by its purpose-built design for high-performance driving. Key differences include the use of larger, inner-vented brake discs for superior heat dissipation, multi-piston fixed calipers at the front for stronger and more consistent braking force, and a lightweight construction utilising aluminium components to reduce unsprung mass. Furthermore, these systems are precisely integrated with the vehicle's Dynamic Stability Control (DSC) for enhanced precision and control, and visually identifiable by their signature blue calipers with the M logo.

Why is lightweight construction important for these brakes?

Lightweight construction, achieved through features like riveted friction rings to aluminium drums and aluminium calipers, is crucial for reducing the vehicle's unsprung mass. A lower unsprung mass allows the suspension to react more quickly and effectively to road imperfections. This improves ride comfort, enhances wheel contact with the road, and significantly boosts the car's agility and responsiveness, leading to better handling and a more dynamic driving experience.

How do M Sport brakes manage heat under demanding conditions?

M Sport brakes are engineered for exceptional thermal stability. They achieve this through several features: inner-vented brake discs, which have internal channels to circulate air and dissipate heat rapidly; model-specific brake pads designed to withstand high temperatures; and directional cooling air ducts that channel cool air directly onto the brake components. These elements work in concert to prevent brake fade, ensuring consistent performance even during prolonged, aggressive driving.

What role does DSC play in the M Sport braking experience?

The integration of the M Sport braking system with the Dynamic Stability Control (DSC) system is fundamental to its performance. DSC continuously monitors vehicle dynamics and can precisely modulate braking force to individual wheels. This networking ensures optimal brake boosting, exceptionally precise braking response, and enhanced control, especially in challenging situations like high-speed cornering or emergency stops. It allows the braking system to contribute actively to the vehicle's stability and agility.

Are M Sport brakes only for dedicated BMW M models?

While M Sport brakes are a hallmark of full BMW M models, they are also a significant feature available on M Performance models and as part of the M Sport package or M Technic Sport Package on other BMW series, such as the 8-Series Coupe. This makes high-performance braking accessible to a wider range of BMW enthusiasts who desire enhanced stopping power and dynamic capabilities in their vehicles, beyond the standard offerings.

Conclusion

The BMW M Sport braking system is a testament to BMW's engineering prowess and its unwavering dedication to driving dynamics. It's more than just a collection of parts; it's a precisely engineered and integrated system that delivers formidable stopping power, exceptional thermal management, and a highly communicative pedal feel. By combining advanced materials, innovative design, and seamless integration with the vehicle's stability systems, M Sport brakes ensure that the exhilarating performance of a BMW is always matched by equally impressive control and safety. For any driver who values precision, confidence, and an engaging connection with their vehicle, the M Sport braking system is an indispensable element of the ultimate driving machine.
