BMW K 1200 S Brake Cleaning Guide

Keeping your BMW K 1200 S, a magnificent piece of German engineering from 2006, in top condition involves meticulous attention to detail, and few areas are more critical to your safety and riding experience than the brakes. The K 1200 S, renowned for its powerful 167 horsepower inline-four engine and superb handling, relies on a robust braking system to match its performance capabilities. Regular cleaning and maintenance of these components are not just about aesthetics; they are paramount for ensuring reliable stopping power and longevity of your brake parts.

The braking system on your 2006 BMW K 1200 S is a sophisticated assembly designed for maximum efficiency. It typically comprises brake levers, brake calipers, brake discs (rotors), brake pads, brake lines, and the master cylinder. Over time, these components can accumulate road grime, brake dust, and moisture, all of which can degrade performance and lead to premature wear. This guide will walk you through the process of cleaning your BMW K 1200 S brakes, ensuring they remain in optimal condition.

Essential Tools and Materials

Before you begin, gather the necessary tools and materials to make the job easier and more effective. Having everything on hand will prevent interruptions and ensure a thorough clean.

• Motorcycle-specific brake cleaner (aerosol spray)
• Degreaser (optional, for stubborn grease)
• Clean, lint-free cloths or microfibre towels
• Soft bristle brush (e.g., an old toothbrush or a dedicated detailing brush)
• Bucket of clean water
• Mild soap (optional, for general cleaning)
• Gloves (nitrile or latex)
• Eye protection (safety glasses)
• Torque wrench (if removing wheels or calipers)
• Wrench set or socket set (appropriate sizes for your bike)
• Wheel cleaner (optional, for cleaning wheels simultaneously)

Step-by-Step Brake Cleaning Process

Follow these steps carefully to clean your BMW K 1200 S brakes. Remember to always work in a well-ventilated area and allow components to dry completely before reassembling or riding.

1. Preparation and Safety First

Park your BMW K 1200 S on a level surface. If you are removing the wheels, ensure the motorcycle is securely supported on a motorcycle stand. Put on your gloves and eye protection. It's advisable to let the brakes cool down if you've been riding recently, as hot components can cause burns.

2. Cleaning the Brake Discs (Rotors)

The brake discs are the primary surface that interacts with the brake pads. They are prone to collecting brake dust and potential contaminants that can reduce friction.

• Initial Wipe-Down: Use a clean, lint-free cloth to wipe down the surface of the brake discs. This will remove any loose dust or debris.
• Brake Cleaner Application: Spray a generous amount of motorcycle-specific brake cleaner directly onto the brake disc surface. Ensure you coat the entire braking area.
• Agitation (if necessary): For more stubborn grime or glazed surfaces, you can use a soft-bristle brush to gently agitate the disc surface while the brake cleaner is working. Avoid using wire brushes or abrasive materials, as these can scratch the disc.
• Wipe and Dry: Use a fresh, clean, lint-free cloth to wipe the disc thoroughly. You should see the brake dust and cleaner residue coming off onto the cloth. Repeat the spray-and-wipe process if necessary until the disc appears clean and free of residue. Allow the discs to air dry completely before proceeding.

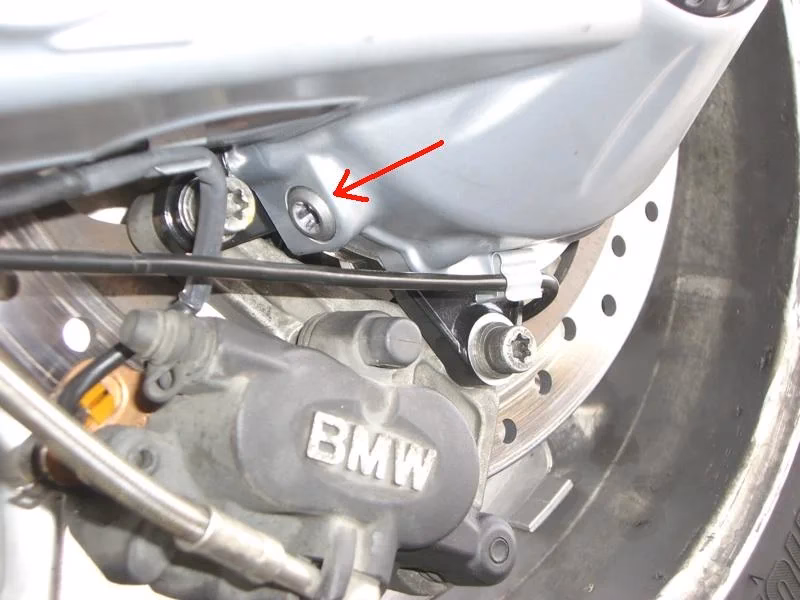

3. Cleaning the Brake Calipers

The brake calipers house the brake pads and pistons. They can accumulate a significant amount of brake dust and road film.

• Accessing the Calipers: Depending on your comfort level and the design of your K 1200 S, you might be able to clean the calipers without removing them. However, for a more thorough clean, removing the wheels and potentially the calipers themselves can be beneficial. If removing the calipers, ensure you support them properly and do not let them hang by the brake lines.
• Brake Cleaner Spray: Spray brake cleaner onto the caliper body, paying attention to areas around the pistons and the mounting points.
• Brushing: Use a soft-bristle brush to scrub away brake dust and grime from the caliper body, around the pistons, and any crevices.
• Wipe Clean: Use clean cloths to wipe away the loosened dirt and brake cleaner. You may need several cloths to get them truly clean.
• Piston Cleaning (Advanced): For a deeper clean, you can carefully retract the brake pistons slightly (if you've removed the calipers or are comfortable doing so). Spray brake cleaner around the exposed portion of the piston and gently wipe with a lint-free cloth. Be careful not to extend the pistons too far out of their bores, as this can cause the seals to dislodge or damage them.

4. Cleaning the Brake Pads

While you're cleaning the calipers, it's a good idea to inspect and clean the brake pads as well. Worn or contaminated pads can significantly reduce braking performance.

• Inspection: Check the thickness of your brake pads. If they are worn down to the wear indicator line or below 2mm, they need replacing. Also, look for any glazing, scoring, or embedded debris on the pad surface.
• Cleaning: Lightly spray the surface of the brake pads with brake cleaner. Use a soft brush to gently scrub away any accumulated dust or light glazing. Avoid soaking the pads in cleaner for extended periods.
• Surface Preparation (for Glazed Pads): If your brake pads appear glazed (smooth and shiny), a light sanding with fine-grit sandpaper (e.g., 220-grit) can help restore their surface texture. After sanding, clean them thoroughly with brake cleaner.

5. Cleaning the Brake Lines and Master Cylinder

While less prone to direct contamination, the brake lines and master cylinder reservoir can benefit from a general clean.

• Wipe Down: Use a damp cloth to wipe down the brake lines (hoses) and the master cylinder reservoir. For the reservoir, be careful not to let water or cleaning solutions get into the brake fluid.
• Brake Fluid Check: While you're there, check the brake fluid level in the master cylinder reservoir. Ensure it is between the minimum and maximum marks. If it's low, it could indicate a leak or worn pads, and you'll need to top it up with the correct type of brake fluid for your BMW K 1200 S (refer to your owner's manual for the specific type).

6. Reassembly and Final Checks

Once all components are clean and dry:

• Reassemble: If you removed any parts, reassemble them carefully. If you removed the wheels, ensure they are properly seated and secured. If you removed the calipers, re-mount them and tighten the mounting bolts to the manufacturer's specified torque using a torque wrench.
• Pump the Brakes: Before riding, it is crucial to pump the brake levers several times. This will re-seat the brake pads against the discs and build pressure in the brake system. The levers should feel firm and not spongy.
• Test Ride: Take a short, slow test ride in a safe area to confirm that the brakes are working effectively. Listen for any unusual noises and check for proper stopping power.

Table: Common Brake Issues and Solutions

Here's a quick reference for common brake problems you might encounter and how cleaning can help.

Frequently Asked Questions (FAQs)

Q1: How often should I clean my BMW K 1200 S brakes?

It's recommended to clean your brakes at least every few thousand miles or at the beginning of each riding season. You should also clean them if you notice a significant buildup of brake dust or a decrease in performance.

Q2: Can I use household cleaners on my brakes?

No, it's strongly advised against using household cleaners. Many contain solvents or chemicals that can damage rubber seals, plastic components, or the brake pads themselves. Always use a motorcycle-specific brake cleaner.

Q3: What is the correct brake fluid for my 2006 BMW K 1200 S?

Consult your owner's manual for the precise specification. Typically, BMW motorcycles use DOT 4 or DOT 5.1 brake fluid. Using the wrong type can damage your braking system.

Q4: Do I need to replace my brake pads every time I clean the brakes?

Not necessarily. Cleaning is maintenance. You only need to replace brake pads if they are worn down to their minimum thickness or show signs of damage or severe glazing that cannot be rectified by cleaning.

Q5: What's the difference between cleaning and bleeding the brakes?

Cleaning focuses on removing dirt and debris from the physical components of the braking system. Bleeding the brakes involves removing old brake fluid and any air that may have entered the system, replacing it with fresh fluid to ensure optimal hydraulic pressure and performance. Cleaning is a routine maintenance task, while bleeding is typically done when the fluid is old, contaminated, or after work has been done on the brake lines or master cylinder.
By following this comprehensive guide, you can ensure that the braking system on your 2006 BMW K 1200 S remains in excellent condition, providing you with the confidence and safety you need for every ride. Remember, well-maintained brakes are a rider's best friend.
