BMW Engine Oil Check Guide

Checking Your BMW's Engine Oil: A Comprehensive Guide

Ensuring your BMW's engine is adequately lubricated is crucial for its longevity and performance. While modern BMWs have sophisticated systems to monitor oil levels, understanding how to check it yourself can provide peace of mind and help you catch potential issues early. This guide will walk you through the process, covering everything from older models with traditional dipsticks to the latest electronic monitoring systems and even plug-in hybrids.

The Evolution of Oil Level Checks in BMWs

The way you check your BMW's engine oil has evolved significantly over the years. If you're fortunate enough to own a BMW from the late 1990s or early 2000s (pre-2005 model year), you'll likely still have a trusty physical oil dipstick. For newer models, BMW has transitioned to electronic oil level monitoring, integrated into the iDrive system. This shift reflects the increasing complexity and technological integration within modern vehicles.

Checking Oil on Older BMWs (Pre-2005)

For BMWs equipped with a traditional oil dipstick, the process is straightforward:

1. Ensure the engine is off and has had a few minutes to cool down. This allows the oil to settle back into the oil pan, providing a more accurate reading.
2. Locate the oil dipstick. It's usually a brightly coloured loop or handle (often yellow or orange) situated in the engine bay. Consult your owner's manual if you're unsure of its exact location.
3. Pull the dipstick out carefully.
4. Wipe the dipstick clean with a lint-free cloth or paper towel. It's important to remove all traces of oil to get an accurate reading.
5. Reinsert the dipstick fully, then pull it out again.
6. Read the oil level. The dipstick will have markings, typically two horizontal notches or a cross-hatched area, indicating the minimum and maximum oil levels. Your oil level should be between these two marks.

Pro-tip: Always use a clean cloth to avoid introducing contaminants into your engine oil.

Checking Oil on Newer BMWs (Post-2005) with Electronic Monitoring

Starting around the 2005 model year, BMW began phasing out physical dipsticks in favour of electronic oil level sensors. If your BMW doesn't have a dipstick, you'll be relying on the iDrive system:

The process for checking the oil level via the iDrive system typically involves the following steps:

1. Start the engine and allow it to reach its normal operating temperature. This is crucial for an accurate electronic reading.
2. Ensure the vehicle is parked on a level surface.
3. Engage the parking brake and select 'Park' (for automatic transmissions) or 'Neutral' (for manual transmissions).
4. Access the vehicle information menu through the iDrive controller. The exact path may vary slightly depending on your iDrive version, but it's usually found under 'Vehicle Info', 'Service Information', or a similar option.
5. Navigate to the 'Engine Oil' or 'Oil Level' option.
6. Select 'Check Oil Level' or 'Measure Oil Level'. Your BMW will then perform a measurement. This may take a few moments, and you might see a graphic indicating the system is working.
7. Read the result displayed on the iDrive screen. It will indicate whether the oil level is optimal, low, or requires attention.

Important Note: Some BMWs require the engine to be running for the electronic oil check. Always refer to your owner's manual for the specific procedure for your model.

Checking Oil in BMW Plug-in Hybrids

Checking the oil in a BMW plug-in hybrid presents a unique scenario. Since the petrol engine needs to be at operating temperature, and the electric motor often powers the vehicle when stationary, you might wonder how the check is performed. BMW has implemented a special procedure:

1. Follow the iDrive prompts for checking the oil level.
2. The system will instruct you to be in Park or Neutral. When you select this, the petrol engine will typically start to bring the oil up to temperature and perform the measurement, even though the RPM gauge might not reflect it conventionally.
3. The iDrive system will display the result once the measurement is complete.

This intelligent system ensures that even in hybrid configurations, you can accurately monitor your engine oil level.

Understanding BMW's Oil Change Intervals and Monitoring

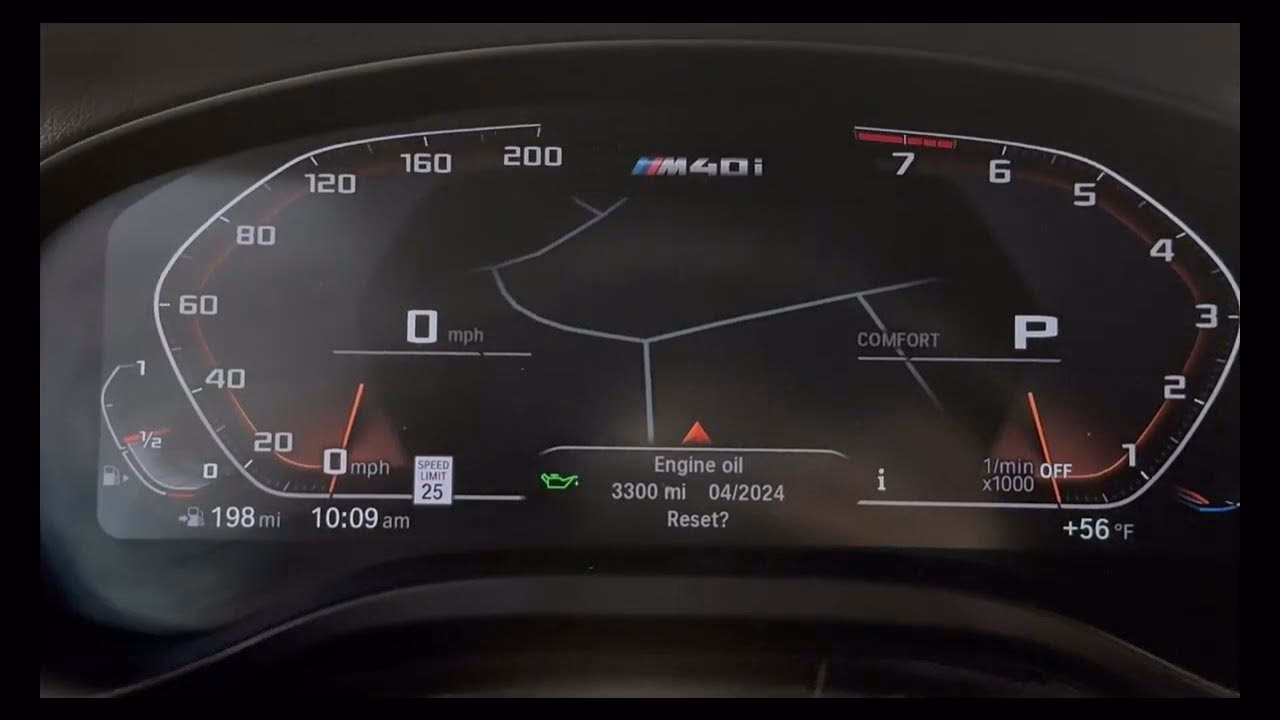

BMW's Condition Based Service (CBS) system monitors various factors, including driving style, mileage, and time, to determine when your vehicle needs servicing, including oil changes. The iDrive system will display a notification when an oil change is due, often with a mileage estimate remaining.

How accurate is the CBS system?

The CBS system is generally quite accurate in its recommendations. It takes into account:

• Driving conditions: Frequent short trips, stop-and-go traffic, and high-performance driving can all affect the oil's degradation rate.
• Engine revolutions: The total number of times the engine has turned over is a key metric.
• Driving style: Aggressive acceleration and braking can put more stress on the oil.

While the system is sophisticated, some owners prefer to check the oil more frequently or change it based on their personal observations or driving habits. If you've been driving extensively or in demanding conditions, and the iDrive indicates a significant mileage remaining for the oil change, it's still a good idea to perform a manual check.

Warning Lights and What They Mean

BMW vehicles are equipped with warning lights to alert you to potential issues. In the context of engine oil:

• Yellow Oil Warning Light: This typically indicates that the engine oil level is low. It's a signal to check your oil at your earliest convenience and top it up if necessary. Think of it as a "caution, add oil soon" warning.
• Red Oil Warning Light: This is a more serious warning, indicating critically low oil levels or a potential oil pressure issue. If you see a red oil warning light, you should pull over safely as soon as possible and turn off the engine to prevent severe damage.

Always pay close attention to these warnings and consult your owner's manual for specific interpretations.

When to Check Your Oil Manually

While BMW's systems are designed to keep you informed, there are times when a manual check is advisable:

• Before a long journey: Ensure your oil level is optimal for extended driving.
• If you notice any unusual engine noises: A sudden change in engine sound could indicate lubrication issues.
• If you plan performance driving: Events like autocross or track days can put extra strain on your engine and oil.
• If you're curious: Simply wanting to understand your car's condition better is a valid reason.

Frequently Asked Questions

Q1: How often should I check my BMW's engine oil?
BMW's Condition Based Service will notify you when an oil change is due. However, it's good practice to visually check the oil level monthly or before any long journeys, especially if your car is older or you have concerns.

Q2: My iDrive says the oil level is fine, but the oil looks dark. Should I change it?
While the colour of the oil can be an indicator, the electronic system monitors more than just appearance. If the iDrive system says it's okay, and you haven't experienced any performance issues, you can generally trust its recommendation. However, if the oil looks very gritty or sludgy, it might be worth considering an earlier oil change.

Q3: Can I overfill my BMW with oil?
Yes, overfilling can be detrimental to your engine. It can cause foaming, increase oil pressure, and lead to seal damage. Always adhere to the recommended oil capacity and check the level carefully after adding oil.

Q4: What type of oil should I use for my BMW?
Always use the specific type and viscosity of oil recommended in your BMW's owner's manual. Using the wrong oil can lead to poor performance and potential engine damage.

Q5: My BMW is over 20 years old. Does it definitely have a dipstick?
Generally, yes. BMW models from the late 1990s and early 2000s (up to approximately the 2005 model year) are highly likely to have a physical dipstick. However, it's always best to confirm by checking your specific model's engine bay or owner's manual.

Conclusion

Whether you're driving a classic BMW with a dipstick or a modern technological marvel with electronic monitoring, understanding how to check your engine oil is a fundamental aspect of vehicle ownership. By following these guidelines and paying attention to your car's indicators, you can ensure your BMW's engine remains well-lubricated and performs at its best for years to come.
