DIY Brake Caliper Bracket Removal: A UK Guide

Tackling your car's brakes can seem a daunting task, especially when faced with eye-watering dealership quotes. Yet, with the right knowledge, tools, and a bit of patience, it’s a perfectly achievable DIY project that can save you a significant sum. For instance, a BMW owner recently faced a £2,000+ quote for new pads and discs – a job that, with a heated garage and the right guidance, can be completed for a fraction of the cost. This guide will walk you through the precise steps of removing a brake caliper bracket, an essential part of a full disc and pad replacement, ensuring you approach the task with confidence and competence.

Understanding the components of your braking system is the first step towards a successful repair. The brake caliper bracket, also known as the caliper carrier, is a robust metal component that bolts directly to the vehicle's hub assembly. Its primary function is to securely hold the brake caliper in place, allowing it to slide back and forth (in the case of a floating caliper) or remain fixed (for a fixed caliper) as the brake pads clamp down on the disc. Removing this bracket is often necessary when replacing brake discs, as it provides the clearance needed to slide the old disc off and fit a new one. It's also an opportune time to inspect the bracket itself for any signs of wear or damage, though replacement is rarely needed unless it has been physically impacted.

Essential Tools for the Job

Before you even think about loosening a bolt, gather all the necessary tools. Having everything to hand will streamline the process and prevent frustrating delays. Here’s what you’ll typically need:

• Vehicle Jack and Jack Stands: Absolutely non-negotiable for safety. Never work under a vehicle supported only by a jack.
• Wheel Nut Wrench/Socket: To remove the wheel.
• Breaker Bar: For stubborn bolts, especially the caliper bracket bolts which are often very tight.
• Socket Set: A good quality set with a range of sizes, including larger sockets (e.g., 18mm, 19mm, 21mm) for caliper bracket bolts.
• Torque Wrench: Crucial for reassembly to ensure bolts are tightened to manufacturer specifications, preventing loose components or overtightening damage.
• Wire Brush: For cleaning rust and debris from mounting surfaces.
• Brake Cleaner: To degrease and clean components.
• Copper Grease/Anti-Seize Compound: For bolt threads and mating surfaces during reassembly.
• Gloves: For protection from grease and dirt.
• Eye Protection: Essential safety gear.
• C-Clamp or Brake Pad Spreader: To compress the caliper piston(s).
• Flathead Screwdriver/Pry Bar: For removing retaining clips or gently prying components.
• Rubber Mallet (optional): For stubborn discs.

Safety First: Your Top Priority

Working on your car's braking system requires utmost attention to safety. Brakes are a critical safety component, and any shortcuts or improper procedures can have severe consequences. Always adhere to these safety guidelines:

• Park on a Flat, Level Surface: Ensure the vehicle is stable.
• Engage the Parking Brake: If working on the rear wheels.
• Chock the Wheels: Place chocks on the wheels that are remaining on the ground to prevent any movement.
• Use Jack Stands: Once the vehicle is lifted, immediately place sturdy jack stands under appropriate jacking points and lower the vehicle onto them. Never rely solely on the jack.
• Wear Personal Protective Equipment (PPE): Always use safety glasses and gloves.
• Allow Components to Cool: If the car has been driven recently, the brakes will be hot. Give them ample time to cool down before working on them.
• Avoid Contaminating Brake Pads/Discs: Keep any grease, oil, or brake fluid off the friction surfaces.
• Do Not Get Brake Fluid on Paintwork: Brake fluid is corrosive to paint.

Step-by-Step Caliper Bracket Removal Guide

This detailed procedure assumes you are working on a typical floating caliper system, which is common on most passenger vehicles, including BMWs. Always refer to your vehicle's specific service manual for exact torque specifications and any model-specific peculiarities.

Step 1: Prepare the Vehicle and Remove the Wheel

Loosen the wheel nuts slightly while the car is still on the ground. Then, using your jack, lift the vehicle to a safe working height and position the jack stands securely. Slowly lower the vehicle onto the jack stands. Once stable, fully remove the wheel nuts and carefully take off the wheel, setting it aside safely.

Step 2: Remove the Brake Caliper

The caliper itself needs to be removed before you can access the bracket. This typically involves two guide pin bolts (sometimes called slider pins) located at the back of the caliper. These are usually smaller bolts (e.g., 13mm, 14mm, or Allen/Torx heads) that allow the caliper to slide. Loosen and remove these bolts. Once removed, the caliper should be able to pivot or lift off the disc. Do NOT let the caliper hang by its brake hose. This can damage the hose and lead to a catastrophic brake failure. Use a bungee cord, zip tie, or a piece of wire to suspend the caliper safely from the suspension component (e.g., spring, shock absorber) ensuring there's no strain on the brake hose. At this point, you may also need to remove the old brake pads from the caliper or the bracket.

Step 3: Access and Identify Caliper Bracket Bolts

With the caliper safely out of the way, you will now clearly see the brake caliper bracket. It's the substantial piece of metal that was holding the caliper and is bolted directly to the steering knuckle or hub assembly. You'll typically find two large, high-torque bolts securing it. These are often 18mm, 19mm, 21mm, or sometimes Torx or Allen head bolts, and they are usually very tight from the factory.

Step 4: Loosen the Caliper Bracket Bolts

This is where your breaker bar comes into play. Due to the high torque settings and potential for corrosion, these bolts can be incredibly stubborn. Fit the correct size socket onto one of the bolts. Apply steady, increasing pressure to the breaker bar. You may hear a loud 'crack' as the bolt initially breaks free; this is normal. Repeat for the second bolt. If they are extremely tight, a sharp tap on the end of the breaker bar with a rubber mallet can sometimes help, or a squirt of penetrating oil (like WD-40) and letting it soak for a few minutes. Ensure your socket is fully seated to avoid stripping the bolt head.

Step 5: Remove the Caliper Bracket

Once both bolts are loose, you can unscrew them completely by hand or with a ratchet. Carefully slide the caliper bracket off the hub assembly. It might be slightly stuck due to rust or friction; a gentle wiggle or a light tap with a rubber mallet can help free it. Once removed, you will have clear access to the brake disc, which can now be easily removed. If the disc is stuck, a few firm taps with a rubber mallet around the hub face (not the braking surface) can help free it. Some vehicles also have a small retaining screw on the disc face that needs to be removed first.

Common Challenges and Troubleshooting

Even with the right tools, you might encounter a few hurdles:

• Stuck or Seized Bolts: This is perhaps the most common issue. Use plenty of penetrating oil and let it soak. A breaker bar is essential. For extreme cases, heat can be applied carefully with a torch, but this should only be done by experienced individuals, as it can be dangerous and damage surrounding components. Impact wrenches are also very effective but not always available to the DIY mechanic.
• Stripped Bolt Heads: If the socket slips and rounds off the bolt head, you're in a tricky situation. Special bolt extraction sockets are available, or in severe cases, the bolt may need to be drilled out, which is a significant undertaking. Prevention is key: always use the correct size socket and ensure it's fully seated.
• Corrosion: Rust can make components stick together. A wire brush is invaluable for cleaning rust from the hub face and bracket mounting points.
• Brake Disc Stuck to Hub: If the disc won't come off, it's usually rust bonding it to the hub. A few firm taps with a rubber mallet or even a regular hammer (on the hub section, not the braking surface, and with caution) can break it free. Some discs have threaded holes specifically for jacking bolts to push the disc off.

Reinstallation Tips and Best Practices

Once the old components are off, clean everything thoroughly. Use a wire brush to remove any rust or debris from the hub face where the new disc will sit and from the caliper bracket mounting points. Apply a thin layer of copper grease or anti-seize to the hub face (avoiding the stud threads) to prevent future seizing. When installing the new brake disc, ensure it sits flush against the hub.

Before reinstalling the caliper bracket, clean the old bolts thoroughly and apply a small amount of thread locker (blue, medium strength) or anti-seize to the threads as per your vehicle's specific recommendations. Torque these bolts to the manufacturer's specified setting using your torque wrench. This is critical for safety and proper function.

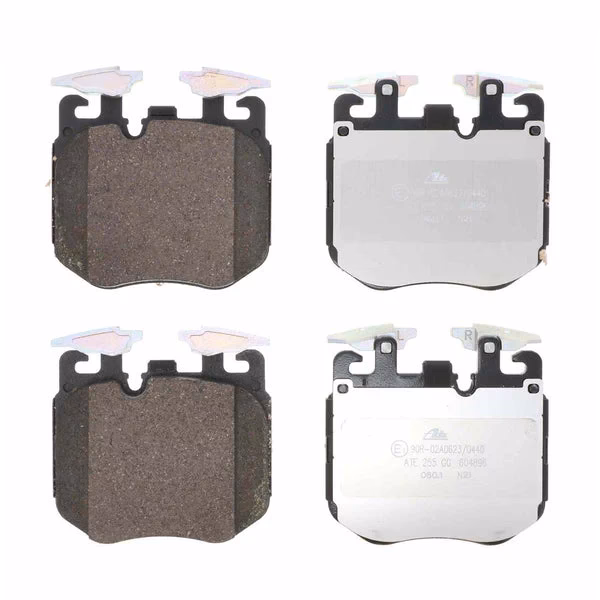

When reinstalling the caliper, ensure the guide pins are clean and greased with appropriate silicone-based brake grease. Compress the caliper piston(s) using a C-clamp or brake pad spreader to make room for the new, thicker brake pads. Remember to re-attach the caliper carefully, ensuring the brake hose isn't twisted or strained. Once the wheel is back on and torqued, pump the brake pedal several times before driving to ensure the pistons are properly seated against the new pads. Finally, perform a bedding-in procedure for your new pads and discs as recommended by the manufacturer.

When to Consider Professional Help

While this is a very achievable DIY task, there are instances where calling in a professional is the wisest course of action. If you encounter severely seized or stripped bolts that you cannot safely remove, or if you feel uncomfortable at any stage of the process, it's better to stop and seek assistance. Brakes are too important to compromise on safety.

Comparative Costs: DIY vs. Dealership

Let's look at the financial aspect, which often drives the decision to DIY. The user's scenario involved a BMW with a £2,000+ dealership quote for parts and labour, while OEM parts alone were around £1,000.

As you can see, the savings are substantial, potentially freeing up hundreds, if not thousands, of pounds for other vehicle enhancements, like the paint correction and ceramic coat mentioned by our example BMW owner. Choosing quality aftermarket parts can further reduce costs without necessarily compromising safety or performance, provided you research reputable brands.

Frequently Asked Questions (FAQs)

Q1: How long does it typically take to remove a caliper bracket and replace discs/pads?

For a DIY mechanic with moderate experience, replacing pads and discs on one axle (two wheels) can take anywhere from 2 to 4 hours. If you're tackling all four wheels, expect 4 to 8 hours, depending on any seized bolts or unexpected issues. Having all your tools ready and following a clear procedure will significantly speed up the process.

Q2: Do I need any special tools specifically for the caliper bracket?

While most of the tools are standard, a breaker bar is highly recommended for the caliper bracket bolts due to their high torque. A good quality set of large sockets (often 18mm, 19mm, 21mm, or specific Torx/Allen sizes depending on your car) is also essential. A torque wrench is crucial for proper reassembly, ensuring bolts are tightened to the manufacturer's specifications.

Q3: What if the caliper bracket bolts are too tight to loosen?

This is a common issue. Ensure you're using a proper breaker bar and a securely seated socket. Apply penetrating oil liberally and allow it to soak for at least 15-30 minutes. If possible, use a longer cheater pipe on your breaker bar for increased leverage (but be mindful of stability). In extreme cases, a controlled application of heat with a propane torch (to expand the metal) can help, but this should be done with extreme caution and only if you are confident in doing so safely, as it can damage surrounding components.

Q4: Can I reuse the old caliper bracket bolts?

Generally, it's recommended to replace high-torque bolts, especially those that are "torque-to-yield" (TTA) or "stretch bolts," as they are designed to stretch slightly upon initial tightening and can weaken if reused. Always check your vehicle's service manual for specific recommendations. If new bolts aren't supplied with your brake kit, it's a good idea to purchase them separately. If reusing, ensure threads are clean and apply blue (medium strength) thread locker or anti-seize as specified by the manufacturer.

Q5: How do I find the correct torque specifications for my vehicle?

The most reliable source for torque specifications is your car's official service manual. You can often find digital versions online or purchase a Haynes or Chilton manual specific to your make and model. Websites like AllDataDIY or specific manufacturer service portals also provide this information. Never guess torque settings; improper tightening can lead to dangerous failures.

Q6: Do I need to bleed the brakes after removing the caliper bracket?

No, simply removing the caliper bracket and replacing discs and pads does not typically require bleeding the brakes, as the hydraulic system remains sealed. You only need to bleed the brakes if you open the hydraulic system (e.g., disconnect a brake hose, replace a caliper, or introduce air into the lines). However, it's always a good idea to check your brake fluid level and condition and top it up or replace it if necessary as part of general maintenance.

By following these steps and prioritising safety, you can successfully remove your brake caliper bracket and complete your brake service, saving money and gaining a valuable understanding of your vehicle's mechanics. The satisfaction of a job well done, combined with the significant financial savings, makes this a truly rewarding DIY project.
