BMW F800 S Braking System: A Deep Dive

When it comes to motorcycling, few aspects are as crucial as the braking system. It’s the rider’s primary defence, the difference between a controlled stop and a potential incident. For owners of the BMW F800 S, understanding the intricacies of its braking setup isn’t just about maintenance; it’s about ensuring every ride is as safe and exhilarating as intended. This robust machine, known for its balanced performance and engaging ride, relies on a sophisticated braking architecture to bring its impressive capabilities to a halt with confidence and precision.

The BMW F800 S, a popular choice among riders seeking a versatile and capable sports tourer, is equipped with a braking system designed to handle a variety of riding conditions, from spirited commutes to long-distance touring. While the general principles of motorcycle brakes are universal, the specific dimensions, components, and integrated technologies found on the F800 S are tailored to its weight, power, and intended use. Neglecting this vital system can compromise not only performance but, more importantly, rider safety and control. Let's delve into the specifics of what makes the F800 S's stopping power so effective and how to keep it in peak condition.

The Heart of Stopping Power: BMW F800 S Braking System Overview

At its core, the BMW F800 S utilises a conventional yet highly effective disc brake system for both its front and rear wheels. This setup provides the modulated stopping power necessary for a motorcycle of its calibre. However, it's the precise sizing of the discs, the quality of the calipers, and the integration of advanced rider aids like Anti-lock Braking System (ABS) that truly elevate its performance.

The F800 S, depending on the model year and optional extras chosen, typically features a well-regarded braking package. The front end, which handles the majority of braking forces, is equipped with a dual-disc setup, while the rear features a single disc. This configuration is standard for many performance motorcycles, providing a balanced approach to deceleration.

Front Brake Mastery: Dual Discs and Potent Calipers

The front braking system on the BMW F800 S is undoubtedly the powerhouse of its stopping capability. It features dual floating brake discs, each measuring a substantial 320mm in diameter. These large discs are critical for dissipating the immense heat generated during heavy braking, preventing fade and maintaining consistent performance.

The term 'floating' discs refers to their design, where the rotor is not rigidly fixed to the hub but is allowed a small amount of lateral movement. This design helps to prevent disc warping under extreme heat and ensures the brake pads make full, even contact with the disc surface, leading to more efficient and consistent braking. Paired with these impressive discs are radial-mount Brembo calipers. These calipers typically feature four pistons each, providing a strong, progressive bite on the discs. Radial mounting offers increased rigidity over traditional axial mounting, reducing flex and improving feedback at the lever, which translates to better feel and control for the rider.

Rear Brake Stability: The Supporting Role

While the front brakes do the lion's share of the work, the rear braking system plays a crucial supporting role, especially in low-speed manoeuvres, stability during braking, and emergency stops. The BMW F800 S is equipped with a single rear brake disc, typically measuring 265mm in diameter. This disc is paired with a two-piston floating caliper, also supplied by Brembo.

The rear brake is essential for fine-tuning speed, particularly in tight turns or when navigating congested areas. It helps to settle the bike's chassis during braking and can prevent the front wheel from diving excessively under heavy front braking. Mastering the use of both front and rear brakes simultaneously is a hallmark of skilled riding and is vital for optimal stopping distances and control.

The Safety Net: BMW Motorrad ABS Technology

A significant safety feature often found on the BMW F800 S is the BMW Motorrad ABS (Anti-lock Braking System). While initially an optional extra on some earlier models, ABS became standard on many later iterations due to its proven benefits. ABS is a sophisticated electronic system designed to prevent the wheels from locking up under heavy braking, particularly on slippery surfaces or during panic stops. By rapidly modulating brake pressure, it allows the rider to maintain steering control, a critical factor in accident avoidance.

The ABS system on the F800 S uses sensors on each wheel to monitor their rotational speed. If a wheel begins to lock up, the ABS computer momentarily releases and then reapplies brake pressure many times per second, allowing the tyre to regain traction. This technology significantly enhances rider confidence and safety, especially in unpredictable road conditions.

Beyond the Metal: Essential Braking Components Explained

Beyond the discs and calipers, several other components are vital to the overall performance of the F800 S braking system:

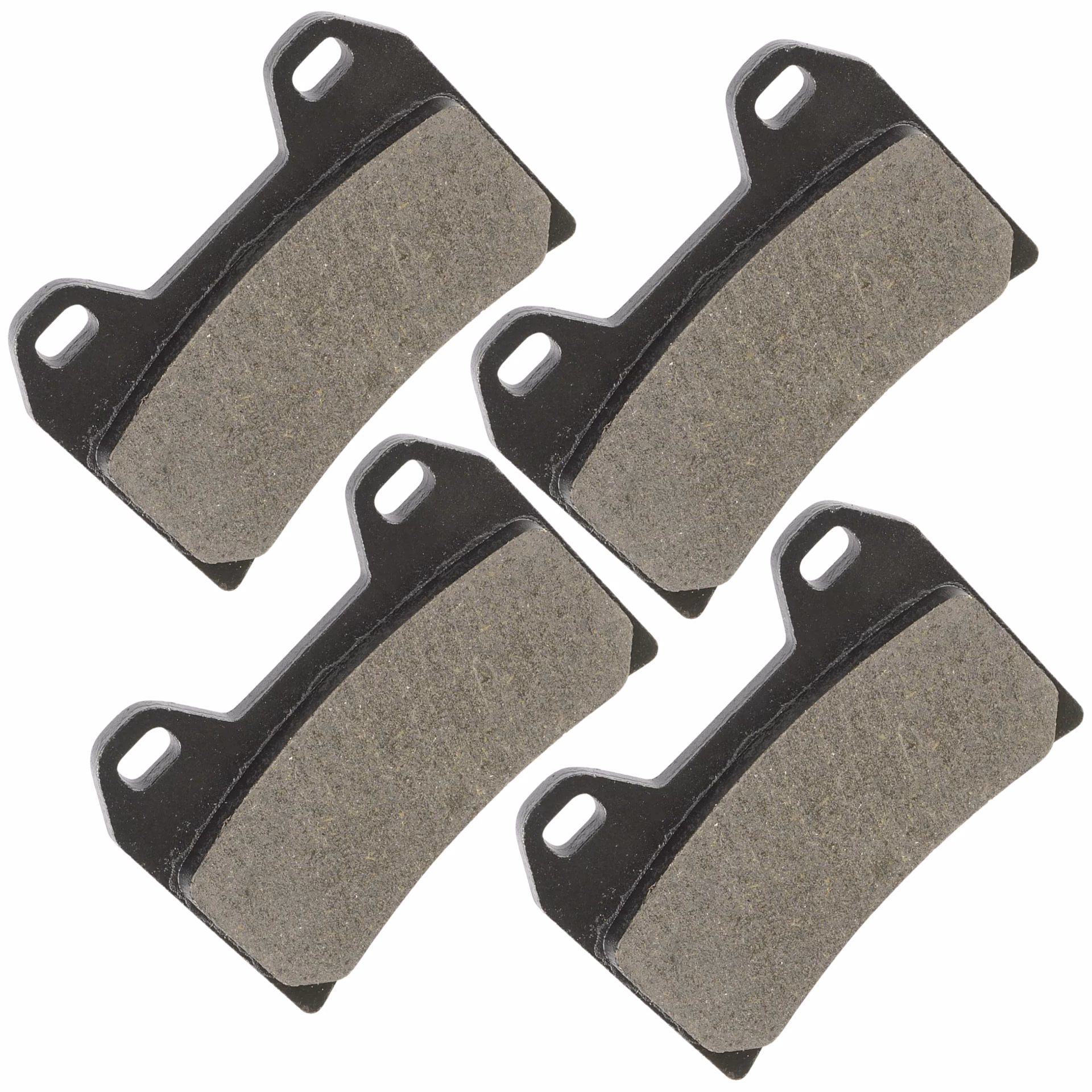

• Brake Pads: These are the friction material that presses against the brake discs to create stopping power. They come in various compounds, including organic, sintered, and ceramic, each with different characteristics regarding wear, heat resistance, and initial bite. Matching the correct pad compound to your riding style and conditions is crucial.
• Brake Fluid: The hydraulic medium that transmits pressure from the brake lever/pedal to the calipers. The F800 S typically uses DOT 4 brake fluid. Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. This moisture lowers its boiling point, which can lead to a 'spongy' feel or even complete brake fade during heavy use. Regular brake fluid changes are therefore paramount.
• Brake Lines: These are the conduits through which the brake fluid travels. Original equipment lines are typically rubber, which can expand slightly under pressure, leading to a less direct feel. Many riders opt to upgrade to braided stainless steel lines, which offer a firmer, more consistent lever feel due to their minimal expansion.

Maintaining Your Stopping Prowess: A Comprehensive Guide

Regular and thorough maintenance is the cornerstone of a safe and effective braking system. Neglecting any part of this critical system can lead to reduced performance, increased wear, and ultimately, a compromised riding experience and safety.

Regular Visual Inspections

Before every ride, or at least weekly, perform a quick visual check. Look at the brake pads for wear – most have wear indicators. Check the brake discs for any signs of deep grooves, scoring, or discolouration, which might indicate overheating or uneven wear. Examine the brake fluid reservoir level – it should be between the 'min' and 'max' lines. Also, check the brake lines for any signs of cracking, chafing, or leaks, especially around the banjo bolts.

Brake Fluid Replacement

As mentioned, brake fluid absorbs moisture. This process degrades the fluid's performance and can lead to internal corrosion within the braking system. BMW typically recommends replacing the brake fluid every two years, regardless of mileage. This is a critical service item that is often overlooked. A professional brake bleed ensures all old fluid is replaced with fresh, high-quality DOT 4 fluid, restoring optimal performance and longevity to the system.

Brake Pad Replacement

Brake pads are wear items and will need replacing periodically. The lifespan of pads depends heavily on riding style, road conditions, and pad compound. Signs that pads need replacing include: the wear indicator being visible, a noticeable decrease in braking performance, a grinding noise (indicating metal-on-metal contact), or a significant increase in brake lever travel. When replacing pads, it's good practice to clean the caliper pistons and ensure they move freely, applying a thin layer of appropriate brake grease to the back of the pads and caliper pins to prevent squealing.

Disc Health

Brake discs also wear over time, albeit much slower than pads. They have a minimum thickness specified by the manufacturer (often stamped on the disc itself). If the disc falls below this thickness, it must be replaced as it can warp or even crack under braking forces. Warped discs are usually identified by a pulsating feel at the brake lever or pedal during braking. While minor surface imperfections can sometimes be tolerated, deep grooves or severe warping necessitate disc replacement.

Caliper Care

Brake calipers are exposed to road grime and high temperatures. Regular cleaning and inspection of the calipers are important. Check the rubber dust seals around the pistons for damage. If they are torn, moisture and dirt can enter, leading to corrosion and sticky pistons. Calipers should be serviced periodically, which involves removing the pistons, cleaning them, inspecting the seals, and reassembling with fresh brake fluid.

Bleeding the System

Proper brake bleeding is essential whenever the system has been opened (e.g., fluid change, caliper removal) or if the brake lever feels 'spongy' due to air in the lines. Air is compressible, unlike brake fluid, and will lead to a soft lever and reduced braking power. Bleeding ensures all air is expelled, restoring a firm, responsive brake lever. This process can be intricate, especially with ABS systems, and often benefits from specialist tools or professional execution.

Troubleshooting Common Braking Issues

• Spongy Brake Lever: Often indicative of air in the hydraulic system or old, moisture-laden brake fluid. A thorough bleed and fluid flush are usually the remedies.
• Squealing Brakes: Can be caused by worn pads, dirt or contamination on the pads/discs, improper installation, or sticky caliper pistons. Cleaning, new pads, or caliper service can resolve this.
• Pulsating Brake Lever: Almost always a sign of a warped brake disc. The disc will need to be replaced.
• Excessive Lever Travel: Could indicate air in the system, severely worn pads, or a master cylinder issue.
• Brake Fade: A loss of braking power, usually under heavy, prolonged use, often due to overheating brake fluid or pads. Ensure fresh fluid and appropriate pad compound.

BMW F800 S Braking System Specifications

Your Braking Questions Answered: Frequently Asked Questions

How often should I change brake fluid on an F800 S?

It is generally recommended to change the brake fluid every two years, regardless of mileage. This is because brake fluid absorbs moisture over time, which lowers its boiling point and can lead to internal corrosion within the braking system. This biennial replacement ensures optimal performance and safety.

What are the signs of worn brake pads?

Common signs include a squealing or grinding noise when braking (indicating metal-on-metal contact), a noticeable decrease in braking efficiency, increased brake lever travel, or visual inspection revealing that the friction material is thin or the wear indicators are exposed. Some pads also have a built-in sensor that triggers a dashboard warning light.

Can I upgrade my F800 S brakes?

Yes, common upgrades include switching to braided stainless steel brake lines for a firmer lever feel, or experimenting with different brake pad compounds (e.g., sintered pads for more aggressive braking, or ceramic for less dust and noise). More significant upgrades, like larger discs or different calipers, are possible but require careful consideration and professional installation to ensure compatibility and safety.

Is ABS really necessary?

While some riders prefer the raw feel of non-ABS brakes, ABS significantly enhances safety, especially in emergency braking situations or on low-grip surfaces. It helps prevent wheel lock-up, allowing the rider to maintain steering control, which can be critical in avoiding obstacles. For most riders, the added safety margin provided by ABS is well worth it.

What type of brake pads should I use?

The choice of brake pads depends on your riding style. Organic pads are generally softer, quieter, and kinder to discs, ideal for general road use. Sintered pads offer more aggressive bite and better performance in wet conditions or under heavy use, often preferred by sportier riders but can be harder on discs. Ceramic pads offer a good balance of performance, low dust, and quiet operation. Always ensure the pads are compatible with your F800 S model.

Why are my brakes squealing?

Brake squeal can be caused by several factors: worn pads, dirt or debris trapped between the pad and disc, improper pad installation (e.g., lack of anti-squeal shims or grease), or sticky caliper pistons causing uneven pad contact. Cleaning the caliper, replacing worn pads, and ensuring proper reassembly are usually the first steps to resolving squeal.

Conclusion

The braking system of the BMW F800 S is a testament to BMW Motorrad's commitment to performance and safety. With its substantial 320mm front discs, powerful Brembo calipers, and the added security of ABS, it provides the rider with excellent stopping power and control. However, even the most advanced systems require diligent maintenance. Regular inspections, timely fluid changes, and appropriate pad and disc replacements are not merely recommendations; they are essential practices for preserving the integrity and effectiveness of your F800 S's brakes.

Understanding the components, their function, and the signs of wear empowers you to make informed decisions about your motorcycle's upkeep. Investing time and effort into maintaining your braking system ensures that every twist of the throttle is matched by equally reliable stopping power, allowing you to ride with confidence and enjoy the full potential of your BMW F800 S for years to come. Remember, when it comes to brakes, there's no substitute for proper care and attention – your safety depends on it.
