BMW F30 Brake Pad Warning Light: The Reset Riddle

Few things are as frustrating for a BMW owner as seeing a persistent warning light on the dashboard, especially one related to safety systems like the brakes. You've gone through the effort of replacing your brake pads, perhaps even the sensors, only to be greeted by that stubborn brake pad warning light refusing to clear. For owners of the BMW F30, this isn't an uncommon scenario, leading to confusion and concern. This comprehensive guide will delve into the intricacies of your BMW's brake pad warning system, uncover the reasons why it might not reset, and provide actionable steps, including the use of diagnostic tools, to resolve the issue and restore your peace of mind on the road.

Understanding Your BMW F30's Brake Pad Warning System

Before diving into troubleshooting, it's essential to understand how your BMW's brake pad warning system operates. BMWs, including the F30 series, utilise a sophisticated system designed to alert drivers when their brake pads have worn down to a critical level, necessitating replacement. This system relies primarily on brake pad wear sensors.

These sensors are small, typically single-use components integrated into one or more brake pads on each axle (usually front left and rear right, but consult your specific model's documentation). As the brake pad wears down, the sensor's tip, made of a conductive material, eventually comes into contact with the rotating brake rotor. This contact wears through the sensor's circuit, breaking the electrical continuity. Once the circuit is broken, the vehicle's Electronic Control Unit (ECU), often referred to as the car's computer, detects this change and triggers the brake pad warning light on your instrument cluster. This light serves as a crucial reminder that it's time for maintenance.

When new brake pads are installed, along with a new sensor, the circuit should be re-established, and the ECU should recognise that the pads are fresh. However, as many F30 owners discover, resetting this warning light isn't always as simple as a plug-and-play operation. The system requires a manual reset procedure, which, if unsuccessful, points to an underlying issue.

Common Reasons Your Brake Pad Warning Light Won't Reset

A non-resettable brake pad warning light can be attributed to several factors, ranging from installation errors to deeper electrical or software issues. Understanding these potential causes is the first step towards a solution.

1. Incorrect Sensor Installation

During the brake pad replacement process, ensuring the brake wear sensor is installed correctly is paramount. The sensor must be firmly seated in its designated slot within the brake pad and its wiring routed properly to prevent damage. An incorrectly seated sensor might not make proper contact, or its internal wiring could be pinched or strained, preventing it from sending the correct signal to the ECU. Even a slight misalignment can lead to an open circuit, perpetually triggering the warning light.

2. Faulty or Incompatible Sensor

Not all sensors are created equal. While many aftermarket sensors claim "OEM quality," their internal components or manufacturing tolerances might differ slightly, leading to compatibility issues with BMW's sensitive systems. A defective sensor, whether due to a manufacturing fault or damage during installation, will fail to transmit the necessary signal, rendering any reset attempt futile. As one F30 owner noted, even a seemingly 'good' third-party sensor might have intermittent issues, making a switch to a reputable brand like Meyle a worthwhile diagnostic step if problems persist.

3. Electronic Control Unit (ECU) Malfunction

The ECU is the brain of your BMW's electrical systems. It constantly monitors various sensors and components, including the brake pad warning system. A malfunctioning ECU, whether due to internal damage, a corrupted memory, or a power surge, can disrupt the communication pathway between the brake sensors and the dashboard warning light. This can lead to a persistent warning even if the physical components are in perfect order. Diagnosing ECU issues often requires specialised diagnostic equipment.

4. Software Glitches or Updates

Modern BMWs are heavily reliant on sophisticated software. Occasionally, software glitches can occur within the vehicle's operating system, affecting various functions, including the brake pad warning system. These glitches can sometimes be introduced by incomplete software updates or even random computational errors. In such cases, a software update or a hard reset of the system via a diagnostic tool might be necessary to clear the fault.

5. Corrosion or Oxidation in Electrical Connections

Over time, especially in the damp and varying climate of the UK, electrical connections exposed to the elements can suffer from corrosion or oxidation. This can occur at the sensor plug, the wiring harness, or even within the ECU connections. Corrosion creates resistance in the circuit, weakening or completely disrupting the signal transmission from the sensor to the ECU, thereby preventing a successful reset.

6. Worn Brake Rotors

While the warning light is primarily for brake pads, excessively worn or damaged brake rotors can sometimes indirectly affect the sensor's ability to accurately detect brake pad thickness. If the rotor has a significant lip or uneven wear, it might prematurely contact the sensor or prevent the new sensor from seating correctly, leading to a false or persistent warning. While less common, it's a factor to consider, especially if rotors haven't been replaced in a long time.

7. Low Battery Voltage

A weak or discharged 12V car battery can wreak havoc on a BMW's electrical systems. BMWs are notoriously sensitive to voltage fluctuations. Low battery voltage can cause various modules, including the ECU responsible for the brake warning system, to behave erratically or fail to communicate correctly. Before delving into complex diagnostics, ensuring your battery is fully charged and healthy is a fundamental troubleshooting step.

The Power of Diagnostic Tools: Your Ally in Resetting BMW F30 Brakes

While some basic dashboard resets are possible for other service items, the brake pad warning light often requires more sophisticated intervention. This is where OBD-II (On-Board Diagnostics II) tools and specific BMW diagnostic software come into play. As the F30 owner in the provided information discovered, applications like Bimmerlink can be invaluable.

Bimmerlink, used in conjunction with a compatible Bluetooth OBD adapter (like the recommended ones for Bimmerlink, as older ELM adapters may not work), allows you to access your BMW's ECU directly via your smartphone or tablet. It can read fault codes, monitor live data, and crucially, perform service resets that are otherwise impossible through the dashboard menu. The F30 owner's experience highlights Bimmerlink's effectiveness: it showed no errors logged but indicated the front brake pads were "out" in the service menu. Using the app's reset button successfully cleared the warning and updated the service interval on the dashboard.

This demonstrates that even without a specific error code, the system might simply be stuck in a 'worn' state, requiring a software-level reset. Other professional diagnostic tools like ISTA/D (Integrated Service Technical Application/Diagnosis) used by BMW dealerships and independent specialists offer even deeper diagnostic capabilities, allowing for module-specific resets, coding, and programming.

Step-by-Step Troubleshooting to Reset Your Brake Pad Warning Light

If your BMW F30's brake pad warning light persists, systematically work through these steps:

1. Verify Sensor Installation and Integrity

• Visual Inspection: Double-check that the new brake wear sensor is securely seated in its slot on the brake pad. Ensure the wiring is not pinched, cut, or strained.
• Clean Connections: Disconnect the sensor plug from the wiring harness. Inspect the electrical contacts for any signs of corrosion, dirt, or bent pins. Use a suitable electrical contact cleaner to thoroughly clean both the sensor plug and the harness connector. Ensure they click firmly into place when reconnected.

2. Test Sensor Functionality

If you suspect the sensor itself, you can perform a basic continuity test with a multimeter:

• Disconnect the sensor from the vehicle harness.
• Set your multimeter to the continuity or resistance (Ohms) setting.
• Touch the multimeter probes to the two pins on the sensor side of the connector.
• A good, new sensor should show continuity (a very low resistance reading, close to zero, or a beep if your multimeter has an audible continuity test). If it shows an open circuit (infinite resistance or 'OL'), the sensor is faulty and needs replacing.
• Remember, brake wear sensors are designed to be replaced with the pads; attempting to reuse an old one that has been triggered will not work.

3. Check Battery Voltage and Health

As a preliminary step, ensure your BMW's 12V battery is in good health and fully charged. A weak battery can cause a myriad of electrical gremlins. Use a battery tester or a multimeter to check the voltage (it should be around 12.6V when the engine is off). If the battery is old or consistently low, consider charging it or having it professionally tested.

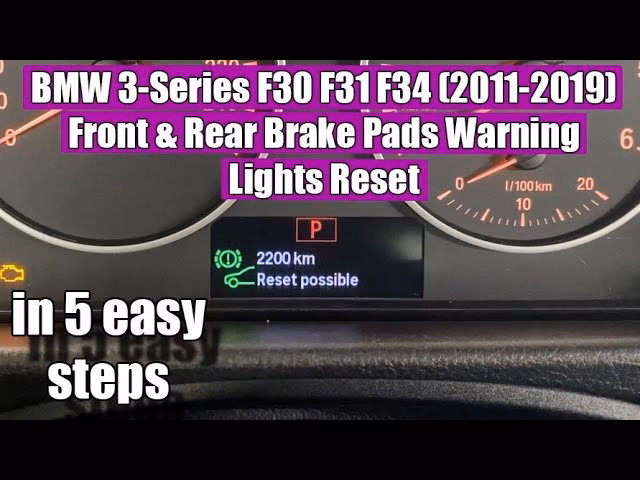

4. Perform a Dashboard Reset (If Applicable)

While often unsuccessful for brake pads specifically, it's worth attempting the standard dashboard service reset procedure:

1. Turn the ignition on (without starting the engine).
2. Press and hold the trip reset button on the instrument cluster for about 10 seconds until the service menu appears.
3. Navigate through the service items using the trip reset button until you reach the brake pad icon (front or rear).
4. Press and hold the button again to initiate the reset. The display should show "Resetting..." and then "Reset successful" or a new mileage figure.

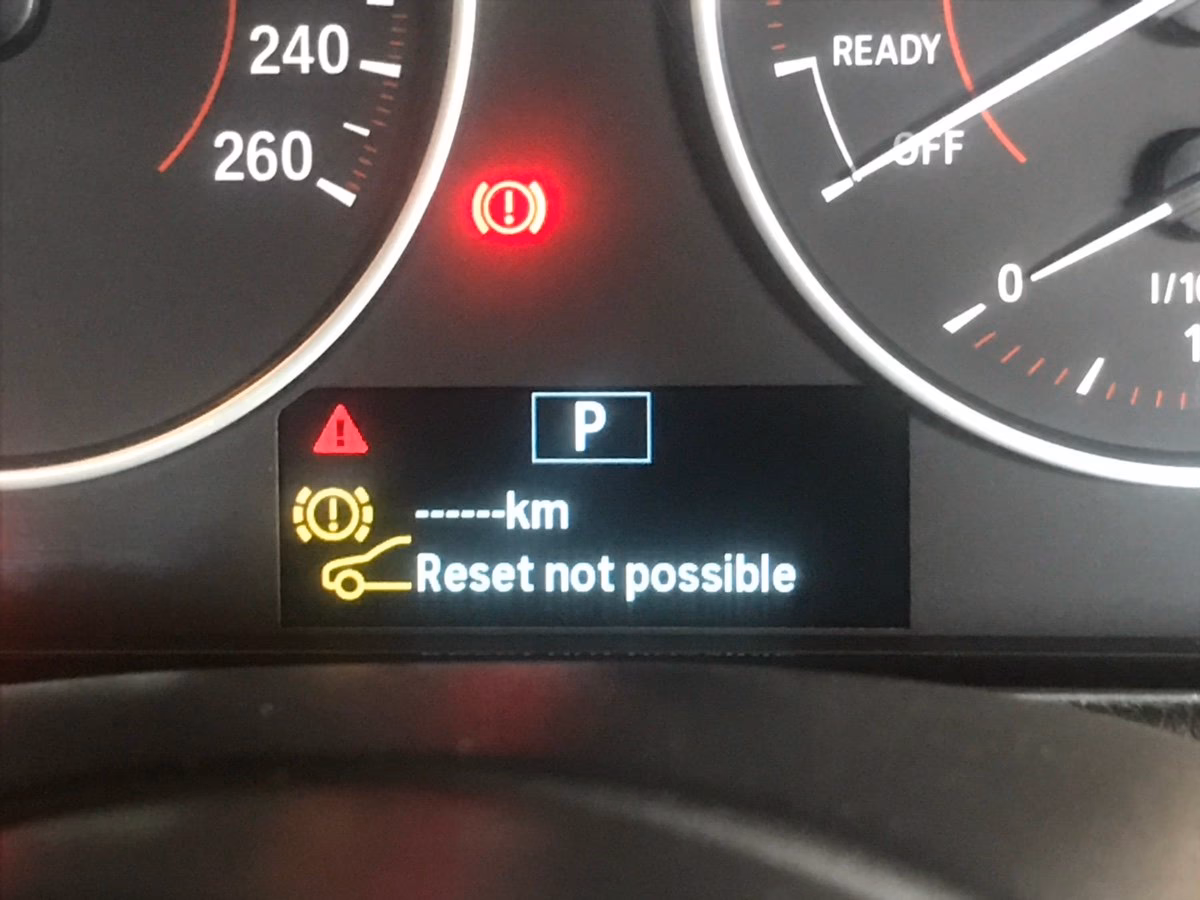

5. If it shows "Reset not possible," then a diagnostic tool is required.

5. Utilise a Diagnostic Tool (e.g., Bimmerlink)

This is often the most effective solution for stubborn brake warning lights:

• Obtain a compatible OBD-II adapter (e.g., Veepeak, OBDLink CX, or similar recommended by Bimmerlink) and the Bimmerlink app for your smartphone or tablet.
• Connect the adapter to your BMW's OBD port (usually under the dashboard on the driver's side).
• Launch Bimmerlink and connect to your vehicle.
• Navigate to the 'Service' section within the app.
• Locate the front (or rear, if applicable) brake pad service item.
• Tap the 'Reset' button associated with that item. The app should confirm the reset and update the service interval.
• Power down the car completely, wait a minute, then restart to confirm the warning light has cleared from the dashboard.

6. Inspect Brake Rotors for Excessive Wear

While not a direct cause of a reset failure, severely worn rotors can sometimes contribute. Visually inspect your brake rotors for deep grooves, scoring, or a pronounced lip at the edge. If they are below minimum thickness specifications (usually stamped on the rotor's hat), they should be replaced. This ensures optimal braking performance and eliminates any unlikely interference with the sensor.

7. Consider Professional Diagnosis

If all the above steps fail, it's time to consult an authorised BMW dealership or a reputable independent BMW specialist. They have access to advanced diagnostic tools (like ISTA/D) that can perform deeper module-specific diagnostics, identify complex ECU faults, and perform any necessary software updates or coding that might be preventing the reset. They can pinpoint issues that generic OBD-II scanners might miss.

Symptoms of Worn Brake Pads: A Quick Reference

While the warning light is the primary indicator, it's helpful to be aware of other symptoms that suggest your brake pads are nearing the end of their life:

Do Not Ignore the Warning Light!

It's absolutely critical not to ignore a persistent brake pad warning light. While it might be a sensor or software glitch, it could also be a genuine indication of severely worn brake pads. Worn brake pads compromise your vehicle's braking performance, significantly increasing stopping distances and posing a serious safety hazard to you and other road users. Delaying replacement can also lead to more costly repairs, such as damaging your brake rotors, calipers, or other braking system components, which will be far more expensive than just replacing pads and sensors.

Final Thoughts

Dealing with a brake pad warning light that refuses to reset on your BMW F30 can be a perplexing experience. However, by understanding the underlying causes – from faulty sensors and incorrect installation to ECU malfunctions and software glitches – and by systematically applying the troubleshooting steps, you can confidently resolve the issue. Tools like Bimmerlink have proven to be exceptionally useful for many BMW owners, bridging the gap between basic DIY and professional diagnostics. Remember, maintaining your braking system is paramount for safety, so address any warning lights promptly and ensure your BMW is always in optimal condition.

Frequently Asked Questions (FAQs)

1. Can I reset the brake pad warning light myself?

Yes, for many BMW models, including the F30, a basic dashboard reset procedure exists. However, for the brake pad warning light, this often fails if there's an underlying issue or if the system requires a more definitive software reset. In such cases, an OBD-II diagnostic tool like Bimmerlink is highly recommended and allows for a DIY reset, provided the physical components (pads, sensors) are correctly installed and functional. If these tools don't work, professional assistance is advised.

2. How often should I replace my brake pads on my BMW F30?

The frequency of brake pad replacement varies significantly based on your driving habits, road conditions, and the type of driving (e.g., city driving with frequent stops vs. motorway driving). Generally, BMW brake pads can last anywhere from 30,000 to 70,000 miles. Your BMW's Condition Based Service (CBS) system provides a projected mileage for pad replacement, which is a good guide, but always combine this with regular visual inspections.

3. What are the common symptoms of worn brake pads?

Beyond the dashboard warning light, common symptoms include a squealing or grinding noise when braking, reduced braking effectiveness (longer stopping distances), a spongy or pulsating brake pedal, or a visible reduction in the thickness of the brake pad material (typically less than 3-4mm).

4. What is the BMW F30?

The BMW F30 is the internal model designation for the sixth generation of the BMW 3 Series compact executive car, produced from 2011 to 2019. It includes the saloon (F30), touring/estate (F31), long wheelbase saloon (F35), and Gran Turismo (F34) variants. It's known for its refined driving dynamics and advanced technology.

5. Do I need to replace the brake pad sensor every time I replace the pads?

Yes, it is highly recommended to replace the brake pad wear sensor every time you replace the brake pads. These sensors are designed to be sacrificial – once they've worn down and triggered the warning, their circuit is broken. Attempting to reuse a sensor that has already triggered a warning will prevent the system from resetting. Even if the sensor hasn't triggered, it's good practice to replace it due to wear and tear on the wiring and connector, ensuring proper function with new pads.

6. Can worn brake rotors prevent the warning light from resetting?

While less common than sensor issues, excessively worn or damaged brake rotors can sometimes indirectly interfere with the brake pad sensor's operation. If the rotor has a significant lip or uneven wear, it might cause the new sensor to not seat correctly or even prematurely wear down. If your rotors are severely worn, replacing them as part of your brake service is crucial for overall braking performance and can help eliminate any potential sensor interference.
