BMW F30 Wheel Alignment: The 6-Sided Bolt Explained

Understanding Your BMW F30 335i Wheel Alignment

Maintaining your BMW F30 335i is a rewarding experience, but it often comes with a need for specialized knowledge and tools. One common service that can significantly impact your car's handling, tyre wear, and overall driving experience is wheel alignment. While many modern vehicles can have their alignments performed at most garages, certain components and specifications require a deeper understanding, especially for performance-oriented models like the 335i. This guide delves into the specifics of wheel alignment for your BMW F30, with a particular focus on a component that might seem obscure but plays a vital role: the 6-sided bolt.

The initial query highlights a common point of confusion for DIY enthusiasts and even some professional mechanics: the nature of specific fasteners used in the alignment process. Understanding these components is key to ensuring your alignment is carried out correctly, avoiding potential damage and ensuring optimal performance. Let's break down what a 6-sided bolt refers to in the context of your F30's alignment and why it matters.

The Importance of a Precise Wheel Alignment

Before we dive into the specifics of the fasteners, it's crucial to reiterate why a professional wheel alignment is so important. An alignment adjusts the angles of your wheels to the manufacturer's specifications. When your wheels are misaligned, it can lead to:

• Uneven Tyre Wear: This is perhaps the most common and costly consequence of poor alignment. Tyres can wear out prematurely on the edges or the centre, reducing their lifespan and requiring frequent replacement.
• Poor Handling: A car that pulls to one side, wanders on the road, or feels unstable, especially at higher speeds, is often suffering from incorrect alignment.
• Compromised Fuel Efficiency: Misaligned wheels create more rolling resistance, forcing your engine to work harder and consume more fuel.
• Increased Driver Fatigue: Constantly having to correct the steering to keep the car going straight can be exhausting on longer journeys.

Factors Affecting Wheel Alignment

Several factors can knock your BMW F30's alignment out of sync. These include:

• Driving Over Potholes or Curbs: Sudden impacts can easily jar the suspension components and alter wheel angles.
• Worn Suspension Components: Bushings, ball joints, and tie rod ends can wear over time, introducing play that affects alignment.
• Accidents or Impacts: Even minor collisions can affect the geometry of the suspension.
• Routine Maintenance: Replacing certain suspension parts may necessitate an alignment to ensure everything is set correctly.

The Role of Alignment Specifications

Each vehicle model has a specific set of alignment parameters, including toe, camber, and caster. For your 2014 BMW F30 335i RWD M Sport with Sport Suspension, these specifications are meticulously engineered to provide a balance of sporty handling, stability, and tyre longevity. Deviating from these specifications, even slightly, can have noticeable effects.

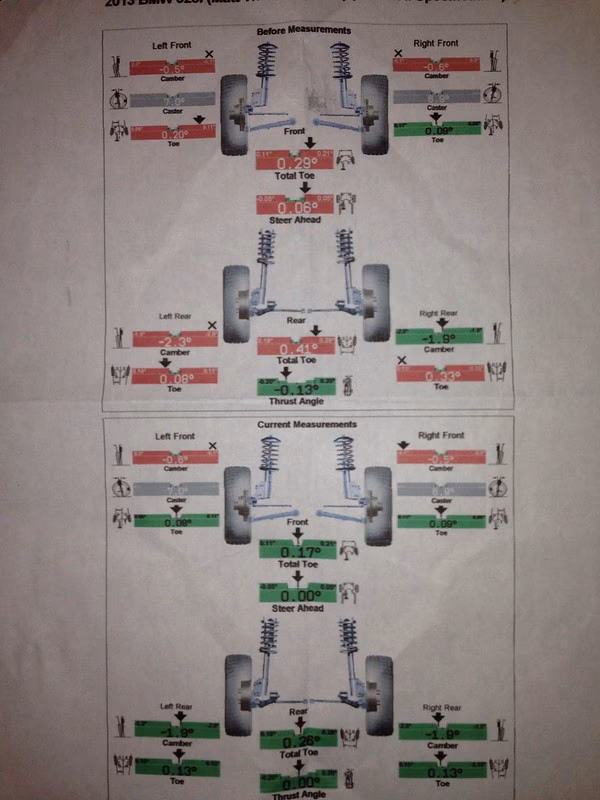

The provided information highlights a key aspect: the difference in alignment readings between a loaded and unloaded vehicle. This is particularly relevant for rear suspension geometry, where the weight distribution significantly influences angles like camber. The need to properly weigh down the car during an alignment is critical for achieving accurate results, especially if your goal is to replicate the car's typical loaded state for optimal daily driving.

Decoding the Fasteners: The "6-Sided Bolt" and the "Star" Bolt

The user's query specifically asks about a "6-sided bolt" on a BMW F30 335i. In the context of wheel alignment adjustments, particularly on the rear suspension, this typically refers to a standard hex bolt. However, the crucial detail provided is that on the other side of the adjustment mechanism, there's a bolt with a "star" pattern, similar to a Torx, but requiring a socket rather than a Torx bit. This is often referred to as a Spline drive or sometimes a XZN (Triple Square) fastener. These specialized fasteners are commonly used by German manufacturers like BMW for their strength and resistance to cam-out under high torque applications.

Here's a breakdown:

• 6-Sided Bolt: This is your standard hexagonal bolt head. It's what you'd typically expect to see and use with a conventional spanner or socket. In the rear toe adjustment of the F30, this bolt is often found on one end of the eccentric cam adjuster.
• "Star" Bolt (Spline/XZN): This is the more specialized fastener. It has multiple, equally spaced internal flutes (splines) that create a star-like pattern. These are designed to distribute torque more evenly than Torx or standard hex heads, preventing stripping and allowing for very precise adjustments. To properly engage and turn these bolts, you need a specific Spline socket or XZN bit set. Using the wrong tool here can easily damage the bolt head, making future adjustments difficult or impossible.

Rear Toe Adjustment on the BMW F30

The description of the rear toe adjustment points to an eccentric bolt system. This means that by rotating the bolt, you are also rotating an offset cam, which in turn pushes or pulls the suspension arm, thereby adjusting the wheel's toe angle. The diagram mentioned, showing a bracket with a hole, implies that the eccentric bolt is adjusting the upper rear suspension arm. The dual nature of the fasteners – a standard hex bolt on one side and the specialized spline/XZN bolt on the other – is a common BMW design.

Key Takeaway: To adjust the rear toe on your F30, you will likely need both standard metric sockets and a set of XZN (Triple Square) sockets, likely in sizes like M8 or M10, depending on the specific bolt. Always ensure you have the correct size and type of tool before attempting to turn these fasteners.

Front Tie Rod Adjustment

The front tie rod adjustment is typically more straightforward. The image described shows a tie rod end connected to the steering knuckle. Adjustment is usually made by rotating the tie rod itself. The tie rod has a threaded section, and by screwing it in or out, you change the length of the linkage, which alters the wheel's toe angle. The "torq bolt" mentioned is likely a locking bolt or nut that secures the tie rod in its adjusted position. This part of the adjustment usually involves standard hex heads.

AFS and DSC Considerations

The notes about "AFS" (Adaptive Frontlight System) and "DSC" (Dynamic Stability Control) are crucial. If your F30 is equipped with AFS, which means your headlights can swivel with the steering, you will likely need an OEM (Original Equipment Manufacturer) diagnostic tool, such as Autologic or BMW's ISTA/D, to reset the AFS system after the alignment. Failure to do so might result in warning lights or incorrect headlight behaviour.

Regarding DSC, for a standard alignment, it's often stated that you can disregard it. However, modern DSC systems are highly integrated with wheel speed sensors and steering angle sensors. While a basic alignment might not require a DSC recalibration, some sources recommend a recalibration of the steering angle sensor after significant suspension work or alignment changes to ensure the DSC and other vehicle systems function optimally.

DIY vs. Professional Alignment

The cost difference mentioned – $60 at an auto skills center versus an estimated $200-$300 at a BMW dealer – highlights a significant consideration. While DIY alignment is possible, especially if you have access to the right equipment and a controlled environment, it requires precision and the correct tools. The need to weigh down the car correctly is a prime example of a detail that can be easily overlooked by DIYers without the proper setup.

Pros of Professional Alignment:

• Access to calibrated, state-of-the-art alignment machines.
• Experienced technicians who understand specific vehicle requirements.
• Specialized tools for complex fasteners and electronic system resets (like AFS).
• Warranty on the work performed.

Pros of DIY Alignment (with caveats):

• Significant cost savings if you have the tools and knowledge.
• Control over the process and timing.

Given the specialized fasteners and potential electronic system resets required for a BMW F30, a professional alignment is often the safer and more reliable choice unless you are a seasoned DIYer with the appropriate equipment and diagnostic tools.

Summary of Alignment Adjustments for BMW F30 335i

To perform a proper alignment on your BMW F30 335i, you'll typically adjust:

Frequently Asked Questions

Q1: What is the torque specification for the alignment bolts on a BMW F30?
Torque specifications vary depending on the specific bolt and its location. It's crucial to consult a BMW service manual or a reputable online resource for the exact torque values to avoid over-tightening or under-tightening, which can compromise the alignment and suspension integrity.

Q2: Do I really need to weigh down the car for an alignment?
Yes, especially for rear camber adjustments on many vehicles, including the F30. The suspension geometry changes significantly with load. For optimal results that reflect real-world driving conditions, the car should be weighted to simulate the typical driver and passenger load, and a full tank of fuel.

Q3: What is an XZN (Triple Square) socket?
An XZN socket, also known as a Triple Square, is a type of internal drive fastener. It has 12 points of contact, resembling three superimposed squares, which provides superior torque transfer and reduces the risk of stripping compared to Torx or hex fasteners. It's essential for many German automotive applications.

Q4: My F30 pulls to the left after an alignment. What could be wrong?
Several factors could cause this: an incomplete or inaccurate alignment, incorrect tyre pressures, worn suspension components, or even a bent chassis component. It's best to have the alignment re-checked by a qualified professional.

Q5: Do I need to adjust caster on my F30?
Caster adjustments are typically less common on the F30 for a standard alignment. The primary adjustments usually involve toe and camber. Caster adjustments are often made to correct for specific handling issues or after significant suspension modifications.

Conclusion

Understanding the specifics of your BMW F30 335i's alignment, including the specialized fasteners like the 6-sided (hex) and the "star" (XZN/Spline) bolts, is key to ensuring this vital maintenance task is performed correctly. While the allure of DIY savings is strong, the complexity of modern BMW suspension systems, the need for precise weighting, and the potential for electronic system resets mean that entrusting this job to a qualified professional is often the wisest course of action. A proper alignment will not only protect your investment in tyres but also enhance your driving pleasure and safety.
