BMW Front Brake Pad Wear Sensor: Replace or Not?

Few aspects of vehicle maintenance are as critical as ensuring your braking system is in top condition. Modern BMWs, renowned for their precision engineering, incorporate sophisticated systems to keep you informed about your vehicle's health, and the brake pad wear sensor is a prime example. This seemingly small component plays a monumental role in your safety, providing a timely warning before your brake pads wear down to a dangerous level. But once that warning light illuminates on your dashboard, a common question arises for many BMW owners: does the front brake pad wear sensor wire need to be replaced?

The straightforward answer is a resounding yes. Once your BMW's brake pad warning light is triggered, the sensor has fulfilled its purpose and must be replaced. This isn't merely a recommendation; it's a necessary step to restore your vehicle's safety monitoring system. Let's delve deeper into what these sensors do, why they're designed for single-use, and how to ensure your BMW's braking integrity remains uncompromised.

Understanding Your BMW's Front Brake Pad Wear Sensor

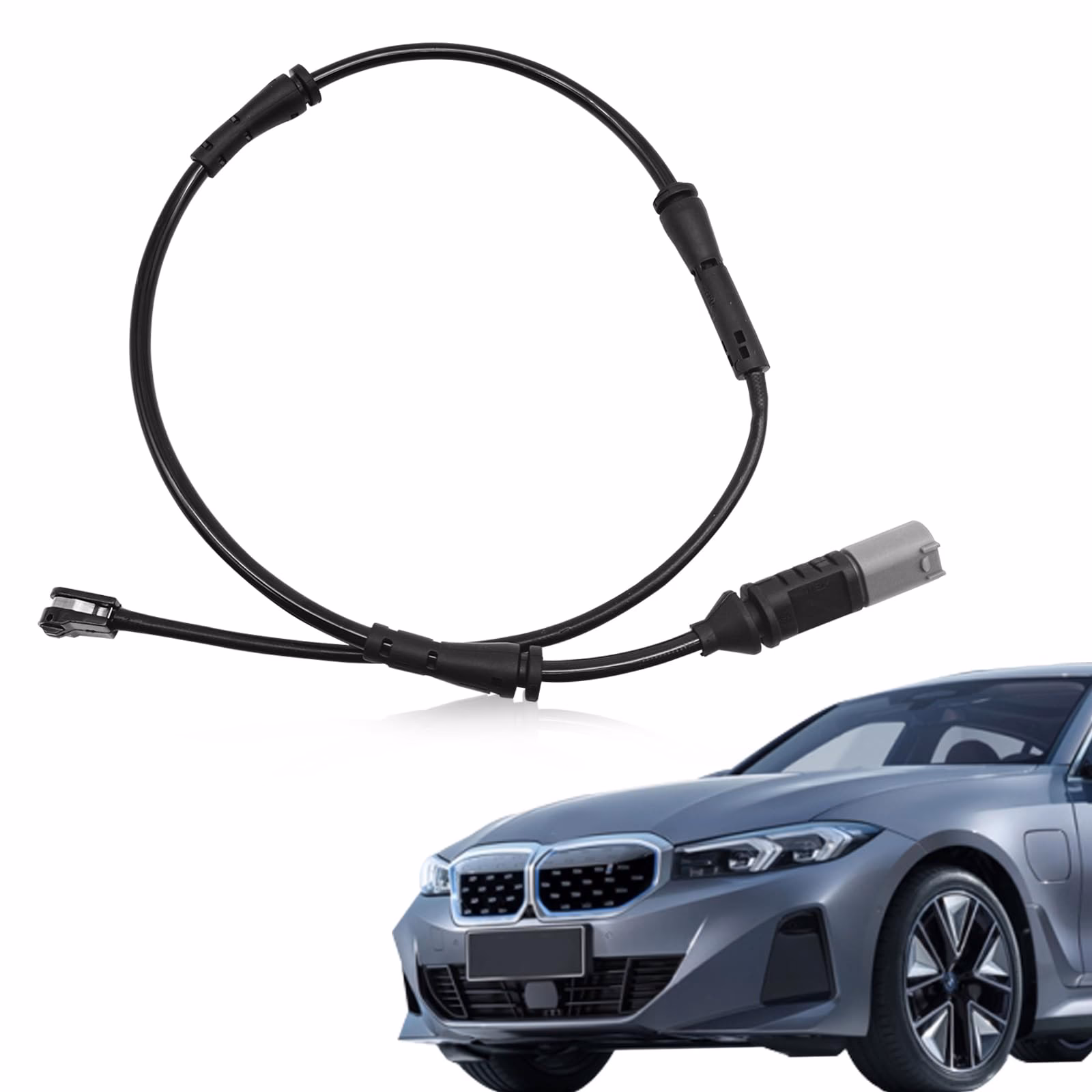

A brake pad wear sensor is an ingenious, yet relatively simple, device designed to alert you when your brake pads have reached their minimum safe thickness. It typically consists of a small, plastic housing with an embedded electrical wire loop, often made of copper. This sensor is strategically positioned on one of your brake pads (usually the inner pad) on specific wheels – commonly the front left and rear right, though this can vary by model. For many BMW F-series models, such as the F30, F32, F22, F80 M3, and F82 M4, a front sensor is standard.

The sensor is connected to your car's onboard computer. As your brake pads gradually wear down through normal use, the friction material diminishes. When the pad material wears sufficiently, the rotating brake disc eventually makes contact with the tip of the sensor, physically breaking the embedded wire loop. This breakage completes the sensor's function: it interrupts the electrical circuit, which the car's computer interprets as a signal that the brake pads are worn. Consequently, your dashboard illuminates the brake wear warning light, alerting you that it's time for new pads.

Why Replacement is Non-Negotiable Once Triggered

The key to understanding why a triggered brake pad wear sensor must be replaced lies in its design. It's a 'sacrificial' component. Once the wire loop is broken, the sensor is permanently damaged and can no longer complete the electrical circuit. Even if you install brand new brake pads, the warning light will remain on because the broken sensor continues to signal a fault. Therefore, installing new brake pads without replacing the activated sensor would leave you without the crucial early warning system for your next set of pads.

Furthermore, even if your brake pads haven't triggered the warning light but are being replaced as part of routine maintenance, it is highly recommended to replace the sensor as a proactive measure. These sensors are relatively inexpensive and designed to wear with the pads. Reusing an old sensor, even if it hasn't tripped, carries the risk of it failing prematurely or becoming brittle, leading to a false warning or, worse, no warning at all when you truly need it.

When to Replace Your Front Brake Pad Wear Sensor

There are a few clear scenarios when your front brake pad wear sensor warrants replacement:

1. Warning Light Activation

   This is the most obvious sign. If the brake wear warning light appears on your BMW's dashboard, it means the sensor has been activated. At this point, you should inspect your brake pads promptly and plan for their replacement, along with the sensor.

2. During Brake Pad Replacement (Even Without a Warning Light)

   As mentioned, it's best practice to replace the sensor every time you replace your brake pads, regardless of whether the warning light has come on. This ensures that the new pads have a fresh, fully functional sensor to monitor their wear from the start. It's a small cost for significant peace of mind and the continued integrity of your safety system.

3. Physical Damage

   Occasionally, a brake pad wear sensor can become physically damaged due to road debris, improper installation, or even corrosion. If you notice any visible damage to the sensor or its wiring during a brake inspection, it should be replaced immediately, even if the warning light isn't on. A damaged sensor might not function correctly when needed.

The Risks of Neglecting Sensor Replacement

Ignoring a triggered brake pad wear sensor, or failing to install a new one with new pads, carries several significant risks:

• Loss of Warning System: The most immediate consequence is that you lose the early warning system for your brake pads. You won't know when your pads are critically thin until you start hearing grinding noises (metal-on-metal), which indicates severe wear and potential damage to your brake discs (rotors).
• Expensive Repairs: Allowing brake pads to wear beyond their limits can cause the metal backing plates to scrape against the brake discs. This will deeply score or warp the discs, necessitating their replacement along with the pads and potentially even the brake calipers, leading to much higher repair costs.
• Compromised Safety: Severely worn brake pads drastically reduce your vehicle's stopping power and can lead to brake fade or even complete brake failure, especially in emergency situations. This puts you and other road users at severe risk.

A Step-by-Step Guide to Replacing Your BMW's Front Brake Pad Wear Sensor (DIY Perspective)

Replacing a front brake pad wear sensor on many BMW models is a relatively simple task, often performed alongside a brake pad replacement. While professional installation is always an option, a confident DIY enthusiast can usually manage this with basic tools.

Tools You'll Likely Need:

• Jack and jack stands
• Wheel chocks
• Lug wrench or impact gun
• Ratchet and appropriate sockets (for caliper bolts, if removing)
• Flat-head screwdriver (for prying clips)
• New front brake pad wear sensor (e.g., BMW part number 34356792289)

Safety First:

Always prioritise safety. Ensure your vehicle is parked on a flat, stable surface. Engage the parking brake, chock the rear wheels, and safely lift the front of the car using a jack, then secure it firmly on jack stands before removing any wheels.

The Process:

1. Remove the Wheel: Loosen the lug bolts while the wheel is still on the ground, then fully remove them once the car is on stands.
2. Locate the Sensor: The front brake pad wear sensor is typically located on the inner brake pad of one of the front wheels (often the driver's side). It's a small plastic clip or plug attached to the pad.
3. Disconnect the Old Sensor: Carefully follow the sensor wire back from the brake pad to its main electrical connector, usually clipped into the wheel arch or suspension component. Use a small flat-head screwdriver or your fingers to release the retaining clip and disconnect the sensor from the main harness.
4. Remove from Brake Pad: The sensor tip is usually just pushed into a slot on the brake pad. Gently pull it out.
5. Install the New Sensor: Insert the new sensor's tip firmly into the designated slot on the new brake pad. Ensure it's fully seated.
6. Route the Wiring: Carefully route the new sensor's wiring along the same path as the old one, securing it with any clips or ties to prevent it from rubbing against moving parts or getting caught.
7. Connect to Harness: Plug the new sensor's connector firmly into the main vehicle harness until it clicks into place.
8. Reassemble: Reinstall the wheel, lower the car off the jack stands, and torque the lug bolts to the manufacturer's specifications.
9. Reset Warning Light: After replacing the sensor and pads, the brake warning light will usually extinguish itself after a few miles of driving. If it doesn't, or if you're installing new pads and sensor without the light ever coming on, you may need to perform a manual service interval reset through your BMW's iDrive system or instrument cluster menu. Consult your owner's manual for specific instructions for your model.

Choosing the Right Replacement Part

When replacing your front brake pad wear sensor, it's crucial to select a high-quality replacement part that meets or exceeds OEM specifications. The provided information highlights BMW part number 34356792289 as a suitable replacement for numerous F-series models. Using a cheap, substandard sensor can lead to premature failure or inaccurate readings, defeating its purpose.

Compatible BMW Models (Front Brake Pad Wear Sensor P/N 34356792289):

OEM vs. High-Quality Aftermarket Sensors

When considering replacement parts, you generally have two main options: Original Equipment Manufacturer (OEM) parts or high-quality aftermarket equivalents. Both have their merits:

For a critical component like a brake pad wear sensor, investing in a high-quality replacement, whether OEM or a trusted aftermarket brand, is always the sensible choice. The small cost saving of a very cheap, unbranded sensor is not worth the potential risk to your safety and the longevity of your braking system.

Frequently Asked Questions (FAQs)

Q: What if my brake warning light is on, but my pads look fine?

A: If the light is on, it means the sensor has been triggered. While your pads might *look* okay visually from the outside, the sensor is typically on the inner pad, which is harder to inspect without removing the wheel. Trust the sensor; it means your pads are at or below the minimum safe thickness. Get them inspected and replaced along with the sensor.

Q: Can I just cut the sensor wire to turn off the light?

A: Absolutely not. Cutting the wire will turn off the light, but it completely defeats the purpose of the safety system. You will have no warning for future brake pad wear, putting your safety and vehicle at severe risk. Always replace a triggered sensor.

Q: How many brake pad wear sensors does my BMW have?

A: Most modern BMWs typically have two brake pad wear sensors: one on a front wheel (often driver's side) and one on a rear wheel (often passenger's side). However, some models, especially those with performance brake systems, might have sensors on all four wheels. Always check your specific model's requirements.

Q: Do rear brake pad wear sensors also need to be replaced when triggered?

A: Yes, exactly the same principle applies to rear brake pad wear sensors. Once triggered, they too must be replaced along with the worn rear brake pads to restore the warning system.

Q: How long do brake pad wear sensors typically last?

A: Brake pad wear sensors are designed to last the lifetime of the brake pads they are monitoring. Since they are 'sacrificial,' they are expected to fail (break) when the pads reach their wear limit. Therefore, their lifespan is directly tied to how long your brake pads last.

Conclusion

The front brake pad wear sensor in your BMW is a vital safety component, not a mere convenience. Its purpose is to provide you with a timely warning, allowing you to address worn brake pads before they become a danger or cause more extensive and costly damage to your braking system. Once the warning light is triggered, or even when you're simply replacing your brake pads, the sensor must be replaced. Opting for a high-quality replacement, such as the BMW part number 34356792289 for compatible F-series models, ensures the continued safety and reliability of your BMW's braking performance. Don't overlook this small but significant detail in your vehicle's maintenance routine – your safety depends on it.
