DIY Guide: BMW F30 Front Brake Replacement

Ensuring your BMW F30's braking system is in top condition isn't just about performance; it's paramount for your safety and the safety of others on the road. Over time, brake pads and discs naturally wear down, requiring replacement. While this might seem like a daunting task, servicing your front brakes is a highly achievable DIY project for the home mechanic, even for those with limited experience. This detailed guide will walk you through the entire process for both standard BMW F30 models and those equipped with the M-Sport package, covering everything from recognising wear symptoms to the precise steps and torque specifications needed for a successful replacement. By following these instructions carefully, you can restore your BMW's stopping power, save on garage labour costs, and gain immense satisfaction from maintaining your own vehicle.

Why Your BMW F30 Needs New Brakes: Common Symptoms

Your BMW's brakes are arguably its most critical safety feature, and their condition directly impacts your ability to stop effectively. Since the front brakes bear the majority of the stopping force, they tend to wear out more quickly than the rears. It's crucial to be vigilant for the tell-tale signs that indicate your front pads and discs (rotors) are reaching the end of their service life. Ignoring these warnings can lead to reduced braking performance, increased stopping distances, and potentially costly damage to other components.

• A Grinding Noise Under Braking: This is perhaps the most alarming and definite sign of severely worn brakes. When the brake pad material is completely depleted, the metal backing plate of the pad makes direct contact with the brake disc. This metal-on-metal friction produces a harsh, intense grinding sound. If you hear this, immediate attention is required, as it indicates the discs are likely being damaged.
• Juddering or Vibration Under Braking: If you feel a pulsation or vibration through the steering wheel or brake pedal when applying the brakes, it often points to warped or unevenly worn brake discs. This can be caused by excessive heat, aggressive braking, or simply age. Uneven surfaces on the disc prevent the pad from making consistent contact, leading to the juddering sensation.
• Deep Grooves on the Disc Surface: Visually inspect your brake discs. If you notice prominent, deep grooves or scoring marks on the disc surface, it's a clear indication that the pads have worn down and are possibly scraping the disc, or foreign debris has become lodged between the pad and disc.
• Dark-Coloured Deposits on the Disc Surface: While some discolouration is normal, dark, inconsistent patches or 'hot spots' on the disc surface can indicate overheating or uneven pad wear, contributing to juddering and reduced braking efficiency.
• The Vehicle's Steering Pulling to One Side Under Braking: If your car veers or pulls significantly to one side when you apply the brakes, it could be a sign of uneven braking force. This might be due to a seized caliper, unevenly worn pads on one side, or an issue with the brake hose or fluid distribution to that particular wheel.
• Illuminated Brake Warning Light: Your BMW F30 is equipped with a brake pad wear sensor. When this sensor makes contact with the disc due to worn pads, it completes an electrical circuit, triggering a warning light on your dashboard. This is a definitive signal that your pads need replacing.

Understanding Your F30's Front Brakes

The BMW F30 series, like many other non-M BMW models, typically uses a sliding caliper system for its standard front brakes. This design is cost-effective to produce, relatively simple to service, and provides excellent performance for everyday driving. In a sliding caliper, the caliper body 'slides' on guide pins, allowing a single piston to push the inner pad against the disc, which then pulls the outer pad into contact. This mechanism is robust and reliable.

However, for those with the M-Sport package, the braking system is significantly upgraded. M-Sport equipped F30s often feature fixed-piston Brembo calipers. These are a substantial enhancement, typically boasting four or more pistons per caliper and made from lighter aluminium. Fixed calipers do not slide; instead, multiple pistons push both inner and outer pads simultaneously against the disc. This design offers superior stopping power, better heat dissipation, and improved resistance to fade, making them ideal for more spirited driving or track days. Understanding which type of caliper your F30 has is the first step in preparing for your brake service, as the procedure differs slightly between the two.

Preparing for the Job: Tools & Parts

Before you begin, gather all necessary tools and parts. Having everything ready will make the process smoother and more efficient. While many tools are common to both standard and M-Sport brake jobs, some specialised items are required depending on your setup.

General Tools Required:

• Vehicle Jack & Jack Stands (Safety first! Never work under a car supported only by a jack.)
• Wheel Chocks
• 17mm Socket for Lug Bolts
• Ratchet Wrench
• Torque Wrench (essential for correct tightening)
• Wire Brush or Abrasive Disc (for cleaning hub)
• Flathead Screwdriver
• Brake Cleaner Spray
• Copper Grease or Anti-Seize Compound
• Gloves & Eye Protection
• Container for old parts
• Zip-ties, Wire Coat Hangers, or Caliper Hangers (to support the caliper)
• Brake Piston Compressor Tool

Specific Tools & Parts for Standard F30 Brakes:

• 6mm Hex Bit Socket (for rotor set screw)
• 8mm Hex Bit Socket (for caliper guide pins)
• 18mm Socket (for caliper bracket mounting bolts)
• New Front Brake Pads (e.g., TRW ceramic)
• New Front Brake Discs (e.g., Zimmermann)
• New Front Brake Pad Wear Sensor

Specific Tools & Parts for M-Sport F30 Brakes:

• 6mm Hex Bit Socket (for rotor set screw)
• Punch & Hammer (for caliper pins)
• Pliers (for caliper pins)
• 18mm Socket (for caliper mounting bolts, if reusing)
• E16 Socket (if using new BMW replacement caliper bolts)
• New M-Sport Front Brake Pads (e.g., Akebono, OEM)

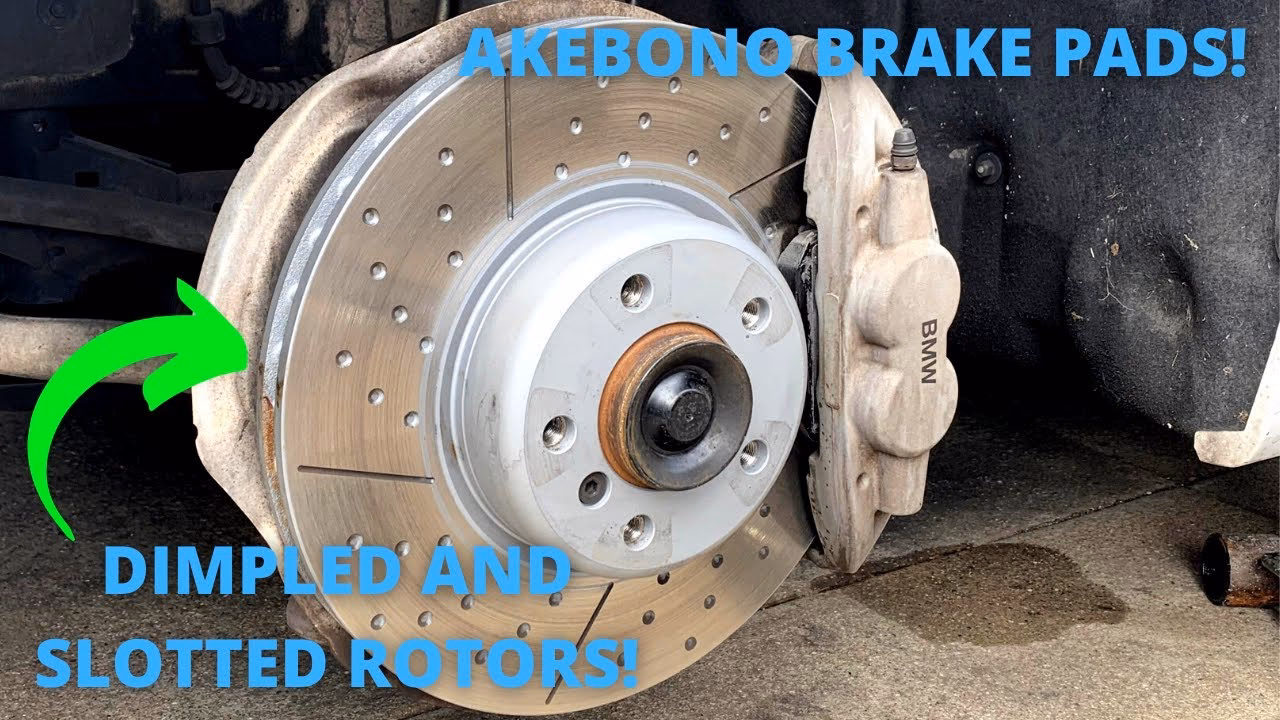

• New M-Sport Front Brake Discs (e.g., Zimmermann, OEM drilled/slotted)
• New Front Brake Pad Wear Sensor

The Standard BMW F30 Front Brake Service

Servicing the standard sliding calipers on your F30 is a straightforward process that can significantly extend the life and safety of your vehicle. This section details the steps, time, cost, and crucial torque specifications.

Estimated Cost & Time:

The cost to replace standard front brake pads and discs on an F30 typically ranges from approximately £160 to £250 for parts, depending on the brands chosen. For instance, a set of quality ceramic pads might cost around £35-£45, while two front discs could be £90-£120, and a new pad wear sensor approximately £15-£20. The job itself is efficient; expect to spend about 30 minutes per corner for the pad and disc replacement. If you also plan to flush the brake fluid, allow an additional 20 minutes, though this often requires a pressure bleeder or an assistant.

Step-by-Step Guide:

1. Prepare the Vehicle: Loosen the front wheel lug bolts slightly while the car is still on the ground. Then, jack up the front of your BMW F30 and secure it safely on jack stands. Ensure the vehicle is stable before proceeding. Fully remove the lug bolts and carefully take off the wheel.
2. Remove the Caliper Anti-Rattle Clip: Locate the metal anti-rattle clip on the front of the caliper. Push the bottom portion of the clip away from the hub, then use a flathead screwdriver to gently pry the top of the clip away from the caliper, allowing you to remove it.
3. Remove the Rotor Set Screw: Use a 6mm hex bit socket to remove the small set screw that holds the brake disc to the hub. Ensure the bit is fully seated to prevent stripping the screw head.
4. Access Caliper Guide Pins: Using a flathead screwdriver, carefully pry off the small plastic dust caps that cover the caliper guide pins. These are typically located on the backside of the caliper.
5. Remove Caliper Guide Pins: With an 8mm hex bit socket, remove both caliper guide pins. Keep these organised, as they will be reinstalled later.
6. Depress Piston & Remove Caliper: Gently pull the caliper away from the vehicle. This action will slightly depress the piston, creating a small gap between the pads and the disc, making it easier to remove the caliper. Crucially, do not let the caliper hang by its brake line, as this can strain and damage the rubber hose. Use a zip-tie, wire coat hanger, or a dedicated caliper hanger to suspend the caliper safely from a suspension component.
7. Disconnect Pad Wear Sensor (Driver's Side): On the driver's side front caliper, the inboard brake pad will have the pad wear sensor attached. Carefully disconnect this sensor before completely removing the caliper. You will be replacing this sensor.
8. Remove Caliper Bracket: Use an 18mm socket to remove the two large mounting bolts that secure the caliper bracket to the knuckle. Once these bolts are out, remove the entire caliper bracket.
9. Remove the Brake Disc: With the caliper and bracket out of the way, you can now pull the old brake disc off the wheel hub. If it's stuck due to corrosion, a few firm taps with a hammer on the disc's hat (the centre part) should help break it free.
10. Clean Hub & Bracket Surfaces: This is a critical step for proper new component seating. Use a steel bristle brush or a wire wheel attachment on a drill to thoroughly clean any rust and corrosion from the wheel hub's mating surface and the caliper bracket. Clean surfaces ensure the new disc sits perfectly flush and that the caliper bracket mounts securely.
11. Fit New Brake Disc: Place the new brake disc onto the hub. Align the set screw hole and hand-thread the 6mm hex set screw. Then, use your ratchet and 6mm hex bit socket to tighten it down securely.
12. Refit Caliper Bracket: Reinstall the caliper bracket onto the knuckle. Hand-thread both 18mm mounting bolts to prevent cross-threading. Once snug, use your 18mm socket and torque wrench to tighten these bolts to the specified torque.
13. Compress Caliper Piston: Using a brake piston compressor tool, gently push the caliper's piston fully back into the caliper bore. This creates the necessary space for the new, thicker brake pads.
14. Install New Brake Pads: Remove the old brake pads from the caliper. Install the new inner pad first, ensuring it's seated correctly. Remember, the inner pad on the driver's side is where the new pad wear sensor will connect. Apply a thin layer of copper grease or anti-seize compound to the contact points where the pads slide within the caliper bracket, but avoid getting any on the pad friction material or disc surface. Then, place the new outer pad into the bracket.
15. Position Caliper & Install Guide Pins: Carefully position the caliper over the new pads and disc. Thread in the two caliper guide pins by hand. Once started, use your 8mm hex bit socket and torque wrench to tighten them to the specified torque. Reinstall the dust caps over the guide pins.
16. Connect New Pad Wear Sensor: Follow the old pad wear sensor wire back to the electrical box mounted in the wheel arch (fender well). Open the box, disconnect the old sensor, and connect the new one. Route the new sensor wire along the same path as the old one and plug it into the new inner brake pad on the driver's side.
17. Reinstall Anti-Rattle Clip: Finally, reinstall the anti-rattle clip to the outside of the caliper. Ensure the clip's 'ears' are seated correctly in the bracket, then push up with your thumbs to snap the clip into the holes in the caliper.

Crucial Torque Specifications for Standard F30 Front Brakes:

• Caliper Bracket Bolts: 110 Nm (Newton-metres)
• Caliper Guide Pins: 28 Nm
• Wheel Lug Bolts: 120 Nm

Upgrading to M-Sport? Servicing Your Performance Brakes

The M-Sport package on your F30 offers a taste of BMW's performance heritage, and its upgraded braking system is a significant part of that. Featuring fixed-piston Brembo calipers, these brakes offer enhanced stopping power and heat tolerance. While the service procedure differs from the standard sliding calipers, it's still a manageable DIY task, requiring precision and the right tools.

Estimated Cost & Time:

The cost for M-Sport front brake components can vary significantly, from approximately £160 for street-focused aftermarket options (e.g., Zimmermann discs and Akebono pads) up to £640 or more for genuine BMW OEM drilled and slotted discs and pads. All kits typically include a new pad wear sensor. The time commitment remains similar to the standard brakes: about 30 minutes per corner for pads and discs, plus 20 minutes if a fluid flush is included.

Step-by-Step Guide:

1. Prepare the Vehicle: As with the standard brakes, loosen the lug bolts, then jack up the front of the car and secure it on jack stands. Remove the wheel.
2. Remove the Rotor Set Screw: Use a 6mm hex bit socket to remove the small set screw that secures the brake disc to the hub.
3. Unlock Steering for Access: Unlock the steering wheel and turn the wheel fully to the side you are *not* currently working on. This provides better access to the backside of the brakes.
4. Remove Caliper Pins: M-Sport calipers use two pins to hold the pads in place. Using a punch and a hammer, tap these pins partially out. They can be stubborn due to brake dust build-up. Once protruding, use a pair of pliers to pull the pins out the rest of the way.
5. Remove Anti-Rattle Clip & Pads: Depending on pad wear, you may need to gently push the pads back with a flathead screwdriver to free the anti-rattle clip. Once the clip is free, remove it. Then, pull the old brake pads straight out of the caliper. Disconnect the pad wear sensor from the inner pad on the driver's side.
6. Compress Caliper Pistons: Use a brake piston compressor tool to push the multiple pistons back fully into the caliper. This step is crucial to create space for the new, thicker pads.
7. Disconnect Old Pad Wear Sensor: Follow the sensor wire back to the plastic electrical box mounted in the wheel well. Open the box, disconnect the old sensor, and replace it with the new one provided in your kit.
8. Remove Caliper Mounting Bolts: Use an 18mm socket to remove the two caliper mounting bolts that attach the caliper to the knuckle. Once removed, use a hook, bungee cord, or zip-ties to hang the caliper safely out of the way, ensuring it does not hang by the brake line.
9. Remove the Brake Disc: With the caliper removed, pull the old brake disc off the hub. If it's seized by corrosion, a hammer can be used to free it with firm, even taps on the disc hat.
10. Clean Hub Surface: Use an abrasive disc or a steel-bristled brush to thoroughly clean any corrosion from the hub's mating surface. A clean surface is vital for the new disc to sit flush.
11. Fit New Brake Disc: Install the new brake disc onto the hub. Hand-thread the 6mm hex set screw to secure it, then tighten it with your socket.
12. Refit Caliper: Reinstall the caliper onto the knuckle. If reusing the original bolts, use an 18mm socket. If using new BMW replacement bolts, an E16 socket is required. Always hand-thread the bolts first to prevent cross-threading. Torque them to the specified setting.
13. Install New Pads: Slide the new brake pads into the caliper. This will be a very tight fit due to the new pads and disc being at their thickest. Be patient and ensure they are seated correctly.
14. Connect New Pad Wear Sensor: Connect the new pad wear sensor to the inner pad on the driver's side.
15. Install Anti-Rattle Clip & Pins: Install the anti-rattle clip. Insert one of the caliper pins through the caliper and clip. Then, push down the other side of the clip and slide in the second pin, locking the clip firmly in place. Use a hammer to gently tap the pins fully into position until they are flush.

Crucial Torque Specifications for M-Sport F30 Front Brakes:

• Caliper Bolts: 110 Nm (Newton-metres)
• Wheel Lug Bolts: 115 Nm

Standard vs. M-Sport Brakes: A Quick Comparison

While both braking systems provide excellent safety, understanding their differences in design and servicing can be helpful.

Important Considerations Before You Drive

Once your new front brake pads and discs are installed, there are a couple of crucial steps to take before you hit the road. These steps ensure proper function and prolong the life of your new components.

• Pump the Brake Pedal: Before starting the engine, get into the car and press the brake pedal firmly and repeatedly a few times. You'll notice the pedal will feel soft at first, then gradually firm up. This action pushes the caliper pistons back out, seating the new pads against the discs and taking up any slack. Do not drive the car until the pedal feels firm.
• Reset Brake Pad Interval: Your BMW's onboard computer tracks brake pad wear. After replacing the pads and sensor, you'll need to reset this service interval. The exact procedure varies slightly by model year, but generally involves accessing the service menu via the instrument cluster or iDrive system. Consult your BMW owner's manual for precise instructions on how to reset the front brake service reminder.
• Brake Bedding-In (Break-In) Procedure: New brake pads and discs need a 'bedding-in' period to properly mate their surfaces for optimal performance. This involves a series of moderate stops from varying speeds, allowing the pad material to transfer evenly onto the disc surface and for the components to cure. Avoid hard braking or prolonged heavy braking during the first 200-300 miles. Gradually increase braking force over this period. Consult the pad manufacturer's recommendations for specific bedding-in procedures.

Frequently Asked Questions (FAQs)

How often should I replace my BMW F30 front brake pads and discs?

The lifespan of brake components varies significantly based on driving style, road conditions, and the type of pads and discs used. Generally, front brake pads on an F30 might last anywhere from 25,000 to 50,000 miles. Discs typically last longer, often through two sets of pads, but it's common practice to replace both pads and discs together, especially if the discs show signs of wear (grooves, warping) or have reached their minimum thickness. Your car's brake pad wear sensor will also alert you when pads are low, providing a direct indication.

Can I just replace the brake pads and not the discs?

While technically possible, it's generally not recommended for optimal performance and safety, especially if your discs show any signs of wear like deep grooves, scoring, or warping. New pads require a perfectly flat and smooth surface to bed in properly and achieve full contact. Installing new pads on worn or uneven discs can lead to reduced braking efficiency, premature pad wear, noise, and juddering. If your discs are below their minimum thickness specification (stamped on the disc's hub), they absolutely must be replaced.

What if I hear a grinding noise immediately after replacing the brakes?

If you hear grinding immediately after replacement, it's a serious concern. Double-check your installation to ensure everything is correctly assembled and torqued. Ensure no foreign objects are lodged between the pad and disc. It could indicate that a component was installed incorrectly, or that the pads are not seating properly. Stop driving immediately and inspect your work. A slight scraping or squealing sound is common during the initial bedding-in period, but a metallic grinding sound indicates a problem.

Do I need to bleed the brake fluid after replacing pads and discs?

Typically, no, not for a standard pad and disc replacement. Bleeding the brakes is only necessary if you've opened the hydraulic system (e.g., removed a caliper from the line, replaced a brake hose, or introduced air into the system). When you push the pistons back into the caliper, you're simply displacing fluid back up into the master cylinder reservoir. However, it's good practice to check your brake fluid level and condition, and a full brake fluid flush is recommended every 2-3 years as part of routine maintenance, regardless of brake component replacement.

What is a brake pad wear sensor and why do I need to replace it?

The brake pad wear sensor is a small electrical component designed to alert you when your brake pads have worn down to a critical level. It typically consists of a plastic housing with a wire loop embedded in the brake pad material. As the pad wears, the sensor eventually makes contact with the spinning brake disc, breaking the circuit and triggering a warning light on your dashboard. Once activated, the sensor is 'consumed' and cannot be reused, even if it appears physically intact. Therefore, it must always be replaced with new pads to ensure the warning system functions correctly.

Replacing the front brake pads and discs on your BMW F30 is a rewarding DIY project that empowers you to take control of your vehicle's maintenance. By following this comprehensive guide, paying close attention to detail, and adhering to the specified torque specifications, you can ensure your BMW's braking system is safe, reliable, and performing optimally. Drive safely and enjoy the confidence of knowing your brakes are in excellent condition.
