EGR Valve Connector Removal Guide

The Exhaust Gas Recirculation (EGR) system in modern diesel engines is designed to reduce NOx emissions by recirculating a portion of exhaust gas back into the intake manifold. While environmentally beneficial, it can lead to reduced engine efficiency, increased maintenance, and potential DPF (Diesel Particulate Filter) issues over time. This guide will walk you through a specific method to electrically disable the EGR valve's feedback mechanism, as described by enthusiasts, which can lead to improved fuel economy and a reduction in certain diagnostic trouble codes. It's crucial to understand that modifying emission control systems may have legal implications depending on your location and should be undertaken with caution.

Understanding the EGR System and its Impact

The EGR valve's primary function is to lower combustion temperatures by introducing inert exhaust gases. This reduces the formation of nitrogen oxides (NOx), which are harmful pollutants. However, the exhaust gases contain soot and other particulates that can gradually build up in the intake manifold, on the EGR valve itself, and within the EGR cooler. This buildup can restrict airflow, leading to:

• Reduced engine power and performance
• Increased fuel consumption
• More frequent and prolonged DPF regeneration cycles
• Potential for the EGR valve to stick open or closed, causing drivability issues
• Contamination of the engine oil

Some vehicle owners have reported a desire to disable or bypass the EGR system to mitigate these issues. While physically blocking the EGR valve at the valve body is an option, it can sometimes trigger specific diagnostic codes. The method detailed here focuses on electrically disabling the feedback sensor, which appears to trick the engine control unit (ECU) into believing the EGR system is functioning correctly while preventing it from actually operating.

The "Feedback Sensor Disconnect" Method

This popular modification, credited to user TDIwyse, involves a subtle alteration to the electrical connector of the EGR valve motor. The goal is to interrupt the signal from the EGR valve's position sensor, effectively preventing the ECU from commanding the valve to open. This method is reported to result in a consistent state of zero EGR utilization without necessarily triggering a "limp home" mode, a common occurrence when the EGR valve is completely disconnected.

Why this method?

Initial attempts at EGR deletion, such as using a physical copper disc to block the EGR valve at its body, have sometimes led to undesirable side effects like reduced mileage and an increase in DPF regeneration frequency, along with specific fault codes (e.g., 45B7, 4862, 4B82). Electrically disconnecting the entire EGR valve unit often results in the vehicle entering a restricted performance mode. The feedback sensor disconnect method, however, aims to bypass these issues by only disabling the valve's positional reporting, leading to a single, more manageable fault code (e.g., 4CAE) and reported improvements in fuel economy.

Reported Benefits

Users performing this modification have reported:

• Improved Fuel Economy: A notable increase in miles per gallon or a decrease in litres per 100km. For example, a reported improvement from 9.2 l/100km to 8.4 l/100km, translating to approximately 100km more per tank.
• Reduced DPF Issues: Potentially fewer DPF regeneration cycles due to cleaner exhaust gases entering the intake.
• Fewer Fault Codes: A reduction in the number or severity of diagnostic trouble codes related to EGR operation.
• Maintained Drivability: Avoidance of limp home mode or significant performance degradation.

Step-by-Step Guide: How to Remove the Connector Terminal

This procedure requires a delicate touch and basic tools. Always ensure the engine is switched off and the ignition key is removed before working on any electrical components.

Tools You'll Need:

• A standard metal paperclip
• Possibly a small flat-head screwdriver or pick for assistance

Procedure:

1. Locate the EGR Valve: Identify the EGR valve motor on your engine. It's typically connected to the EGR cooler and the intake manifold.
2. Disconnect the Electrical Connector: Carefully unclip and remove the electrical connector from the EGR valve motor. There might be a locking tab that needs to be pressed or lifted.
3. Prepare the Paperclip: Partially unbend a standard metal paperclip, creating a straight wire section.
4. Identify the Target Terminal: Look closely at the EGR valve connector. You need to access the small hole located next to terminal number 5. This hole is for releasing the terminal from the connector housing.
5. Release Terminal 5: Gently insert the straightened end of the paperclip into the small release hole next to terminal 5. You are aiming to disengage the locking mechanism that holds the metal terminal in place within the plastic connector.
6. Extract the Terminal: Once the terminal is released, carefully pull the wire (often black, as per user reports) and its associated metal terminal out from the back of the connector housing. Be gentle to avoid damaging the wire or the terminal.
7. Reinsert the Connector: Once the terminal is removed, carefully reinsert the now-modified electrical connector back onto the EGR valve motor. Ensure it clicks securely into place.

That's it! By removing the feedback terminal, the EGR valve motor will no longer receive the signal indicating its position, effectively preventing it from operating. The ECU will likely register a fault for this missing feedback, but it's often a less intrusive code than a complete EGR circuit failure.

Important Considerations and Reversibility

Emissions Testing

If your vehicle is subject to emissions testing, this modification will likely cause it to fail. The procedure is reversible. To revert the change for an emissions test:

• Carefully remove the electrical connector from the EGR valve motor again.
• Using a suitable tool (or the other end of the paperclip), gently push the extracted terminal back into its original position (terminal 5) within the connector housing until it locks.
• Reconnect the electrical connector to the EGR valve motor.

Crucially, after reversing the modification, you must drive the vehicle for a period to allow the ECU's internal monitors to reset and become "ready" for testing. This can take a significant amount of driving, including various conditions (city, highway, varying loads). Consult your vehicle's service manual or a qualified mechanic for specific DDE monitor readiness procedures.

EGR Cooler Reliability

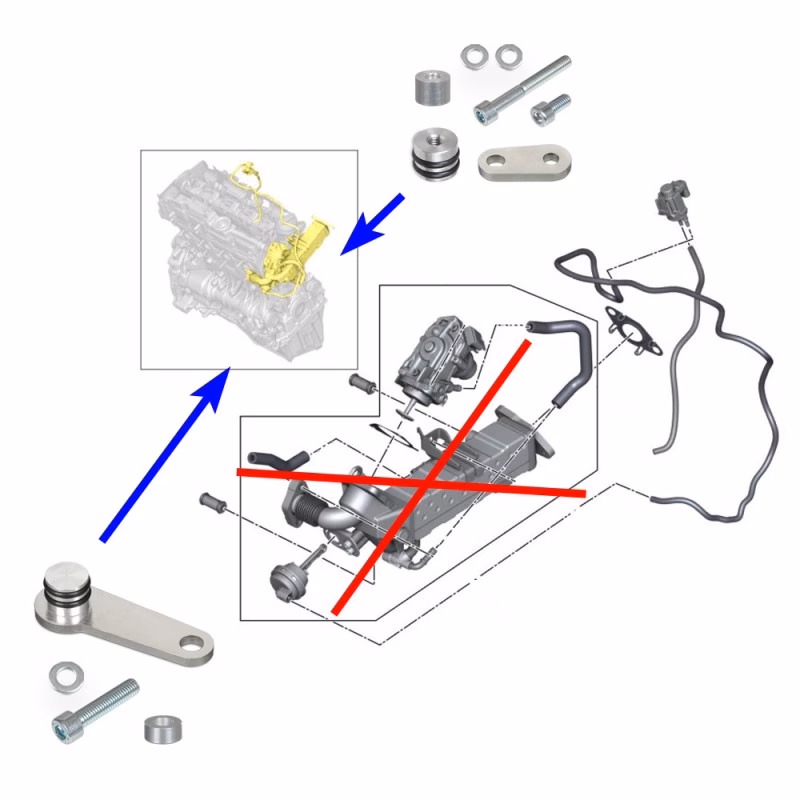

While this electrical modification effectively disables the EGR valve's operation, it does not remove the EGR cooler itself. Some vehicle owners, particularly those with BMW diesel engines (like the X5 35D or 335D mentioned in the source material), have experienced issues with EGR coolers cracking. A cracked EGR cooler can lead to coolant loss, white smoke from the exhaust, and severe engine damage. Therefore, a more comprehensive approach often includes the physical removal of the EGR cooler, blocking off the exhaust manifold connection, and bypassing the coolant lines associated with the cooler. This electrical modification can be seen as a complementary step or an alternative for those who wish to avoid physical component removal but still reap the benefits of a non-functioning EGR system.

Engine Health and Long-Term Effects

The argument against EGR systems often centres on the long-term impact of recirculating soot-laden exhaust gases into the intake system. This can lead to:

• Intake Manifold Coking: Gradual buildup of carbon deposits that restrict airflow.
• Reduced Combustion Efficiency: The presence of inert gases can slightly reduce the efficiency of the combustion process.
• Increased Maintenance: Potential need for intake manifold cleaning or replacement of EGR components.

Conversely, modern synthetic oils and proper engine maintenance can mitigate some of the wear and tear associated with normal engine operation. However, for vehicles kept for extended periods, owners may prioritise the perceived benefits of disabling the EGR system, such as cleaner internals and potentially better long-term reliability, by avoiding the issues caused by soot accumulation.

Frequently Asked Questions (FAQ)

Q1: Will this modification void my car's warranty?
A: Yes, modifying emissions control systems will almost certainly void your vehicle's warranty, particularly for issues related to the engine or emissions system. Proceed with caution if your vehicle is under warranty.

Q2: What fault code might I expect after doing this?
A: Users have reported a single fault code, such as 4CAE, which typically indicates an issue with the EGR system's feedback or control. The exact code may vary depending on the vehicle manufacturer and model.

Q3: Can I do this on a petrol engine?
A: This specific method is described in the context of diesel engines. While many petrol engines also have EGR systems, the design and electrical connectors can differ significantly. This guide is specific to the described diesel application.

Q4: Is this considered an "EGR Delete"?
A: While it effectively disables the EGR valve's operation, it's technically an "EGR feedback disable" rather than a full physical EGR delete (which involves removing the valve and blocking all passages). It achieves a similar outcome in terms of preventing exhaust gas recirculation.

Q5: What are the legal implications of disabling the EGR system?
A: In many regions, modifying or disabling emissions control systems is illegal and can result in fines or failure to pass roadworthiness tests. It is the owner's responsibility to ensure compliance with local regulations.

Concluding Thoughts

The feedback sensor disconnect method offers a relatively simple way to electrically disable the EGR valve on certain diesel engines, with reported benefits for fuel economy and potentially reduced DPF-related issues. However, it's essential to weigh these advantages against the legal implications, potential warranty voidance, and the fact that you are altering a system designed for emissions control. If you choose to proceed, doing so with careful attention to the steps and understanding the reversibility is paramount. For those concerned about the physical EGR cooler's reliability, a more comprehensive EGR delete, including cooler removal, is often recommended.
