DIY: Replacing Your BMW's ZF 8HP Transmission Sump

Maintaining your automatic transmission is paramount for the longevity and smooth operation of your BMW. While some manufacturers, including BMW, have historically promoted the concept of 'lifetime' transmission fluid, the reality, as acknowledged by transmission specialists like ZF themselves, is quite different. Regular fluid and filter changes, often necessitating the removal of the transmission oil pan, are crucial for optimal performance and to prevent premature wear. This guide will walk you through the process of replacing the transmission oil pan on a BMW equipped with the robust ZF 8HP gearbox, focusing on key considerations and common pitfalls.

Understanding Your ZF 8HP Transmission

The ZF 8HP automatic transmission is a marvel of engineering, known for its efficiency and smooth shifts. However, like any mechanical component, it requires proper maintenance. A significant improvement over its predecessor, the ZF 6HP, is the design of its seals. The 6HP was notorious for problematic orange O-ring seals, which were a common source of leaks. The ZF 8HP, by contrast, features a simpler and more reliable O-ring design for its Mechatronic unit, reducing the likelihood of such issues. Nevertheless, the transmission oil pan, which often integrates the filter, should be replaced periodically, typically alongside a fluid change, to ensure the filtration system remains effective and the pan itself is free from cracks or deformities.

Why Replace the Pan and Fluid?

The notion of 'lifetime' transmission fluid is, frankly, a marketing construct. ZF, the manufacturer of these excellent gearboxes, actually recommends fluid and filter changes, particularly for performance vehicles, typically between 60,000 to 80,000 miles. Neglecting this vital maintenance can lead to a myriad of problems, including reduced shift quality, increased wear on internal components, and ultimately, costly transmission failure. The oil pan itself often houses the transmission filter, making its replacement integral to a comprehensive fluid service. Furthermore, replacing the pan ensures a fresh gasket seal, preventing leaks that can lead to dangerous underfilling.

Crucial note: The ZF Lifeguard 8 fluid and BMW ATF 3+ (part number 83 22 2 289 720) are, in essence, the same product. BMW's version is simply a re-labelled ZF product, often sold at a significantly higher price. You can typically purchase two bottles of ZF Lifeguard 8 for the price of one BMW-branded bottle, offering considerable savings without compromising quality. Rest assured, you can safely mix existing Lifeguard 8 fluid with new Lifeguard 8.

Tools and Materials Required

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and safer.

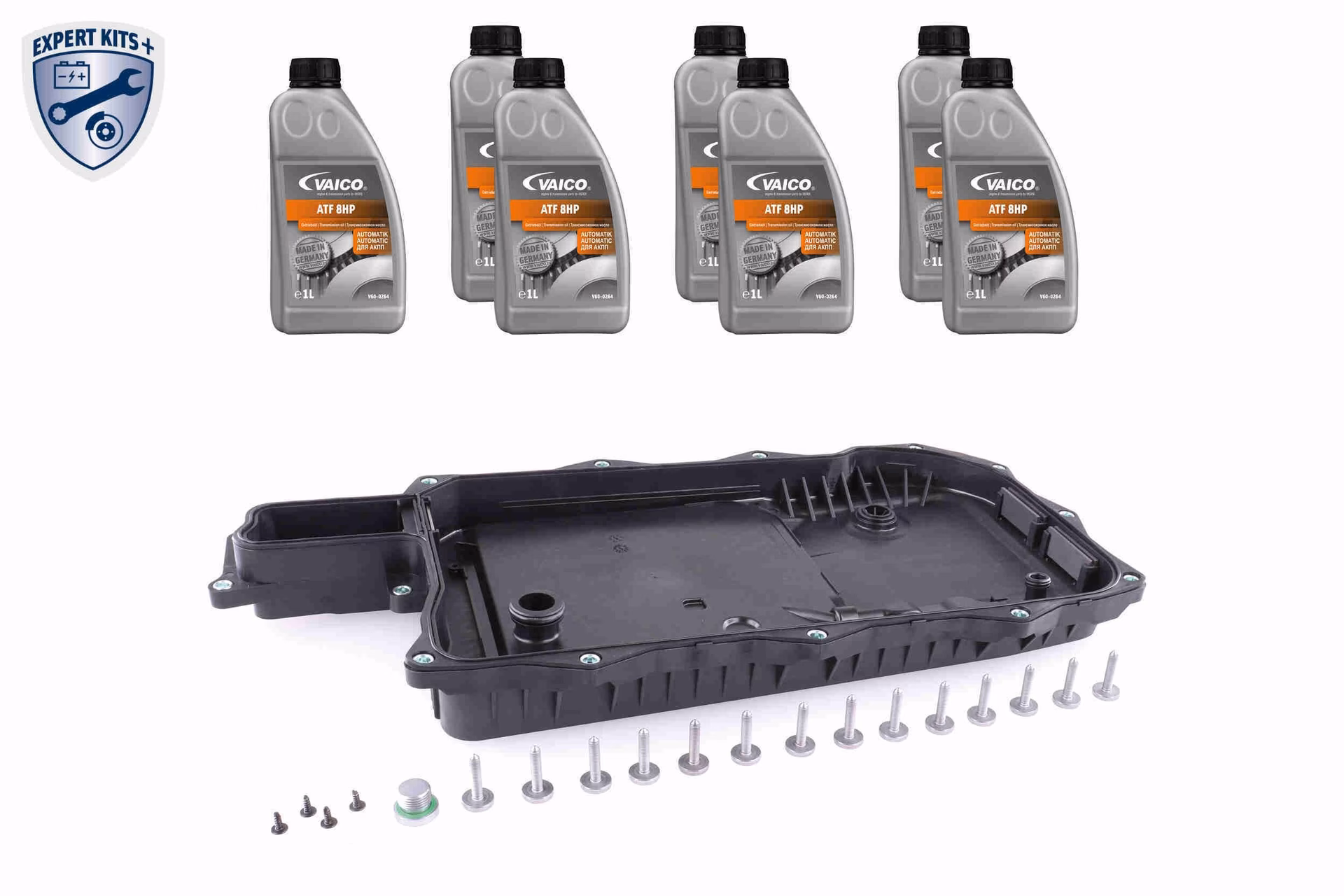

• New ZF 8HP transmission oil pan (usually comes with an integrated filter and gasket)
• Sufficient quantity of ZF Lifeguard 8 transmission fluid (total capacity is 8.7 litres, but the pan holds approximately 5.5 litres, so you'll be replacing around two-thirds of the total fluid)
• Stubby Torx bit set (essential for those tight rear bolts)
• Torque wrench
• Drain pan large enough to hold over 5.5 litres of fluid
• Fluid pump for refilling the transmission
• Vehicle lift or robust jack stands (ensure the car is absolutely level)
• Scissors jack or transmission jack (for manipulating the crossmember)
• Welding blanket or heavy-duty heat-resistant material (for exhaust protection)
• Clean rags or shop towels
• Safety glasses and gloves

Preparation: Safety First

Safety is paramount when working under a vehicle. Ensure your car is on a completely level surface and securely supported by a lift or robust jack stands. Never rely solely on a floor jack. The transmission fluid needs to be at a specific temperature during the fill procedure, so plan your work accordingly.

Step-by-Step Oil Pan Removal

Here's how to carefully remove the transmission oil pan:

1. Vehicle Preparation: Raise the vehicle to a comfortable working height and ensure it is perfectly level. This is crucial for accurate fluid level checks later.
2. Drain the Fluid: Position your large drain pan beneath the transmission oil pan. Locate the drain plug on the pan and carefully remove it. Allow all the fluid to drain completely. While the pan holds around 5.5 litres, the total system capacity is 8.7 litres, so you won't drain it all, as some remains in the torque converter and cooler lines.
3. Address the Crossmember: This is where it gets a bit tricky, but with the right technique, you won't need to fully remove the transmission/transfer case crossmember. You'll need to loosen the bolts securing the transmission crossmember. Once loosened, use a scissors jack or a transmission jack to carefully lift the transfer case slightly. Simultaneously, you can gently lower the transmission crossmember. This clever manoeuvre creates just enough space to access the three rear transmission oil pan bolts that are otherwise obstructed.
4. Loosen Pan Bolts: With the space created by adjusting the crossmember, you'll need your stubby/short Torx bit. Slip the stubby bit into the bolt head and use a wrench to unfasten these three rear bolts. Once these are loose, proceed to remove the remaining bolts around the perimeter of the oil pan.
5. Pan Removal: With all bolts removed, carefully pry the oil pan away from the transmission housing. Be prepared for some residual fluid to spill out, so have your drain pan ready. Once detached, carefully lower the pan, ensuring not to damage the Mechatronic unit or other internal components.
6. Inspection and Cleaning: Inspect the transmission housing mating surface for any old gasket material or debris. Clean it thoroughly to ensure a perfect seal with the new pan. Also, inspect the old pan for any metal shavings, which could indicate internal transmission wear.

Transmission Fluid Refill and Level Adjustment

This is arguably the most critical part of the process. The ZF 8HP requires a precise filling procedure to ensure correct fluid levels and prevent issues like loss of oil pressure.

1. Install New Pan: Install the new transmission oil pan with its integrated filter and new gasket. Hand-tighten all bolts first, then use a torque wrench to tighten them to the manufacturer's specified torque settings. The drain plug on the new pan should be tightened to 8 Nm (this value is often printed on the pan itself).
2. Initial Fill: Begin adding new ZF Lifeguard 8 fluid through the fill hole until it starts to trickle out. This usually takes around 3 to 4 litres.
3. Engine Start and Circulation: With the engine off, ensure the fill plug is loosely installed to prevent spillage. Start the engine. Immediately rev the engine to 2000 RPM for 30 seconds while the vehicle is in Park (P). This helps circulate the new fluid throughout the transmission and torque converter.
4. Gear Shifting Sequence: After the 30 seconds in Park, shift the transmission through each gear, pausing for approximately 30 seconds in Reverse (R), Drive (D), First (1), and Second (2). Allow the engine to idle during these shifts. This ensures that the fluid reaches all parts of the valve body and clutches, expelling any trapped air.
5. Final Top-Off: Once you've cycled through all gears, return the transmission to Park (P) and leave the engine running. Quickly get back under the vehicle and resume adding fluid through the fill hole. Continue until a steady stream of fluid begins to trickle out. You'll likely add another litre or so at this stage.
6. Temperature Check: The critical final step is to ensure the transmission fluid temperature is between 30°C and 50°C (86°F and 122°F) during the final top-off. If the fluid is too cold, it will not expand sufficiently, leading to an underfill. If it's too hot, it will be overfilled. You must work quickly once the engine is running to maintain this temperature window. The total fill with a standard plastic oil pan should be approximately 4 to 4.5 litres.

Pro-Tips for a Smoother Process

• Exhaust Heat Protection: The exhaust pipes run notoriously close to the transmission fill port. To protect your arms and hands from severe burns, wrap a cheap welding blanket or similar heat-resistant material around the exhaust pipe near the fill area. This simple precaution can save you a lot of discomfort.
• Maximising Fluid Drain: For an even more comprehensive fluid change, consider loosening (but not removing) the valve body bolts. This can allow nearly an additional 2 quarts (approximately 1.9 litres) of old fluid to drain from the transmission, bringing the total drained volume to around 6.5 litres. While the torque converter and cooler lines still hold about 3 litres that cannot be drained without specific equipment, this method provides a much more complete fluid refresh. If you opt for this, ensure you have the correct torque sequence and values for re-tightening the valve body bolts.

Common Questions and Troubleshooting

Q: Is BMW's 'lifetime' transmission fluid claim true?
A: No, it's a marketing term. ZF, the manufacturer, recommends fluid changes every 60,000 to 80,000 miles, especially for performance vehicles. Ignoring this can lead to premature transmission wear and failure.

Q: What happens if I underfill the transmission?
A: Underfilling is extremely dangerous. As one user experienced, insufficient fluid can lead to a loss of oil pressure, particularly on steep declines. This can trigger a 'Drivetrain Error' and force the transmission into neutral, which is a highly perilous situation, especially on twisty or busy roads.

Q: Can I mix different brands of transmission fluid?
A: It is highly recommended to stick to ZF Lifeguard 8 or the re-branded BMW ATF 3+. While ZF Lifeguard 8 can be mixed with existing Lifeguard 8, mixing with other fluid types not explicitly approved by ZF could lead to compatibility issues and potential transmission damage.

Q: Why is the fluid temperature so important during refilling?
A: Transmission fluid expands significantly with heat. Filling the transmission when the fluid is too cold will result in an underfill once it reaches operating temperature. Conversely, if it's too hot, you risk overfilling. The specified temperature range (30-50°C / 86-122°F) ensures an accurate fluid level measurement.

Q: What's the difference between ZF 6HP and 8HP seals?

Conclusion

Replacing your BMW's ZF 8HP transmission oil pan and performing a fluid change is a critical maintenance task that can significantly extend the life of your gearbox. While it requires patience and adherence to precise procedures, especially during the fluid fill and level adjustment, the effort is well worth it. By understanding the 'lifetime fluid' myth, utilising the correct fluids, and following the detailed steps outlined, you can ensure your BMW's transmission remains in peak condition, delivering those smooth, reliable shifts for many miles to come. Remember, proper maintenance isn't just about fixing problems; it's about preventing them.
