DIY BMW Automatic Transmission Fluid Change

When it comes to vehicle maintenance, many drivers understand the importance of regular engine oil changes. However, the transmission, a complex and vital component, often gets overlooked, sometimes due to the misleading concept of 'lifetime' fluid. For BMW owners, especially those with automatic transmissions, understanding and performing a proper transmission fluid change can be the difference between years of smooth, reliable driving and costly, premature component failure. This guide will walk you through the process, demystifying what many perceive as a complicated task, and focusing on the nuances specific to BMW automatic transmissions.

Unlike engine oil, which lubricates components and collects combustion by-products, transmission fluid is a sophisticated hydraulic fluid that serves multiple critical functions. It lubricates gears, clutches, and bearings, cools the transmission, and acts as a hydraulic medium to transmit power and enable gear changes. Over time, this fluid degrades due to heat, friction, and contamination, losing its lubricating properties and becoming less efficient. This degradation can lead to harsher shifts, reduced fuel economy, and eventually, severe transmission damage.

Why Transmission Fluid Changes Are Crucial

Despite what some manufacturers might suggest with their 'lifetime fluid' claims, transmission fluid is not truly lifetime. The term often refers to the expected lifespan of the transmission itself, which may not align with your ownership goals. Regular fluid changes are paramount for several reasons:

• Extended Transmission Life: Fresh fluid reduces wear and tear on internal components, significantly prolonging the life of your transmission.
• Smoother Shifts: Degraded fluid can cause rough or delayed gear changes. New fluid restores optimal hydraulic pressure, leading to seamless transitions.
• Improved Performance: A healthy transmission operates more efficiently, which can translate to better fuel economy and overall driving dynamics.
• Prevent Costly Repairs: Ignoring fluid degradation can lead to expensive repairs or even a complete transmission replacement, which can cost thousands of pounds.

Gathering Your Tools and Materials

Before you begin, ensure you have all the necessary items. Using the correct type of transmission fluid is absolutely critical for BMWs; consult your owner's manual or a reputable BMW parts supplier for the precise specification (e.g., ZF LifeguardFluid 6 or 8 for ZF transmissions). Using the wrong fluid can cause immediate and severe damage.

• New Automatic Transmission Fluid (ATF) – ensure it meets BMW's specific requirements.
• New Transmission Oil Pan with integrated filter (often comes with a new gasket and bolts).
• Drain pan/bucket for old fluid.
• Torque wrench.
• Socket set (various sizes, typically E-Torx sockets for BMW).
• Fluid transfer pump (essential for refilling).
• Jack and jack stands (always use jack stands for safety).
• Gloves and safety glasses.
• Clean rags or shop towels.
• OBD-II scanner with transmission temperature reading capability (highly recommended).

Safety First: A Non-Negotiable Step

Working under a vehicle can be dangerous. Always prioritise safety:

• Ensure the vehicle is on a level, hard surface.
• Use sturdy jack stands to support the vehicle after lifting it with a jack. Never rely solely on a jack.
• Wear safety glasses to protect your eyes from fluid splashes or debris.
• Wear gloves to protect your hands from hot fluid and chemicals.
• Allow the vehicle to cool down slightly if it has been recently driven, as transmission fluid can be very hot.
• Properly dispose of old transmission fluid at an authorised recycling centre.

The Automatic Transmission Fluid Change Procedure

This procedure goes beyond a simple drain and fill, aiming to replace as much of the old fluid as possible. It is particularly relevant for ZF automatic transmissions commonly found in BMWs, which often feature a mechatronics unit within the pan.

1. Initial Drain and Pan Removal

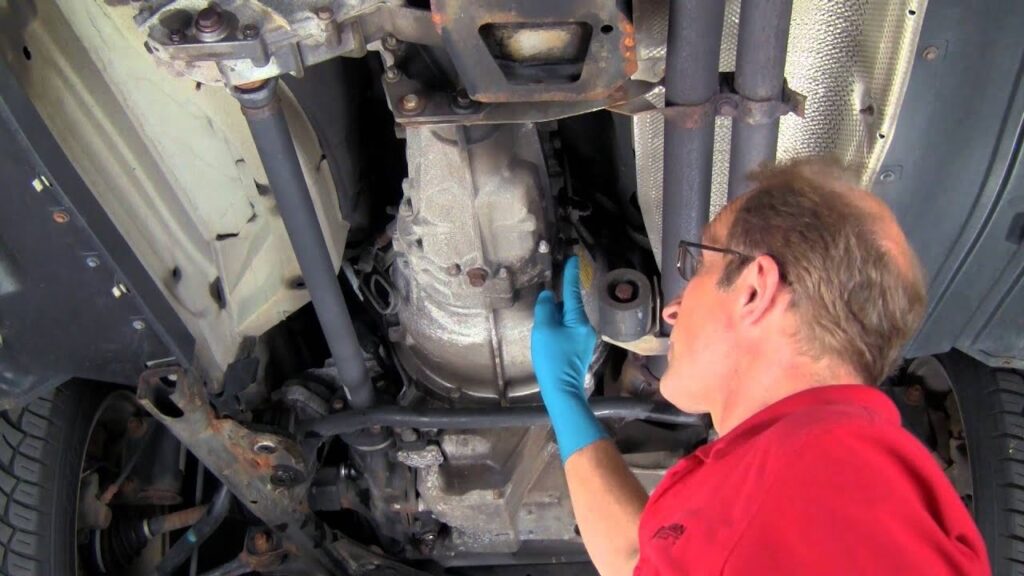

Begin by positioning your drain pan beneath the transmission. Locate the drain plug on the transmission pan and carefully remove it. Allow the fluid to drain completely. This initial drain will only remove a fraction of the total fluid, typically around 1/3 to 1/2 of the old fluid. Once the flow slows to a drip, replace the drain plug temporarily.

Next, carefully remove the bolts securing the transmission pan. Be prepared for more fluid to dribble out as you loosen the pan. Once all bolts are removed, gently lower the pan. This pan often contains the integrated filter and sometimes the mechatronics unit, depending on the transmission type. The goal here is to remove the old pan, which contains the old filter, and replace it with a new one.

2. Draining the Mechatronics Unit (If Applicable)

This is a crucial step often overlooked in simpler drain-and-fill procedures. For many BMW automatic transmissions, the Mechatronics Unit (a combined electronic control unit and valve body) is located within the transmission and holds a significant amount of fluid. If your transmission design allows (and it often does with ZF units), dropping or slightly tilting the mechatronics unit will allow much of the remaining old fluid to drain out. This is where you get rid of most of the rest of the old fluid that a simple pan drain wouldn't touch. Be extremely careful if this step is part of your procedure, as the mechatronics unit is a delicate and expensive component. Consult a specific service manual for your BMW model to confirm if this step is applicable and how to perform it safely.

3. Installing the New Pan and Preparing for Refill

Once all the old fluid has drained, thoroughly clean the transmission mating surface on the transmission housing. Ensure no old gasket material or debris remains. Install the new transmission pan, which should come with a new filter and gasket. Torque the pan bolts to the manufacturer's specified settings, usually in a criss-cross pattern, to ensure an even seal. Overtightening can warp the pan or strip threads, while undertightening can lead to leaks.

4. Initial Fluid Fill (Engine Off)

Locate the fill plug on the transmission. Using your fluid transfer pump, begin pumping new, specified automatic transmission fluid into the fill hole. Continue pumping until the fluid starts to drip out of the fill hole. At this point, replace the fill plug temporarily. This initial fill is done with the engine off to allow the fluid to settle into the pan and partially fill the torque converter.

5. Reaching Operating Temperature and Gear Cycling

Lower the vehicle to the ground. Start the engine and let it run. The next crucial step is to get the transmission fluid up to its operating temperature. This is typically between 35°C and 50°C (95°F and 122°F), but refer to your specific BMW service manual for the exact temperature range. An OBD-II scanner capable of reading transmission fluid temperature is invaluable here. If you don't have one, some experienced mechanics might estimate based on engine temperature, but it's not ideal.

Once the fluid is nearing operating temperature, with your foot firmly on the brake, cycle through all the gears. Start in Park (P), move to Reverse (R), Neutral (N), Drive (D), and then manually select through any lower gears if your transmission has them (e.g., M1, M2, M3). Hold it in each gear for a few seconds (e.g., 5-10 seconds) to allow the fluid to circulate thoroughly through the valve body, torque converter, and clutch packs. The key is that the wheels never spin during this process. This action helps to pump fluid into all parts of the transmission and pushes air out.

6. Final Fluid Top-Up (Engine Running)

After cycling through the gears, put the BMW back in Park (P) while the engine is still running. Crucially, the engine must remain running for this final fill. With the engine running, carefully open the fill plug again. Using your fluid transfer pump, pump more fluid into the transmission until it starts to drip out of the fill hole again. This second fill will take a significant amount more fluid than the first, as the running engine and circulating pump have drawn fluid into all the transmission's internal passages and the torque converter. If you were to do this with the engine off, the fluid would simply pour out everywhere as the internal components aren't primed.

Once the fluid begins to drip steadily from the fill hole, indicating it's at the correct level for the specified operating temperature, quickly replace and tighten the fill plug. Torque it to the manufacturer's specifications.

7. Final Checks and Test Drive

Clean up any spilled fluid. Check for any leaks around the transmission pan and fill plug. Lower the vehicle completely. Take the car for a short test drive. Pay attention to how the transmission shifts. It should feel smooth and responsive. If you notice any unusual behaviour, recheck the fluid level (following the same engine-running, temperature-dependent procedure) and inspect for leaks.

Common Mistakes to Avoid

• Using the Wrong Fluid: This is perhaps the biggest mistake. Always use the exact fluid specified by BMW.
• Not Checking Temperature: The fluid level is highly sensitive to temperature. An incorrect temperature reading will result in an overfill or underfill.
• Not Cycling Gears: Failing to cycle through gears prevents proper fluid distribution throughout the transmission's internal components.
• Not Draining Mechatronics (if applicable): This leaves a significant amount of old fluid in the system.
• Allowing Wheels to Spin with Drained Fluid: This is a critical warning from the provided text. You cannot allow the wheels to spin with drained fluid. The transmission needs fluid to operate properly; running it dry, even for a moment, can cause severe damage.
• Improper Torque: Overtightening or undertightening bolts can lead to leaks or damage.

Frequently Asked Questions (FAQs)

Q: Is BMW transmission fluid truly 'lifetime'?
A: No. While BMW (and ZF, the manufacturer of many BMW transmissions) may state 'lifetime fill', this typically refers to the expected life of the component itself, which is often around 100,000 miles. For optimal longevity and performance, it is widely recommended to change the fluid between 60,000 to 100,000 miles, or even sooner for spirited driving or heavy use.

Q: What happens if I use the wrong transmission fluid?
A: Using the wrong fluid can lead to immediate and severe damage to your transmission. Different fluids have different viscosities, friction modifiers, and chemical compositions designed for specific transmission types. Incorrect fluid can cause slipping, harsh shifts, overheating, and component failure.

Q: Can I just do a simple drain and fill?
A: A simple drain and fill will only replace about 1/3 to 1/2 of the old fluid. While better than nothing, it's not as effective as a more comprehensive change that includes draining the mechatronics unit (if applicable) and ensuring full circulation, as described in this guide. For best results, aiming to remove as much old fluid as possible is recommended.

Q: Why does the engine need to be running for the second fluid top-up?
A: With the engine running, the transmission's internal pump is active, circulating fluid throughout the transmission, including the torque converter. This draws fluid into all internal passages, allowing for an accurate fill level. If the engine were off, the fluid would simply pour out of the fill hole because the internal components aren't primed and holding fluid, and the torque converter would not be full.

Q: What if I accidentally spin the wheels with drained fluid?
A: As mentioned, this is highly dangerous for your transmission. Running the transmission without sufficient fluid, even for a brief moment, can cause extreme friction, overheating, and catastrophic damage to internal components like clutches and gears due to lack of lubrication. Always ensure the vehicle is stationary and the transmission has adequate fluid before allowing any wheel rotation.

Q: How often should I change my BMW's transmission fluid?
A: While opinions vary, a general recommendation for BMW automatic transmissions is every 60,000 to 80,000 miles for normal driving. If you drive aggressively, tow, or frequently encounter heavy traffic conditions, consider changing it closer to the 40,000-50,000 mile mark. Always refer to your specific model's service recommendations.

Conclusion

Changing your BMW's automatic transmission fluid is a crucial maintenance task that can significantly impact the longevity and performance of your vehicle. While it requires patience and attention to detail, following this comprehensive guide can empower you to perform the procedure yourself, saving on garage costs and gaining a deeper understanding of your vehicle. Remember, the key is using the correct fluid, ensuring the fluid is at the proper operating temperature during the final fill, and never compromising on safety. By taking these steps, you'll ensure your BMW continues to deliver that smooth, responsive driving experience for many miles to come.
