BMW GA8HP45Z Transmission Filter Replacement

The BMW GA8HP45Z transmission, a robust and sophisticated automatic gearbox, is a cornerstone of many modern BMW vehicles. Like any intricate mechanical component, it requires regular maintenance to ensure optimal performance and longevity. A critical aspect of this maintenance is the replacement of the transmission filter and fluid. This article delves into why this service is vital, what a typical replacement kit includes, and which BMW models benefit from this essential upkeep.

Why Replace Your BMW Transmission Filter?

Automatic transmissions are complex systems that rely on a steady flow of clean transmission fluid (ATF) to operate smoothly and efficiently. Over time, this fluid degrades due to heat and contamination. Tiny metal particles, clutch material, and other debris can accumulate within the transmission, acting like an abrasive paste. The transmission filter's primary role is to capture these contaminants, preventing them from circulating and causing damage to sensitive internal components such as solenoids, clutch packs, and the torque converter.

Ignoring a clogged or worn transmission filter can lead to a cascade of problems. Reduced fluid flow can cause overheating, shifting delays, rough gear changes, and ultimately, significant internal damage. It's a proactive measure to prevent costly repairs down the line. Think of it as an oil change for your transmission – essential for its health.

What's in a Transmission Filter Service Kit?

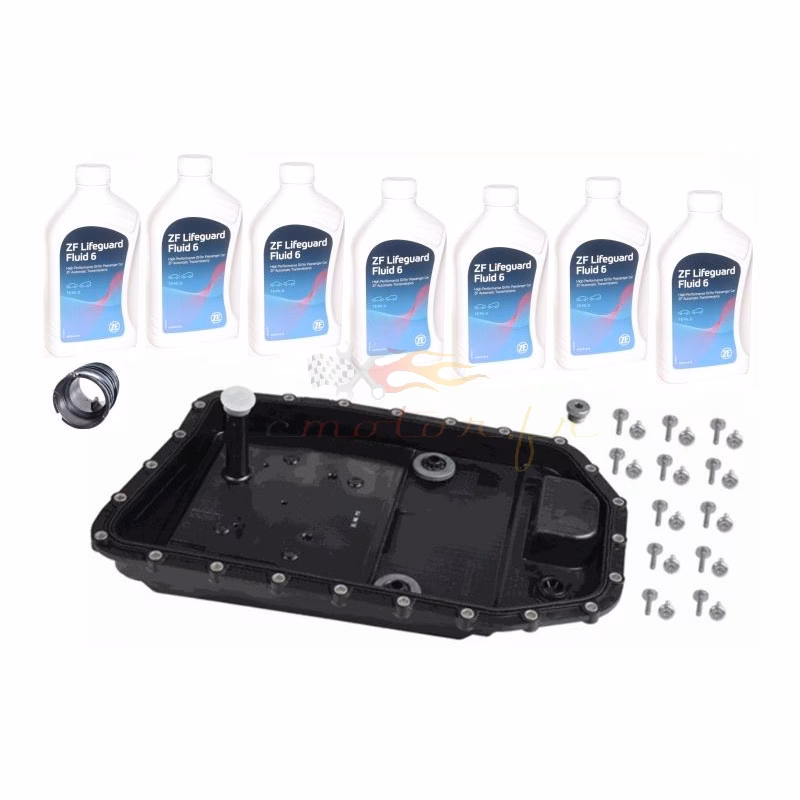

A comprehensive service kit for the GA8HP45Z transmission typically includes all the necessary components for a fluid and filter change. The provided information highlights a common kit that contains:

• ZF Lifeguard 8 ATF: This is the specific, high-quality automatic transmission fluid recommended by ZF, the original manufacturer of these transmissions. The kit usually includes a specific quantity, such as the 7 litres mentioned, which is sufficient for a partial drain and fill. It's important to note that a full transmission fluid capacity is often higher (8.5 litres in this case), with fluid remaining in the torque converter and cooler lines. For a complete flush, professional equipment or multiple drain-and-fill cycles might be necessary.
• New Oil Pan with Integrated Filter: For many ZF 8-speed transmissions, the filter is integrated into the oil pan itself. Therefore, a filter replacement necessitates replacing the entire oil pan unit. This ensures a fresh start for the filtration system.
• Oil Pan Gasket: A new gasket is crucial to ensure a leak-free seal between the new oil pan and the transmission casing.
• Drain Plug and Fill Plug: These are often included to ensure you have new, properly sealing plugs for draining the old fluid and refilling with new fluid.
• Oil Pan Bolts: New bolts can be included, as it's good practice to replace them during this service due to the potential for stretching or damage to the old ones.

OEM vs. Aftermarket: The ZF Advantage

The kit described is an OEM (Original Equipment Manufacturer) replacement part manufactured by ZF. This is highly significant. ZF is the company that designed and built the transmission for BMW. Using ZF-branded parts means you are getting components that meet the exact specifications and quality standards set by the original manufacturer. This is often a more cost-effective alternative to genuine BMW branded parts, as you bypass the premium often associated with the BMW logo, while still receiving a virtually identical, high-quality product. These parts are also TUV approved, signifying adherence to rigorous European safety and quality standards.

BMW Models Compatible with the GA8HP45Z Transmission

The GA8HP45Z transmission (and its close relatives like the GA8HP70Z) is found in a wide array of BMW models across various series. The provided list is extensive, demonstrating the widespread use of this gearbox. Here's a breakdown of some key BMW series and model ranges that commonly utilise this transmission:

2 Series

• F22 / F23 (2014-2021): 228i, 228i xDrive, 230i, 230i xDrive, M235i, M235i xDrive, M240i, M240i xDrive
• G42 / G43 (2022+): 230i, 230i xDrive, M240i, M240i xDrive

3 Series

• F30 / F31 / F34 (2012-2019): 320i, 320i xDrive, 328d, 328d xDrive, 328i, 328i xDrive, 330i, 330i xDrive, 335i, 335i xDrive, 340i, 340i xDrive
• G20 (2019+): 330i, 330i xDrive, M340i, M340i xDrive

4 Series

• F32 / F33 / F36 (2014-2020): 428i, 428i xDrive, 430i, 430i xDrive, 435i, 435i xDrive, 440i, 440i xDrive
• G22 / G23 (2021+): 430i, 430i xDrive
• G26 (2022+): 430i Gran Coupe, 430i xDrive Gran Coupe

5 Series

• F10 / F11 (2011-2016): 528i, 528i xDrive, 535d, 535d xDrive, 535i, 535i xDrive, 550i, 550i xDrive
• G30 (2017-2023): 530i, 530i xDrive, 540i, 540i xDrive

6 Series

• F12 / F13 (2012-2018): 640i, 650i, 650i xDrive

7 Series

• F01 / F02 (2009-2015): 740Li, 740i, 750Li, 750Li xDrive, 750i

X Series (X1, X3, X4, X5, X6, X7)

Various models within the X range, including:

• E84 X1 (2013-2015): X1 28i, X1 28i xDrive, X1 35i xDrive
• F25 X3 (2011-2017): X3 sDrive28i, X3 xDrive28d, X3 xDrive28i, X3 xDrive35i
• G01 X3 (2018-2024): X3 M40i, X3 sDrive30i, X3 xDrive30i
• F26 X4 (2015-2018): X4 28i xDrive, X4 35i xDrive, X4 M40i xDrive
• G02 X4 (2019-2025): X4 M40i, X4 xDrive30i
• E70 X5 (2007-2013): X5 xDrive50i
• F15 X5 (2014-2018): X5 sDrive35i, X5 xDrive35d, X5 xDrive35i, X5 xDrive50i
• G05 X5 (2019+): X5 sDrive40i, X5 xDrive40i
• E71 X6 (2008-2014): X6 xDrive50i
• F16 X6 (2015-2019): X6 sDrive35i, X6 xDrive35i, X6 xDrive50i
• G06 X6 (2020+): X6 sDrive 40i, X6 xDrive 40i
• G07 X7 (2019+): X7 xDrive40i

Z Series

• E89 Z4 (2009-2016): Z4 sDrive28i
• G29 Z4 (2019-2025): Z4 M40i, Z4 sDrive30i

Always verify fitment for your specific vehicle's year, model, and any relevant sub-models or engine codes using the vehicle lookup tool provided by the parts supplier.

The Complexity of Transmission Service

It's crucial to understand that automatic transmission fluid and filter servicing is not a simple DIY task for the average home mechanic. Modern transmissions, especially those with 8 speeds, are incredibly complex and require specific knowledge, tools, and procedures. This includes:

• Correctly jacking and supporting the vehicle.
• Safely draining and refilling the fluid to the precise level and temperature.
• Proper torque specifications for all bolts.
• Potentially needing specialized tools for fluid filling (like the CTA-7400 ATF Filling System or specific adapters for ZF transmissions).
• Resetting transmission adaptation values after service (though not always strictly necessary, it can improve shifting performance).

Given the complexity and the potential for costly mistakes, it is strongly recommended that this service be performed by a qualified and experienced professional mechanic who is familiar with ZF transmissions.

When Should You Service Your Transmission?

While BMW may not always specify a fixed interval for transmission fluid and filter changes in their owner's manuals, many experts and ZF itself recommend servicing every 60,000 to 100,000 miles, or sooner if you frequently drive in demanding conditions (e.g., heavy towing, stop-and-go traffic, aggressive driving). Proactively replacing the filter and fluid is a wise maintenance strategy to ensure transmission longevity.

Frequently Asked Questions (FAQ)

Q1: Do I really need to replace the transmission filter?
Yes, the transmission filter is designed to capture debris. Over time, it becomes clogged, restricting fluid flow and potentially leading to transmission damage. Regular replacement is a key part of preventative maintenance.

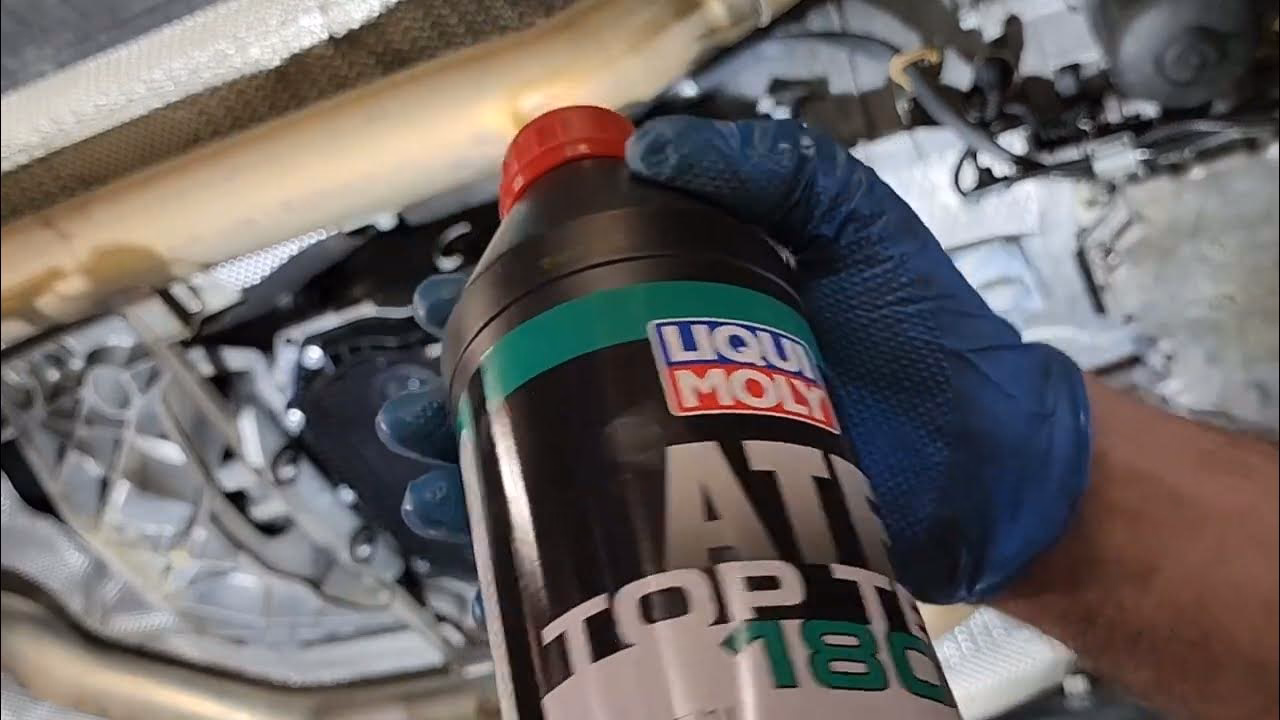

Q2: Can I use a different brand of ATF?
It is highly recommended to use the specific ZF Lifeguard 8 ATF or an equivalent fluid that explicitly meets ZF specifications for your transmission. Using the wrong fluid can cause shifting problems and internal damage.

Q3: How much fluid do I need?
The kit typically includes 7 litres for a partial fill. The total capacity is around 8.5 litres. Consult your mechanic about whether a partial or full fluid exchange is best for your vehicle.

Q4: Is this a difficult job to do myself?
Yes, transmission fluid and filter changes on modern BMWs are complex and require specific tools and knowledge. It's best left to experienced professionals.

Q5: What is the warranty on this ZF kit?
The kit mentioned comes with a two-year warranty, offering peace of mind with your purchase.

Conclusion

Maintaining the ZF GA8HP45Z automatic transmission in your BMW is paramount for its performance and lifespan. Replacing the transmission filter and fluid, ideally with an OEM ZF kit, is a critical maintenance task. While the procedure requires expertise, investing in this service proactively can save you significant expense and hassle in the long run, ensuring your BMW continues to deliver that renowned driving pleasure.
