BMW HV Battery Contactor Reset Guide

Encountering issues with your BMW's high-voltage (HV) battery system, particularly concerning the contactors, can be a perplexing and potentially costly problem. Many owners, especially those dealing with post-crash scenarios or rodent damage, often find themselves asking: "Do I need a BMW EOS tester?" This specialised piece of diagnostic equipment is often mentioned in the context of resetting certain flags that lock down the HV system for safety reasons. However, the landscape of automotive diagnostics is constantly evolving, and understanding the nuances of these systems can save you significant time and money. This article delves into the function of the BMW EOS tester, explores the reasons why your HV contactors might be locked, and discusses potential alternative solutions you might be able to implement, even without direct access to an EOS tester.

Understanding the HV Battery Contactor Lock

The high-voltage battery in modern electric and hybrid BMWs is a sophisticated and powerful unit. For safety, especially in the event of an accident or detected damage, the system is designed to automatically lock the contactors. These contactors act as crucial switches, isolating the high-voltage battery from the rest of the vehicle's electrical system. This prevents the risk of electric shock to occupants, first responders, or technicians working on the vehicle.

When a vehicle experiences a crash, a flag is typically set in the relevant control units, such as the SME (Schaltmodul Elektronik - Switching Module Electronics) or similar modules, to permanently lock the functionality of these contactors. This is a critical safety feature. Similarly, rodent damage or damage to high-voltage cables can trigger these safety protocols, leading to the contactors remaining in a locked state. A common fault code associated with this issue, as seen in the i8 example (21FOD5), indicates a problem with the positive terminal's switch contactor, suggesting it's either stuck open or a safety fuse has been released, often a consequence of the system locking down.

The Role of the BMW EOS Tester

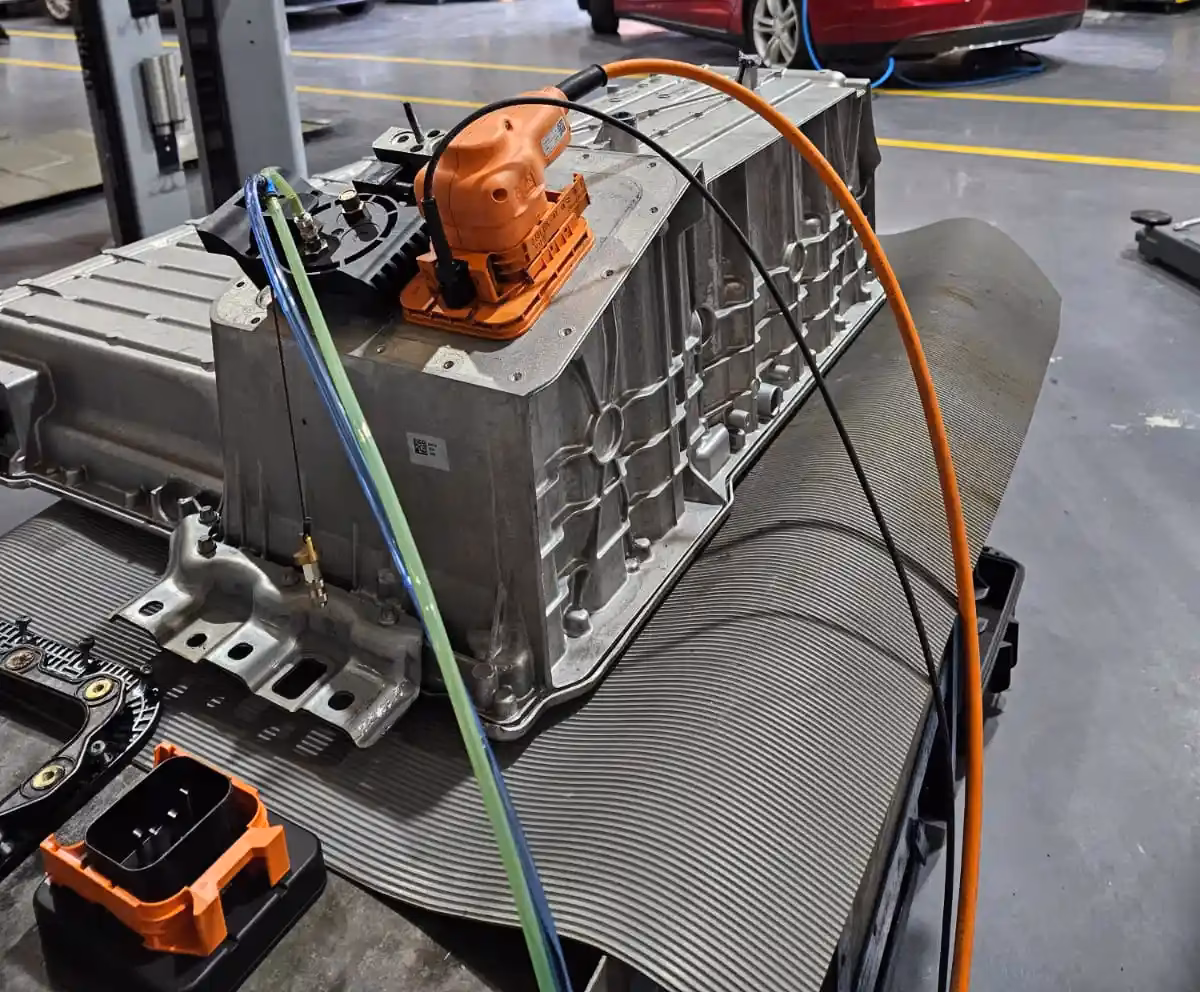

The BMW EOS (End of Strike) tester is a specialised diagnostic tool. In the context of HV battery health and integrity checks, its primary function, as highlighted by forum discussions, is to perform a comprehensive diagnostic session. Crucially, towards the end of this session, the EOS tester writes a specific "lock bit." This action is intrinsically linked to the generation of a 12-digit code. This code is then subsequently required by BMW's Integrated Service Technical Application (ISTA) diagnostic software to properly reactivate the locked status of the HV contactors.

Essentially, the EOS tester is designed to manage the entire process of diagnosing and safely unlocking the HV system. It performs the necessary checks, confirms the system's readiness, and then provides the authentication (via the 12-digit code) needed to re-enable the contactors through ISTA. Without this specific sequence, the system remains locked, rendering the HV battery inoperable.

Can You Bypass the EOS Tester?

The question of whether a BMW EOS tester is absolutely necessary is a common one, particularly for independent repairers or owners seeking to manage repairs themselves. The information suggests that while the official procedure involves the EOS tester and ISTA, there might be alternative avenues to explore.

One promising approach involves direct manipulation of the control modules. As indicated by one user's experience, it's possible to find a "lock bit" within the SME (or a similar module) that can be reset without needing the 12-digit EOS code. This involves using diagnostic software that can communicate directly with these modules and modify their parameters. The user mentioned the possibility of using Ediabas Tool 32 for this purpose. Ediabas is BMW's communication protocol, and Tool 32 is a powerful utility that allows for detailed diagnostics and coding functions.

The process would likely involve:

1. Connecting to the Vehicle's OBD-II Port: Using a compatible interface cable (like an ENET cable or a K+DCAN cable, depending on the vehicle model and year).
2. Launching Ediabas Tool 32: This software requires proper setup and driver installation for your interface cable.
3. Identifying the Correct Module: Locating the specific module responsible for managing the HV battery contactors (e.g., SME, DME, or a dedicated HV battery management module).
4. Executing Specific Functions: Using Tool 32 to read the status of the lock bit and, if possible, reset it. This often involves knowing specific function codes or parameters related to the HV system.

The user's caveat that this method hasn't been tested in a "real-life crash situation" to confirm if it replicates the exact lock bit set by the EOS tester or airbag module is important. However, for issues arising from other causes like rodent damage, this direct module reset could be a viable solution.

Diagnostic Tools and Software

For those looking to undertake this kind of diagnostic work, several key pieces of software and hardware are essential:

BMW ISTA (Integrated Service Technical Application)

ISTA is the official BMW diagnostic software used by dealerships. It provides comprehensive diagnostic procedures, repair information, wiring diagrams, and coding capabilities. It's often the primary tool for carrying out the final steps of reactivating the HV system after a potential lock-out, especially if the EOS tester was used or if a specific reset procedure requires ISTA's validation.

Ediabas Suite (including Tool 32)

As mentioned, Ediabas is the underlying communication protocol for BMW vehicles. It allows diagnostic software to communicate with the car's ECUs. Tool 32 is a powerful command-line utility within the Ediabas suite that enables advanced functions, including reading error codes, clearing codes, and performing specific module tests or resets. It's often used for more in-depth troubleshooting than standard OBD-II scanners can provide.

Diagnostic Interface Cable

You'll need a compatible cable to connect your laptop running ISTA or Ediabas to your BMW's OBD-II port. Common types include:

• K+DCAN Cable: Typically used for older BMW models (pre-2010 roughly) that use the K-line or DCAN protocols.
• ENET Cable: Used for newer BMWs (F-series and later) that primarily use Ethernet-based communication.

Troubleshooting the 21FOD5 Fault Code (i8 Example)

For the specific case of the i8 with the 21FOD5 fault code after rodent damage, the situation is as follows:

• Cause: Rodent damage led to a fault, triggering the HV system to lock the contactors for safety. A high-voltage cable has been repaired.
• Remaining Issue: The 21FOD5 code persists, indicating the contactor is still locked or in an unsafe state.
• Potential Solution Path: Acquiring ISTA and Ediabas Tool 32 is a logical step. Using Tool 32 to attempt a direct reset of the lock bit in the relevant module (likely the SME or battery management system) could be the key. If this direct reset is successful, the system may then allow ISTA to perform the final reactivation sequence.

It's important to note that the success of this method hinges on whether the "lock bit" set by the system due to rodent damage is the same one that the EOS tester and ISTA are designed to reset, or if it's a more permanent mechanical or electrical failure within the contactor itself. However, given that a high-voltage cable was repaired, a software-based lock is highly probable.

The "Tiny Wires" Mystery

The mention of "tiny wires" is intriguing and warrants further investigation. In HV systems, especially those designed for high performance like in the i8, there can be additional sensor wires or communication lines running alongside the main high-voltage cables. These could be related to:

• Temperature Sensors: Monitoring the temperature of the battery pack or individual cells.
• Voltage Sensors: Providing precise voltage readings for each module or cell.
• Communication Lines: Part of the Battery Management System (BMS) network, used for diagnostics and data exchange.

If these "tiny wires" were also damaged by rodents, they could be contributing to the fault code or preventing the system from correctly reporting its status. Pinpointing their exact location and function would require detailed wiring diagrams for the specific BMW model, which are typically found within ISTA.

Comparison: EOS Tester vs. Ediabas Tool 32

Here's a brief comparison of the two approaches:

Frequently Asked Questions

Q1: Can I just clear the fault code 21FOD5 with a regular OBD-II scanner?
No. Fault code 21FOD5 often indicates a system lock or a persistent fault within the HV contactor circuit. A standard OBD-II scanner typically cannot reset these types of safety-related module locks. You need advanced diagnostic software like ISTA or tools that can directly interface with the specific modules.

Q2: Is it safe to attempt resetting the HV contactor lock myself?
Working with high-voltage systems carries inherent risks. If you are not experienced with automotive high-voltage systems and advanced diagnostics, it is strongly recommended to seek professional assistance from a qualified technician or a specialist repair shop. Mishandling can lead to severe injury or damage to the vehicle.

Q3: If I reset the lock bit with Tool 32, will the HV battery work immediately?
Possibly, but not guaranteed. Resetting the lock bit electronically is only one part of the process. The system might still require a confirmation or reactivation sequence through ISTA to fully re-enable the HV battery. If the underlying cause of the lock (e.g., actual damage to the contactor) is not resolved, the system may re-lock itself.

Q4: Where can I get Ediabas Tool 32 and ISTA?
These are professional diagnostic tools. ISTA is primarily available through BMW dealerships or through specialised online forums and communities where diagnostic software is shared (use with caution and awareness of licensing). Ediabas is often bundled with diagnostic software packages or can be downloaded from similar sources. You will also need a compatible diagnostic interface cable.

Conclusion

While a BMW EOS tester is the official and arguably safest tool for diagnosing and resetting HV battery contactor locks, it's not always the only path. For owners and independent workshops equipped with the necessary technical knowledge and tools, using software like Ediabas Tool 32 to directly address the lock bit in the relevant control module presents a viable alternative, particularly for issues stemming from software flags rather than fundamental component failure. However, the risks involved are significant, and understanding the precise nature of the fault code and the vehicle's specific safety protocols is paramount. If in doubt, always consult with professionals experienced in working with high-voltage electric vehicles.
