BMW 320d Caliper Overhaul Guide

Embarking on a brake caliper overhaul can seem like a daunting task, especially when faced with the intricacies of a modern vehicle like a 2008 BMW 320d. However, with patience and a methodical approach, it's a job that can be tackled successfully, restoring your braking system to its former glory. This guide draws upon a recent, albeit challenging, experience to highlight common issues and provide practical solutions for a successful caliper rebuild.

Understanding the Problem: A Seized Caliper

A seized brake caliper is a common issue, often caused by a build-up of rust and corrosion around the piston and slider pins. This prevents the caliper from moving freely, leading to uneven braking, increased fuel consumption, and potential damage to brake pads and discs. In the case of the 2008 320d, a seized caliper can manifest as a pulling to one side under braking, or a persistent drag even when the brake pedal is released.

Gathering Your Tools and Parts

Before you begin, ensure you have all the necessary tools and components. A comprehensive overhaul kit is essential, typically including new seals, a dust boot, and potentially a new piston if yours is beyond repair. You'll also need:

• Brake cleaner
• High-temperature brake grease
• A suitable brake fluid (DOT 4 is common for BMWs)
• Wrench set (including appropriate sizes for caliper bolts and bleed nipples)
• Torque wrench
• Piston ring pliers (optional, but helpful)
• Needle files and emery paper (for cleaning rust)
• A reliable brake bleeding kit (e.g., a vacuum bleeder or pressure bleeder)
• Safety glasses and gloves
• Jack and axle stands
• Wheel chocks

The Overhaul Process: Step-by-Step

The journey to a functional caliper can be fraught with unexpected challenges, as highlighted by a recent rebuild. Here’s a breakdown of the process, incorporating lessons learned:

1. Disassembly and Initial Cleaning

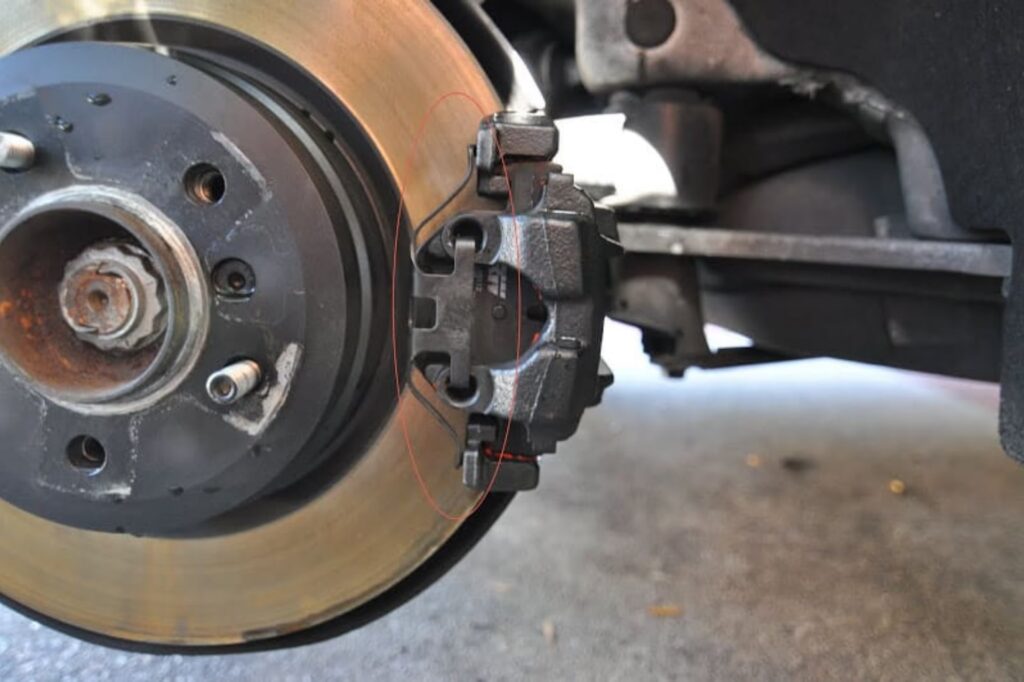

Begin by safely jacking up the vehicle and removing the wheel. Support the caliper using a sturdy wire or bracket; never let it hang by the brake hose, as this can damage the hose. Remove the caliper bolts and carefully detach the caliper from the bracket. The brake pads can then be removed. You may need to gently pry the caliper off the disc if it's significantly seized.

Once removed, it's crucial to clean away as much of the dirt, grime, and rust as possible. A good application of brake cleaner will help loosen stubborn deposits.

2. Piston Removal and Seal Reinstallation

This is often the most problematic stage. With the caliper removed, you'll need to retract the piston. This can be done by carefully applying air pressure to the brake fluid reservoir (with the bleed nipple open) or by using a C-clamp and an old brake pad. Be prepared for the piston to shoot out with some force.

Upon removing the piston, inspect it for damage or corrosion. The bore of the caliper also needs meticulous cleaning. This is where the real challenge can arise, as evidenced by the difficulty in seating the new seal. The chamfered edge of the piston bore and a minute indentation where the piston's retaining wire seats can be tricky. Significant rust build-up can obscure these features, leading to the seal not seating correctly. Patience with needle files and emery paper is key here. You need to carefully clean and smooth the bore, paying particular attention to the area where the seal sits, ensuring there are no burrs or imperfections that prevent a perfect seal. Use plenty of brake lubricant during reassembly.

3. Slider Pin Inspection and Lubrication

While the caliper is off, it's essential to inspect the slider pins. These pins allow the caliper to move freely. If they are corroded or lack lubrication, they can cause the caliper to bind. Clean the pins thoroughly and apply a generous amount of high-temperature brake grease before reinserting them into their boots. It's also worth checking the pad retaining clips and lubricating the contact points where the pads slide.

Note on Guide Pins: Be aware that previous work might have introduced non-standard components. In one instance, a BMW 320d was found to have Torx 40 guide pins instead of the standard 7mm hex. While Torx can be preferable for ease of access, it can cause issues for future mechanics if the correct tools are not readily available.

4. Reassembly

Once the piston and seals are correctly seated, and the slider pins are lubricated, reassemble the caliper. Ensure the new dust boot is properly seated. Reinstall the caliper onto the bracket, tightening the caliper bolts to the manufacturer's specified torque. Remember to reinsert the brake pads and ensure they are correctly seated.

5. Brake Bleeding

This is a critical step to remove any air from the system. A pressure bleeder is often recommended for its ease of use and ability to maintain consistent pressure. Connect the bleeder to the reservoir and follow the manufacturer's instructions. You'll typically need to open the bleed nipple on the caliper you've worked on, allowing fluid to flow through until no air bubbles are visible.

Challenges with Bleeding Systems: Even seemingly straightforward bleeding systems can present issues. A Sealey VS820, for example, might not seal perfectly at the fluid filler cap, requiring a small amount of silicone grease on the rubber washer to ensure a good seal and prevent leaks. Over-tightening the cap can also break the seal, leading to fluid loss. Be cautious and check for leaks during the process.

6. Handbrake Adjustment

If you've worked on the rear brakes, you might need to adjust the handbrake. This is often done via a mechanism accessed through the brake disc hub. Identifying whether to turn the adjuster up or down to tighten can be trial and error, but generally, turning it upwards tightens the shoes.

7. Final Checks

After bleeding and reassembly, pump the brake pedal several times to build up pressure. The pedal should feel firm and not spongy. Check the fluid level in the reservoir and top up if necessary. Take the vehicle for a cautious test drive, gradually increasing speed and testing the brakes. Listen for any unusual noises and ensure the car pulls straight.

Common Pitfalls and Troubleshooting

As the initial experience illustrates, several things can go wrong:

• Seal Installation: The most common issue is difficulty seating the piston seal. This is often due to corrosion or burrs in the caliper bore. Patience and meticulous cleaning are essential.
• Incorrect Components: Parts from previous repairs might not be standard, leading to compatibility issues (e.g., wrong type of guide pin bolts).
• Lubrication: Garages may not lubricate crucial components like slider pins, hub flanges, and pad contact points, leading to premature wear and sticking.
• Bleeding Equipment: Faulty or poorly sealed bleeding equipment can lead to fluid loss and an incomplete bleed.
• Handbrake Adjustment: Incorrect adjustment can lead to the handbrake not engaging properly or dragging.

Frequently Asked Questions

Q1: How long should a brake caliper overhaul take?

For an experienced mechanic, a single caliper overhaul can take an hour or two. For a DIYer, especially encountering issues, it can easily take half a day or more. Patience is key.

Q2: Can I drive with a seized caliper?

Driving with a seized caliper is not recommended. It compromises braking performance, can overheat and damage the disc, and leads to uneven tyre wear.

Q3: What type of brake fluid does a 2008 BMW 320d use?

Typically, DOT 4 brake fluid is specified for this model. Always check your owner's manual for the exact specification.

Q4: Do I need to bleed all four brakes if I only overhauled one caliper?

It's good practice to bleed all the brakes if you've opened up the hydraulic system significantly, or if you're unsure of the fluid's condition. However, if you've only worked on one caliper and are confident no air has entered other lines, bleeding just that corner might suffice. It's often recommended to bleed both on the same axle for balanced braking.

Q5: What is the purpose of the wear sensor?

The brake pad wear sensor is a small electrical contact that triggers a warning light on the dashboard when the brake pads reach a minimum thickness, alerting you that they need replacement.

Conclusion

Overhauling a brake caliper, particularly on a BMW 320d, can be a rewarding DIY project. While challenges like stubborn seals and incorrect components can arise, understanding the process and being prepared for potential setbacks is crucial. Meticulous cleaning, careful reassembly, and thorough bleeding are the cornerstones of a successful brake job. Remember, a little extra time and care can save you significant expense and ensure your vehicle's safety.
