Understanding the Rear Brakes on Your BMW E9x 3 Series
The BMW E9x 3 Series, a beloved generation of BMW's executive sedan and coupé, is renowned for its engaging driving dynamics and sophisticated engineering. A crucial aspect of this performance is its braking system, and many owners often inquire about the specifics of the rear brakes. The answer to whether a BMW E9x 3 Series has rear brake pads is a resounding yes. Like virtually all modern vehicles, the E9x 3 Series relies on a disc brake system at both the front and rear axles, and this system fundamentally comprises brake pads, brake discs (rotors), and the caliper assembly.
Rear brakes, while often experiencing less wear than their front counterparts due to the weight transfer during deceleration, are still vital for overall stopping power, vehicle stability, and the proper functioning of electronic systems like ABS (Anti-lock Braking System) and DSC (Dynamic Stability Control). Understanding their components and maintenance requirements is essential for any E9x owner looking to maintain their vehicle's optimal performance and safety.
Components of the Rear Brake System
To fully grasp the role of rear brake pads, it's beneficial to understand the entire rear braking system. The primary components are:
- Brake Caliper: This hydraulic component houses the brake pads and pistons. When you apply the brakes, brake fluid pressure forces the pistons to push the pads against the brake disc.

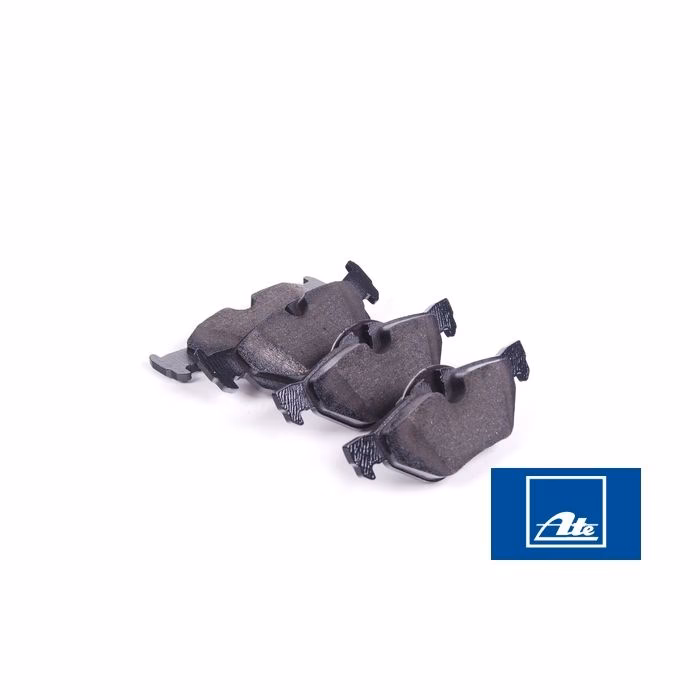

- Brake Pads: These are the friction material that directly contacts the brake disc. They are designed to generate the friction necessary to slow down the vehicle. E9x models typically use semi-metallic or ceramic brake pads, each offering different characteristics in terms of performance, noise, and dust production.
- Brake Disc (Rotor): A metal disc that rotates with the wheel. The brake pads clamp onto this disc to create friction. The E9x 3 Series uses vented brake discs on the rear in many configurations, which helps dissipate heat more effectively, preventing brake fade under heavy use.
- Brake Pad Wear Sensors: Most E9x models are equipped with electronic brake pad wear sensors on at least the front and often the rear axle. These sensors detect when the brake pad material has worn down to a critical level and trigger a warning light on the dashboard, alerting the driver to an impending replacement.
- Parking Brake Mechanism: In many E9x models, the rear brake caliper incorporates a secondary mechanism for the parking brake. This can be a small drum brake integrated within the rotor hat, or an electronic parking brake (EPB) system that actuates the main caliper pistons.
How Rear Brakes Function
When you press the brake pedal, a hydraulic system transmits this force through brake fluid to the calipers. In the rear, the caliper pistons are forced outwards, pressing the brake pads against the spinning brake disc. This friction converts kinetic energy into heat, slowing the rotation of the wheels and thus the vehicle. The electronic stability control systems also utilize the rear brakes, applying them independently to help correct oversteer or understeer.
Common Issues and Maintenance
While the E9x 3 Series is a robust vehicle, its rear brakes can experience common issues that require attention:
- Brake Pad Wear: As mentioned, brake pads wear down over time. The rate of wear depends on driving style, but a typical lifespan can range from 30,000 to 60,000 miles, though this is highly variable. The wear sensor will alert you when replacement is due.
- Warped Brake Discs: Overheating can cause brake discs to warp, leading to a pulsating sensation through the brake pedal and steering wheel when braking.
- Sticking Calipers: A caliper can seize due to corrosion or a faulty piston seal, leading to uneven braking, pulling to one side, or a constantly dragging brake, which can overheat the disc and pad.
- Parking Brake Malfunction: Issues with the parking brake mechanism, whether mechanical or electronic, can lead to the parking brake not holding effectively or, conversely, remaining partially engaged.
- Brake Fluid Contamination: Over time, brake fluid can absorb moisture, reducing its boiling point and leading to a spongy brake pedal. Regular brake fluid changes are recommended.
When to Replace Rear Brake Pads
Several indicators signal that your rear brake pads need replacement:
- Dashboard Warning Light: The most direct indication is the illuminated brake warning light, often accompanied by text on the iDrive screen indicating brake pad wear.
- Squealing or Grinding Noises: Many brake pads have a small metal tab that acts as a wear indicator. When the pad material is low, this tab contacts the disc, producing a high-pitched squeal when braking. A grinding noise often indicates that the pad material has completely worn away, and the metal backing plate is grinding against the disc, which can quickly damage the disc.
- Reduced Braking Performance: If you notice that your car is taking longer to stop or the brake pedal feels softer or spongier, it could be a sign of worn pads or other brake system issues.
- Visual Inspection: If you are comfortable doing so, you can visually inspect the brake pads through the spokes of the rear wheels. Look for the thickness of the friction material. If it appears to be less than 3-4mm, it's generally time for replacement.
DIY vs. Professional Replacement
Replacing rear brake pads on an E9x 3 Series can be a manageable DIY task for those with mechanical aptitude and the right tools. However, it's important to be aware of the complexities, especially if your vehicle is equipped with an electronic parking brake (EPB). For EPB systems, the caliper often needs to be put into a special service mode via diagnostic software before the pistons can be retracted. Failure to do so can damage the EPB motor.
Tools typically required for a standard rear brake pad replacement include:
- Jack and jack stands
- Lug wrench
- Socket set and wrenches
- C-clamp or brake caliper piston tool
- Brake cleaner
- High-temperature brake lubricant
- Torque wrench
- Wire brush
If you are unsure about any step, especially concerning the EPB system, it is highly recommended to have the work performed by a qualified BMW specialist or mechanic. Incorrect installation can compromise safety and lead to premature wear of components.
Choosing the Right Brake Pads
The E9x 3 Series offers various options for brake pads:
| Pad Type | Characteristics | Best For |
|---|---|---|
| OEM (Original Equipment Manufacturer) | Balanced performance, low noise, low dust, good longevity. Designed to meet BMW's specifications. | Everyday driving, comfort-oriented owners. |
| Aftermarket Performance (Semi-Metallic) | Higher friction coefficient, better heat tolerance, can produce more dust and noise. Offer improved stopping power. | Enthusiastic drivers, spirited driving, occasional track use. |
| Aftermarket Ceramic | Low dust, quiet operation, good heat resistance, often have a longer lifespan. Performance can vary, some offer excellent stopping power. | Drivers seeking cleaner wheels, quieter operation, and good all-around performance. |
When replacing brake pads, it is generally recommended to replace them in pairs on the same axle (both left and right rear pads) to ensure even braking. It's also a good practice to inspect the brake discs for wear and condition at the same time. If the discs are significantly worn, grooved, or warped, they should be replaced or resurfaced.
Frequently Asked Questions (FAQs)
Q1: Do I need to replace the brake discs when I replace the rear pads on my E9x 3 Series?
A1: Not always. It depends on the condition of the discs. If they are within the minimum thickness specification (usually stamped on the disc hub), have no deep grooves, and are not warped, you can often just replace the pads. However, it's wise to have them inspected.
Q2: Can I use front brake pads on the rear of my E9x 3 Series?
A2: No, you cannot. Front and rear brake pads are different in size, shape, and sometimes compound. They are designed for different load conditions and heat dissipation requirements.
Q3: How often should I have my rear brakes inspected?
A3: It's a good practice to have your brakes inspected during your regular servicing intervals, typically every 12 months or 10,000-15,000 miles, whichever comes first. If you notice any symptoms, get them checked immediately.
Q4: My E9x has an electronic parking brake. Does this affect rear brake pad replacement?
A4: Yes, it significantly affects the procedure. The EPB system requires the caliper pistons to be retracted using a diagnostic tool or specific procedure. Attempting to force them back can damage the EPB motor. If you're not experienced with EPBs, professional servicing is strongly advised.
Q5: What is brake fade, and can it affect my rear brakes?
A5: Brake fade is a reduction in braking performance due to overheating. While the front brakes do most of the work, the rear brakes can also experience fade, especially during prolonged or aggressive braking, or if there's an issue causing them to drag.
Conclusion
The BMW E9x 3 Series unequivocally features rear brake pads as an integral part of its effective braking system. These pads, along with the discs, calipers, and sensors, work in concert to ensure your safety and driving pleasure. Regular maintenance, timely replacement of worn components, and understanding the specific needs of your vehicle, particularly if it has an electronic parking brake, are paramount. By staying informed and proactive, you can ensure that your E9x 3 Series continues to deliver the exceptional performance and control it was designed for, mile after mile.
