BMW E46 320d Breather: Vortex Upgrade Guide

For any BMW E46 320d owner, maintaining the heart of your vehicle – its engine – is paramount. Among the many components that contribute to its longevity and performance, the crankcase breather, also known as the oil separator, plays a surprisingly crucial role. Often overlooked, a failing or clogged breather can lead to a host of issues, from increased oil consumption and oil leaks to reduced engine efficiency and even turbocharger problems. This comprehensive guide will delve into the specifics of the E46 320d breather, addressing the common question of whether your model features the more advanced vortex type, and provide a detailed, step-by-step walkthrough for its replacement.

Understanding Your BMW E46 320d's Crankcase Breather

The crankcase breather system is designed to manage the pressure that builds up inside your engine's crankcase as a result of combustion gases (blow-by) escaping past the piston rings. Without a proper venting system, this pressure would accumulate, potentially causing seals to fail, oil leaks, and even damage to engine components. The breather separates oil vapour from these gases, returning the oil to the sump and allowing the cleaner gases to be re-circulated into the intake manifold to be burnt, thus adhering to emissions standards.

The Evolution: Old 'Toilet Roll' vs. Modern 'Vortex'

Early BMW diesel models, including many E46 320d variants, were originally fitted with a 'toilet roll' or 'loo roll' type breather filter. This design utilises a fibrous material, similar to a toilet roll, to trap oil particles. While effective for its time, this filter element can become saturated and clogged over time, especially with shorter journeys or infrequent oil changes. A clogged fibrous filter significantly impedes the breather's function, leading to the aforementioned issues.

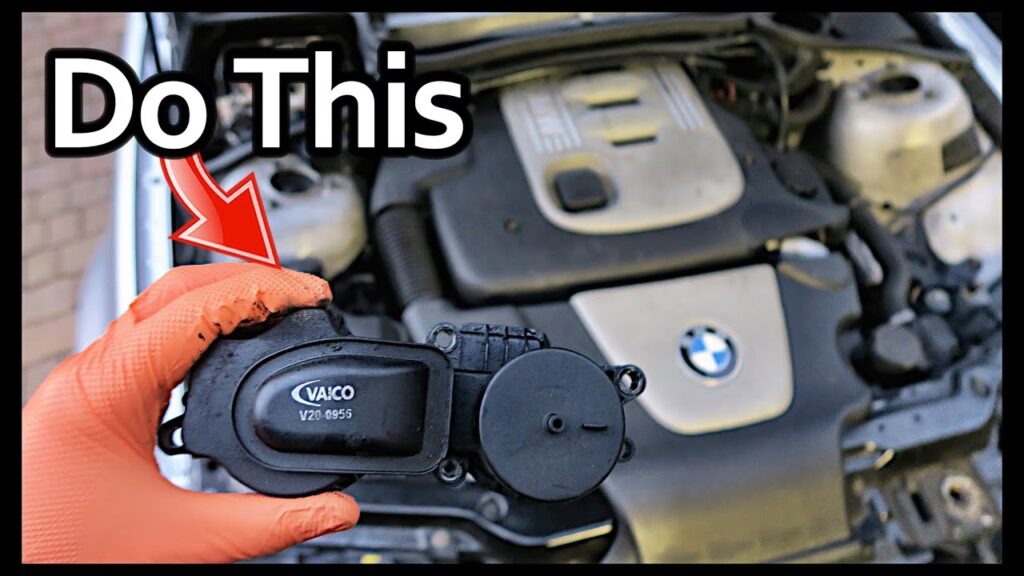

Recognising the limitations of the fibrous design, BMW introduced an updated, maintenance-free 'vortex' or 'cyclone' type breather. This design uses centrifugal force to separate the oil from the blow-by gases. The gases enter a chamber, are spun rapidly, and the heavier oil particles are flung to the outer walls, where they condense and drain back into the sump, while the cleaner gases exit. The key advantage of the vortex design is that it doesn't rely on a filter element that can clog, making it a much more reliable and longer-lasting solution.

So, to answer the burning question: Does the 320d E46 have a vortex type breather? Initially, many did not. Earlier E46 320d models typically came from the factory with the fibrous 'toilet roll' type. However, BMW issued a service bulletin recommending the upgrade to the vortex design, and many owners have since replaced their old-style breathers with the improved vortex unit. Therefore, your E46 320d might have a vortex breather if it was replaced at some point, or it might still have the original fibrous type. The only way to know for sure is to inspect it.

Why Upgrade or Replace Your Breather?

Regardless of whether your E46 320d currently has a fibrous or vortex breather, regular inspection and replacement (for the fibrous type) or cleaning (for the vortex type, though often considered maintenance-free) is crucial. Here's why:

• Prevent Oil Leaks: Excess crankcase pressure due to a clogged breather can force oil past seals and gaskets, leading to costly leaks.
• Reduce Oil Consumption: A malfunctioning breather can allow more oil vapour to be drawn into the intake, leading to higher oil consumption.
• Protect Your Turbocharger: In diesel engines, the turbocharger is critical. Increased crankcase pressure can put undue strain on turbocharger seals, potentially leading to premature failure and expensive repairs.
• Maintain Engine Performance: Proper crankcase ventilation ensures optimal engine breathing and combustion efficiency.
• Avoid MOT Failures: Excessive smoke from burning oil can lead to an emissions failure during your annual MOT test.

Upgrading from the fibrous to the vortex type is highly recommended if you still have the older design. It's a relatively inexpensive preventative measure that can save you significant trouble and expense down the line.

Tools and Parts Required for Breather Replacement

Before you begin, ensure you have all the necessary tools and parts at hand. This job is a fantastic DIY opportunity for the home mechanic, saving you labour costs.

Essential Tools:

• Torx bits (specifically T30)
• Hex-head bits (5mm)
• Ratchet and extensions
• Flat-head screwdriver (for prying clips)
• Microfibre cloth or clean rags
• Possibly a small mirror for checking hidden bolts

Parts:

You have a couple of options when purchasing the replacement part:

• Complete Breather Kit: This typically includes the vortex breather element, the housing cover, and new seals. This is the simplest option if you're upgrading or want to replace everything.
• Vortex Breather Element Only: If your existing housing cover is in good condition, you can often purchase just the vortex element and the necessary seals, which can be a more cost-effective choice.

Always source genuine BMW parts or high-quality aftermarket equivalents. Expect to pay around £20-£40 for the parts, depending on whether you buy the complete kit or just the element.

Safety Disclaimer: While this guide provides detailed instructions, it is for informational purposes only. I have performed this maintenance myself and am comfortable with my ability to do so. However, I cannot be held responsible if you damage your vehicle when attempting to follow this guide. If you are unsure at any point, please consult a qualified mechanic.

Step-by-Step Guide: Replacing Your E46 320d Breather

This procedure is relatively straightforward but requires patience and attention to detail. Allow yourself ample time, especially if it's your first attempt.

Step 1: Gaining Access to the Engine Bay

The crankcase breather is located beneath several covers, so the first step is to remove these.

1. Pollen Filter Removal:
   • Locate the pollen filter housing in front of the windscreen.
   • There are typically three clips securing the cover: one on each side and one at the front. Turn these clips to release them; they often have springs underneath that will lift them slightly.
   • Carefully lift the entire panel upwards. It might be snug, so gently pull it from one side to fully release it.
   • Once the panel is out, remove the old pollen filter.
2. Lower Panel Removal:
   • Where the pollen filter was, you'll see a black plastic panel secured by four T30 Torx screws.
   • Unscrew these screws. They are often designed to stay within the panel even when fully loosened.
   • Before pulling the panel out, look for pipes running across the front of it. These need to be unclipped. Gently put your finger under the clip and apply slight leverage to pull it away from the panel.
   • Once unclipped, you can now lift the panel out. Start by lifting one side and carefully wiggling it free.

Step 2: Removing Engine Covers

With the upper panels removed, you can now access the engine itself.

1. Engine Cover Removal:
   • The main engine cover is held in place by five bolts: two at the front, two at the back, and one on the right side near the coolant cap.
   • Unscrew all five bolts.
   • Gently push off any rubber grommets or clips that might be securing the cover.
   • Carefully lift the engine cover off the engine.
2. Inlet Pipe and Air Filter Cover Removal:
   • On the left side of the engine (as you face it), you'll see the inlet pipe leading to the air filter cover.
   • The inlet pipe is usually secured by one bolt. Unscrew this.
   • The air filter cover itself is held by four bolts. Unscrew these. One of these bolts is often located towards the rear of the cover and can be a bit tricky to access.
   • Once all bolts are undone, you should be able to lift the air filter cover off and slide it out from under any remaining pipes running across the engine.

Step 3: Accessing and Removing the Breather Unit

You're almost there! The breather unit is now visible.

1. Locate the Breather Cover: Next to where the air filter was, you will clearly see the crankcase breather cover.
2. Unscrew Breather Cover Bolts: The cover is typically held down by three 5mm hex-head bolts. Carefully unscrew all three.
3. Remove the Old Breather: Slowly and carefully lift the cover off. If you have the old fibrous 'toilet roll' style breather, you will see it inside the cover or sitting on the engine block. Note its orientation.

Step 4: Replacing Seals and Installing the New Breather

This is the critical step for a leak-free installation.

1. Replace Seals: On the engine block where the breather unit sits, you will find two rubber seals. These are crucial for a proper seal. They usually have small tabs or lips that allow you to gently pry them out. Remove both old seals.
2. Clean the Area: Before installing the new seals, use a clean cloth to wipe down the area where the breather sits, ensuring there's no excess oil or debris that could compromise the seal.
3. Install New Seals: Carefully place the two new seals into their respective grooves on the engine block. Ensure they are seated correctly and flat.
4. Install New Breather and Cover: If you purchased a complete kit, simply place the new vortex breather element into the cover (if not already assembled). Then, slowly and carefully place the new breather and cover assembly onto the engine block, ensuring it aligns perfectly with the bolt holes and the new seals.
5. Secure the Cover: Screw the three 5mm hex-head bolts back in. Tighten them evenly and snugly, but do not overtighten, as this can strip the threads or crack the plastic cover.

Step 5: Reassembly

Now, simply reverse the steps to put everything back together.

1. Reinstall the air filter cover and secure its four bolts, followed by the inlet pipe bolt.
2. Place the main engine cover back on, ensuring it sits correctly on its mounting points, and tighten the five bolts. Don't forget to re-attach any rubber grommets.
3. Reinstall the lower black plastic panel, ensuring the pipes are clipped back into place before pushing the panel fully down and securing the four T30 Torx screws.
4. Finally, replace the pollen filter, then re-seat the pollen filter housing cover and turn the three clips to secure it.

Once everything is reassembled, start your engine and check for any unusual noises or obvious leaks. It's a good idea to monitor your oil level over the next few hundred miles to confirm the fix.

Symptoms of a Failing Breather

It's vital to be aware of the signs that your crankcase breather might be failing, prompting you to inspect or replace it:

• Increased Oil Consumption: You're topping up your oil more frequently than usual.
• Oil Leaks: Especially around engine seals (rocker cover gasket, sump gasket) or even the turbocharger.
• Blue Smoke from Exhaust: Particularly noticeable on start-up or under hard acceleration, indicating oil being burnt.
• Whistling/Sucking Sound: A high-pitched whistle or sucking noise from the engine bay, often due to excessive vacuum or pressure.
• Sluggish Performance: Reduced engine power or responsiveness.
• Rough Idling: An inconsistent or rough idle.
• Error Codes: In some cases, a severely clogged breather can trigger engine management light (EML) codes related to engine breathing or emissions.

Frequently Asked Questions (FAQs)

Q: What exactly is a crankcase breather/oil separator?

A: It's a crucial component that vents blow-by gases (combustion gases that escape past the piston rings) from the engine's crankcase. It separates oil particles from these gases, returning the oil to the sump and allowing the cleaner gases to be re-circulated into the intake manifold for combustion, preventing pressure build-up and reducing emissions.

Q: Why is the new type called a 'vortex' or 'cyclone' breather?

A: It's named for its operating principle. Instead of a physical filter, it uses a cyclonic or vortex action to separate oil from gases. Gases are spun rapidly within a chamber, causing heavier oil particles to be flung outwards by centrifugal force, condense, and drain away, leaving cleaner gases to exit.

Q: Can I clean my old 'toilet roll' breather instead of replacing it?

A: It is strongly advised not to. The fibrous material in the old-style breather becomes saturated and degrades over time. Attempting to clean it is ineffective and can damage the filter, potentially causing debris to enter the engine. Always replace the fibrous type, ideally with the vortex upgrade.

Q: How often should the crankcase breather be changed on an E46 320d?

A: For the older fibrous 'toilet roll' type, it's generally recommended to replace it every 30,000 to 40,000 miles, or every 2-3 oil changes. The newer vortex type is considered 'maintenance-free' by BMW, but many enthusiasts opt to inspect it during major services or if symptoms arise, sometimes cleaning out any accumulated sludge.

Q: What happens if I don't change a clogged breather?

A: Ignoring a clogged breather can lead to significant and costly engine problems. These include increased oil consumption, severe oil leaks (potentially blowing out seals), damage to the turbocharger, reduced engine performance, and even internal engine damage due to excessive pressure or oil starvation in certain areas.

Q: Is this a DIY job for a novice mechanic?

A: While it requires patience and a basic set of tools, the breather replacement on an E46 320d is considered a manageable DIY task for someone with minimal mechanical experience. The instructions are straightforward, and no specialist tools are required. However, always ensure you're comfortable with the steps and have the correct tools before starting.

Final Thoughts

Replacing or upgrading your E46 320d's crankcase breather is a relatively simple and inexpensive preventative maintenance task that can save you a significant amount of money and headache in the long run. By ensuring your engine can breathe properly, you're contributing to its longevity, maintaining performance, and avoiding common issues like oil leaks and excessive oil consumption. This upgrade from the old fibrous type to the more efficient vortex design is one of the most beneficial modifications you can make for the health of your beloved BMW. Keep your engine breathing freely, and it will reward you with many more miles of enjoyable driving.
