BMW E9x M3 Differential Fluid Change Guide

Maintaining your BMW E9x M3 is not just about keeping it running; it's about preserving the exhilarating performance and engineering excellence that defines the M brand. One often overlooked, yet critically important, aspect of this maintenance is the regular servicing of your differential fluid. This essential lubricant ensures the smooth operation and longevity of your M3's rear differential, a key component in transferring power efficiently to the wheels. Ignoring this vital service can lead to reduced performance, increased wear, and potentially costly repairs. This comprehensive guide will walk you through the process of changing the differential fluid on your BMW E9x M3, a procedure that also applies to the BMW 1M Coupé due to their shared differential design.

Why Your BMW E9x M3 Differential Needs Fresh Fluid

The differential in your BMW E9x M3 works tirelessly to allow your rear wheels to rotate at different speeds when cornering, a fundamental requirement for stable and agile handling. Inside this complex unit, gears and bearings are constantly in motion, generating heat and friction. Over time, the high-performance differential fluid breaks down under these stresses, losing its lubricating properties. Furthermore, microscopic metal particles from normal wear and tear accumulate within the fluid, turning it into an abrasive slurry that accelerates wear on internal components.

Fresh differential fluid provides optimal lubrication, reduces friction, and helps dissipate heat, ensuring your differential operates at peak efficiency. Neglecting fluid changes can lead to:

• Increased wear on gears and bearings.
• Overheating of the differential.
• Reduced power transfer efficiency.
• Audible grinding noises, especially during slow cornering.
• Premature failure of the differential unit, leading to expensive repairs or replacement.

Think of it as the lifeblood of your rear axle; keeping it clean and fresh is paramount for the health and performance of your M3.

The Right Fluid: Non-Negotiable for M Performance

When it comes to your BMW E9x M3 differential, the choice of fluid is not a matter of preference but a critical factor in preventing damage and ensuring proper operation. BMW explicitly recommends a specific fluid for this application, and deviating from this recommendation can lead to serious issues, most notably a pronounced grinding noise during slow cornering manoeuvres. This isn't just an annoyance; it's a symptom of improper lubrication causing accelerated wear within the differential's clutch packs.

For the BMW E9x M3 (and 1M Coupé), the recommended fluid is SAF-XJ 75W-140 + FM booster. The "FM booster" stands for Friction Modifier booster, which is crucial for the limited-slip differential's clutch operation. Always ensure the fluid you purchase includes this additive or is specifically designed for limited-slip differentials requiring friction modification.

BMW even issued Service Bulletin 33 01 02 (850) to address issues arising from incorrect differential fluid usage. This bulletin highlights the importance of using the correct, specified fluid to avoid warranty issues and operational problems. Do not be tempted by cheaper or supposedly 'equivalent' fluids unless they meet the exact BMW specification and include the necessary friction modifiers. The potential cost of differential repair far outweighs any minor savings on fluid.

Fluid Comparison: Right vs. Wrong

Tools and Materials Required

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and safer.

• BMW SAF-XJ 75W-140 + FM booster differential fluid (ensure you have enough, typically just under 1 litre, but having a little extra is wise).
• Vehicle jack and sturdy jack stands (or a hydraulic lift).
• Wheel chocks.
• Drain pan (large enough to collect the old fluid).
• Socket wrench with extensions.
• 14mm hex bit for the differential fill plug.
• Fluid extractor/vacuum pump (essential, as there is no drain plug on the E9x M3 differential).
• Fluid pump compatible with your new fluid bottles (for refilling).
• Flexible tubing (if your fluid pump doesn't come with one).
• New differential fill plug (BMW P/N: 33117525064 - highly recommended for a leak-free seal).
• Brake cleaner or general degreaser for cleanup.
• Lint-free rags or shop towels.
• Personal protective equipment (safety glasses, gloves).

Step-by-Step Guide to Changing Your E9x M3 Differential Fluid

1. Safety First: Preparing the Vehicle

Safety is paramount when working under any vehicle. Ensure your car is securely raised and supported.

1. Drive your M3 for a short while (10-15 minutes) to warm up the differential fluid. Warmer fluid is thinner and will drain more easily and completely. Allow it to cool slightly so it's warm to the touch but not scalding hot to prevent burns.
2. Park the car on a level, hard surface. Engage the parking brake and place wheel chocks on the front wheels.
3. Using your jack, carefully raise the rear of the car. Position your jack stands securely under the designated jacking points (typically reinforced areas along the rocker panels or subframe points). Ensure the car is level once on the stands. This is crucial for both thorough draining and accurate refilling.

2. Locating and Removing the Fill Plug

The E9x M3 differential does not have a separate drain plug; all fluid extraction and refilling is done through the single fill plug. It's always good practice to remove the fill plug first. This ensures you can actually refill the differential after draining it, preventing a situation where you're left with an empty diff and no way to put new fluid in.

4. Position your drain pan directly underneath the differential.
5. Locate the differential fill plug. It's typically on the side of the differential casing. This plug requires a 14mm hex bit for removal.
6. Using your socket wrench and the 14mm hex bit, loosen and remove the fill plug. Be prepared for a small amount of fluid to trickle out once the plug is removed. This is normal. Inspect the old plug for wear; it's highly recommended to replace it with a new one (P/N: 33117525064) to ensure a proper seal.

3. Extracting the Old Fluid (The Tricky Part!)

Given the absence of a drain plug, extracting the old fluid requires a specific tool and patience.

7. Insert the suction hose of your fluid extractor or vacuum pump through the fill hole into the differential.
8. Carefully manoeuvre the hose inside the differential, trying to reach the lowest points to extract as much old fluid as possible. The fluid will likely be dark and may contain fine metallic particles, indicating normal wear.
9. Begin extracting the fluid. This may require repeated pumping with a hand-operated vacuum pump or allowing a continuous vacuum to pull the fluid out. Keep moving the hose around to find pockets of fluid.
10. Continue this process until no more fluid can be extracted. It's challenging to get absolutely every drop out, but aim for as much as possible.

4. Refilling the Differential: The Overfill Method

This is where a clever trick helps ensure your differential is optimally filled.

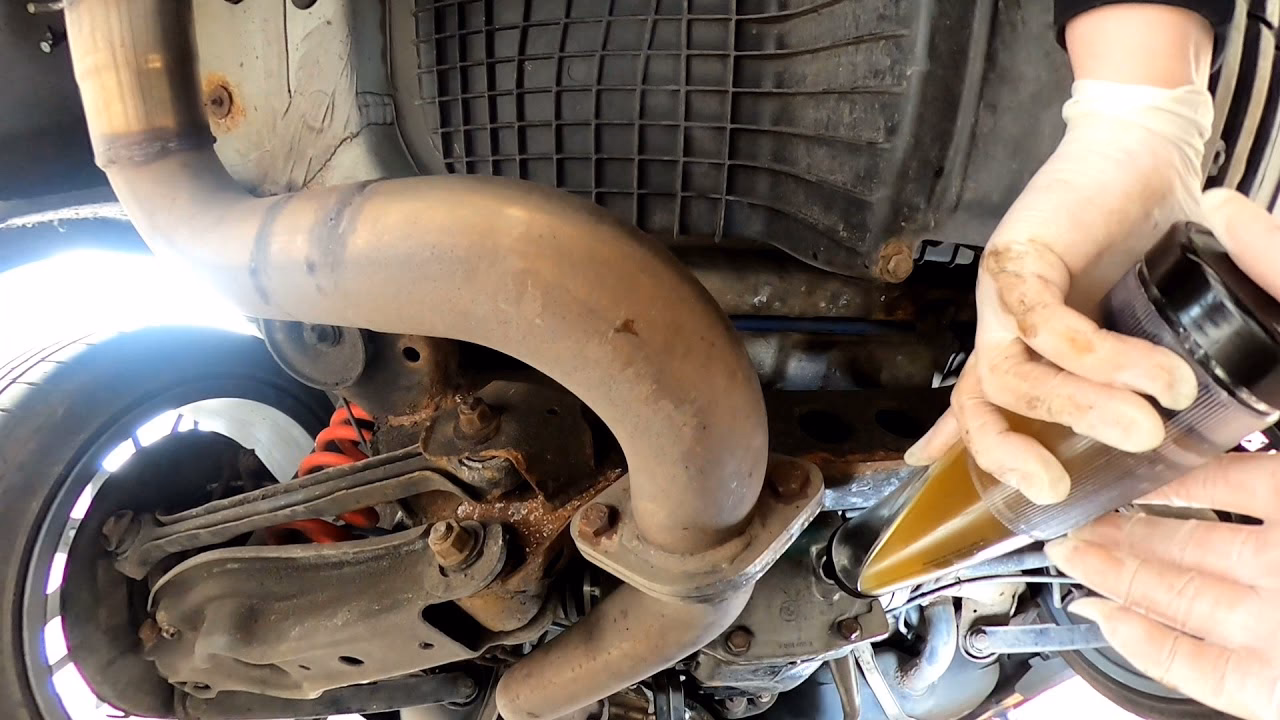

11. With the old fluid extracted, prepare your new BMW SAF-XJ 75W-140 + FM booster fluid and your fluid pump. Insert the pump's hose into the differential fill hole.
12. Slight Overfill Technique: This is a crucial tip for the E9x M3/1M differential. While the car is still raised and level, begin pumping in the new fluid. Continue filling until the fluid just begins to seep out of the fill hole.
13. Now, carefully and slightly raise the passenger side of the vehicle even higher than the driver's side. This allows a slight overfill of the differential, ensuring all internal components are thoroughly lubricated.
14. Continue pumping in a little more fluid while the passenger side is elevated, until it again just begins to seep out.
15. Lower the car back down so it is perfectly level on the jack stands. Allow the excess fluid to drip out of the fill hole until it slows to a steady trickle. This ensures the differential is filled to its correct, factory-specified level.
16. Once the dripping has subsided, clean the area around the fill hole.
17. Insert the new differential fill plug (or the old one if reusing) and tighten it. While the exact torque specification for this specific plug was not provided in the source material, it's generally good practice to tighten differential plugs to a firm but not excessive torque, typically around 60 Nm (44 lb-ft). However, always consult a service manual for precise torque specifications if available for your specific model.

5. Post-Service Checks

Once the fluid change is complete, perform a final check.

18. Wipe down any spilled fluid from the differential casing and surrounding areas using brake cleaner and rags.
19. Carefully lower the vehicle off the jack stands.
20. Take your M3 for a short drive, including some slow turns and straight-line driving, to circulate the new fluid and ensure everything feels normal.
21. After the drive, re-check under the car for any signs of leaks around the fill plug. If you used a new plug and tightened it correctly, there should be none.

Frequently Asked Questions (FAQs)

How often should I change my BMW E9x M3 differential fluid?

While BMW traditionally states some fluids are "lifetime," most enthusiasts and professional mechanics recommend changing differential fluid every 30,000 to 50,000 miles (approximately 48,000 to 80,000 kilometres), or more frequently if your M3 is regularly driven hard, tracked, or lives in extreme climates. The fluid removed during this service often shows significant signs of wear and contamination, reinforcing the importance of regular changes.

What happens if I use the wrong differential fluid?

Using the incorrect fluid, especially one lacking the necessary friction modifiers, will almost certainly lead to a distinctive grinding noise or chatter from the differential, particularly during slow turns (e.g., parking manoeuvres). This noise indicates that the limited-slip differential's clutch packs are not engaging and disengaging smoothly. Prolonged use of the wrong fluid can cause accelerated wear and damage to the differential.

My differential is making a grinding noise after the fluid change. What should I do?

If you've just changed the fluid and immediately hear grinding noises, the most likely culprit is incorrect fluid. Double-check that you used BMW SAF-XJ 75W-140 + FM booster. If not, drain the incorrect fluid immediately and refill with the correct one. If the noise persists even with the correct fluid, it might indicate pre-existing wear or damage to the differential that the fluid change couldn't resolve.

Is it really necessary to replace the differential fill plug?

While some may reuse the old plug, it is highly recommended to replace it. The differential fill plug (P/N: 33117525064) typically has an integrated sealing washer that can deform over time, compromising the seal. A new plug ensures a leak-free seal and gives you peace of mind.

Can I change the differential fluid without lifting the car perfectly level?

While it's technically possible, it's strongly advised against. Lifting the car to be perfectly level ensures that the old fluid drains as completely as possible and, more importantly, that the new fluid is filled to the precise correct level. An underfilled or overfilled differential can lead to lubrication issues or excessive pressure, respectively.

Conclusion

Changing the differential fluid on your BMW E9x M3 is a straightforward but crucial maintenance task that can significantly extend the life and preserve the performance of your vehicle's drivetrain. By using the correct SAF-XJ 75W-140 + FM booster fluid and following these detailed steps, you can ensure your M3's limited-slip differential continues to operate smoothly and efficiently for many miles to come. Remember to always prioritise safety and use the recommended parts and fluids for your cherished M car. Regular preventative maintenance like this is key to enjoying the ultimate driving machine for years.
