DIY Manual Gearbox Oil Change: A Comprehensive Guide

Your manual gearbox is a marvel of engineering, tirelessly translating your engine's power into forward motion. It's an often-overlooked component, yet it endures immense stress, especially if you enjoy spirited driving. This intricate assembly of gears, shafts, synchronisers, and shift dogs relies heavily on its lubricating fluid – the gearbox oil. Over time, this oil degrades, losing its vital properties and leading to increased wear and tear. This article will guide you through the process of accessing your manual gearbox to replace its oil, restoring smooth shifting and significantly extending the life of this crucial drivetrain component.

The Unsung Hero: Understanding Your Manual Gearbox and Its Lubricant

At the heart of your car's drivetrain, the manual gearbox is responsible for transmitting every ounce of your engine's horsepower to the driveshaft, then to the rear differential (or directly to the front wheels in FWD vehicles), and finally to the road. Inside, gears are precisely mounted to input and output shafts. These gears mesh with each other, transferring power from the engine's input to the wheels' output. This constant meshing, combined with the forces of acceleration and deceleration, generates significant heat and stress.

The gearbox oil plays a critical, multifaceted role:

• Lubrication: It forms a protective film between moving parts, reducing friction and preventing metal-on-metal contact. This is vital for the longevity of gears, bearings, and shafts.
• Cooling: It dissipates heat generated by friction, preventing components from overheating and deforming.
• Cleaning: It carries away microscopic wear particles and contaminants, preventing them from accumulating and causing further damage.
• Corrosion Prevention: It protects internal components from rust and corrosion.

However, like any fluid under extreme conditions, gearbox oil doesn't last forever. As the gears mesh, they constantly shear the polymer chains that give the oil its viscosity. This shearing action, combined with heat and contamination from microscopic metal particles, causes the oil to thin out over time. When the oil thins, its ability to lubricate effectively is compromised, allowing gears, shift dogs, and synchronisers to wear against one another. This wear manifests as notchy, difficult, or noisy shifting, and if left unchecked, can lead to premature gearbox failure. Replacing your gearbox oil is a relatively straightforward maintenance task that can dramatically improve your driving experience and save you from costly repairs down the line.

When is it Time to Change Your Gearbox Oil?

Unlike engine oil, which typically has a shorter service interval, manual gearbox oil is often considered a 'lifetime' fluid by some manufacturers. However, this definition of 'lifetime' usually refers to the expected lifespan of the vehicle under ideal conditions, which rarely holds true for daily driving or enthusiastic use. For optimal performance and longevity, it's generally recommended to change your manual gearbox oil every 30,000 to 60,000 miles, or every 3 to 5 years, whichever comes first. If you drive hard, tow frequently, or participate in track days, more frequent changes are advisable.

Beyond mileage, several symptoms indicate your gearbox oil needs attention:

• Difficulty Shifting: Notchy, stiff, or reluctant gear changes, especially when cold.
• Increased Gearbox Noise: Whining, grinding, or clunking sounds coming from the gearbox.
• Jumping Out of Gear: Although often a sign of internal wear, worn oil can exacerbate this.
• Fluid Leaks: Any visible leaks around the gearbox casing or seals.

Preparing for the Task: Safety First and Gathering Your Gear

This project is highly manageable for a competent DIY enthusiast and typically takes around 1 hour. The cost of parts, primarily the oil, is approximately £30-£40, offering significant savings over professional labour. Before you begin, ensure you have all the necessary tools and parts, and prioritise safety above all else.

Safety Precautions:

Accessing your gearbox requires lifting your vehicle. Refer to our comprehensive tech article on jacking up and safely supporting your vehicle. Never work under a vehicle supported only by a jack. Always use sturdy axle stands on a flat, stable surface. Chock the wheels that remain on the ground, and engage the handbrake. Wear appropriate personal protective equipment, including safety glasses and gloves.

Tools Required:

• Drive Socket Set: This is crucial. Manual gearbox drain and fill plugs often require specific sizes of square drive sockets (e.g., 8mm, 10mm, 12mm) or large Allen keys/hex bits. Have a good range available.
• Ratchet and Extensions: For leverage and reaching recessed plugs. A breaker bar might be needed for stubborn plugs.
• Torque Wrench: Essential for tightening the drain and fill plugs to the manufacturer's specified torque, preventing leaks or damage.
• Drain Pan: Large enough to collect all the old gearbox oil (typically 1.5 to 3 litres, but check your car's specifications).
• Fluid Pump or Syringe: To pump new oil from its container into the gearbox's fill hole, as access is often tight.
• Rags and Shop Towels: For cleaning up spills.
• Wire Brush: To clean around the plugs before removal.
• Funnel (optional): If using a syringe, a small funnel can help.

Parts Required:

• Manual Gearbox Oil: This is the only part you absolutely need. However, selecting the correct type is paramount. Consult your vehicle's owner's manual or a reputable service manual for the exact viscosity (e.g., 75W-90, 80W-90) and API GL rating (e.g., GL-4, GL-5). Using the wrong fluid can cause serious damage.
• New Drain and Fill Plug Washers/Gaskets (Recommended): Many plugs use crush washers or O-rings that should be replaced each time the plugs are removed to ensure a leak-free seal.

Hot Tip: Warm Up the Fluid!

Before starting, drive your vehicle for 10-15 minutes to bring the gearbox oil up to operating temperature. Warm oil is thinner and will drain more completely and quickly, ensuring more contaminants are removed. Be careful, as the exhaust and gearbox casing will be hot.

Step-by-Step Guide to Changing Your Manual Gearbox Oil

Once your vehicle is safely raised and secured, and you have all your tools and parts at hand, you're ready to begin.

Step 1: Vehicle Preparation and Access

With the vehicle safely on axle stands, locate the manual gearbox. It's typically positioned directly behind the engine, connecting to the driveshafts (FWD) or propshaft (RWD). You'll need sufficient clearance to work underneath comfortably and safely.

Step 2: Locating and Loosening the Plugs

Your manual gearbox will have two plugs: a drain plug and a fill plug. The drain plug is usually located at the very bottom of the gearbox casing, while the fill plug is typically higher up on the side of the casing. It is absolutely crucial to always loosen the fill plug first. If you drain the oil and then discover you cannot remove the fill plug, you'll be stranded with an empty gearbox. Use a wire brush to clean any dirt or debris from around both plugs before attempting to loosen them. This prevents contaminants from falling into the gearbox.

Step 3: Draining the Old Fluid

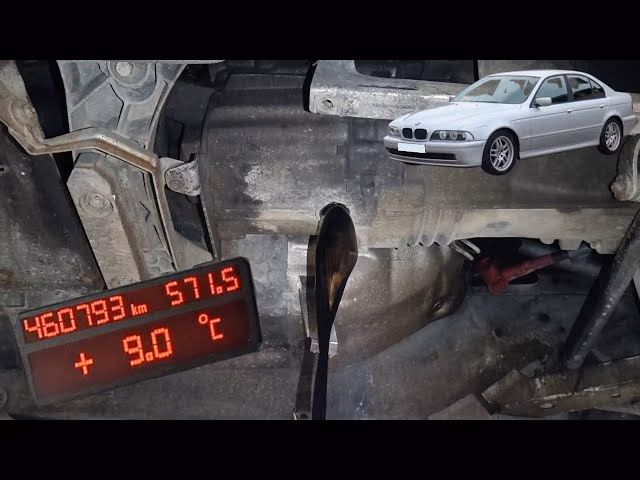

Position your drain pan directly beneath the drain plug. Once you're certain the fill plug can be removed, carefully loosen the drain plug with your appropriate drive socket and ratchet. As the plug comes free, the warm, dark gearbox oil will begin to flow out. Allow it to drain completely. This can take 15-30 minutes. While it drains, observe the old fluid. It will likely be dark, but excessive metal flakes or a milky appearance (indicating water contamination) could point to more serious internal issues. Once the flow slows to a drip, you can briefly lower one side of the vehicle slightly (if safe to do so) to encourage any remaining fluid to drain out, then raise it back to level.

Step 4: Cleaning and Replacing the Drain Plug

Once all the old oil has drained, clean the drain plug thoroughly. If your plug uses a crush washer, replace it with a new one. If it uses an O-ring, inspect it for damage and replace if necessary. Reinstall the drain plug and tighten it to the manufacturer's specified torque using your torque wrench. Do not overtighten, as this can strip the threads or crack the casing.

Step 5: Filling with New Fluid

Now, remove the fill plug that you loosened earlier. Using your fluid pump or syringe, begin pumping the new, correct-specification gearbox oil into the fill hole. This can be a slow process, so be patient. Continue filling until the oil just begins to weep out of the fill hole. This indicates the gearbox is filled to the correct level. For some gearboxes, the fill plug itself might have a dipstick or specific level markings; always consult your vehicle's manual.

Step 6: Final Checks and Test Drive

Once the gearbox is filled, clean the fill plug and install it with a new washer or O-ring, tightening it to the specified torque. Clean up any spilled oil from the gearbox casing and surrounding areas. Carefully lower your vehicle off the axle stands. Take your car for a short test drive. Pay attention to how the gears engage. You should immediately notice smoother, more precise shifts. Check for any leaks around the drain and fill plugs after the test drive. If you see any, re-check the torque on the plugs.

The Tangible Benefits of Fresh Gearbox Oil

The immediate performance gain from changing your gearbox oil is often quite noticeable. You'll experience:

• Improved Shifting: Gears will engage more smoothly and quietly, reducing notchiness and effort.
• Extended Gearbox Life: Fresh, properly specified oil provides superior lubrication and protection, significantly reducing wear on crucial internal components like gears, synchronisers, and bearings. This can prevent premature and costly gearbox failures.
• Reduced Noise: A well-lubricated gearbox operates more quietly.
• Potential for Minor Fuel Efficiency Improvement: While not a primary benefit, reduced friction can contribute slightly to better fuel economy.

Complementary Maintenance: A Holistic Approach

While you're undertaking this vital drivetrain maintenance, consider performing other related tasks:

• Change Engine Oil at the Same Time: This is often done together as part of a comprehensive service. If you're already geared up for a fluid change and working under the car, it makes sense to tackle both.
• Inspect Other Drivetrain Components: Take the opportunity to visually inspect your driveshafts, universal joints (U-joints), CV boots, and differential (if applicable) for any signs of wear, leaks, or damage.
• Check Tyre Pressures: A quick and easy check that impacts performance and safety.

Troubleshooting Common Issues

Even a straightforward job can present challenges. Here are a few common issues and how to address them:

• Stripped Plugs: If a plug is extremely tight or starts to strip, stop immediately. Try penetrating oil, a better-fitting tool, or a six-point socket. In severe cases, you might need a specialised extractor or professional help. Prevention is key: use the correct tools and clean plugs beforehand.
• Difficulty Filling: Some fill holes are in awkward positions. A flexible hose on your fluid pump or a longer, thinner funnel might be necessary. Elevating the rear of the vehicle slightly (if safe and level for filling) can sometimes help.
• Persistent Shifting Problems: If new oil doesn't resolve shifting issues, the problem might be internal gearbox wear (e.g., worn synchronisers), clutch issues, or external linkage problems.
• Leaks After Change: Double-check the torque on both drain and fill plugs. Ensure new washers/O-rings were used and are properly seated. If leaks persist, the problem might be a damaged casing or seal, requiring professional diagnosis.

Frequently Asked Questions (FAQs)

Q: How often should I change my manual gearbox oil?
A: While some manufacturers claim it's a 'lifetime' fluid, it's generally recommended every 30,000 to 60,000 miles or every 3 to 5 years, especially if you drive hard or want to maximise gearbox longevity.

Q: What type of oil should I use for my manual gearbox?
A: Always refer to your vehicle's owner's manual or a reputable service guide. It will specify the correct viscosity (e.g., 75W-90, 80W-90) and API GL rating (e.g., GL-4, GL-5). Using the wrong type can cause significant damage.

Q: Can I use automatic transmission fluid (ATF) in a manual gearbox?
A: Absolutely not! Unless your owner's manual specifically states it (which is rare for modern manual gearboxes), ATF has different properties and viscosities that are unsuitable for manual gearboxes and will lead to premature wear and failure.

Q: What are the signs that my gearbox oil needs changing?
A: Common signs include notchy or difficult gear changes, increased gearbox noise (whining, grinding), or a general feeling of stiffness when shifting.

Q: Is changing manual gearbox oil a difficult DIY job for a beginner?
A: It's a relatively straightforward job for someone comfortable working under a car and familiar with basic tools. The most critical aspects are safely lifting the vehicle, identifying the correct plugs, and using the right type of oil. If in doubt, consult a professional.

Conclusion

Changing your manual gearbox oil is a simple yet incredibly impactful maintenance task. It's an investment of a little time and minimal cost that pays dividends in smoother shifts, quieter operation, and significantly extended gearbox life. By understanding the importance of this fluid and following these steps, you'll ensure your manual gearbox continues to deliver power reliably and efficiently for many miles to come. Give your car the attention it deserves, and enjoy the improved driving experience!
