E39 M5: S62 Engine Routine Maintenance

Keeping the Beast Alive: Routine Maintenance for Your BMW E39 M5

The BMW E39 M5, a true icon of automotive engineering, is renowned for its blistering performance and the soul-stirring soundtrack of its S62 V8 engine. However, like any high-performance machine, it demands diligent and correct routine maintenance to ensure its longevity and unleash its full potential. Neglecting its needs is a sure-fire way to invite costly repairs and diminish the driving pleasure that this masterpiece offers. This guide delves into the crucial aspects of keeping your E39 M5 in top-notch condition, focusing on essential tasks like oil changes and the often-overlooked oil level sensor replacement, using the expertise of seasoned mechanics.

The Heart of the Matter: Understanding the S62 V8

The S62 engine, a naturally aspirated V8 powerhouse, was a significant leap forward for BMW's M division. Its 4.9-litre displacement, dual VANOS system, and individual throttle bodies contribute to its impressive power output and razor-sharp throttle response. However, these sophisticated systems also mean that specific care is required. Regular maintenance isn't just about ticking boxes; it's about preserving the integrity and performance of a complex piece of machinery. Understanding the engine's requirements is the first step towards becoming a responsible custodian of this automotive legend.

The Cornerstone of Longevity: Engine Oil and Oil Changes

Perhaps the most critical aspect of routine maintenance for any vehicle, especially a high-performance one like the E39 M5, is the engine oil and its regular replacement. The S62 engine is lubricated by a complex system, and the right oil, changed at the correct intervals, is paramount. The provided data offers valuable insights into suitable oil grades for the E39 generation of the BMW 5 Series, which, while not exclusively for the M5, gives us a strong foundation. For the S62, a high-quality synthetic oil is non-negotiable. These oils offer superior protection against wear, better thermal stability, and improved flow characteristics, especially in extreme temperatures.

Choosing the Right Brew: Engine Oil Specifications

While the table shows a range of oils for the E39, for the E39 M5 with its S62 engine, the focus should be on oils that meet or exceed BMW's specific requirements for high-performance engines. Generally, a 5W-30 or 5W-40 synthetic oil is recommended, depending on your local climate and driving conditions. Oils with API SM or higher and the appropriate ACEA specifications (e.g., A3/B4) are typically a good choice. Always consult your E39 M5's owner's manual for the most precise specifications. Using an oil that is too thin can lead to inadequate lubrication, while an oil that is too thick can hinder performance and potentially cause issues with oil flow, especially in the VANOS system.

Here’s a breakdown of what to look for:

• Viscosity Grade: 5W-30 or 5W-40 synthetic is generally favoured.
• API Service Category: Look for SM, SN, or newer ratings.
• ACEA Specification: A3/B4 is often recommended for performance engines.
• Manufacturer Approvals: While not always explicitly stated for older models, oils that meet BMW's Longlife-01 (LL-01) standard are usually a safe bet for the S62.

The Oil Change Procedure: A Step-by-Step Approach

Performing an oil change on the E39 M5 requires precision and the right tools. The S62 has a specific oil capacity, typically around 7.5 litres (with filter). Always ensure you have the correct amount. The process involves:

1. Gathering Supplies: You'll need new engine oil, a new oil filter (OEM or a reputable aftermarket equivalent), a new oil filter housing seal, a drain plug crush washer, a suitable wrench for the drain plug and filter housing, a torque wrench, a drain pan, and rags.
2. Warming the Engine: Run the engine for a few minutes to warm the oil. This allows it to flow more easily, ensuring most of the old oil and contaminants are drained.
3. Draining the Oil: Safely lift and support the vehicle. Locate the oil drain plug on the oil pan. Place the drain pan underneath and carefully remove the drain plug. Allow the old oil to drain completely.
4. Replacing the Oil Filter: Locate the oil filter housing. Use the appropriate tool to unscrew the housing. Remove the old filter and the old seal from the housing. Clean the housing thoroughly. Install the new filter and the new seal, ensuring the seal is properly seated. Tighten the housing by hand until snug, then use a wrench to tighten it an additional quarter to half turn, or to the manufacturer's specified torque.
5. Refitting the Drain Plug: Clean the drain plug and install a new crush washer. Reinstall the drain plug and tighten it to the specified torque (typically around 25 Nm). Over-tightening can strip the threads, which is a costly mistake.

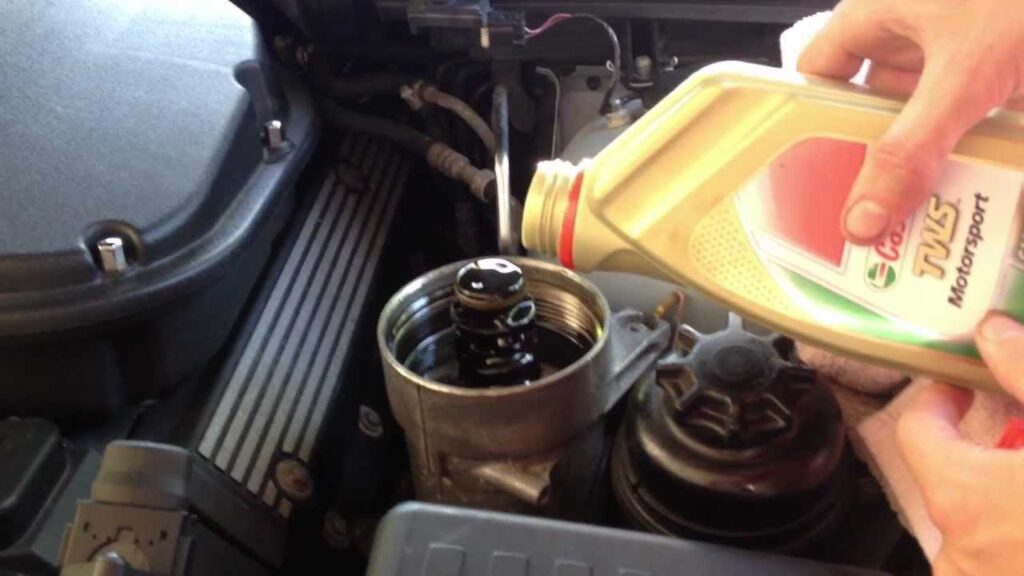

6. Refilling with New Oil: Lower the vehicle. Open the oil filler cap and carefully pour in the correct amount of new engine oil. Start with slightly less than the full capacity, then check the level.
7. Checking the Oil Level: Start the engine and let it run for a few minutes. Check for any leaks around the drain plug and oil filter housing. Turn off the engine and wait a few minutes for the oil to settle. Use the dipstick or the electronic oil level indicator (if equipped and functioning correctly) to check the oil level. Top up as needed, ensuring you don't overfill.

The Often-Forgotten Component: The Oil Level Sensor

The E39 M5, particularly later models, features an electronic oil level sensor that provides readings via the iDrive system or the instrument cluster. This sensor is crucial for accurately monitoring your oil level between service intervals. A faulty oil level sensor can lead to inaccurate readings, potentially causing drivers to overfill or underfill their engine, both of which can have detrimental consequences. Replacing this sensor during a routine oil change is a proactive measure that ensures you have reliable data about your engine's health.

Symptoms of a Failing Oil Level Sensor:

• Inaccurate or fluctuating oil level readings on the dashboard.
• The oil level warning light illuminating even when the oil level is correct.
• The oil level not registering at all.
• The sensor failing the self-test upon startup.

Replacing the Oil Level Sensor:

The oil level sensor is typically located in the oil pan. The process for replacement is generally as follows:

1. Access the Oil Pan: Safely lift and support the vehicle, ensuring adequate clearance to work underneath.
2. Drain the Engine Oil: As described in the oil change procedure, drain all the engine oil. This is essential as the sensor is submerged in the oil.
3. Locate and Remove the Sensor: The sensor is usually secured by a few small bolts or clips. Carefully remove these fasteners and disconnect the sensor's electrical connector. Gently extract the old sensor from the oil pan.
4. Install the New Sensor: Ensure the new sensor comes with a new seal or gasket. Install the new sensor into the oil pan, ensuring it is properly seated. Secure it with the fasteners and reconnect the electrical connector.
5. Refill and Test: Reinstall the drain plug with a new crush washer. Refill the engine with the correct grade and quantity of oil. Lower the vehicle. Start the engine and allow it to run for a few minutes. Check for leaks. Once the engine is warm, check the oil level reading via the dashboard display to ensure the new sensor is functioning correctly.

Beyond the Basics: Other Essential Maintenance Tasks

While oil changes and sensor replacements are vital, a comprehensive routine maintenance schedule for your E39 M5 should include other critical items:

• Air Filter Replacement: A clean air filter ensures optimal airflow to the engine, contributing to performance and fuel efficiency. Inspect and replace as needed, typically every 15,000-30,000 miles.
• Cabin Air Filter: Important for passenger comfort and air quality inside the cabin. Replace annually or as recommended.
• Spark Plugs: The S62 uses individual coil-on-plug ignition. Spark plugs should be replaced at recommended intervals (e.g., 60,000 miles) with the correct type. Worn spark plugs can lead to misfires and reduced performance.
• Coolant Flush and Replacement: Ensure your cooling system is in good order to prevent overheating. Flush and refill with the correct BMW coolant at recommended intervals (e.g., every 2-3 years).
• Brake Fluid Flush: Brake fluid absorbs moisture over time, reducing its effectiveness. Flush and replace every 2 years.
• Transmission Fluid and Filter: If your E39 M5 has an automatic transmission, regular fluid and filter changes are crucial for its longevity. Consult your service manual for intervals. Manual transmissions also benefit from fluid changes.
• Differential Fluid: The rear differential also requires fluid changes at recommended intervals to ensure smooth and efficient operation.
• Belts and Hoses: Inspect all drive belts for cracks or wear and replace them proactively. Check all coolant hoses for swelling or leaks.
• Suspension and Steering Components: Regularly inspect bushings, ball joints, and tie rods for wear, as these directly impact handling and safety.

Understanding Oil Quality: A Visual Guide

The provided visual representation of used oil gives a helpful, albeit simplified, indication of engine health. It's important to understand what you're looking at:

While this visual guide is a useful starting point, relying solely on oil appearance can be misleading. Modern synthetic oils often remain clear for longer. The most reliable way to assess your engine's internal condition through its oil is through regular oil analysis, which can detect microscopic wear particles and chemical changes in the oil.

Frequently Asked Questions

Q1: How often should I change the oil in my E39 M5?
While BMW's service intervals have extended over the years, for a high-performance engine like the S62, a more frequent oil change is recommended for optimal longevity. Many owners opt for every 5,000 to 7,500 miles or annually, whichever comes first, especially if the car is driven hard.

Q2: What are the risks of not changing the oil in my E39 M5?
Not changing the oil can lead to increased engine wear due to depleted lubricating properties and accumulated contaminants. This can result in premature component failure, reduced performance, and ultimately, very expensive repairs.

Q3: Can I use a different oil viscosity than what's recommended?
It's best to stick to the manufacturer's recommended viscosity grades (typically 5W-30 or 5W-40 synthetic) unless you have a specific reason and have consulted with a BMW specialist. Deviating from recommendations can compromise lubrication and performance.

Q4: How do I know if my oil level sensor needs replacing?
Erratic or consistently incorrect oil level readings on your dashboard are the primary indicators. If the system fails its self-test or shows no reading at all, replacement is likely necessary.

Q5: Is it difficult to change the oil and filter on an E39 M5?
With the right tools and a bit of mechanical aptitude, changing the oil and filter is a manageable task for a DIY enthusiast. However, ensuring proper torque specifications and careful handling is crucial.

Conclusion: A Commitment to Excellence

The BMW E39 M5 is a car that rewards its owner's dedication. By understanding and implementing the routine maintenance procedures outlined here, particularly focusing on the critical aspects of engine oil and the oil level sensor, you are investing in the future of your beloved M5. Regular servicing, using the correct fluids and parts, and paying attention to the subtle signs your car gives you will ensure that the S62 V8 continues to deliver its legendary performance and thrill for years to come. Treat your E39 M5 with the respect it deserves, and it will undoubtedly continue to stir your soul with every drive.
