Understanding Your BMW's Brake Warning Light

That sudden illumination of the 'BRAKE' warning light on your BMW's dashboard or iDrive system can be unsettling, especially if your vehicle is relatively new. It's a common misconception that this light indicates an immediate catastrophic failure of your braking system. In most BMWs, this particular warning is primarily controlled by the brake pad sensor, a clever component designed to inform you about the remaining life of your brake pads long before they become a safety hazard. Understanding how this system works is crucial for timely maintenance and ensuring your driving safety.

Unlike a general brake system fault, this light typically signifies that your brake pads have worn down to a critical level, prompting you to consider a replacement. Ignoring it can lead to more severe issues and costly repairs down the line. This comprehensive guide will delve into the intricacies of your BMW's brake warning system, from how the sensors detect wear to the steps you need to take when the light appears.

How Do BMW Brake Pad Sensors Work?

At the heart of your BMW's brake wear warning system lies a simple yet effective mechanism. The brake pad sensor is typically a small, plastic-encased component mounted directly onto one of your brake pads. As the brake pad material gradually wears down from friction with the brake disc, the sensor's tip, which contains a delicate wire loop, eventually comes into contact with the rotating disc. The continuous friction then wears through the sensor's tip, breaking the internal wire circuit. This 'open circuit' condition is immediately detected by your vehicle's onboard computer (often via the iDrive system), triggering the 'BRAKE' warning light on your dashboard or central display.

Essentially, the sensor acts as a sacrificial component, breaking to alert you. When the sensor's wire is tripped, it sends a signal that your brake pads have reached their minimum safe thickness. It's a proactive measure, designed to give you ample warning before metal-on-metal contact occurs between the caliper and the brake disc, which would cause significant damage and severely compromise braking performance.

For those utilising an OBD scanner, specific error codes associated with a tripped brake pad sensor often appear. These can include codes such as 5, 5, 6, 5, 14, 5, 15, and 6F12, indicating a circuit interruption or an issue with the sensor's reading.

The Evolution of Brake Wear Sensors: From Squeals to Smart Tech

Brake wear indicators have come a long way. Traditionally, many vehicles relied on 'squealer tabs' – small metal clips attached to the brake pads that would scrape against the brake disc when the pads were low, emitting a high-pitched screech. While effective, these audible warnings were often ignored by drivers, leading to prolonged use of worn pads and potential damage.

Modern BMWs, particularly those equipped with electronic brake pad wear sensors, offer a more precise and undeniable warning system. These electronic sensors eliminate the irritating noise and provide a clear visual alert:

Single-Stage vs. Two-Stage Sensors

Early electronic sensors were typically 'single-stage'. They functioned much like described above: a simple wire loop that, once broken by wear, triggered the warning light. These systems usually have a sensor embedded within the inner brake pad at two points on the vehicle, often the front driver's side and the rear passenger's side, though placement can vary by model.

However, contemporary BMWs often employ more advanced 'two-stage sensors', sometimes referred to as 'predictive wear sensors'. These ingenious devices offer more than just a simple on/off warning. They operate with two parallel resistive circuits at different depths within the sensor material. As the initial resistive circuit wears through, the resistance in the sensor changes. This alteration in resistance is then used by the vehicle's onboard computer to gather data such as wheel speed, brake pressure, brake disc temperature, brake operation time, and mileage. This complex data is then processed to predict the remaining life of your brake pads, often displayed in your car's information centre or through a warning light that might change colour as the pads age.

The second circuit in a two-stage sensor acts as the final warning. Once this second circuit is disrupted due to continued wear, it sets off the definitive brake service indicator light, alerting you that immediate attention is required. This sophisticated system provides drivers with a much more accurate and timely indication of when brake maintenance is necessary, allowing for better planning and preventing unexpected issues.

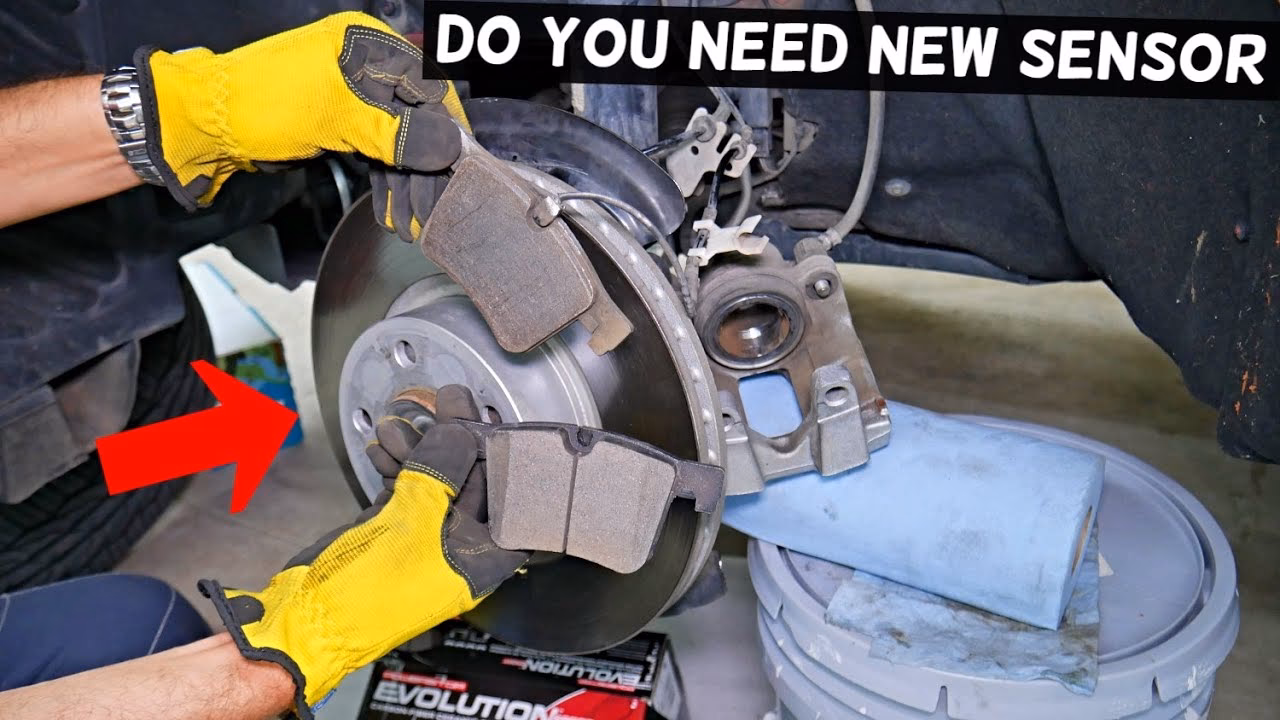

When Should You Replace Your Brake Pad Sensors?

Given their design, brake pad sensors are fundamentally 'consumable' items. They are engineered to break or complete a circuit once the brake pads reach a certain wear limit. Therefore, the general rule of thumb is to replace the brake pad sensor every time you change your brake pads. Even if the sensor hasn't fully tripped the warning light, it's a good practice to replace it, as the plastic tip might be partially worn or the cable could have been exposed to heat, potentially leading to inaccurate readings or a persistent warning light.

Failing to replace a worn sensor could result in erroneous readings of your pad life or a constant warning on your dash/iDrive system, even after new pads have been fitted. While a sensor doesn't always need to be changed if the warning light hasn't appeared, replacing it alongside new pads ensures the entire system is refreshed and accurate. The heat generated by braking can also degrade the sensor's wire and clips over time, making a pre-emptive replacement a wise decision.

Can You Reuse Brake Pad Sensors?

The question of reusing brake pad sensors often arises, particularly for those looking to save on maintenance costs. Technically, if your existing brake pads have not worn down to the point where the sensor's plastic 'nub' has broken through and tripped the metal strip inside (i.e., the warning light is not on), you might be able to reuse the sensor. However, there are crucial caveats.

Firstly, the new replacement brake pads must have a specific slot or fitting designed to accommodate the sensor. Some performance or aftermarket pads, like certain Hawk HP Plus or High Performance Street pads, may not feature these slots, requiring you to secure the sensor out of the way, often with a Velcro strap, to prevent it from rubbing or melting at higher temperatures. If the new pads lack a slot, it's safer to tie the old sensor out of the way or install a new one that fits.

Secondly, extreme care must be taken when removing the sensor from old pads. The cables are delicate, and straining them with a screwdriver or pliers can easily create an internal short circuit, which would immediately trigger the brake warning light, rendering the 'reused' sensor useless. For peace of mind and accurate readings, investing in new sensors with each pad change is highly recommended.

Bypassing the Brake Wear Sensor: A Risky Shortcut

Some BMW owners, seeking to avoid the cost or hassle of replacing a faulty sensor, consider bypassing it altogether. This typically involves removing the sensor and either adding a clip or cutting the sensor cable to expose and link the wires. This action, known as 'short-circuiting the wire', essentially emulates a 'good' sensor by completing the electrical circuit, thereby turning off the warning light.

However, bypassing the brake wear sensor is strongly not advised. While it may extinguish the warning light, it completely disables your primary warning system for brake pad wear. Without the sensor, you will have no indication of when your brake pads are critically low. This can lead to:

• Metal-on-Metal Contact: Your brake pads will wear completely down until the backing plate touches the brake disc.
• Rotor Damage: This metal-on-metal contact will severely score and damage your brake discs, necessitating costly rotor replacement in addition to new pads.
• Reduced Stopping Power: Worn pads and damaged rotors significantly compromise your vehicle's braking efficiency and safety.
• Grinding Sounds: A clear, unpleasant grinding noise will be heard as metal contacts metal.

Ultimately, while bypassing might seem like a quick fix, it jeopardises your safety and will inevitably lead to more expensive repairs down the line. It's a gamble not worth taking.

Checking Your Brake Pads and Rotors: A DIY Guide

Even with advanced sensors, performing your own visual inspections of your brake components is an excellent habit. The quickest and most accurate way to check both brake pad and rotor wear is to remove the wheels. This allows for a clear, unobstructed view of the components.

To gauge the thickness of your brake pads, you can visually inspect them, looking for the minimum thickness specified in your owner's manual (often around 3mm for pads). For precise readings, especially of your brake discs, a digital caliper is the only reliable tool. Brake discs have a minimum thickness stamped on their edge; once they wear below this specification, they must be replaced, regardless of whether they are warped or scored. While experienced mechanics might be able to 'eye-ball' wear, a caliper provides definitive, accurate measurements.

Resetting Your BMW's Brake Warning Light

Once you've replaced your brake pads and the associated wear sensor, the brake warning light will likely remain illuminated until it's manually reset. This reset procedure tells the car's computer that new components have been installed and the system is back to normal. Fortunately, resetting the brake light on a BMW is a straightforward process that typically takes only a few minutes.

There are generally two common methods to perform this reset procedure:

Method 1: The Door Sequence (Simpler Models)

This method is often effective for various BMW models and involves a specific sequence of ignition and door operations:

1. Turn the ignition to the 'on' position (do not start the engine).
2. Wait approximately 30 seconds.
3. Open the driver's side door.
4. Wait another 30 seconds.
5. Switch the ignition to the 'off' position.
6. Start the vehicle. The light should now be off.

Method 2: The Service Menu Reset (More Common for iDrive/Newer Models)

This method accesses the service menu via the instrument cluster and is more universally applicable, especially for models with an iDrive system:

1. Turn the ignition to the 'on' position (do not start the engine).
2. Locate the trip reset or odometer button (typically on the left side of the speedometer, or sometimes the BC button on the end of the turn signal stalk).
3. Press and hold this button for approximately ten seconds until the service menu appears on your instrument cluster display.
4. Use the reset button or the controls on your turn signal lever (depending on your model) to navigate through the settings until you find the 'brake warnings' or 'CBS' (Condition Based Service) menu.
5. Once you've highlighted the brake warning entry (it might show 'km' or 'miles' remaining), press and hold the reset or BC button again.
6. The screen will prompt you to reset the warning. Confirm by pressing the reset or BC button once more when prompted.
7. The display should then show 'Resetting...' and eventually 'Reset successful' or similar.

If, after attempting these resets, the light persists, it may indicate that the sensor was not correctly installed, the new sensor is faulty, or there's another underlying issue within the braking system that requires professional diagnosis.

Common Questions About BMW Brake Sensors

How many brake sensors are there in a BMW?

Typically, a BMW will have two brake wear sensors. One is located on a front wheel (often the front driver's side), and the other on a rear wheel (commonly the rear passenger's side). If your brake light is illuminated, it means either one or both of these sensors have tripped and require replacement along with the brake pads.

How much does a BMW brake sensor replacement cost?

The cost of replacing a BMW brake pressure sensor can vary based on your specific model, location, and whether you're doing it yourself or having a garage perform the work. For instance, replacement brake pressure sensors for a BMW 328i might typically cost between £200 and £220, with labour charges ranging from £35 to £45. This estimate primarily covers the part cost and the labour for its installation, excluding other associated brake components like pads or discs, and any taxes or levies.

Are BMW brake wear sensors reusable?

No, BMW brake pad wear sensors are generally not reusable. They are designed to 'break' or complete a circuit by making contact with the brake disc once the pads wear down. Once tripped, the sensor itself is compromised and cannot provide accurate future readings. Therefore, wear sensors for the brakes should always be replaced with each change of brake pads to ensure the system functions correctly.

How do BMW brake sensors function beyond simple breaking?

As discussed with the two-stage sensors, they function by detecting resistance changes. The dual-stage design incorporates two wires or resistive circuits that, when worn through at different depths, alter the resistance readings. This allows for a more sophisticated, two-stage wear indication warning, providing both an early warning and a critical 'replace now' alert.

Can the brake pad wear sensor be bypassed?

While it is technically possible to bypass a brake wear sensor by short-circuiting the wires, it is highly discouraged. Bypassing the sensor means you lose the critical safety feature that warns you about worn brake pads, potentially leading to dangerous metal-on-metal braking, damage to your brake discs, and significantly reduced stopping power.

Maintaining your BMW's braking system, including its sophisticated sensor technology, is paramount for your safety and the longevity of your vehicle. The brake warning light is not a nuisance; it's a vital alert. Addressing it promptly and correctly ensures your BMW continues to offer the exceptional driving experience and safety you expect.
