Brake Pad Condition: Sensors & DIY Checks

There's little in car maintenance that causes quite the same level of vexation as a persistent warning light on your dashboard, especially when it concerns your brakes. The thought of shelling out for a seemingly simple sensor, enduring shipping delays, and then braving the elements to trace wires and dismantle wheel arch liners is enough to make anyone sigh. You've hit on a crucial point: understanding how these systems work can empower you, but when it comes to brake pad wear sensors, the solution isn't always as straightforward as a quick wire splice. Let's delve into the mechanics of determining brake pad condition, how those often-maligned sensors function, and why bypassing them, while tempting, carries significant safety risks.

The Unseen Heroes: What Your Brake Pads Do

Before we dive into detection, it's worth remembering the vital role your brake pads play. They are the friction material that, when pressed against the spinning brake discs (rotors), converts your vehicle's kinetic energy into heat, slowing or stopping your car. This constant friction means they wear down over time, and monitoring this wear is critical for maintaining effective braking performance and, more importantly, your safety on the road.

Beyond the Dashboard Light: How to Visually Inspect Your Brake Pads

While modern cars rely on sensors, the most fundamental and reliable way to assess brake pad condition is a good old-fashioned visual inspection. This requires a bit of DIY effort but provides invaluable direct insight.

Tools You'll Need:

• A reliable car jack and sturdy axle stands.
• A good light source (torch/flashlight).
• Possibly a screwdriver or small pry tool to help see.

Steps for Inspection:

1. Park Safely: Ensure your car is on a flat, stable surface, engage the handbrake, and consider chocking the wheels not being lifted.
2. Lift and Secure: Jack up the corner of the car you wish to inspect and place it securely on axle stands. Never work under a car supported only by a jack.
3. Remove the Wheel: Loosen the wheel nuts (or bolts) slightly before lifting, then fully remove them once the car is on stands. Carefully take off the wheel.
4. Locate the Brake Calliper and Pads: You'll see the brake disc (rotor) and the calliper assembly clamped around it. The brake pads are housed within this calliper.
5. Assess Pad Thickness: Look into the calliper opening to see the brake pad lining. Most pads have a minimum thickness indicator groove. A new pad might be around 10-12mm thick. Manufacturers typically recommend replacement when they reach 3mm or less. Anything below 2mm is critically worn and dangerous. Check both the inner and outer pads, as they can sometimes wear unevenly.
6. Check for Uneven Wear: Look for pads that are significantly thinner on one side than the other, or where one pad is much more worn than its partner on the same wheel. This could indicate a seized calliper piston or slider pins.
7. Inspect for Damage: Look for cracks, chips, or crumbling of the friction material. If you see any signs of damage, the pads should be replaced immediately.
8. Examine the Brake Disc (Rotor): While you're there, check the disc for deep grooves, scoring, or excessive lip formation around the edge. These indicate significant wear and may require disc replacement along with the pads.

The Sound of Silence (and Squeals): Auditory and Haptic Cues

Your vehicle often gives you warnings through your senses long before a light appears on the dash. Paying attention to these can save you a lot of trouble.

Deciphering the Digital Guardian: Brake Pad Wear Sensors Explained

Now, let's get to the heart of your specific query: how those pesky sensors work and why they're causing you grief. Most modern vehicles, especially European models, use electrical brake pad wear sensors.

How Electrical Wear Sensors Work:

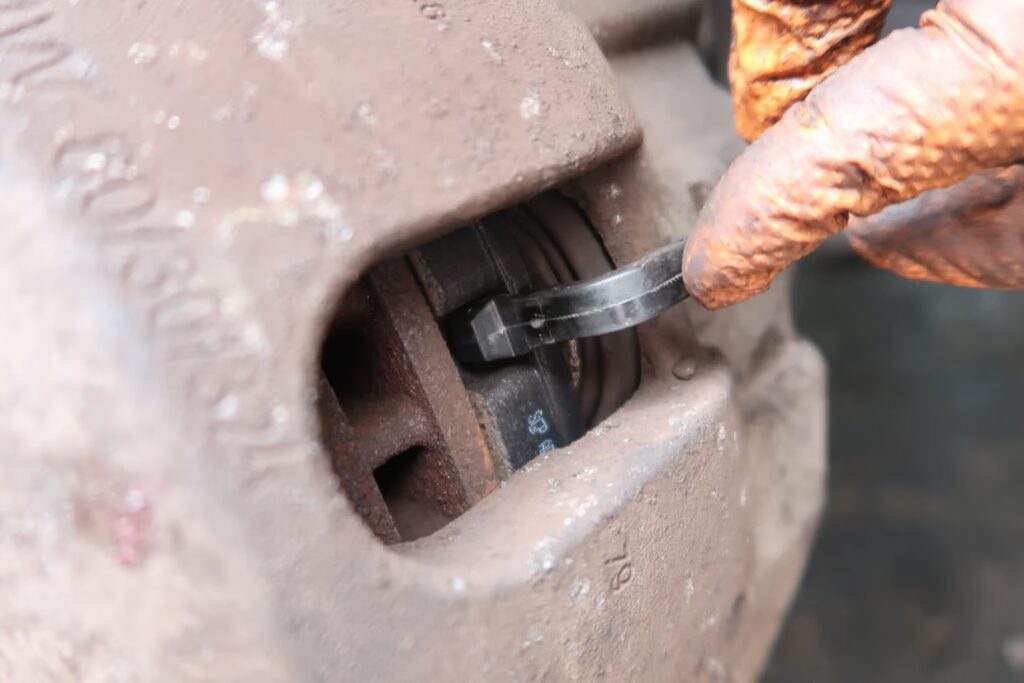

An electrical brake pad wear sensor is essentially a small plastic housing with a very thin wire loop embedded within it. This housing is designed to protrude slightly from the brake pad's friction material. The wire loop forms part of a closed electrical circuit that runs back to your car's onboard computer (ECU or brake control module).

• Intact Sensor: When the brake pad is new or has sufficient life remaining, the sensor's wire loop is intact, creating a closed circuit. The computer monitors this circuit, expecting a specific, low electrical resistance (often near zero ohms, or a specific calibrated value). As long as this resistance is detected, the computer registers the pads as having life.
• Worn Pad Activation: As the brake pad wears down, the sensor's plastic housing eventually makes contact with the spinning brake disc. The abrasive action of the disc quickly wears through the plastic and, crucially, breaks the internal wire loop.
• Warning Trigger: When the wire loop is broken, the electrical circuit becomes open. An open circuit presents an extremely high, effectively infinite, electrical resistance to the computer. The car's computer is programmed to recognise this sudden increase in resistance (or the loss of a complete circuit) as an indication that the brake pads have reached their minimum safe thickness. It then illuminates the brake warning light on your dashboard and might display a message regarding "brake wear" or "service due."

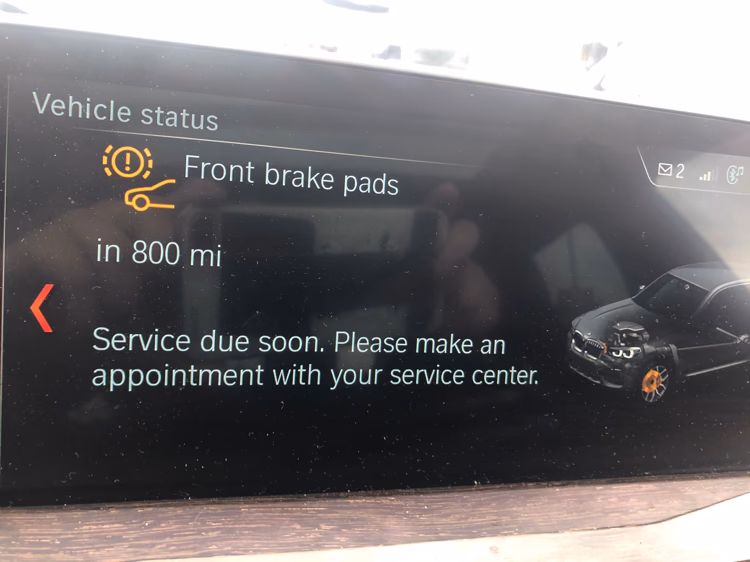

Why Your Warning Won't Reset (Without a New Sensor):

You mentioned, "Mine has made contact with the rotor and now I cannot reset the warning messages and remaining life (new pads, but no new sensor)." This perfectly illustrates the sensor's design. Once the wire loop is broken, it's permanently broken. It's a "single-use" component designed to fail once activated. Even if you install brand new pads, the computer will still detect the open circuit from the old, activated sensor, and thus, the warning will persist. The car's system requires a new, intact sensor to re-establish the closed circuit and register the pads as "good" again.

The Myth of Resistance and the Temptation to Bypass

You've heard about "some resistance that the computer looks for." This is absolutely correct. The computer is looking for the low resistance of an intact circuit. If it detects infinite resistance (open circuit) or sometimes a specific high resistance, it triggers the warning.

Your question, "Could I cut the sensor off and do something to the wires to make the sensor act brand new?" addresses the possibility of bypassing it. Technically, yes, one could attempt to "trick" the system by:

1. Shorting the Wires: Twisting the two wires from the sensor harness together would create a permanent closed circuit with near-zero resistance, mimicking an intact sensor.
2. Adding a Resistor: Some systems might look for a very specific resistance value. In such cases, one could wire in a resistor of the correct ohmic value to simulate a new sensor.

WARNING: THE SEVERE DANGERS OF BYPASSING YOUR BRAKE PAD SENSOR

While the above methods are theoretically possible, they come with extremely significant and potentially life-threatening drawbacks. As a responsible automotive maintenance writer, I must strongly advise against bypassing or disabling your brake pad wear sensor for the following critical reasons:

• Loss of a Critical Safety Feature: The sensor is there for a reason – to warn you before your brakes become dangerously worn. By bypassing it, you completely disable this early warning system. You will have no automated indication when your brake pads are critically low.
• Catastrophic Brake Failure Risk: Without the sensor, you run the very real risk of your brake pads wearing down completely to the metal backing plate without your knowledge. This leads to dangerous metal-on-metal grinding, significantly extended stopping distances, severe damage to your brake discs (rotors), and ultimately, could lead to complete brake failure. Imagine being unable to stop effectively in an emergency.
• Increased Repair Costs: While you save a modest amount on a sensor now, the cost of replacing severely damaged brake discs (which are far more expensive than pads) and potentially callipers due to metal-on-metal contact will far outweigh the initial sensor saving.
• Legal and Insurance Implications: In the event of an accident, if it's discovered that you intentionally disabled a safety feature on your vehicle, you could face severe legal repercussions and your insurance policy might be invalidated.
• Compromised Vehicle Safety Standards: Modern vehicles are designed with integrated safety systems. Tampering with one part often compromises the integrity of the whole system.

The sensor is a relatively inexpensive part designed to protect a far more expensive and critical component (your life). Spending the extra £30-£50 (or your Canadian $30 equivalent) on a new sensor is a small price to pay for peace of mind and, most importantly, safety.

When to Replace Your Brake Pads

Beyond the sensor, here's a general guide:

• When the brake wear indicator light comes on (and you've addressed the sensor).
• When the friction material thickness is at or below the manufacturer's recommended minimum (typically 3mm or less).
• If you hear persistent squealing (from wear indicators) or, critically, grinding noises.
• During routine vehicle servicing, your mechanic will inspect them.

Frequently Asked Questions (FAQs)

Q: Can I drive with the brake warning light on?

A: While you might be able to, it's strongly advised against. The light indicates your brakes are at or near their minimum safe operating thickness. Continuing to drive risks further damage to your braking system and significantly compromises your vehicle's safety. Get it checked and resolved as soon as possible.

Q: How long do brake pads typically last?

A: This varies widely depending on your driving style, vehicle type, and the type of brake pads. City driving with frequent stops will wear them out faster than motorway driving. Generally, front pads might last anywhere from 20,000 to 70,000 miles, while rear pads can last longer. Always consult your vehicle's service schedule and check your pads regularly.

Q: Are all brake pad wear sensors the same?

A: No, not all sensors are identical. While the principle of operation (breaking a circuit) is similar for most electrical sensors, their connectors, wire lengths, and specific resistance values can differ between vehicle makes and models. It's crucial to purchase the correct sensor for your specific car.

Q: Is it okay to replace just the brake pads without replacing the sensor?

A: If the sensor has already activated (meaning its wire is broken), then no, you must replace the sensor along with the pads to clear the warning light and restore the system's functionality. If the pads are replaced before the sensor activates (i.e., they are worn but the sensor circuit is still intact), then theoretically, you could reuse the sensor, though it's often good practice to replace it if it's old, as it's a relatively cheap part.

Q: Why did my sensor activate so early on my new pads?

A: This is a common misunderstanding. The sensor activates when the old pads reach their wear limit. When you install new pads, the old, activated sensor is still connected to the wiring harness. Unless you replace the activated sensor with a new one, the warning will persist, as the computer still detects the broken circuit.

Conclusion

While the frustration of dealing with a persistent brake warning and the cost of seemingly minor components like sensors is understandable, it's paramount to prioritise safety. Your brake pad wear sensor is a vital component of your vehicle's overall safety system, designed to give you a timely warning before a critical situation arises. Attempting to bypass it might offer a temporary reprieve from a dashboard light, but it introduces significant, life-threatening risks and could lead to far more expensive repairs down the line. Always opt for the correct repair by replacing the activated sensor when replacing worn brake pads. Your safety, and the safety of others on the road, depends on it.
