Brake Pad Wear Sensors Explained

The Silent Guardians: Understanding Brake Pad Wear Sensors

Modern vehicles are packed with sophisticated technology designed to enhance safety, efficiency, and driver comfort. Among these advancements, the humble brake pad wear sensor might seem like a minor component, but its role in alerting you to a critical maintenance need is anything but insignificant. Ignoring worn brake pads can lead to drastically reduced stopping power, costly damage to other braking system components, and, most importantly, compromised safety for yourself and others on the road. This article delves into the world of brake pad wear sensors, explaining what they are, how they function, the different types available, and the vital importance of responding to their warnings.

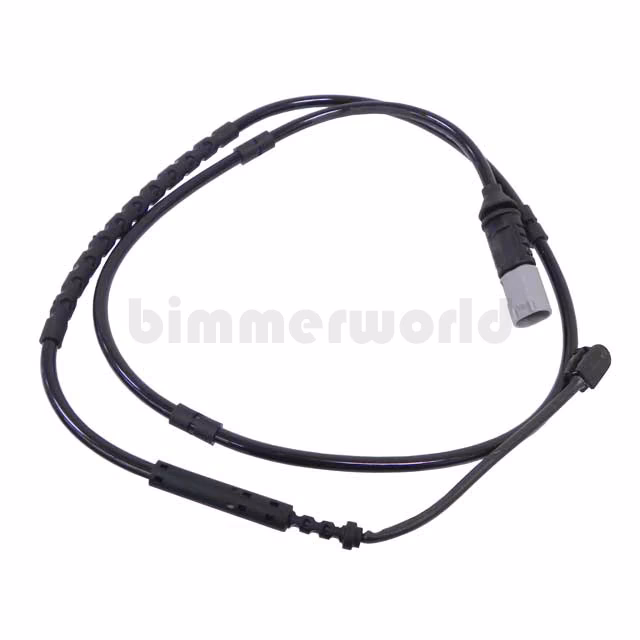

What Exactly Are Brake Pad Wear Sensors?

At its core, a brake pad wear sensor is a small, usually metallic, component designed to detect when your brake pads have reached a critically low thickness. Think of them as tiny sentinels, constantly monitoring the life of your brake pads. When the friction material on the brake pad wears down to a predetermined level, the sensor makes contact with the brake disc (rotor). This contact triggers an alert, typically a warning light on your dashboard, notifying you that it's time to replace your brake pads.

The primary purpose of these sensors is to prevent the brake pads from wearing down to the point where the metal backing plate, which holds the friction material, begins to grind against the brake disc. This metal-on-metal contact is highly detrimental. It not only destroys the brake disc, leading to a much more expensive repair, but it also severely compromises the braking performance of your vehicle.

How Do They Work? The Mechanics Behind the Warning

The operation of brake pad wear sensors is ingeniously simple, yet highly effective. While there are a few variations, the most common types rely on electrical conductivity.

1. Mechanical (Contact) Sensors

These are the most prevalent type. They typically consist of a small metal tab or wire that is integrated into the brake pad itself, or sometimes clipped onto the pad's backing plate. This tab is positioned so that it protrudes slightly from the friction material. As the brake pad wears down, the friction material erodes, and eventually, the metal tab makes direct contact with the spinning brake disc.

When the metal tab touches the metal brake disc, it completes an electrical circuit. This completed circuit sends a signal to your car's braking system computer. The computer then activates a warning light on your dashboard – often a symbol resembling a circle with dashed lines on either side, or simply the word "BRAKE" or "SERVICE BRAKE". This is your cue that the pads are close to their wear limit and replacement is imminent.

Important Note: Some mechanical sensors are designed to make a noise as well. As the tab scrapes against the rotor, it can create a high-pitched squealing sound. This is often a separate mechanism from the electronic sensor, a built-in audible warning that can sometimes be heard even before the dashboard light illuminates.

2. Electronic (Resistive) Sensors

A less common, but increasingly sophisticated, type of sensor operates on a slightly different principle. These sensors are often a small, embedded wire or a resistive element within the brake pad. As the brake pad material wears away, this wire or element is gradually exposed and eventually severed or damaged by the brake disc.

When the wire is cut or the resistive element is compromised, it changes the electrical resistance in the circuit. The vehicle's computer detects this change in resistance, indicating that the brake pad has worn down. This also triggers the dashboard warning light.

Types of Wear Indicators

It's worth noting that not all vehicles are equipped with electronic wear sensors. Some rely on simpler, purely mechanical indicators:

• Audible Wear Indicators: As mentioned, many brake pads have a small, spring-loaded metal tab that is designed to bend and scrape against the rotor when the pad is worn. This creates a distinct, high-pitched squealing noise when you apply the brakes. This is a very effective, albeit sometimes annoying, early warning system.
• Visual Inspection: For vehicles without electronic sensors, regular visual inspection is the primary method of checking brake pad wear. This involves looking through the wheel spokes to assess the thickness of the friction material.

Why Are Brake Pad Wear Sensors So Important?

The importance of brake pad wear sensors cannot be overstated. They serve several critical functions:

• Safety First: The most crucial role is safety. Worn brake pads significantly reduce your vehicle's ability to stop quickly and effectively. In an emergency situation, this could be the difference between avoiding an accident and being involved in one. The sensors provide a timely warning, allowing you to address the issue before it becomes a safety hazard.
• Preventing Costly Damage: As highlighted earlier, allowing brake pads to wear down completely will inevitably lead to damage to the brake discs (rotors). Rotors are significantly more expensive to replace than brake pads. By alerting you in advance, sensors help you avoid this additional, often substantial, expense.
• Maintaining Optimal Braking Performance: Brake pads are designed with specific friction materials to provide optimal stopping power under various conditions. Worn pads lose their effectiveness, leading to longer stopping distances and a less responsive braking feel.
• Convenience and Peace of Mind: For many drivers, the dashboard warning light is a convenient way to be reminded of essential maintenance. It removes the guesswork and the need for constant, detailed visual inspections, offering peace of mind that your braking system is being monitored.

What to Do When the Brake Warning Light Illuminates

Receiving a brake warning light from a wear sensor is not a cause for panic, but it does require prompt attention. Here's what you should do:

1. Don't Ignore It: The most important step is to acknowledge the warning. The light is there for a reason.
2. Schedule an Inspection: Book an appointment with a qualified mechanic as soon as possible. They will inspect your entire braking system, including the brake pads, rotors, calipers, and brake fluid.
3. Replacement: If the wear sensor has triggered the light, it typically means that at least one set of brake pads (either front or rear, depending on which sensor activated) is worn down to its replacement limit. The mechanic will advise on the necessary replacements. It's common practice to replace brake pads in pairs (both front or both rear) for balanced braking.
4. Sensor Replacement: When brake pads are replaced, the worn-out wear sensors (if they are the type that gets consumed, like the metal tab) will also need to be replaced. These are relatively inexpensive parts that ensure the warning system continues to function correctly for the new pads.

Common Misconceptions and FAQs

Let's address some common questions about brake pad wear sensors:

Q1: Does the brake warning light always mean my brake pads are worn?

Not necessarily. While the primary function of the wear sensor warning is for brake pad wear, a general "BRAKE" warning light can sometimes indicate other issues with the braking system, such as low brake fluid levels or a problem with the parking brake.

Q2: Can I drive with the brake pad warning light on?

It is not advisable to drive for an extended period with the brake warning light illuminated. While your brakes will likely still function, their performance will be significantly degraded, increasing stopping distances and the risk of accidents. Get it checked immediately.

Q3: How long do brake pads typically last?

Brake pad lifespan varies greatly depending on driving style, vehicle weight, brake pad material, and driving conditions. On average, front brake pads might last between 25,000 to 50,000 miles, while rear pads can last longer, often 40,000 to 70,000 miles. However, aggressive driving, frequent heavy braking, or towing will significantly reduce this lifespan.

Q4: Are all cars fitted with wear sensors?

No, not all vehicles, particularly older models or some budget-friendly cars, come equipped with electronic brake pad wear sensors. In such cases, regular visual inspection or listening for audible squealing from mechanical wear indicators is crucial.

Q5: Can I replace brake pads and sensors myself?

Replacing brake pads and sensors is a task that many DIY enthusiasts can undertake with the right tools and knowledge. However, if you are not comfortable working on your vehicle's braking system, it is always best to have a professional mechanic perform the job to ensure it is done correctly and safely.

Conclusion: Vigilance on the Road

Brake pad wear sensors are a testament to the continuous innovation in automotive safety. They act as an indispensable early warning system, protecting drivers from potential hazards and preventing more significant damage to their vehicles. Understanding their function and heeding their warnings is a vital part of responsible vehicle ownership. By staying vigilant and addressing brake maintenance promptly when alerted, you ensure that your car's most critical safety system – its brakes – remains in optimal condition, providing reliable stopping power when you need it most. Regular maintenance and paying attention to your vehicle's signals are the cornerstones of safe and enjoyable driving.

Key Takeaways:

• Brake pad wear sensors alert you when brake pads are critically low.
• They primarily work by completing an electrical circuit or altering resistance when the pad material wears away.
• These sensors are vital for safety, preventing costly rotor damage, and maintaining braking performance.
• Upon illumination of the warning light, schedule an inspection with a mechanic promptly.
• Regular inspection and maintenance of your braking system are crucial for road safety.
