Front vs Rear Brake Pad Wear

It's a common observation among car owners and a frequent topic of discussion among mechanics: do front brake pads wear out faster than rear brake pads? The short answer, in most cases, is yes. Several factors contribute to this phenomenon, primarily related to how modern vehicles are designed and how they distribute braking forces. Understanding these reasons can help you better maintain your vehicle and ensure optimal braking performance.

The Physics of Braking

When you apply the brakes, the vehicle's kinetic energy is converted into heat through friction. This friction is generated between the brake pads and the brake discs (or drums, in some older or rear axle designs). The braking system is engineered to effectively manage this energy conversion. A critical aspect of this engineering is the distribution of braking effort between the front and rear wheels.

Typically, a car's braking system is biased towards the front wheels. This bias is intentional and crucial for several reasons, primarily safety and stability. During deceleration, the vehicle's momentum causes the weight to shift forward. This phenomenon, known as 'weight transfer' or 'weight transfer under braking', effectively increases the load on the front axle and decreases it on the rear. Since the amount of braking force a wheel can generate is directly proportional to the load on it, the front brakes naturally receive a larger share of the braking work.

Estimates suggest that the front brakes often handle between 70% to 80% of the total braking force, especially during moderate to hard stops. This significantly higher workload for the front pads and discs naturally leads to them wearing out at a faster rate than their rear counterparts.

Weight Transfer Explained

Imagine a car braking. The car is moving forward, possessing kinetic energy. When the brakes are applied, a force opposes the motion. This force, acting at the centre of mass of the vehicle, creates a torque. This torque causes the front of the vehicle to pitch downwards and the rear to lift slightly. This is weight transfer. The faster you brake, and the higher the vehicle's centre of gravity, the more pronounced this effect will be.

This forward weight bias is a fundamental principle in automotive engineering. It ensures that the front wheels, which are carrying more of the vehicle's weight during braking, have sufficient grip to provide the necessary stopping power. If the braking force were distributed equally or biased towards the rear, the front wheels could lose traction, leading to a dangerous loss of steering control and significantly longer stopping distances.

Types of Brake Systems

While the general principle holds true for most modern vehicles, there can be variations depending on the type of brake system employed:

Disc Brakes

Most modern vehicles utilise disc brakes on all four wheels, although rear brakes may sometimes be smaller drums in some economy cars. Disc brakes are highly efficient and dissipate heat well. The larger surface area and direct application of force in a disc brake system contribute to their effectiveness.

Drum Brakes

Drum brakes are less common on the front of modern cars but can still be found on the rear axle of some vehicles. They work by expanding brake shoes against the inside of a rotating drum. While effective, they are generally less efficient at dissipating heat than disc brakes and can be more prone to 'brake fade' under heavy use.

Brake Pad Wear Sensors

Modern vehicles are equipped with sophisticated systems to monitor brake pad wear. As described in the provided information, a common method involves using 'dual-stage' brake pad wear sensors. These sensors are typically integrated into the brake pad itself.

How Dual-Stage Sensors Work:

The sensor contains two conductor loops embedded within its housing. As the brake pad wears down due to friction with the brake disc, the sensor is also worn away. The two conductor loops are designed to be exposed and worn down sequentially:

• New Pads: When the brake pads are new, the electrical resistance across the sensor's connections is very low, typically less than 5 Ohms.
• Stage 1 Wear: As the pad wears down to a certain point, the first conductor loop is worn through. This causes the electrical resistance to increase significantly, reaching around 470 Ohms. The vehicle's control unit detects this change and may trigger a warning light on the dashboard, alerting the driver that the brake pads are approaching a critical wear level.
• Stage 2 Wear: If the vehicle continues to be driven without replacing the pads, the second conductor loop will eventually be worn through. This results in a further drastic increase in resistance, exceeding 100 k Ohms. This typically indicates that the brake pads are severely worn and require immediate replacement to prevent damage to the brake discs and ensure safety.

The vehicle's relevant control unit monitors these resistance changes. This information is then communicated through the vehicle's network (often via a CAN bus system) to the driving dynamics system. The system uses this data to manage warning indicators and contribute to the 'condition-based service' (CBS) system, which informs the driver when specific maintenance is due.

Factors Influencing Wear Rate

While the front brakes generally wear faster, several factors can influence the rate at which your brake pads wear:

1. Driving Style

Aggressive driving, characterised by frequent hard braking and rapid acceleration, will naturally cause brake pads to wear out much faster. Smooth, progressive braking puts less stress on the system.

2. Vehicle Load

Carrying heavy loads or towing a trailer significantly increases the braking forces required, leading to accelerated wear on all brake components, but particularly the front ones due to weight transfer.

3. Environmental Conditions

Driving in dusty, muddy, or corrosive environments (like areas with heavy road salt use) can accelerate wear. Grit and debris can get trapped between the pad and disc, increasing abrasion.

4. Brake Pad Material

Different brake pad materials have varying levels of hardness and composition. Performance or 'sport' pads, often designed for greater stopping power, can sometimes wear faster than standard organic or ceramic pads.

5. Brake System Maintenance

Issues like seized brake calipers, warped brake discs, or incorrect installation can lead to uneven and premature wear of brake pads.

When to Replace Brake Pads

It's crucial to pay attention to warning signs that indicate your brake pads need replacing:

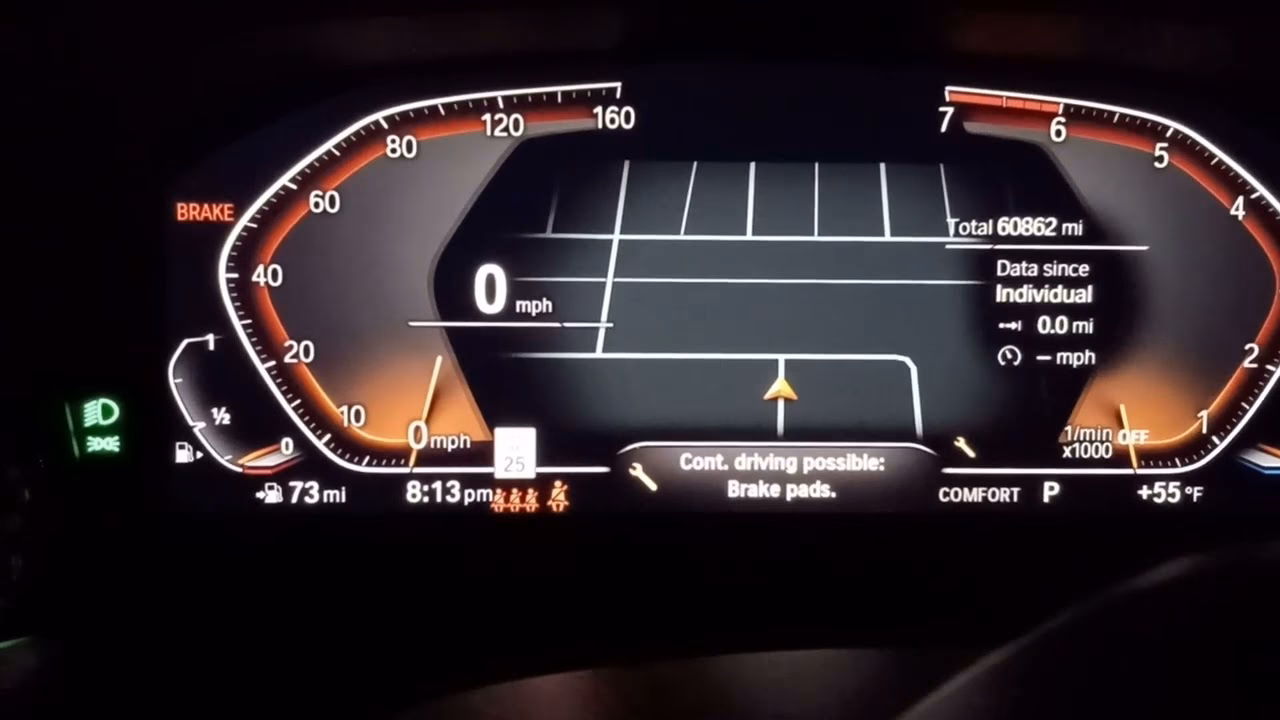

• Dashboard Warning Lights: The brake pad wear indicator light is the most direct notification.
• Squealing or Grinding Noises: Many brake pads have a small metal tab called a 'wear indicator' that makes a high-pitched squealing sound when the pads are low. A grinding noise often indicates that the pad material has worn away completely, and the metal backing plate is grinding against the disc, which can cause severe damage.
• Reduced Braking Performance: If you notice your car taking longer to stop or the brake pedal feeling spongy, it's a sign that your brake pads (or other brake components) may be worn.
• Vibrations: Pulsation felt in the brake pedal or steering wheel during braking can indicate warped brake discs, often a consequence of severely worn pads.

Checking Brake Pad Wear

Regularly inspecting your brake pads is a vital part of vehicle maintenance. You can often visually check the thickness of the brake pad material through the spokes of your wheels. A typical brake pad has a minimum thickness of around 3-4mm for safe operation. When they reach this level, or when the wear sensor indicates, replacement is necessary.

Visual Inspection Guide:

Frequently Asked Questions (FAQs)

Q1: Do all cars have front brake pads that wear faster than rear?

A1: In the vast majority of modern passenger vehicles, yes. This is due to the engineering bias towards the front wheels for stability and the effect of weight transfer during braking. However, some specific performance vehicles or those with advanced electronic braking systems might have different wear patterns.

Q2: Can rear brake pads wear out faster than front?

A2: It's uncommon, but possible under specific circumstances. For example, if there's a fault in the front braking system (like a stuck caliper) or if the vehicle has an unusually heavy rear bias in its braking system (rare), the rear pads might wear faster. Also, if the rear brakes are used predominantly for light braking (e.g., in some hybrid regenerative braking systems), they might experience less wear.

Q3: How often should I check my brake pads?

A3: It's recommended to check your brake pads at least once a year or every 10,000-15,000 miles, or whenever you have your wheels rotated or your tyres balanced. Always follow your vehicle manufacturer's recommendations.

Q4: What happens if I ignore worn brake pads?

A4: Ignoring worn brake pads can lead to significantly reduced braking performance, increasing stopping distances and the risk of accidents. It can also cause severe damage to the brake discs (rotors), which are much more expensive to replace than brake pads. In severe cases, the braking system could fail entirely.

Q5: Does regenerative braking affect brake pad wear?

A5: Yes, regenerative braking, common in hybrid and electric vehicles, uses the electric motor to slow the car down and recharge the battery. This reduces the workload on the conventional friction brakes, meaning brake pads on these vehicles often last much longer than on conventional cars, especially the rear ones.

Conclusion

The consensus in automotive engineering and practical experience is that front brake pads generally wear out faster than rear brake pads due to the inherent weight transfer during braking, which places a greater demand on the front braking system. While this is a normal phenomenon, it's essential to monitor your brake pad wear through visual inspections, listening for warning sounds, and paying attention to dashboard indicators. Regular maintenance and timely replacement of brake pads are critical for ensuring your vehicle's safety and optimal performance on the road.
