BMW 318i (1984) Oil Pan: Leaks & Replacement

For owners of classic BMWs, particularly the beloved 1984 318i, the gentle hum of the engine is often accompanied by the less welcome sight of oil stains beneath the car. A prevalent culprit for these unsightly and potentially damaging leaks is the engine's oil pan gasket. While seemingly a minor component, a failing oil pan gasket can lead to significant issues if left unaddressed. This detailed guide will delve into the specifics of the oil pan design on your 1984 BMW 318i, explain why these leaks occur, and provide a comprehensive overview of the demanding yet rewarding process of replacing the gasket.

Understanding Your BMW's Oil Pan Design

Most BMW inline engines, including those found in the 1984 318i, feature a distinctive 'large open sump' design. This engineering choice is not merely aesthetic; it's highly functional. The open sump allows for major engine overhauls and critical repairs to be performed without the arduous task of removing the entire engine from the vehicle. This design provides direct access to vital internal components such as the rod bearings and the lower oil pump nut, making certain maintenance tasks considerably more straightforward than in many other vehicle designs.

However, this design also means the oil pan, or 'lower oil sump' as it's often called, forms a significant seal against the bottom of the engine block. Over time, and with countless thermal cycles, the gasket that creates this crucial seal can degrade, harden, crack, and ultimately fail. When this happens, oil begins to seep out, manifesting as those tell-tale drips on your driveway or garage floor. Addressing this leak is paramount, not only to keep your garage clean but more importantly, to maintain proper engine lubrication and prevent potential damage from low oil levels.

Why Address an Oil Pan Leak Promptly?

An oil pan leak might seem like a minor nuisance, but its implications can be far-reaching and costly if ignored. Here's why you should tackle it without delay:

• Engine Lubrication: The primary function of engine oil is to lubricate moving parts, reduce friction, and dissipate heat. A persistent leak means your engine is slowly losing oil. If the oil level drops too low, critical components can suffer from insufficient lubrication, leading to excessive wear, overheating, and potentially catastrophic engine failure.
• Environmental Impact: Leaking oil is an environmental hazard. It can contaminate soil and water, and it's simply not responsible to allow your vehicle to drip pollutants.
• Safety Hazard: Oil dripping onto hot exhaust components can produce smoke and a burning smell, which can be alarming. More critically, oil on the road surface, particularly in wet conditions, poses a slip hazard for other vehicles and pedestrians.
• Costly Repairs: While the gasket replacement itself is an investment of time and some money, ignoring the leak could lead to much more expensive repairs down the line, such as engine rebuilds or replacements, if the engine runs dry or suffers significant damage.
• Resale Value: A car with visible oil leaks often signals neglect to potential buyers, significantly diminishing its resale value.

Is Your 1984 BMW 318i Leaking? Common Signs

Identifying an oil pan leak is usually straightforward. Look out for the following signs:

• Oil Puddles: The most obvious sign is a puddle or fresh oil stains on your garage floor or driveway, typically located beneath the engine bay.
• Burning Smell: If oil is dripping onto hot exhaust components, you might notice a burning oil smell, especially when the engine is warm.
• Low Oil Level: Regularly checking your oil dipstick might reveal a consistently low oil level, even if you're not seeing large puddles. Small leaks can still lead to significant oil loss over time.
• Visible Oil Residue: Inspect the underside of your engine. You might see a greasy, oily residue coating the oil pan itself, and potentially dripping down other components.

The DIY Challenge: Replacing Your Oil Pan Gasket

Replacing the oil pan gasket on a 1984 BMW 318i is not a particularly difficult task in terms of mechanical complexity, but it is labour-intensive due to the required access. The main challenge lies in the necessity to remove the entire front suspension assembly to gain clear access to the oil pan.

Project Overview

Before you begin, it's essential to understand the scope of the project. Here's a quick summary:

Essential Tools and Preparation

Gathering all necessary tools and parts before you start is crucial for a smooth process. You'll need standard hand tools, but also some specialised equipment:

• Safety Gear: Gloves, safety glasses.
• Lifting Equipment: A sturdy floor jack and reliable jack stands are non-negotiable for safely elevating and supporting the vehicle.
• Engine Support: This is perhaps the most critical specialised tool. When you remove the front axle support bar, you'll also be detaching the motor mounts, which means the engine support must be in place to prevent the engine from dropping. An engine support bar that spans the strut towers is ideal. Alternatively, some resourceful mechanics have used a thick 4x4 timber with an eye hook, spanning the strut towers. For those with exceptionally tall jack stands, supporting the engine from the motor mount arms (with backup support under the transmission) is also a viable option. Never let the engine hang unsupported, as this can severely damage the transmission and create an extremely dangerous situation.
• Wrenches and Sockets: Specifically, a 32mm wrench, 16mm socket, and 12mm socket, along with a ratchet, will be frequently used.
• Gasket Remover: For cleaning mating surfaces.
• Rubber Mallet: Useful for gently breaking the old gasket seal.
• Oil Drain Pan: A large capacity pan for draining the old engine oil.

Step-by-Step Guide to Oil Pan Removal

Proceed with caution and follow these steps meticulously:

1. Vehicle Preparation & Safety: Begin by safely jacking up the car (refer to your vehicle's manual or a reliable guide for proper jacking points) and securing it firmly on jack stands. Ensure the car is stable before proceeding. Remove both front road wheels to allow unobstructed access to the suspension components.
2. Drain Engine Oil: Before you do anything else, remember to completely drain the engine oil. Skipping this step will result in a sudden and significant mess when the oil pan is removed. Place a large drain pan underneath the oil pan and open the drain plug.
3. Disassemble Front Suspension: This is the most time-consuming part. The specific components you need to remove may vary slightly depending on your exact engine and chassis configuration, but generally, you will need to detach the following:
• The lower crossbrace (often referred to as an X-brace), if your vehicle is equipped with one.
• Both left and right A-arms.
• The front axle support bar, which is integrated with the motor mounts. As mentioned, ensure your engine support system is securely in place before removing this.
• The front sway bar.
• The steering rack.

Take care to properly label and store all bolts and fasteners as you remove them to ensure correct reassembly.

4. Support the Engine: With the front axle support bar and motor mounts removed, the engine will be unsupported. This is where your engine support bar or alternative method becomes critical. Ensure the engine is securely suspended to prevent any strain on the transmission or other components.
5. Accessing the Oil Pan: Once the front suspension is out of the way, you should have clear, unobstructed access to the bottom of the engine sump.
6. Remove Oil Pan Bolts: Carefully remove the numerous small screws that secure the engine sump to the bottom of the engine case. Pay close attention to any hidden bolts; for instance, on some E36 six-cylinder engines, two bolts at the rear of the pan are accessed through specific holes. While your 1984 318i is a four-cylinder, it's always wise to double-check for any less obvious fasteners.
7. Separate the Oil Pan: With all the bolts removed, the oil pan should be ready to come off. If it resists, give it a few gentle taps with a rubber mallet around its perimeter to break the seal of the old gasket. As the pan separates, be cautious of the oil pump pickup and sprocket, which hang down into the pan. Manoeuvre the pan carefully to avoid damaging these components.

Reinstallation Best Practices

Once you've performed any necessary work inside the engine (such as welding the oil pump nut or replacing rod bearings, as might be detailed in other projects), it's time to reinstall the oil pan:

1. Clean Mating Surfaces: Thoroughly clean the mating surface on both the engine block and the oil pan. Use a gasket remover product to eliminate any remnants of the old gasket material and ensure the surfaces are free of oil, dirt, and debris. A clean surface is essential for a proper, leak-free seal.
2. Install New Gasket: Carefully place the new oil pan gasket onto the sump. Ensure it is correctly aligned with all the bolt holes. Some gaskets may have small locating pins or tabs.
3. Reinstall Oil Pan: Carefully lift the oil pan, guiding it past the oil pump pickup and sprocket, and align it with the engine block. Start threading a few bolts by hand to hold it in place.
4. Tighten Bolts: Install all the small bolts that hold the engine sump to the block. It's crucial to tighten these bolts evenly, often in a criss-cross pattern, and to the manufacturer's specified torque settings (consult a repair manual for your specific 1984 318i model). Overtightening can warp the pan or damage the gasket, while undertightening will lead to leaks.
5. Reassemble Suspension: Once the oil pan is securely bolted, begin reassembling the front suspension components in the reverse order of removal. Ensure all bolts are torqued to specifications. Reinstall the front wheels.
6. Refill Oil: Once everything is reassembled, refill the engine with the correct type and amount of fresh engine oil.
7. Check for Leaks: Start the engine and let it run for a few minutes, then turn it off and inspect the oil pan area for any signs of leaks. A short drive followed by another inspection is also a good idea.
8. Wheel Alignment: As dropping the entire front suspension can affect alignment settings, it is highly recommended to have the wheels realigned by a professional after this repair. This ensures proper handling and tyre wear.

Complementary Modifications

Since you'll already be undertaking significant work under the bonnet, it's an excellent opportunity to perform some complementary maintenance:

• Replace Engine Oil and Oil Filter: With the oil already drained, it's the perfect time for a fresh oil change and a new oil filter. This ensures your engine benefits from clean lubrication immediately after the repair.
• Replace Engine Mounts: Given that the engine mounts are removed as part of the front axle support bar, replacing them is a logical next step. Old engine mounts can lead to increased vibration and noise, so installing new ones can significantly improve your driving experience.

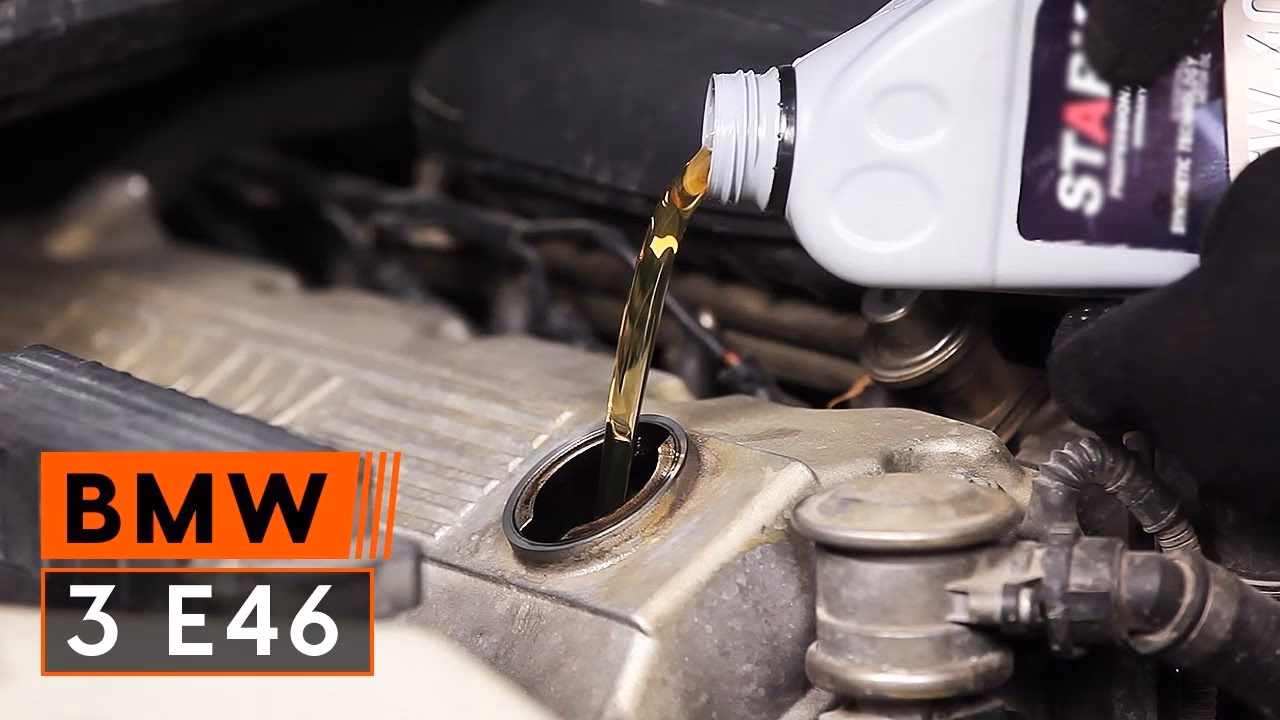

Oil Capacity for BMW 318i Models

While the focus of this article is on the 1984 BMW 318i's oil pan, it's common for owners to also seek information on oil capacity. Please note that specific detailed information for the 1984 model was not provided. However, for reference, a 1996 BMW 318i (E36 model with a 1796 cm3 inline-4 engine) has an engine lubricant oil capacity of 4 litres (or 3.5 imperial quarts) with a filter change. While your 1984 model might have a slightly different capacity, this figure can serve as a rough guide. Always consult your vehicle's owner's manual or a specific service manual for the definitive oil capacity for your 1984 BMW 318i.

Frequently Asked Questions (FAQs)

Here are some common questions prospective DIY mechanics might have about this repair:

Q: What are the signs of an oil pan gasket leak?
A: The most common signs are visible oil puddles or drips under your car, especially after it's been parked for a while. You might also notice a burning oil smell if oil drips onto hot exhaust components, or a consistently low reading on your oil dipstick.

Q: Can I drive with an oil pan leak?
A: While a small, slow leak might not immediately immobilise your vehicle, it's not advisable to drive with an oil pan leak for an extended period. Constant oil loss can lead to critically low oil levels, causing severe engine damage. It's also an environmental and potential safety hazard.

Q: Is replacing the oil pan gasket a beginner-friendly job?
A: The actual gasket replacement itself is mechanically straightforward. However, the necessity of removing the entire front suspension and safely supporting the engine makes it a more advanced DIY project. It requires specific tools, patience, and a good understanding of automotive mechanics. If you're unsure, it's best to consult a professional.

Q: Why do I need to remove the entire front suspension?
A: The design of the BMW 318i's chassis and engine means that the front axle support bar and other suspension components obstruct access to the oil pan bolts. Removing these components provides the necessary clearance to drop and reinstall the pan.

Q: What is an 'open sump' design?
A: An open sump refers to an engine design where the oil pan (sump) provides direct access to the lower internal components of the engine, such as the crankshaft, connecting rods, and oil pump pickup. This design is beneficial for certain types of engine maintenance and repairs without needing to pull the entire engine from the car.

Q: How long should a new oil pan gasket last?
A: A properly installed, high-quality oil pan gasket should last for many years, often tens of thousands of miles, similar to the original factory gasket. Factors like engine heat, oil type, and proper installation technique all play a role in its longevity.

Conclusion

Tackling an oil pan gasket replacement on your 1984 BMW 318i is a significant undertaking, but it's a worthwhile investment in the longevity and reliability of your classic vehicle. By understanding the unique design of your BMW's oil pan, preparing with the right tools, and meticulously following the steps, you can successfully eliminate those pesky oil leaks. This not only keeps your garage clean but, more importantly, ensures your engine receives the vital lubrication it needs to continue delivering that quintessential BMW driving experience for years to come. Remember, proper maintenance is the key to preserving the performance and value of your cherished automobile.
