Maintaining your BMW's N47 engine is paramount for its longevity and performance, and a crucial aspect of this upkeep is the regular replacement of the oil filter. The oil filter plays a vital role in trapping contaminants, metal particles, and sludge that accumulate in your engine oil over time. A clean filter ensures that only clean oil circulates through your engine, protecting sensitive components from premature wear and tear. Neglecting this simple yet essential service can lead to reduced engine efficiency, increased fuel consumption, and, in severe cases, catastrophic engine damage. This guide will walk you through the process of replacing the main flow oil filter on your N47 or N47S engine, providing detailed steps to help you undertake this task with confidence.
Why Regular Oil Filter Replacement is Crucial
Your engine oil acts as the lifeblood of your vehicle, lubricating moving parts, dissipating heat, and cleaning internal components. As the oil circulates, it picks up various contaminants, including dirt, debris, and metallic particles from the normal wear of engine parts. The oil filter's job is to capture these impurities, preventing them from recirculating and causing abrasive damage to critical engine components like bearings, camshafts, and cylinder walls. Over time, the filter becomes saturated and clogged, reducing its effectiveness and potentially restricting oil flow. This can lead to decreased lubrication, increased engine wear, and even a drop in oil pressure, which could trigger warning lights on your dashboard. Regular replacement, typically alongside your oil change, is the best way to ensure your engine receives a constant supply of clean, filtered oil.
Tools and Materials You'll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will streamline the process and prevent unnecessary interruptions.
Essential Tools:
- Socket wrench set (specifically for the oil filter housing screws)
- Torque wrench (crucial for proper reinstallation)
- Oil drain pan (if combining with an oil change)
- Funnel
- Gloves and safety glasses
- Clean rags or shop towels
- Jack and jack stands (if raising the vehicle)
- Wheel chocks
Materials:
- New N47/N47S oil filter kit (usually includes the filter element and new O-rings)
- Engine oil (if performing an oil change concurrently, consult your owner's manual for the correct specification and quantity)
- Brake cleaner or degreaser (for cleaning up spills)
Safety First
Always prioritise safety when working on your vehicle. Ensure the car is on a level surface, the parking brake is engaged, and the engine is cool. If you need to raise the vehicle, use a reliable jack and secure it with sturdy jack stands. Never rely solely on a jack. Wear appropriate personal protective equipment, including gloves and safety glasses, to protect against hot oil and chemical splashes.
Step-by-Step Oil Filter Replacement Guide
While the process is relatively straightforward, attention to detail is key. The N47 oil filter housing is typically located on the top front side of the engine, making it accessible for maintenance.
1. Preparation and Access
Begin by ensuring your engine is cool to the touch. Hot oil can cause severe burns. If you're also changing the engine oil, now would be the time to drain the old oil from the sump. Once the oil has drained, replace the sump plug (with a new washer if specified) and torque it to the manufacturer's recommended setting.

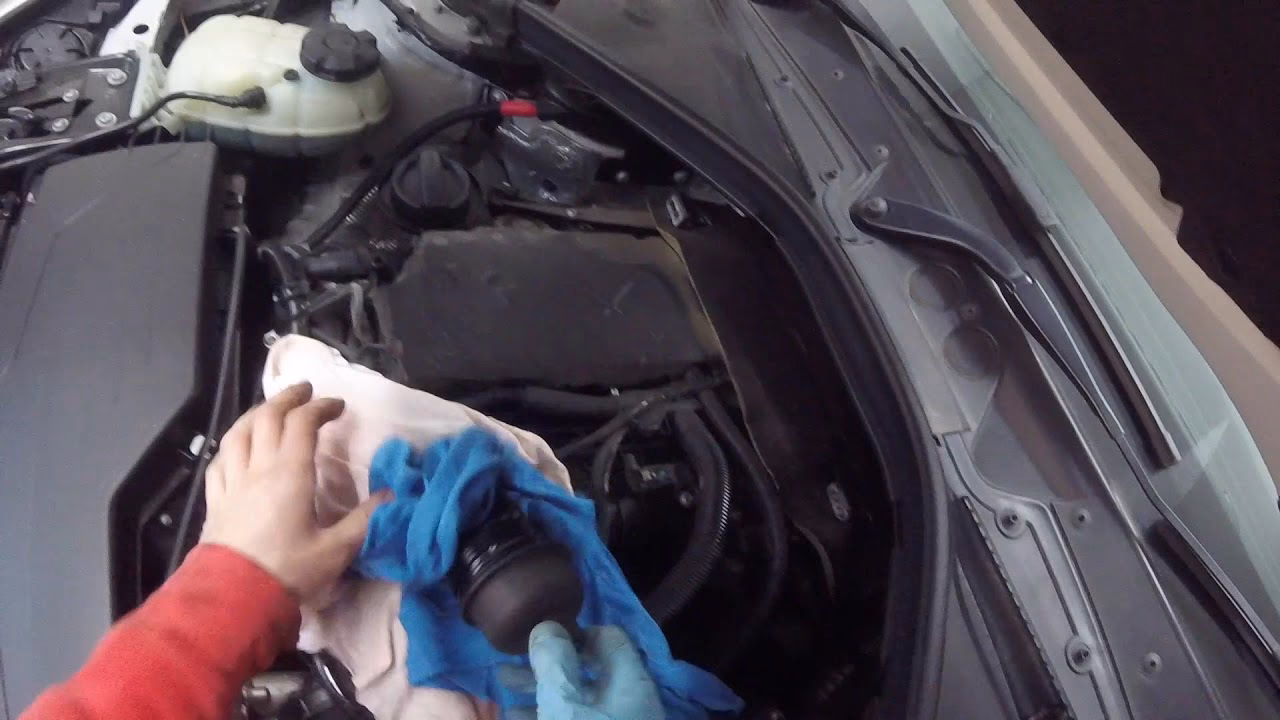

Locate the oil filter housing. It's a black plastic or metal housing, often cylindrical, prominently situated on the engine. Before loosening anything, it's wise to place a clean rag or absorbent mat directly underneath the oil filter housing. This simple step is vital for catching any residual oil that might drip out when the housing is opened, preventing spills and keeping your engine bay clean. Even a small amount of oil can create a mess, so be prepared.
2. Disconnecting the Oil Pressure Switch
The next critical step involves the oil pressure switch. You will need to disconnect the plug connection on the oil pressure switch. This switch is typically located on or very near the oil filter housing. Carefully inspect the area for any electrical connectors. The plug usually has a small retaining clip or tab that needs to be depressed or pulled back before the connector can be gently pulled away from the switch. Take your time with this to avoid damaging the wiring or the switch itself. Disconnecting it provides clear access and prevents accidental damage during removal of the housing.
3. Releasing the Housing Screws (Set 1)
The oil filter housing is secured by several screws. The provided information refers to two sets of screws, identified as (2) and (1). Start by locating and releasing the first set of screws, labelled as (2). These are typically smaller fasteners that secure a cover or a part of the housing assembly. Use the appropriate socket wrench. Turn counter-clockwise to loosen them. Once loose, carefully remove them and set them aside in a safe place, perhaps in a magnetic tray, to prevent them from getting lost. Keep track of which screws came from which location if they differ in size or type.
4. Releasing the Housing Screws (Set 2)
Following the removal of the first set, proceed to release the second set of screws, labelled as (1). These are often the main retaining screws for the bulk of the oil filter housing itself. Again, use the correct socket and turn counter-clockwise. These screws might be longer than the first set. As you loosen them, you might feel the housing begin to separate slightly. Be prepared for a small amount of oil to seep out as the seal is broken. Continue to loosen and remove all screws from this set. Ensure all screws are completely removed before attempting to lift the housing.
5. Lifting Out the Oil Filter Housing

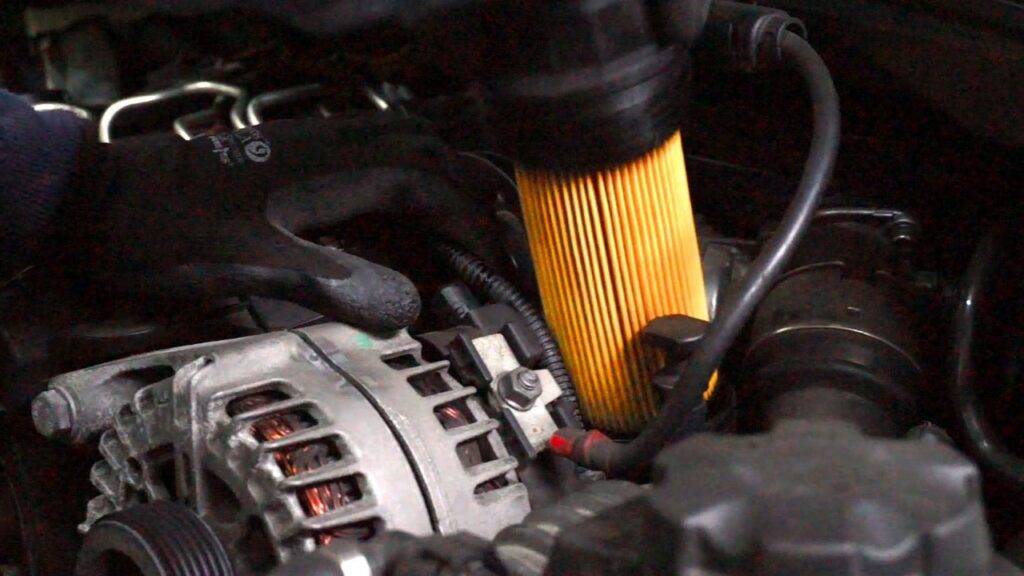

With all screws released and removed, you can now carefully lift out the oil filter housing. It may require a gentle wiggle or twist to break any remaining seal adhesion. Lift it straight up and away from the engine. Be mindful of any remaining oil inside the housing as you remove it. Place the housing on your prepared clean rag or a dedicated drain pan. Inside the housing, you will see the old oil filter element. This is usually a pleated paper cartridge. Pull the old filter element out of the housing. You will also need to remove the old O-rings (seals) from the housing. There is typically a large O-ring around the main body of the housing and smaller ones on the stem or cap. Note their positions before removal.
Installation of the New Filter
Installing the new filter and housing correctly is just as important as the removal process.
1. Prepare the New Filter and O-Rings
Take your new oil filter element and the new O-rings supplied in the kit. Lubricate the new O-rings with a thin film of fresh engine oil. This helps them seat properly and prevents damage during installation. Install the new O-rings onto the oil filter housing in the exact locations where the old ones were removed. Ensure they are seated correctly in their grooves.
2. Insert the New Filter Element
Place the new filter element into the oil filter housing. Ensure it is oriented correctly and pushed fully into its designated slot. There's often a specific way it fits, so don't force it.
3. Reinstall the Housing
Carefully lower the oil filter housing back into its position on the engine. Ensure it seats properly and is aligned with the screw holes. Avoid cross-threading the screws.
4. Secure the Housing Screws
Reinsert the screws (1) and (2) back into their respective positions. Start by hand-tightening all screws to ensure they are correctly threaded. Once all screws are hand-tight, use your torque wrench to tighten them to the manufacturer's specified torque settings. This is a critical step. Overtightening can damage the plastic housing or strip threads, while undertightening can lead to oil leaks. Consult your BMW service manual or a reliable online resource for the precise torque values for your N47 engine. Tighten in a criss-cross pattern if there are multiple screws to ensure even pressure.
5. Reconnect the Oil Pressure Switch
Once the housing is securely tightened, reconnect the plug connection to the oil pressure switch. Ensure it clicks firmly into place, indicating a secure connection.
Post-Installation Checks
After installing the new filter and housing, perform the following checks:
- Refill Engine Oil: If you drained the oil, refill the engine with the correct type and quantity of new engine oil.
- Check for Leaks: Start the engine and let it run for a few minutes. Carefully inspect the oil filter housing area for any signs of oil leaks. Look for drips or seepage.
- Check Oil Level: Turn off the engine and wait a few minutes for the oil to settle. Check the oil level using the dipstick (if equipped) or the electronic oil level indicator in your BMW's infotainment system. Top up if necessary.
- Reset Service Indicator: If applicable, reset the oil service indicator in your vehicle's onboard computer.
Troubleshooting Common Issues
While replacing an oil filter is generally straightforward, a few issues can arise:
| Issue | Possible Cause | Solution |
|---|---|---|
| Oil Leak from Housing | Damaged or improperly seated O-rings; undertightened housing screws; cracked housing. | Recheck O-ring placement, ensure they are lubricated. Retorque screws to specification. Inspect housing for cracks; replace if damaged. |
| Oil Pressure Warning Light | Faulty oil pressure switch, disconnected switch, extremely low oil level, clogged filter (unlikely with new filter). | Check oil level. Ensure oil pressure switch is securely connected. Consult a professional if light persists. |
| Stripped Threads | Overtightening screws. | Requires professional repair, possibly a thread repair kit or replacement of the damaged component. Always use a torque wrench! |
Frequently Asked Questions (FAQs)
Q: How often should I replace my N47 oil filter?
A: It's generally recommended to replace the oil filter every time you change your engine oil. For BMW N47 engines, this is typically every 10,000 to 15,000 miles or annually, whichever comes first, though specific service intervals can vary based on driving conditions and oil type. Always refer to your vehicle's maintenance schedule.
Q: Can I replace just the oil filter without changing the oil?
A: While technically possible, it is highly recommended to replace the oil filter whenever you change the engine oil. The filter is designed to work with clean oil, and putting a new filter on old, contaminated oil defeats much of its purpose. It's best practice to perform both services concurrently.
Q: What type of oil filter should I use for my N47 engine?
A: Always use a high-quality oil filter that meets or exceeds BMW's specifications for the N47 engine. Reputable brands like Mann, Bosch, Mahle, or genuine BMW filters are recommended. These filters are designed to provide optimal filtration and flow characteristics for your specific engine.
Q: Do I need special tools for this job?
A: While most of the tools are common, a torque wrench is highly recommended for proper reinstallation of the oil filter housing screws. This prevents both overtightening (which can crack the housing) and undertightening (which can lead to leaks). A suitable socket for the housing screws is also essential.
Q: What if I overtighten the oil filter housing screws?
A: Overtightening plastic oil filter housings can lead to cracking or stripping the threads, which will result in an oil leak. If this happens, the housing will likely need to be replaced, and potentially the associated mounting points if threads are stripped on the engine block. Always use a torque wrench to prevent this costly mistake.
Conclusion
Replacing the N47 oil filter is a manageable DIY task for most home mechanics, offering significant savings compared to garage costs. By following these steps carefully and paying attention to detail, particularly regarding torque specifications and O-ring placement, you can ensure your BMW's N47 engine continues to run smoothly and efficiently. Regular maintenance, including timely oil and filter changes, is the cornerstone of a healthy, long-lasting engine. This routine maintenance not only safeguards your engine's internal components but also contributes to better fuel economy and overall vehicle reliability. Keep your BMW performing at its best by making oil filter replacement a priority in your maintenance schedule.
