BMW 1 Series Dashboard Lights Explained

Understanding Your BMW 1 Series Dashboard Lights

Your BMW 1 Series dashboard is a sophisticated communication hub, relaying vital information about your vehicle's status. These dashboard warning lights, often referred to as tell-tales, are designed to alert you to potential issues, inform you of system operations, or indicate a need for maintenance. Understanding what each light signifies is crucial for maintaining your car's health, ensuring your safety, and preventing costly repairs. This guide delves into the common dashboard symbols found in BMW 1 Series models, explaining their meaning and the recommended course of action.

The Importance of Warning Light Colours

BMW, like most manufacturers, uses a colour-coding system for its dashboard lights to convey the urgency of a situation:

• Green/Blue: These colours typically indicate that a system is active or functioning correctly. Examples include turn signals, fog lights, or daytime running lights.
• Orange/Amber: These lights signal a potential issue that requires attention soon. It might be a warning that a service is due, or a component is not operating optimally. Driving should continue with caution.
• Red: Red warning lights signify a serious or critical problem that requires immediate attention. These often indicate a safety-related issue or a component failure that could lead to significant damage if ignored. It is generally advised to stop driving and seek professional assistance promptly. Flashing red lights, often accompanied by an audible alert, indicate an emergency situation.

Common BMW 1 Series Dashboard Symbols and Their Meanings

Let's break down some of the most frequently encountered dashboard lights on your BMW 1 Series:

Ignition On / Door Open Warning Light

Symbol: Exclamation mark inside a circle or bracket.
Meaning: This light illuminates when the ignition is switched on and a door, the bonnet, or the boot is not properly closed. It can also appear if the key fob battery is low, preventing the car from recognising the key is inside.
Action: Ensure all doors, the bonnet, and the boot are firmly shut. If the light persists, check the key fob battery.

Engine Will Not Start Warning Light

Meaning: This isn't a specific light but a symptom. BMW vehicles often require the clutch or brake pedal to be depressed before the engine can be started. If the engine won't crank, ensure you are following the correct starting procedure.

Low Fuel Warning Light

Symbol: A stylised fuel pump.
Meaning: This light indicates that your fuel level is critically low. Typically, it illuminates when there are approximately 8 litres of fuel remaining, giving you a range of about 50 km.
Action: Refuel your vehicle as soon as possible.

Outside Temperature Warning Light

Symbol: Snowflake or thermometer icon.
Meaning: When the outside temperature drops to around +3°C (37°F), this light, often accompanied by a chime, warns of a potential risk of black ice.
Action: Exercise extreme caution when driving, as road surfaces may be slippery.

Parking Brake Applied Warning Light

Symbol: The letter 'P' inside a circle or an exclamation mark inside a circle.
Meaning: This light indicates that the parking brake (handbrake) is engaged. For European models, an exclamation mark is common, while North American models often use a 'P'.
Action: Release the parking brake before driving. If the light remains on after releasing the brake, there might be an issue with the parking brake system.

Fasten Seat Belt Warning Light

Symbol: A stylised figure wearing a seatbelt.
Meaning: This is a reminder for the driver and passengers to fasten their seatbelts. In many models, it's accompanied by an audible chime.
Action: Fasten your seatbelt.

Fog Lights Warning Light

Symbol: A stylised fog light with rays.
Meaning: This light illuminates to indicate that the front or rear fog lights have been activated.
Action: Use fog lights only when visibility is significantly reduced due to fog.

Full Beam / Main Beam Indicator

Symbol: A blue circle with a beam of light.
Meaning: This blue light indicates that the high beam (main beam) headlights are switched on. It will also illuminate when you flash your headlights.
Action: Use high beams responsibly to avoid dazzling other drivers. Remember to switch them off when approaching oncoming traffic or when following another vehicle.

Turn Signals / Hazard Lights

Symbol: Green arrows pointing left or right.
Meaning: These green arrows illuminate to show that your turn signals are active. If both arrows illuminate simultaneously, it means the hazard warning lights are on.
Action: Ensure your turn signals are used correctly when changing direction.

Parking Lights / Roadside Parking Lights

Symbol: A stylised headlight symbol.
Meaning: These lights indicate that your parking lights or roadside parking lights are on. These are typically used when parked on a road at night to make the vehicle visible.
Action: Ensure these are switched off when you start driving.

Bonnet and Boot Open

Symbol: A stylised image of a car with the bonnet or boot open.
Meaning: This symbol alerts you that either the engine compartment lid (bonnet) or the boot (trunk) is not securely closed.
Action: Close the bonnet and/or boot properly.

Convertible Roof Warning Light

Symbol: A stylised convertible roof.
Meaning: If this symbol illuminates in red, it indicates a malfunction with the convertible roof's locking mechanism or that the roof is not fully locked. A yellow illumination can mean the cargo area partition is not in its lowest position, the vehicle is moving too fast for the roof operation, or the roof drive motor has overheated.
Action: Check the roof's locking status and consult your owner's manual for specific troubleshooting steps.

Rollover Protection Warning Light

Symbol: A car with an arrow forming a loop over it.
Meaning: A permanent illumination of this light signifies a malfunction in the rollover protection system.
Action: Have your vehicle inspected by a BMW service centre immediately.

Fuel Cap Open Warning Light

Symbol: A stylised fuel pump with a cap.
Meaning: This light indicates that the fuel filler cap has not been tightened correctly. A loose cap can affect the emissions system.
Action: Ensure the fuel cap is securely closed until you hear an audible click.

Windscreen Washer Fluid Low

Symbol: A stylised windscreen with washer jets.
Meaning: This light warns that the level of windscreen washer fluid is low and needs refilling.
Action: Top up the windscreen washer fluid reservoir.

Engine Start / Service Due Indicator

Symbol: An exclamation mark within a triangle.
Meaning: This is a generic warning light. If it illuminates in red, it typically signifies that a service is due. If it appears in yellow, it might indicate that the engine will start on the next button press, possibly without the brake or clutch pedal being depressed.
Action: If red, schedule a service appointment. If yellow, note the message and consult your manual.

Remote Control Malfunction / Battery Flat

Symbol: A key symbol, sometimes with a battery icon.
Meaning: A key symbol indicates a malfunction with the remote key or the car's keyless entry system. If the key symbol also has a battery icon, it means the battery in your remote key fob is low and needs replacing.
Action: Replace the key fob battery. If the malfunction symbol persists, have the remote control and system checked.

Belt Tensioner / Airbag Failure

Symbol: A stylised airbag or a figure with a seatbelt.
Meaning: This is a critical warning light. It signifies a potential malfunction in the airbag system or the seat belt tensioners. Both symbols may illuminate together to indicate seat belt tensioner failure.
Action: This requires immediate attention. Have your vehicle inspected by a qualified technician as soon as possible.

Steering Defect Warning Light

Symbol: A steering wheel, often in red.
Meaning: This light indicates a problem with the steering system, either active steering or power steering assistance. The steering may become heavier or feel off-centre.
Action: Reduce your speed and drive with caution. Seek professional diagnosis and repair promptly.

Emergency Request System (SOS) Malfunction

Symbol: An SOS symbol.
Meaning: This light illuminates when there is a malfunction within the vehicle's emergency call system.
Action: Contact a BMW service centre for inspection and repair.

Engine Malfunction / Check Engine Light

Symbol: A stylised engine outline.
Meaning: This is one of the most common and important warning lights. If it illuminates in red and stays on, it indicates a serious engine problem that may prevent you from continuing your journey. If it illuminates in yellow/amber and stays on, it signifies a less critical issue, but one that still requires attention, potentially affecting engine performance. A flashing check engine light is particularly serious and suggests a severe misfire or engine problem.
Action: If red or flashing, stop the car safely and contact BMW assistance. If yellow/amber, reduce driving and arrange for a diagnostic check.

Diesel Particulate Filter (DPF) Warning Light

Symbol: A stylised filter or exhaust symbol.
Meaning: This light is specific to diesel engines and indicates that the DPF is clogged or requires regeneration.
Action: For minor clogs, driving at a consistent speed above 2500 RPM for 15-20 minutes can help regenerate the filter. If the light persists, a forced regeneration or cleaning at a workshop may be necessary.

Glow Plug Warning Light

Symbol: A coil symbol.
Meaning: Found on diesel vehicles, this light indicates that the glow plugs are heating up, preparing the engine for combustion, especially in cold weather. If it stays on after starting, or flashes, it signals a fault with the glow plug system.
Action: If the light stays on, the glow plugs may need inspection or replacement.

ABS (Anti-lock Braking System) Warning Light

Symbol: The letters 'ABS' within a circle.
Meaning: If this light stays on after the ignition is turned on, or illuminates while driving, it indicates a malfunction in the ABS system. The standard braking system will still function, but ABS will not.
Action: Drive with caution, especially in adverse conditions, and have the ABS system checked by a professional.

Electronic Stability Control (ESC) / Traction Control

Symbol: A car with wavy lines underneath.
Meaning: This light illuminates when the ESC or traction control system is actively intervening to maintain stability, for example, on slippery surfaces. If the light stays on and does not flash, it usually means the system has been manually switched off or has a malfunction.
Action: If the light stays on, check if you have accidentally disabled the system. If not, it indicates a fault that needs professional attention.

Tire Pressure Monitoring System (TPMS) Warning Light

Symbol: A tyre with an exclamation mark inside.
Meaning: This light indicates that one or more of your tyres have significantly low pressure, or there is a fault within the TPMS system itself.
Action: Check your tyre pressures immediately and inflate them to the recommended levels. If the light persists, there may be a system fault.

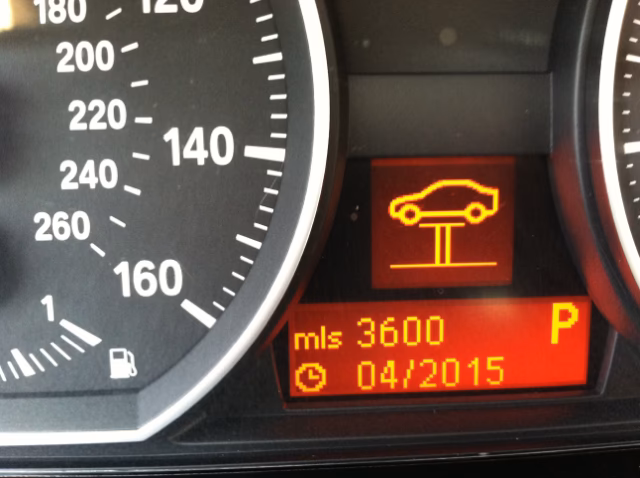

Service Indicator / Generic Warning Light

Symbol: A car outline with a wrench or an exclamation mark in a triangle.
Meaning: This is a general warning light that indicates a variety of issues, often related to scheduled maintenance or a minor system fault. The specific meaning can sometimes be displayed on the central information screen.
Action: Consult your owner's manual or the information display for a more specific message. Schedule a service if indicated.

Automatic Gearbox Warning Light

Symbol: A gear with an exclamation mark.
Meaning: This light signals a problem with the automatic transmission. It may illuminate in yellow or red.
Action: If illuminated, drive cautiously at low speeds and seek immediate assistance from a qualified mechanic.

Troubleshooting and When to Seek Professional Help

While understanding these symbols is the first step, the appropriate action often depends on the specific light and its colour. For green and blue lights, no action is usually required beyond noting that a system is active. Orange and amber lights typically warrant a review of your driving habits and a plan for upcoming maintenance. Red lights, however, are a clear signal to stop driving and seek professional assistance. Ignoring a red warning light can lead to severe engine damage, safety compromises, and more expensive repairs down the line.

It's essential to remember that the exact symbols and their interpretations can vary slightly between different BMW 1 Series model years and specifications. Always refer to your vehicle's owner's manual for the most accurate and detailed information pertaining to your specific car. If you are ever in doubt about a warning light, it is always best to err on the side of caution and consult with a BMW-certified technician or a trusted mechanic.

Frequently Asked Questions

Q1: What should I do if the Check Engine light comes on?

If the Check Engine light illuminates, first note whether it's steady or flashing. A steady light might allow you to drive cautiously to a service centre, but a flashing light indicates a severe issue requiring you to stop the engine immediately and seek roadside assistance.

Q2: My TPMS light is on, but my tyres look fine. What could be wrong?

The TPMS light can illuminate if tyre pressures are low, but it can also indicate a fault with the TPMS system itself, such as a faulty sensor or a lost connection. Check pressures first, and if the light persists, have the system diagnosed.

Q3: Is it safe to drive if the ABS warning light is on?

While the standard braking system will still operate, the anti-lock function will be disabled. This means your brakes may lock up under heavy braking, particularly in slippery conditions. Drive with extra caution and have the system repaired promptly.

Q4: The 'P' symbol for the parking brake is on, but I've released the handbrake. What now?

This could indicate a fault with the electronic parking brake system or a low brake fluid level. Check the brake fluid level and if it's adequate, the system will need professional inspection.

Q5: What does the exclamation mark in a triangle mean on my BMW 1 Series?

This is a general warning light. It usually signifies that a system requires attention or that a message has been displayed on the central information screen providing more details. Consult your manual or the screen for further information.

By familiarising yourself with these common dashboard lights, you can ensure a safer and more informed driving experience in your BMW 1 Series. Regular checks and prompt attention to warning signals are key to maintaining your vehicle's performance and longevity.
