Understanding the ABS Warning Light on Your BMW 1 Series

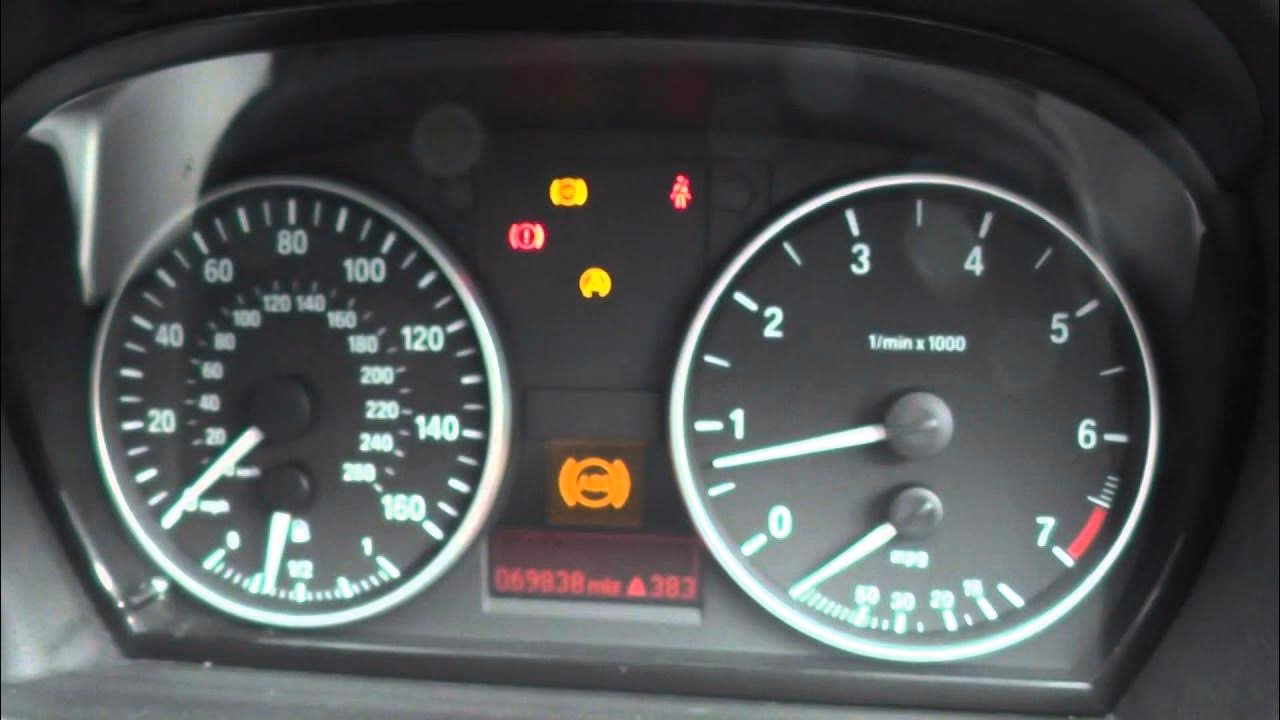

The illuminated ABS warning light on your BMW 1 Series instrument cluster can be a cause for concern, but understanding its meaning is the first step towards a resolution. ABS, or the Anti-lock Braking System, is a crucial safety feature designed to prevent your wheels from locking up during heavy braking. This system ensures you maintain steering control and directional stability, allowing you to manoeuvre around obstacles even in emergency stopping situations. When the ABS light appears, it signifies that the anti-lock braking system has detected a malfunction and is no longer operating as intended.
It's important to note that the ABS light typically illuminates when a component within the system isn't functioning correctly. This could be due to a variety of reasons, ranging from a simple fix like low tyre pressure to more complex issues with the braking system itself. While your BMW 1 Series will still brake without ABS, the absence of this safety net can significantly impact your ability to control the vehicle in challenging conditions. Therefore, addressing the cause of the ABS light promptly is paramount for your safety.
Common Culprits Behind the Illuminated ABS Light
Several factors can trigger the ABS warning light in your BMW 1 Series. Identifying the specific cause is key to rectifying the problem. Here are the most frequent reasons:
1. Faulty Wheel Speed Sensor
Your BMW 1 Series is equipped with an ABS sensor at each wheel hub. These sensors meticulously measure the rotational speed of each wheel and transmit this vital data to the ABS control unit. If any of these sensors malfunction, providing inaccurate or no speed information, the ABS light will illuminate. Due to their exposed location near the wheels, these sensors endure harsh environmental conditions, making them susceptible to damage or wear. A damaged sensor wire or a corroded connector can also disrupt the signal, even if the sensor itself is functional. It's advisable to physically inspect the wiring and connectors for any signs of damage or corrosion before considering a sensor replacement. Diagnosing a faulty wheel speed sensor often requires an OBDII scanner to read specific error codes, which can pinpoint the affected sensor.
2. Low Brake Fluid Level
An alarmingly low level of brake fluid in the reservoir can also trigger the ABS warning light. The brake fluid level should typically be near the 'MAX' or 'high' marking on the reservoir. Topping up the fluid might temporarily resolve the issue, but it's crucial to investigate why the level is low. Common reasons include worn brake pads, worn brake rotors, or a leak somewhere within the braking system. Thoroughly checking the condition of your brake pads and rotors, as well as looking for any fluid leaks under the vehicle or around the wheel hubs, is essential.
3. Issues with the ABS Pump or Control Module
The ABS system relies on a pump, often referred to as the Hydraulic Control Unit (HCU), which comprises both electronic and mechanical-hydraulic components. During hard braking where wheels risk locking, the hydraulic part of this unit activates valves to modulate hydraulic pressure to the brakes. A malfunction within the ABS pump can lead to the ABS light illuminating, and a corresponding fault code will be stored in the system's memory. A diagnostic device is necessary to retrieve these codes. While ABS control modules are generally robust and can last for well over 100,000 miles, they can eventually fail.
4. Low Tyre Pressure
Surprisingly, underinflated tyres can also trigger the ABS light. When a tyre is underinflated, its overall diameter is reduced, causing that wheel to rotate at a different speed compared to the other wheels. The ABS control module detects this speed difference and flags it as a potential issue, often associating it with a wheel speed sensor malfunction. If your BMW 1 Series is equipped with a Tyre Pressure Monitoring System (TPMS), you might also see the TPMS warning light illuminate concurrently.
5. Blown Fuse or Faulty Relay
A blown fuse or a faulty relay within the ABS system can disrupt its operation, leading to the illuminated warning light. Consult your vehicle's owner's manual or the fuse box cover for the precise location of the ABS system fuses. If a fuse is blown, it should be replaced with a new one of the correct amperage rating.
Is It Safe to Drive with the ABS Light On?
Driving with the ABS light illuminated means that the anti-lock braking system is deactivated. Your BMW 1 Series will still brake, but it will function like a traditional braking system without the anti-lock intervention. While this is generally acceptable for moderate braking in dry conditions, your ability to maintain steering control during sudden or hard braking, especially in wet, icy, or snowy conditions, will be compromised. Therefore, it is crucial to drive with extreme caution and seek professional diagnosis and repair as soon as possible.
It's also worth noting that the Electronic Stability Control (ESC) light may illuminate alongside the ABS light. This is because the ESC system often works in conjunction with the ABS to maintain vehicle stability. However, if the dedicated BRAKE light also illuminates, this is a more serious indicator of a malfunction in the primary braking system, potentially leading to brake failure. In such a scenario, it is strongly recommended to stop driving immediately and have your vehicle towed to a qualified workshop.
Troubleshooting and Resetting the ABS Light
Rectifying the underlying issue is the only way to ensure the ABS light remains off. Simply resetting the light without addressing the root cause will only result in it reappearing. Once the fault is repaired, the warning light should extinguish automatically. If it doesn't turn off immediately, driving for a short distance may allow the system to reset itself.
The OBDII Scanner Method
The most effective and recommended method for resetting the ABS light is by using an OBDII scanner to clear the stored fault codes. After the necessary repairs have been made, connect a diagnostic device to your BMW 1 Series and erase all ABS-related error codes. This ensures the system's memory is cleared, allowing it to function correctly.
The Battery Disconnect Method (Use with Caution)
In the absence of a diagnostic device, a temporary reset might be possible by disconnecting the vehicle's battery for a period. To do this safely, first disconnect the negative terminal, followed by the positive terminal. With the battery disconnected, press the horn and turn on the headlights for a few minutes to discharge any residual power from the electrical system. After approximately 15 minutes, reconnect the battery, attaching the positive terminal first, then the negative terminal. While this can sometimes reset the light, it's not a substitute for proper diagnosis and repair.
Utilising an OBD2 Scanner for Diagnosis
Your BMW 1 Series is equipped with on-board diagnostics (OBD), which can provide valuable initial insights into the source of the malfunction. OBD2 scanners are readily available in various forms, from standalone devices to Bluetooth or Wi-Fi adapters that connect to your smartphone. To begin troubleshooting, locate the OBDII connector, typically found under the dashboard, and connect your diagnostic tool. Turn on the ignition. Most scanners will prompt you to input vehicle details, including the make, model, engine type, and crucially, the Vehicle Identification Number (VIN). Providing accurate information is vital for the scanner to retrieve precise and relevant diagnostic codes, especially since some codes are manufacturer-specific.
| Potential Cause | Likely Symptoms | Recommended Action |
|---|---|---|
| Faulty Wheel Speed Sensor | ABS light on, potentially ESC light too. Inconsistent braking. | Diagnose with OBDII scanner, replace faulty sensor. Inspect wiring and connectors. |
| Low Brake Fluid | ABS light on, potentially BRAKE light if severe. Spongy brake pedal. | Check fluid level, top up if low. Inspect for leaks, check brake pad and rotor wear. |
| ABS Pump/Module Failure | ABS light on, potentially intermittent braking issues. | Diagnose with OBDII scanner for specific fault codes. Professional repair or replacement of HCU/module. |
| Low Tyre Pressure | ABS light on, TPMS light may also illuminate. | Inflate tyres to correct pressure. Reset TPMS if necessary. |
| Blown Fuse/Bad Relay | ABS system non-functional. | Check fuses and relays related to the ABS system as per owner's manual. Replace faulty components. |
Frequently Asked Questions
Q1: Can I drive my BMW 1 Series with the ABS light on?
A1: While you can still brake, the ABS system is disabled. Drive with extreme caution, especially in adverse weather conditions, and avoid sudden braking. If the BRAKE light also illuminates, do not drive the vehicle.
Q2: How do I reset the ABS light on my BMW 1 Series?
A2: The most reliable method is to fix the underlying issue and then clear the fault codes using an OBDII scanner. A temporary reset can sometimes be achieved by disconnecting the battery, but this is not a permanent solution.
Q3: What is the most common cause of the ABS light?
A3: A faulty wheel speed sensor is a very common cause due to their exposed nature and susceptibility to damage.
Q4: Do I need a professional to fix the ABS light?
A4: While some issues like low tyre pressure or topping up brake fluid can be addressed by the owner, diagnosing and repairing sensor failures, pump issues, or control module faults often requires specialist knowledge and equipment. It's generally advisable to consult a qualified mechanic.
Conclusion
The illuminated ABS warning light on your BMW 1 Series serves as an important notification of a potential issue within the braking system. While several factors can cause this light to appear, from simple tyre pressure discrepancies to more complex component failures, a systematic approach to diagnosis is essential. Utilising an OBDII scanner is the most effective way to pinpoint the exact problem. For most owners, seeking the expertise of a professional mechanic is the safest and most efficient way to ensure the ABS system is restored to full functionality, guaranteeing your safety and the optimal performance of your BMW 1 Series.
