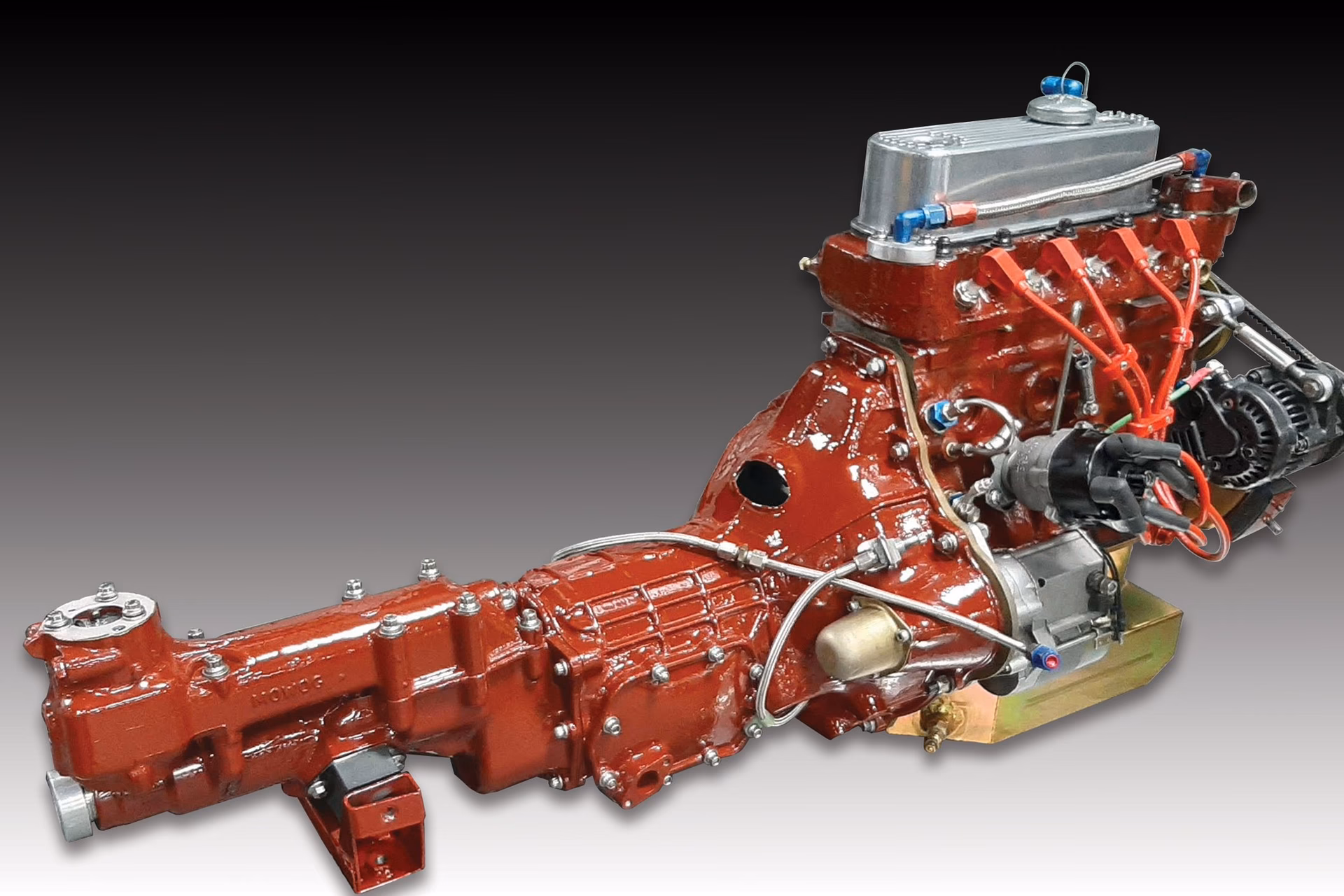

Haynes Manuals & Your First Engine Rebuild

The thought of delving deep into the heart of your vehicle – the engine – can be both exhilarating and daunting. For many DIY mechanics, the Haynes manual has long been the go-to companion for everything from oil changes to complex repairs. But when it comes to something as intricate and critical as a full engine rebuild, the big question arises: are Haynes manuals truly good enough, especially if it's your first time cracking open an engine?

While Haynes manuals are undoubtedly a valuable resource for general maintenance and basic repairs, their utility for a complete engine rebuild, particularly for a novice, comes with certain caveats. They offer excellent overviews, common procedures, and often include crucial torque specifications. However, they can sometimes lack the granular detail and specific nuances that a first-timer desperately needs. This is where a blend of the manual's guidance, astute preparation, and meticulous organisation becomes your ultimate toolkit.

The Haynes Manual: Your Trusty Guide, or Just a Starting Point?

For decades, a Haynes manual has been a staple in many a British garage. They're praised for their accessible language, photographic step-by-step guides, and comprehensive coverage of common vehicle models. For an engine rebuild, they provide:

• General dismantling and assembly sequences.
• Torque settings for critical fasteners.
• Basic troubleshooting guides.
• Information on component identification.

However, it's widely acknowledged among experienced mechanics that *older* Haynes manuals often contain significantly more detail regarding engine rebuilds compared to their more recent counterparts. This is a crucial distinction. Older editions tend to offer more in-depth explanations, more detailed exploded diagrams, and a less generic approach to specific engine types. Modern manuals sometimes simplify procedures or omit certain steps, assuming a level of prior knowledge or relying on specialist tools that a home mechanic might not possess.

Therefore, if you're fortunate enough to find an older edition for your specific vehicle, it could prove to be an invaluable asset. Nevertheless, even the best Haynes manual should be seen as a strong foundation, not the sole source of truth. Combining its guidance with other resources, such as dedicated factory workshop manuals (if available), online forums, and video tutorials, will significantly bolster your chances of success.

The Golden Rule: Document Absolutely Everything!

Perhaps the single most important piece of advice for anyone embarking on their first engine rebuild is this: document every single step. Your memory, no matter how sharp, will betray you when faced with hundreds of identical-looking bolts and countless components weeks or months down the line.

Photography: Your Visual Memory Bank

Before you even loosen the first bolt, arm yourself with a camera. A cheap digital camera or even a disposable one is perfectly adequate – the quality isn't as important as the quantity and clarity of the images. Snap photos from every conceivable angle: top, bottom, sides, and close-ups of every connection, every wire, every hose, and every bracket. Don't just focus on the main components; pay particular attention to:

• The exact orientation of washers and spacers.
• The routing of pipes and electrical looms.
• The precise location and type of every single bolt and fastener.
• How components fit together *before* they are separated.

When you're staring at a pile of parts weeks or even months later, a clear photograph can be the difference between a triumphant reassembly and a frustrating dead end. Take hundreds, if not thousands, of pictures. You can always delete them later, but you can't go back in time to take one you missed.

Notes and Diagrams: The Written Word

Alongside your photographic record, keep a detailed notebook. Write down:

• The order in which components are removed.
• Specific torque settings as you find them (and confirm with your manual).
• Any peculiarities or difficulties encountered during disassembly.
• Sketches or diagrams of complex assemblies, especially for wiring or vacuum lines.

Don't feel silly drawing little diagrams or making copious notes – this is a sign of a meticulous and intelligent approach. Just because seasoned mechanics might not need to, doesn't mean it's not crucial for your learning process and successful outcome.

Organisation: Your Engine's Best Friend (and Yours!)

An engine rebuild generates a vast number of parts, from tiny washers to large castings. A chaotic pile of components is a recipe for disaster. This is where meticulous organisation becomes paramount.

The 'Bag and Tag' System

Stock up on supplies before you begin:

• Freezer Bags: Lots of them, in various sizes. These are ideal for holding groups of bolts and small components.
• Permanent Markers: For labelling those bags clearly and indelibly.
• Kitchen Roll: You'll need copious amounts for cleaning parts, wiping up spills, and general workshop hygiene.
• Pipe Cleaners: Excellent for cleaning out small oil passages, bolt holes, and other intricate areas.

As you remove components, immediately place their associated fasteners and small parts into a freezer bag. Label the bag clearly with the component's name and its location on the engine. For example: 'Rocker Cover Bolts – Front', 'Water Pump Bolts', 'Oil Sump Bolts – Long'. This prevents the dreaded 'big box of bolts' scenario, where you're left guessing which bolt goes where – a common pitfall, as many bolts look identical but vary subtly in length or thread.

Specific Part Segregation: Push Rods and Buckets

If you're re-using components like push rods and valve lifter buckets, it's absolutely critical to ensure they go back into their original locations. They develop specific wear patterns with their mating surfaces over time, and putting them back in the wrong spot can lead to premature wear or noise. Here's a clever trick:

For push rods: Find a piece of cardboard (a cereal box or similar will do). Punch holes in it, corresponding to the number of push rods. As you remove each rod, poke it through a hole, and write the cylinder number and valve (e.g., 'Cyl 1 Inlet', 'Cyl 1 Exhaust') next to its hole. This keeps them upright and in order.

For lifter buckets: Carefully scratch a small Roman numeral (I, II, III, IV, etc.) onto the side of each bucket, corresponding to its cylinder and position. Roman numerals are often preferred over Arabic numerals (1, 2, 3) because they are less likely to be confused if scratched imperfectly (e.g., '1' and 'l' can look similar, '6' and '9' if inverted).

Beyond the Manual: Essential Rebuild Practices

While the manual guides the steps, your approach and diligence determine the outcome.

Cleanliness is Next to Godliness

This cannot be stressed enough. Any dirt, grit, or old gasket material left on mating surfaces or inside oil passages can lead to catastrophic failure. Every single component must be thoroughly cleaned before reassembly. Use appropriate degreasers, scrapers, and brushes. Compressed air is excellent for blowing out passages, but ensure you wear eye protection.

Tooling Up: Investing in Precision

Beyond your basic spanner and socket set, certain tools are absolutely non-negotiable for an engine rebuild:

• Torque Wrench: Absolutely essential. Fasteners in an engine are tightened to very specific torque values. Under-tightening can lead to leaks or components coming loose; over-tightening can strip threads, deform components, or even snap bolts. Invest in a good quality torque wrench and understand how to use it correctly.
• Feeler Gauges: For checking clearances (e.g., valve clearances, bearing clearances with Plastigauge).
• Micrometers and Vernier Calipers: For measuring components, checking wear, and ensuring parts are within specification.
• Specialised Tools: Depending on your engine, you might need valve spring compressors, piston ring compressors, harmonic balancer pullers, or cam locking tools. Identify these from your manual or online resources early on.

Inspection and Replacement: Don't Just Reassemble

An engine rebuild isn't just about putting it back together. It's about replacing worn components and ensuring everything is within tolerance. Inspect every part for cracks, excessive wear, scoring, or deformation. Always replace:

• All gaskets and seals (oil seals, valve stem seals, head gasket, sump gasket, etc.).
• Piston rings (unless explicitly advised otherwise for a very light refresh).
• Main and big end bearings (measure clearances with Plastigauge).
• Timing chain/belt and tensioners.

Consider replacing items like valve guides, valve seats, and camshafts if wear is evident or if you're aiming for a full restoration.

Lubrication: Pre-Assembly Protection

Before assembling, ensure all moving parts that will see immediate friction upon startup are lubricated. This includes camshaft lobes, lifters, piston skirts, and especially bearings. Use engine assembly lube or clean engine oil. This protects components during the critical first few seconds before oil pressure builds up.

Patience and Breaks: Avoid Fatigue

An engine rebuild is a marathon, not a sprint. Don't rush. If you feel tired, frustrated, or uncertain, take a break. Walk away, clear your head, and come back to it later. Errors are far more likely when you're fatigued or stressed. Double-check everything, then double-check it again.

Common Hurdles and How to Clear Them

Even with the best intentions, you might encounter challenges. Here's how to navigate some common pitfalls:

Frequently Asked Questions (FAQs)

Q: Can I really rebuild an engine myself as a first-timer?

A: Yes, absolutely! With enough patience, meticulous organisation, and a willingness to learn, a first-timer can successfully rebuild an engine. It's a significant undertaking, but incredibly rewarding. Start with a simpler engine if possible (like the 'A series' mentioned in the initial information, known for its simplicity).

Q: What are the absolute must-have tools beyond a basic toolkit?

A: A good quality torque wrench (or two, covering different ranges), feeler gauges, a piston ring compressor, and ideally a micrometer. Depending on the engine, a valve spring compressor and specific timing tools might also be essential.

Q: How long does an engine rebuild typically take for a novice?

A: For a first-timer, expect it to take weeks, possibly even months, working in your spare time. This includes disassembly, cleaning, inspection, ordering parts, and reassembly. Don't set unrealistic deadlines.

Q: Is rebuilding an engine cheaper than buying a new or reconditioned one?

A: Not always. The cost depends heavily on what parts need replacing and whether you require machine shop services (e.g., cylinder boring, crankshaft grinding, valve seat cutting). Sometimes, a factory reconditioned engine can be a more cost-effective or time-efficient solution, especially for complex or modern engines. Always get quotes for parts and potential machine work before committing.

Q: What if I get stuck or can't figure something out?

A: Don't panic! Consult your Haynes manual again, but also turn to other resources. Online vehicle-specific forums are invaluable, as are YouTube tutorials. Sometimes, taking a break and looking at the problem with fresh eyes helps. If all else fails, consider seeking advice from an experienced mechanic or a specialist engine builder.

Conclusion

Rebuilding an engine, especially for the first time, is an ambitious project. While a Haynes manual provides a solid foundation, its true value for this specific task is maximised when it's complemented by your own diligent preparation, systematic organisation, and unwavering patience. The satisfaction of hearing an engine you've meticulously rebuilt roar to life is unparalleled, a testament to your newfound skills and dedication. Approach it with respect, a camera in hand, and a mountain of freezer bags, and you'll be well on your way to a successful rebuild.
