Connecting Your ELM327 to OBD2: A UK Guide

Connecting an ELM327 Bluetooth OBD2 device can significantly enhance your ability to perform vehicle diagnostics. This widely used car trouble code reader pairs seamlessly with your smartphone or computer, providing real-time insights into vehicle performance. The wireless OBD2 scanner helps both casual drivers and professional mechanics in efficiently monitoring and diagnosing car issues. In this guide, we’ll walk you through the process of ELM327 pairing to ensure you can confidently connect and maximise this powerful tool, helping you keep your vehicle in top condition on the UK's roads.

The ELM327 Bluetooth OBD2 is a sophisticated and portable auto diagnostic tool that allows seamless wireless communication with a vehicle’s On-Board Diagnostics (OBD) system. This device is invaluable for both professional mechanics and car enthusiasts, as it simplifies the process of real-time car monitoring and engine diagnostics. By integrating an OBD2 scanner with Bluetooth vehicle diagnostics, users can easily interpret error codes and monitor vehicle performance using their smartphones or computers, providing an accessible way to understand what your car is trying to tell you.

Understanding Your ELM327 Bluetooth OBD2

At its core, the ELM327 Bluetooth OBD2 is a compact device that plugs into your vehicle’s OBD port and establishes a Bluetooth connection with your mobile device or laptop. This powerful gadget deciphers engine trouble codes, known as Diagnostic Trouble Codes (DTCs), and provides crucial data on various parameters such as fuel efficiency, engine RPM, coolant temperature, and oxygen sensor readings. This enables real-time car monitoring with remarkable ease. It supports all standard OBD2 protocols (including ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, and SAE J1850 PWM/VPW), ensuring broad compatibility with most vehicles manufactured for the UK market and beyond, typically from 1996 onwards.

The ELM327 chip within the device acts as a translator, converting the complex data from your car's ECU (Engine Control Unit) into a format that can be understood by diagnostic software on your phone or computer. This bridge of communication is what makes advanced vehicle diagnostics accessible to the average driver, without requiring specialist equipment or costly garage visits. It empowers you to take a proactive approach to your vehicle's maintenance.

Benefits of Using an ELM327 Bluetooth OBD2

One of the foremost auto diagnostic tool benefits of using the ELM327 Bluetooth OBD2 is its ability to detect and interpret vehicle error codes. This helps users troubleshoot issues before they escalate into more serious, and potentially more expensive, problems. For instance, a 'Check Engine' light might indicate anything from a loose fuel cap to a failing catalytic converter. An ELM327 can pinpoint the exact code, giving you the information needed to decide if it's a simple fix or requires professional attention.

Additionally, it allows users to clear check engine lights after a repair has been made, monitor fuel economy in real-time to adjust driving habits, and ensure their vehicles run efficiently. For UK drivers, this can be particularly useful for pre-MOT checks, identifying potential issues that could lead to a failed inspection. The ELM327’s Bluetooth vehicle diagnostics capabilities make it a practical choice for anyone looking to maintain their car’s health, potentially saving significant amounts on garage bills and providing peace of mind knowing the state of their vehicle.

• Cost Savings: Avoid unnecessary garage visits for simple diagnostics.
• Preventative Maintenance: Catch small issues before they become major repairs.
• Enhanced Understanding: Gain insights into your car's performance and system health.
• Emissions Monitoring: Check readiness monitors for MOT compliance.
• DIY Troubleshooting: Empower yourself to diagnose and even fix minor problems.

Key Features to Look For in an ELM327

Whilst choosing an ELM327 Bluetooth OBD2 scanner, it is crucial to consider some essential features that enhance its utility and ensure you get the most out of your investment:

• Compatibility: Ensure the device supports all OBD2 protocols for maximum vehicle compatibility. Some cheaper clones might only support a limited number, which could restrict its use with certain car makes or models. Look for 'full protocol support' in the product description.
• User-Friendly Interface (via App): The ELM327 itself is just the hardware; its utility largely depends on the accompanying software or app. Look for an intuitive app interface that pairs easily with various OBD2 software. Popular choices include Torque Pro (Android), Car Scanner ELM OBD2 (Android/iOS), and OBD Auto Doctor (Windows/Mac/Android/iOS). Many offer free versions with basic features, but paid versions unlock more advanced diagnostics.
• Real-Time Data: Choose a scanner that offers real-time car monitoring for immediate insights into vehicle performance. This means being able to see live data streams like engine RPM, speed, coolant temperature, fuel pressure, and more, as you drive. This feature is invaluable for diagnosing intermittent issues or simply understanding your car better.
• Data Logging: A feature that allows logging and analysis of vehicle data over time can be extremely beneficial. This enables you to record data during a drive and review it later, helping to identify patterns or performance drops that might not be obvious in real-time. This is particularly useful for tracking fuel efficiency over different journeys or diagnosing performance anomalies.
• Firmware Version: Look for devices with ELM327 v1.5 firmware, as this version is generally more stable and compatible with a wider range of vehicles and software compared to older versions like v2.1, which often have compatibility issues.

These features underscore the importance of selecting an OBD2 scanner that meets individual needs and offers a range of functionalities for efficient vehicle diagnostics, ensuring a reliable and comprehensive tool for your car.

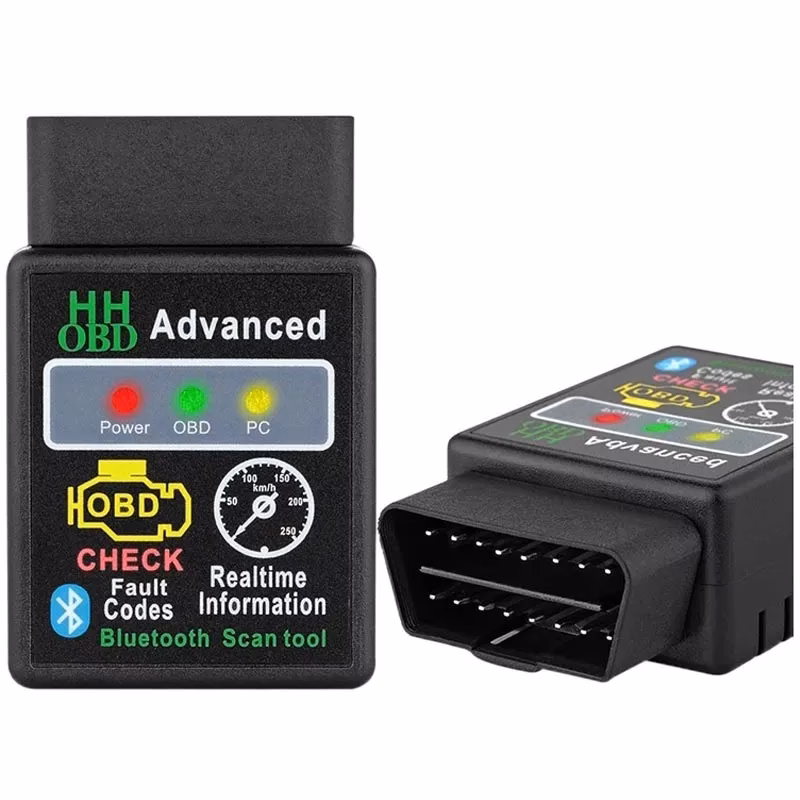

How to Connect Your ELM327 Bluetooth OBD2

Connecting an ELM327 Bluetooth OBD2 device to your vehicle involves a few simple steps. It’s crucial to prepare adequately and follow a methodical approach to ensure a seamless process. Whether for personal use or professional diagnostics, understanding these steps will maximise the efficiency of your wireless diagnostic tools.

Pre-Connection Preparation

Before initiating the OBD2 Bluetooth setup, verify that your ELM327 device is fully charged or powered (most draw power directly from the OBD2 port, but some might have an internal battery). Ensure that your vehicle’s battery has enough power and that the OBD2 port is easily accessible. Typically, the OBD2 port is located under the dashboard, often near the steering wheel, or sometimes in the centre console or passenger footwell. Consult your car's owner's manual if you cannot locate it. Ensure the area around the port is clear of obstructions.

Step-by-Step Guide to Connection

Follow these precise steps to establish a successful connection between your ELM327 and your diagnostic device:

1. Power On the Vehicle: Start your engine or switch the ignition to the 'On' position without starting the engine. The 'On' position (sometimes called 'Key On, Engine Off' or KOEO) is usually when all dashboard lights illuminate but the engine isn't running. This provides power to the OBD2 port.
2. Connect the ELM327 Device: Carefully plug the ELM327 Bluetooth adapter into the OBD2 port. It's a 16-pin D-shaped connector that only fits one way. Apply gentle but firm pressure until it clicks into place. Most ELM327 devices will have an LED indicator light that illuminates once it receives power, confirming it's correctly seated.
3. Enable Bluetooth on Your Device: Ensure your smartphone (Android or iOS) or computer (Windows or Mac) has Bluetooth enabled and is in pairing mode. For phones, this is usually done via the 'Settings' menu. For computers, access Bluetooth settings via the system tray or control panel.
4. Pair the Devices: Search for the ELM327 using your device’s Bluetooth settings. It often appears as 'OBDII', 'V-LINK', 'ELM327', or a similar name. Select it to initiate the Bluetooth pairing process. This may require a passcode, which is typically '1234', '0000', '6789', or occasionally 'WIFICHECK'. If none of these work, check the device's packaging or manual.
5. Install Necessary Software: Download and install a compatible OBD2 app or software that can interact with the ELM327 system. For Android, Torque Pro is highly recommended. For iOS, Car Scanner ELM OBD2 or OBD Fusion are popular choices. For Windows, consider ScanTool.net's OBD-II software or OBD Auto Doctor. Ensure the app is up-to-date.
6. Finalise Connection within the App: Open the installed app and navigate to its settings or connection options. Select 'Bluetooth' as the connection type and then choose your paired ELM327 device from the list. Follow the on-screen prompts to complete the car scanner setup. The app should indicate a successful connection (e.g., a green light, 'Connected' status, or live data appearing).

With these OBD2 pairing steps, you can effectively utilise wireless diagnostic tools for efficient vehicle diagnostics. In case of any issues during the process, refer to your ELM327 device manual for specific troubleshooting tips related to its connection process.

Common Issues and Troubleshooting Tips

Whilst connecting your ELM327 Bluetooth OBD2 scanner to your vehicle should be straightforward, users often encounter various OBD2 connection problems. Don't fret; many of these issues have simple solutions.

Device Not Detected by Vehicle or App

One common issue is when the ELM327 device is not detected by the vehicle’s OBD2 port or by your mobile app. To address this:

• Check Power: Ensure the ELM327 is fully seated in the OBD2 port. The device should typically have an LED light that illuminates when it's powered on. If not, try unplugging and re-plugging it firmly. Confirm your vehicle's ignition is in the 'On' (KOEO) position, as the OBD2 port only receives power in this state.
• Port Health: Inspect the OBD2 port itself for any bent pins, debris, or corrosion. A dirty or damaged port can prevent a proper connection.
• Try Another Vehicle: If possible, test the ELM327 in another OBD2-compatible vehicle to rule out a faulty device or a problem with your car's port.

Bluetooth Pairing Issues

If you experience Bluetooth pairing issues, where your phone or computer can't find or connect to the ELM327:

• Ensure Discoverability: Start by ensuring your smartphone or computer’s Bluetooth is enabled and set to discoverable mode.
• Forget Device & Re-pair: If you've previously attempted to pair, go into your device's Bluetooth settings and 'forget' or 'unpair' the ELM327, then attempt a fresh pairing process.
• Correct Passcode: Double-check the default passcode. Common ones are '1234', '0000', or '6789'. Some less common ones include '12345' or '000000'. If unsure, check the device's manual or product listing.
• Restart Devices: Sometimes, simply restarting your smartphone or computer, and even unplugging/re-plugging the ELM327, can clear temporary glitches.
• Interference: Ensure there are no other strong Bluetooth or Wi-Fi signals nearby that could cause interference, although this is less common.

App Compatibility and Communication Errors

Many users find their OBD2 scanner not communicating properly with their preferred software, leading to 'No Connection' or 'Failed to Connect' errors within the app.

• App Selection: If this occurs, consider switching to well-reviewed applications known for broad ELM327 compatibility, such as Torque Pro (Android), Car Scanner ELM OBD2 (Android/iOS), or OBD Fusion (iOS/Android). Different apps might handle connection protocols slightly differently.
• App Settings: Within your chosen app, go to its settings and ensure the correct connection type (Bluetooth) and the specific ELM327 device are selected. Some apps require manual selection of the OBD2 protocol, though auto-detection usually works.
• Permissions: Ensure the app has all necessary permissions enabled on your smartphone (e.g., Bluetooth, Location services). Newer Android versions often require location services to be on for Bluetooth scanning.
• Firmware Issues: Be aware that some cheaper ELM327 clones advertised as v2.1 are often buggy and may not support all commands or protocols. An ELM327 v1.5 is generally more reliable. If you suspect this, try a different ELM327 device.

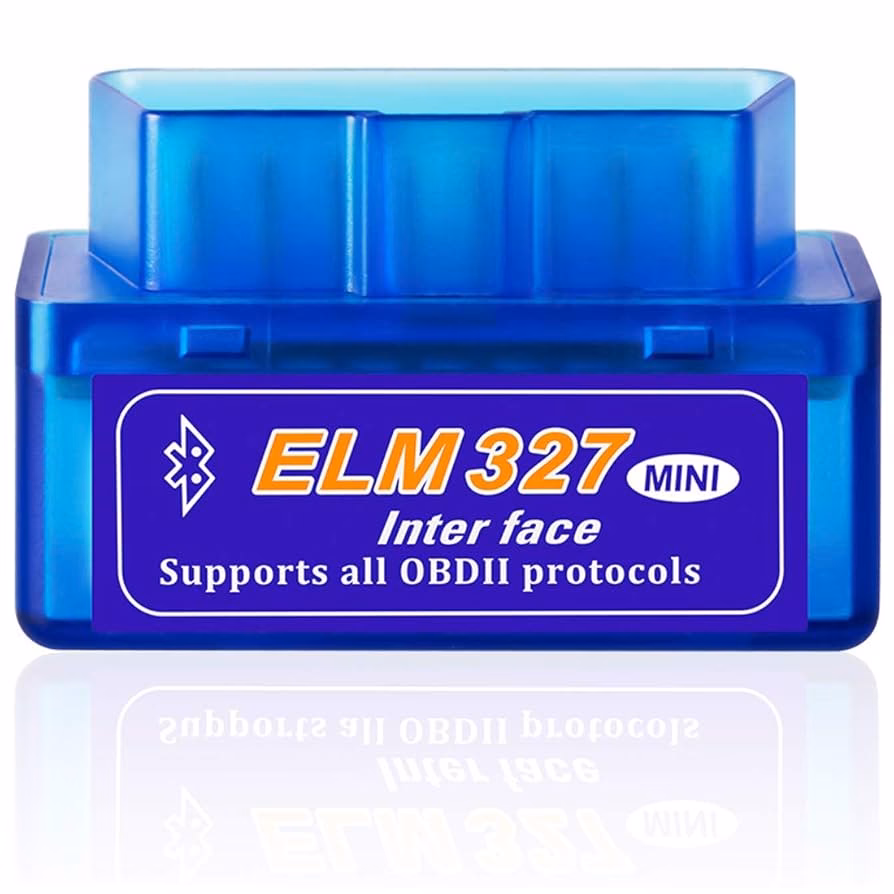

Failure to Read Vehicle Data Accurately or 'ELM327 Bluetooth Signal Not Showing'

This diagnostic tool troubleshooting can be approached by ensuring that all connections are secure and the device has no physical damage. If the ELM327 Bluetooth signal is not showing up in your phone's Bluetooth scan, it almost always means one of two things:

1. The ELM327 is not powered on: Reconfirm it's firmly plugged into the OBD2 port and your car's ignition is 'On'. Check for any indicator lights on the ELM327 itself.
2. The ELM327's Bluetooth module is not active or faulty: If the power light is on but no Bluetooth signal is detected after trying the above steps, the device itself might be faulty.

If the device connects but fails to read data (e.g., 'No Data' or 'ECU Not Found'):

• Vehicle Compatibility: While OBD2 is standard, some very old or niche vehicles might have quirks. Confirm your vehicle is OBD2 compliant (generally 1996 for petrol, 2004 for diesel in the UK/EU).
• Protocol Selection: In some apps, you might need to manually select the OBD2 protocol if auto-detection fails. Your car's manual or online forums might provide this information.
• Firmware Update: Although rare for ELM327s, some advanced scanners allow firmware updates. For basic ELM327s, this isn't typically an option, so if it's consistently failing, it might be a hardware issue.
• Vehicle's Battery: A very low car battery can sometimes cause communication issues with the OBD2 port. Ensure your battery is healthy.

If issues persist, consult the device’s manual for specific troubleshooting steps or reach out to customer support for additional help. Remember, patience and systematic troubleshooting are key.

Maximising Your ELM327's Potential

Once your ELM327 is successfully connected, you've unlocked a powerful array of diagnostic and monitoring capabilities. Beyond just reading and clearing fault codes, here's how you can truly maximise this tool:

• Live Data Monitoring: This is arguably the most valuable feature. Monitor parameters like engine RPM, vehicle speed, coolant temperature, fuel pressure, oxygen sensor voltage, intake air temperature, and more in real-time. This can help diagnose intermittent issues that don't always trigger a fault code, such as slight misfires or fluctuating sensor readings.
• Customisable Dashboards: Many apps allow you to create custom dashboards displaying the data points most relevant to you. For performance enthusiasts, this might include boost pressure and horsepower. For economy-minded drivers, it could be instantaneous fuel consumption.
• Emissions Readiness Checks: For UK drivers, this is crucial for the MOT test. The ELM327 can tell you if all your vehicle's emissions monitoring systems have completed their self-tests and are 'ready'. If any are 'not ready', your car might fail the MOT emissions section.
• Performance Testing: Some apps offer performance tests, such as 0-60 mph times or quarter-mile runs, using the vehicle's speed data. While not perfectly accurate, it can give a general idea of your car's performance.
• Fuel Economy Tracking: Monitor your average and instantaneous fuel consumption to help you adjust your driving style for better efficiency, especially useful with the rising cost of petrol and diesel in the UK.
• Freeze Frame Data: When a fault code is set, the ECU records a 'freeze frame' of data, showing the engine parameters at the exact moment the fault occurred. This snapshot is invaluable for diagnosing complex issues.

By regularly connecting your ELM327, you're not just reacting to problems; you're proactively maintaining your vehicle health and gaining a deeper understanding of its operation.

Choosing the Right ELM327 for the UK Market

Whilst there's a vast array of ELM327 devices available, especially online, it's worth considering a few points for UK users:

• Avoid Ultra-Cheap Clones: Very inexpensive ELM327s (especially those claiming v2.1 firmware) are often poor quality clones with limited functionality and stability issues. Investing a little more in a reputable brand or a device confirmed to have genuine v1.5 firmware will save you headaches in the long run.
• Bluetooth vs. Wi-Fi: Most users prefer Bluetooth for its convenience. Wi-Fi versions exist, often for iOS users who previously couldn't use Bluetooth LE, but Bluetooth is generally more straightforward to set up now with modern apps.
• Physical Size: Some ELM327s are very compact ('mini' versions) and can be left plugged in without obstructing foot space. Others are larger. Consider if you plan to leave it plugged in permanently.
• Seller Reputation: Purchase from reputable UK sellers or well-known online marketplaces with good return policies, just in case of compatibility issues.

Frequently Asked Questions (FAQs)

Q1: Is my car compatible with an ELM327 OBD2 scanner?

Most petrol cars sold in the UK since 2001 and diesel cars since 2004 are OBD2 compliant. Some US-manufactured vehicles from 1996 onwards are also compatible. If your car has a 16-pin D-shaped port under the dashboard, it's almost certainly OBD2 compatible. However, older or very specific models might use proprietary protocols, which an ELM327 might not fully support.

Q2: What's the best app to use with my ELM327?

For Android users, Torque Pro is widely considered one of the best, offering extensive features and customisation. For iOS users, Car Scanner ELM OBD2 and OBD Fusion are excellent choices, providing comprehensive diagnostics and user-friendly interfaces. Many apps offer free versions with basic functionality, allowing you to test compatibility before purchasing a full version.

Q3: Is it safe to leave the ELM327 plugged into my car's OBD2 port permanently?

Generally, it is safe. Most modern ELM327 devices are designed to draw minimal power and shouldn't drain your car's battery, even when the ignition is off. However, if you have an older or particularly sensitive car, or if you plan to leave your car parked for extended periods (weeks or months), it might be wise to unplug the device to be absolutely safe and prevent any potential parasitic drain.

Q4: Can an ELM327 device damage my car?

No, an ELM327 scanner is a read-only device for most functions. It merely interprets data from your car's ECU and can send commands to clear trouble codes. It cannot physically alter your car's engine parameters or cause damage. As long as you use a reputable app and don't attempt to flash firmware or perform unsupported operations, there's no risk of damage to your vehicle.

Q5: Why is my 'Check Engine' light still on after clearing codes with the ELM327?

If the 'Check Engine' light reappears immediately or shortly after clearing codes, it means the underlying issue that triggered the code has not been resolved. Clearing the code only turns off the light; it doesn't fix the problem. You need to identify and address the root cause of the fault, whether it's a faulty sensor, a loose connection, or a more significant mechanical issue. Once the repair is made, you can clear the code, and it should then stay off.

Connecting your ELM327 to your vehicle's OBD2 port is a straightforward process that opens up a world of diagnostic possibilities. By following these steps and understanding the common pitfalls, you can confidently use this powerful tool to monitor your car's health, troubleshoot issues, and potentially save on garage bills. Embrace the power of wireless vehicle diagnostics and take control of your car's maintenance journey.
