VAG 1.9 TDI Engine Swaps Explained

The Volkswagen Audi Group (VAG) 1.9 TDI engine is renowned for its robustness and longevity, making it a popular choice for many vehicle owners. However, as these engines age, issues can arise, leading to the need for replacements. For those with a BRS engine facing its final days, the cost of a specific 'transporter' engine can be prohibitive. This often leads owners to explore cheaper alternatives from common models like the Golf, Passat, or Audi A4. The crucial question then becomes: are these engines truly interchangeable, and what are the key differences to be aware of during an engine swap? This article delves into the intricacies of VAG 1.9 TDI engine compatibility, focusing on popular engine codes and the practicalities of swapping.

Understanding VAG Engine Codes

VAG employs a sophisticated system of engine codes to differentiate variants of their powerplants. While many 1.9 TDI engines share core components and design principles, subtle variations in output, emissions control, and specific hardware mean that not all engine codes are direct bolt-in replacements. Understanding these codes is the first step towards a successful engine swap.

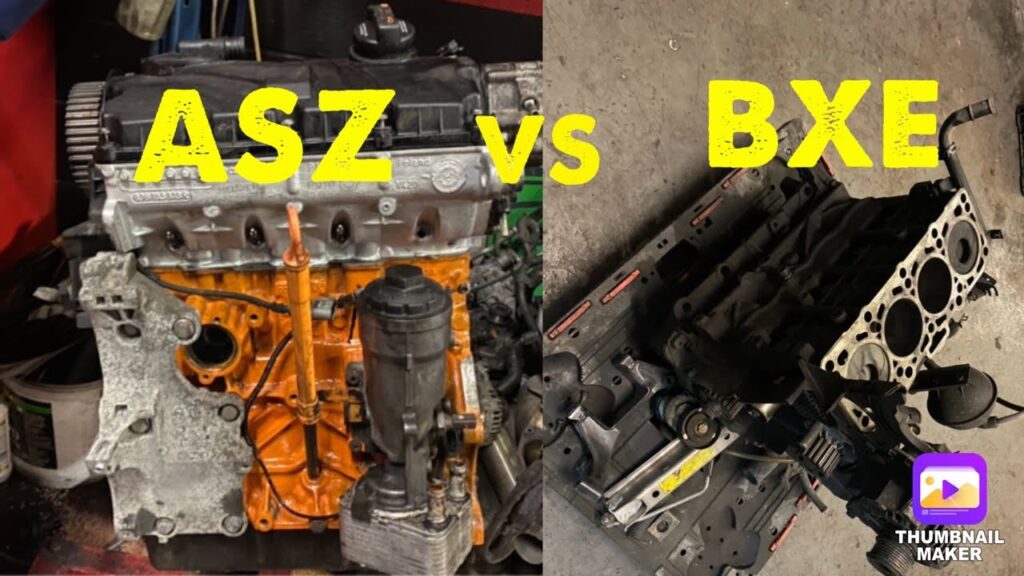

For instance, the 1.9 TDI family includes widely recognised codes such as ASZ, ATD, ALH, and the more recent BXE and BLS. Your BRS engine, often found in Transporter models, belongs to a lineage that also includes BRR. The user's query specifically targets the compatibility of BXE and BLS engines, often found in passenger cars, with their BRS unit. The common wisdom is that VAG engines are largely the same, but this needs careful examination.

Key Differences and Swap Considerations

As the user correctly identified, a significant difference often lies in the crank sensor location. The BRS and BRR engines, for example, have their crank sensor integrated into the rear crank oil seal housing. This is a critical detail. If a donor engine has a different crank sensor setup, it's not a simple plug-and-play scenario.

However, VAG has a degree of modularity. Many external components can be swapped between different engine codes. This includes:

• Inlet and Exhaust Manifolds: The physical shape and port arrangement can vary to accommodate different chassis and emissions requirements.
• Turbochargers: Different turbocharger sizes and wastegate actuation mechanisms might be fitted depending on the target output and emissions standards.
• EGR (Exhaust Gas Recirculation) Systems: The EGR valve, cooler, and associated pipework are frequently revised between engine codes.
• Cam Covers: Minor aesthetic or functional differences in the cam cover can exist, but these are typically cosmetic or easily swapped.
• Ancillary Mounts: Brackets for alternators, power steering pumps, and air conditioning compressors can differ.

The ability to swap these components is what makes a seemingly incompatible engine viable for a transplant. The core engine block, cylinder head, and internal rotating assembly (pistons, connecting rods, crankshaft) are often where the fundamental similarities lie, but even these can have subtle differences. For example, piston designs might vary to alter compression ratios or oil cooling strategies.

The BXE and BLS Enigma: Are They 'Rod-Throwing' Engines?

The term 'rod-throwing' is a colloquialism used to describe an engine that has suffered catastrophic failure, typically due to a connecting rod breaking and exiting the engine block. It's a dramatic failure, often caused by issues like bearing failure, over-revving, or detonation. The question of whether BXE and BLS engines are prone to this is complex and often depends more on maintenance and driving style than inherent design flaws.

Both the BXE and BLS are part of the EA188 family of 1.9 TDI engines. They are generally considered reliable. However, like any engine, they can fail if poorly maintained, run with insufficient oil, or subjected to extreme abuse. Specific issues sometimes cited for these engines, particularly in certain applications, can include:

• Turbocharger Failures: Similar to other turbocharged engines, the turbo can be a weak point if oil supply is compromised or if the engine is switched off immediately after hard driving, leading to oil coking.
• Dual-Mass Flywheel (DMF) Issues: While not an engine failure, DMFs can cause drivability problems and vibration, sometimes being mistaken for engine issues.
• Cylinder Head Cracking: In some older TDI variants, particularly under extreme heat or pressure, cylinder heads could develop cracks. Whether BXE and BLS are more susceptible than others is debated and often linked to specific running conditions.

It's important to distinguish between inherent design weaknesses and failures resulting from external factors. The VAG 1.9 TDI, across its many codes, is generally regarded as a strong engine. The likelihood of a 'rod-throwing' event is not significantly higher for a BXE or BLS compared to other 1.9 TDI variants, assuming they are in good health and properly maintained.

Compatibility Table: A Quick Reference

To aid in your engine swap planning, here's a simplified look at potential compatibility, keeping in mind that swapping external components is almost always necessary.

Disclaimer: This table is a general guide. Always verify part numbers and specifications for your specific vehicle and the donor engine. Compatibility can vary based on model year and regional specifications.

What You'll Likely Need to Swap

Beyond the core engine block and head, be prepared to transfer a substantial number of components from your original BRS engine to the replacement unit:

• Engine Wiring Loom: Crucial for sensor compatibility and ECU communication.
• Sensors: Crankshaft position sensor, camshaft position sensor, temperature sensors, oil pressure sensor, etc.
• Fuel Injectors and Lines: While the basic PD injector system is similar, slight variations might exist.
• Engine Mounts: These can differ significantly between vehicle models.
• Exhaust System Connectors: Flanges and mounting points for the exhaust can vary.
• Cooling System Components: Water pump housing, thermostat housing, and pipe connections.
• Flywheel and Clutch: Ensure compatibility with your gearbox.
• ECU (Engine Control Unit): In many cases, the original ECU will need to be reprogrammed or 'coded' to the replacement engine, especially if there are differences in sensors, injectors, or turbo specifications. Sometimes, the donor ECU might be used, but this requires immobiliser bypass and potentially key programming.

The Role of the ECU and Immobiliser

The Engine Control Unit (ECU) is the brain of the engine. It receives data from various sensors and dictates fuel injection, turbo boost, and other parameters. When swapping engines, if the donor engine has different sensor types or specifications, the original ECU may not interpret the signals correctly, leading to poor running or the engine not starting at all. This is why transferring your original ECU and adapting the wiring loom is often the preferred route.

The immobiliser system is another hurdle. Your car's immobiliser is linked to its original ECU. If you use a donor ECU, you'll likely need to have the immobiliser function disabled by a specialist or programmed out. Alternatively, a specialist may be able to 'marry' the donor engine's ECU to your car's existing immobiliser system.

Frequently Asked Questions

Q1: Can I put a BXE engine into a vehicle that originally had a BRS engine?

A: Yes, it is generally possible, but it requires significant component swapping. You will likely need to transfer the crank sensor housing from your BRS, along with the intake manifold, exhaust manifold, turbocharger, EGR system, and potentially the engine wiring loom and most sensors. The ECU will also need to be considered, likely requiring adaptation or reprogramming.

Q2: Are the BXE and BLS engines inherently weaker than the BRS?

A: No, not inherently. They are part of the same robust 1.9 TDI family. Failures are typically due to maintenance, age, or specific running conditions rather than a fundamental design weakness that makes them more prone to catastrophic failure like 'rod-throwing'.

Q3: What is the most critical part to swap for engine compatibility?

A: The crankshaft position sensor and its housing is often the most critical mechanical difference that needs to be addressed. Ensuring the correct sensor signal reaches the ECU is paramount for the engine to run.

Q4: Do I need to change the gearbox when swapping 1.9 TDI engines?

A: Generally, no. Most 1.9 TDI engines share the same bell housing pattern and flywheel/clutch interface, meaning your original gearbox should bolt up. However, always double-check the flywheel compatibility, as some variations exist.

Q5: Is it worth the effort to swap a 1.9 TDI engine?

A: If you can source a donor engine cheaply and have the mechanical aptitude or access to a competent mechanic, it can be a very cost-effective way to revive a vehicle. The 1.9 TDI is a desirable engine, and keeping your vehicle on the road with a replacement unit makes economic sense compared to buying a newer car.

Conclusion

Swapping a VAG 1.9 TDI engine, such as replacing a BRS with a BXE or BLS, is a common practice within the enthusiast community. While not a direct plug-and-play operation, the modular nature of these engines means that with careful planning and the willingness to swap numerous components, a successful transplant is achievable. The key is meticulous attention to detail, ensuring that all sensors communicate correctly with the ECU and that all ancillary systems are properly integrated. By understanding the differences and preparing for the necessary modifications, you can significantly reduce the cost of replacing a tired engine and extend the life of your beloved VAG vehicle.
