Diagnosing Fuel Injector Woes: A UK Driver's Guide

Fuel injectors are crucial components in a vehicle's engine system, responsible for delivering the right amount of fuel to the combustion chamber for efficient operation. When these injectors malfunction, it can lead to a variety of performance issues and potential damage to the engine. In this comprehensive guide, we will walk you through the step-by-step process of diagnosing fuel injector problems, equipping you with the knowledge and tools needed to tackle these issues effectively. Understanding these intricate components is the first step towards ensuring your vehicle performs optimally, maintaining its fuel efficiency and preventing more serious, costly repairs down the line. A healthy fuel system is the heart of a well-running engine, and the injectors are its vital arteries.

Understanding Fuel Injectors: The Engine's Precision Sprayers

Understanding Fuel Injectors is crucial for anyone dealing with vehicle maintenance. Think of fuel injectors as tiny but mighty devices responsible for delivering the right amount of fuel to the engine for combustion. Just like a skilled chef carefully measuring ingredients for a perfect dish, fuel injectors ensure the engine receives the precise fuel it needs to operate smoothly. These electro-mechanical devices are precisely controlled by the vehicle's Engine Control Unit (ECU), which determines the exact timing and duration of the fuel spray based on various sensor inputs like engine load, speed, and temperature. This precision is paramount for achieving optimal fuel economy and minimising emissions.

Imagine your car's engine as a complex orchestra, with each component playing a vital role in harmony. Fuel injectors act as the conductors, controlling the fuel flow to each cylinder with precision timing. They spray fuel into the combustion chamber at high pressure, atomising it into a fine mist. This mist then mixes thoroughly with air, creating the perfect air-fuel ratio for efficient combustion – the explosive power needed to drive the vehicle forward. Modern vehicles often utilise either Port Fuel Injection (PFI), where injectors spray fuel into the intake manifold, or Direct Injection (DI), where fuel is sprayed directly into the combustion chamber. Both systems rely heavily on the injector's ability to deliver fuel accurately and consistently.

Without properly functioning fuel injectors, your engine's performance can suffer significantly. It's like trying to run a marathon with a pebble in your shoe – you'll feel the drag and struggle to reach your full potential. Understanding how fuel injectors work and their significance in the engine system can help you diagnose issues promptly and keep your vehicle running smoothly. A malfunctioning injector can lead to an incorrect air-fuel mixture, causing the engine to run too rich (too much fuel) or too lean (too little fuel), both of which can lead to performance degradation and long-term engine damage.

When fuel injectors become clogged, stick open, or malfunction in other ways, they can disrupt the delicate balance of fuel and air mixture needed for efficient combustion. This disruption can lead to a range of problems, from sluggish acceleration to engine stalling. By recognising the importance of fuel injectors, you can stay ahead of potential issues and address them before they escalate. Regular maintenance and awareness of common symptoms are key to preventing minor issues from becoming major headaches. The spray pattern of an injector is also critical; a compromised pattern due to clogging can severely impact combustion efficiency.

To put it simply, fuel injectors are the unsung heroes of your vehicle's performance. They work tirelessly behind the scenes, ensuring your engine runs smoothly and efficiently. Understanding their function and role in the combustion process empowers you to take proactive measures in maintaining and troubleshooting your vehicle's fuel system. Their precise operation is fundamental to modern engine design, contributing significantly to both power output and environmental compliance. Ignoring their importance can lead to costly repairs and a significant drop in your vehicle's overall performance.

Common Symptoms of Fuel Injector Problems: What to Look For

When it comes to diagnosing fuel injector issues in vehicles, recognising the common symptoms is crucial. These signs can indicate underlying problems that need immediate attention. Let's delve into the tell-tale signs that your fuel injectors might be causing trouble, allowing you to be proactive in your vehicle's maintenance.

Engine Misfires

One of the most noticeable symptoms of a faulty fuel injector is engine misfires. If you experience sudden jerks, hesitation, or a noticeable loss of power, especially while accelerating or driving uphill, it could be due to a misfiring injector disrupting the combustion process in one or more cylinders. The engine's Check Engine Light (CEL) will often illuminate and flash in cases of severe misfires, indicating a critical issue. You might also notice a distinct lack of power from the engine, as if one of the cylinders isn't contributing to the overall power output.

Rough Idling

A rough or unstable idle is another red flag for potential fuel injector problems. If your engine struggles to maintain a steady RPM at idle, feeling like it's shaking or vibrating excessively, it might be a sign of clogged or leaking injectors affecting fuel delivery. This uneven fuel supply causes an imbalance in cylinder combustion, leading to the engine 'hunting' for a stable idle speed. The vibrations can often be felt throughout the vehicle, particularly when stationary or in traffic.

Poor Acceleration and Reduced Power

Difficulty in accelerating smoothly or a distinct lack of power when pressing the accelerator pedal can also point towards fuel injector issues. Inefficient fuel injectors, whether due to partial clogging or incorrect spray patterns, can lead to inadequate fuel supply to the cylinders. This results in the engine not being able to generate its full potential power, making overtakes difficult and general driving feel sluggish. The vehicle may feel 'heavy' or unresponsive.

Increased Fuel Consumption

Have you noticed a sudden spike in fuel consumption without any apparent reason? Faulty fuel injectors can cause the engine to run rich (too much fuel) or lean (too little fuel). A leaking injector will continuously drip fuel into the cylinder, even when not commanded, leading to excessive fuel usage. Conversely, a partially clogged injector might cause the ECU to compensate by enriching the overall mixture, leading to more fuel being consumed than necessary. This directly impacts your wallet at the fuel pump.

Fuel Smell

A strong smell of fuel, particularly near the engine bay or inside the cabin, is a serious indicator of a leaking fuel injector or fuel line. This is not only a sign of wasted fuel but also a significant fire hazard. Any persistent fuel odour should be investigated immediately.

Failed Emissions Test

Because fuel injectors directly impact the air-fuel mixture and combustion efficiency, faulty injectors can lead to increased harmful emissions. If your vehicle fails its MOT emissions test, it could be a sign that the fuel delivery system, including the injectors, is not functioning correctly, leading to incomplete combustion and higher pollutant output.

These symptoms can vary in severity, and it's essential to address them promptly to prevent further damage to your vehicle's engine. By being vigilant and recognising these common signs of fuel injector problems, you can take proactive steps to diagnose and resolve issues before they escalate. Ignoring these warning signs can lead to catalytic converter damage, engine wear, and even complete engine failure in extreme cases.

Diagnostic Tools and Techniques: Pinpointing the Problem

When it comes to diagnosing fuel injector issues, having the right tools and techniques is crucial. Let's dive into the world of diagnostic tools and methods used by experts to pinpoint problems with fuel injectors. From fuel pressure testing to visual inspections, these techniques are essential in ensuring your vehicle's fuel system is in top condition. Accurate diagnosis is key to avoiding unnecessary parts replacement and ensuring a lasting repair.

Fuel Pressure Testing

One of the primary diagnostic tools used for assessing fuel injector performance is fuel pressure testing. This method involves connecting a fuel pressure gauge to the fuel rail to measure the pressure of fuel delivered to the injectors. By comparing the live reading to the manufacturer's specified range (typically found in your vehicle's service manual), mechanics can determine if there's an issue with the fuel pump, fuel filter, or a restriction in the fuel lines. Low fuel pressure can indicate a weak fuel pump or a clogged fuel filter, while excessively high pressure might point to a faulty fuel pressure regulator. It's also important to observe how the pressure changes under different engine loads and whether it holds steady after the engine is turned off; a rapid drop in pressure could indicate a leaking injector.

Injector Balance Testing

Another key technique in diagnosing fuel injector problems is injector balance testing, sometimes performed using an advanced diagnostic scanner. This process involves evaluating the performance of each injector to ensure they are delivering fuel evenly. Imbalances in injector performance can lead to engine misfires, rough idling, and poor fuel efficiency. By selectively disabling or monitoring the fuel delivery of individual injectors, mechanics can identify which specific injector is underperforming. Some professional scan tools have a 'cylinder contribution test' or 'injector kill test' function that helps isolate the problematic cylinder. A simple, albeit less precise, method involves carefully listening to each injector with a mechanic's stethoscope to hear its clicking sound, indicating it's actuating. A weak or absent click can indicate an electrical fault or a seized injector.

Visual Inspection

Visual inspection is also a vital tool in diagnosing fuel injector issues. By visually examining the injectors and their surrounding components, mechanics can identify signs of wear, leaks, or blockages. Look for signs of fuel leakage around the injector seals or where the injector connects to the fuel rail. Corrosion on the electrical connectors can indicate poor contact, while physical damage to the injector body or wiring harness should also be noted. The presence of carbon build-up on the injector tips, particularly with direct injection engines, can also be a clear sign of poor spray patterns and reduced efficiency. Always ensure the engine is cool and take appropriate safety precautions when working with fuel system components.

OBD-II Scan Tool Diagnostics

For modern vehicles (post-1996 in the UK), an On-Board Diagnostics (OBD-II) scan tool is indispensable. It can read Diagnostic Trouble Codes (DTCs) stored in the ECU, which often directly point to injector-related issues (e.g., P0201 for Injector Circuit/Open - Cylinder 1, P030x for misfires). Live data streaming allows technicians to monitor parameters such as fuel trims, oxygen sensor readings, and misfire counts for individual cylinders. High positive fuel trims, for instance, could indicate a lean condition caused by a clogged or under-performing injector, while high negative trims might suggest a rich condition from a leaking injector.

Injector Resistance Testing

Using a multimeter, a technician can test the electrical resistance of each injector's solenoid coil. This helps to identify an open circuit (infinite resistance) or a short circuit (very low resistance) within the injector, indicating an electrical fault. The specified resistance value will be unique to your vehicle's make and model and can be found in the service manual. This test isolates whether the problem is mechanical (clogged, leaking) or electrical.

Smoke Test (for vacuum leaks)

While not directly for injectors, a smoke test can help rule out vacuum leaks that often present similar symptoms to fuel injector issues (rough idle, lean codes). A smoke machine introduces non-toxic smoke into the intake system; if smoke escapes from around the injector O-rings or intake manifold gaskets, it indicates a leak that could be affecting the air-fuel mixture.

Interpreting diagnostic results effectively is key to accurately identifying fuel injector problems. Mechanics rely on their expertise and the data gathered from diagnostic tools to make informed decisions regarding repairs or replacements. By understanding the significance of diagnostic findings, technicians can provide targeted solutions to address fuel injector issues. Remember, proper diagnosis is the first step towards resolving fuel injector problems efficiently. By utilising these diagnostic tools and techniques, you can ensure that your vehicle's fuel system operates smoothly and efficiently. Stay proactive in maintaining your fuel injectors to prevent unexpected surprises on the road.

Comparison Table: Clogged vs. Leaking Injector Symptoms

Repair and Maintenance Tips: Keeping Your Injectors in Top Form

When it comes to repairing and maintaining fuel injectors, there are several key tips to keep in mind for optimal performance of your vehicle. Proper care and attention to your fuel injectors can significantly impact the efficiency and longevity of your engine. Let's delve into some expert advice on how to handle repair and maintenance tasks effectively, potentially saving you significant costs in the long run.

Regular Inspection and Cleaning

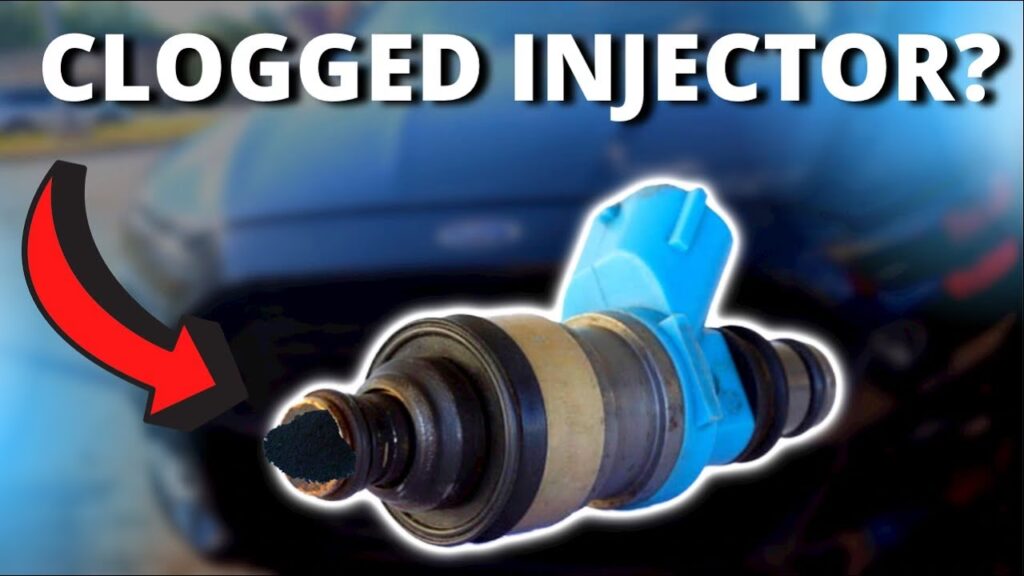

First and foremost, regular inspection and cleaning of fuel injectors are essential to prevent clogs and ensure smooth fuel flow. Buildup of dirt, carbon, and varnish from fuel can lead to injector blockages, affecting fuel delivery and engine performance. Consider using specialised injector cleaning solutions that you add to your fuel tank. While these 'pour-in' cleaners can help with minor deposits, for more severe clogging, a professional fuel system cleaning service is recommended. This involves connecting a powerful cleaning solution directly to the fuel rail, bypassing the fuel tank and pump, to thoroughly flush out deposits. For direct injection engines, where carbon build-up on the intake valves is also an issue, periodic walnut blasting or chemical cleaning of the intake system may be necessary.

Fuel Quality and Additives

Additionally, monitoring fuel quality and using high-quality fuel can contribute significantly to the longevity of your fuel injectors. Poor-quality fuel with contaminants or insufficient detergents can lead to injector issues and impact engine efficiency. Invest in reputable fuel brands, particularly those that advertise detergent additives in their fuel (e.g., 'premium' or 'super' unleaded often contain higher concentrations). Regular use of a quality fuel system cleaner additive, particularly one designed for modern injection systems, can help prevent deposits from forming in the first place, acting as a preventative measure rather than a cure.

Proactive Preventive Maintenance

Furthermore, staying proactive with preventive maintenance is key to avoiding major injector problems. Follow the manufacturer's recommended maintenance schedule for your vehicle, including regular tune-ups and fuel system inspections. This often includes replacing the fuel filter at specified intervals. A clogged fuel filter can starve the injectors of adequate fuel pressure, potentially leading to premature wear on the fuel pump and inconsistent fuel delivery. Addressing minor issues promptly, such as a slight rough idle or a marginal increase in fuel consumption, can prevent larger, more costly problems down the road. Don't wait for the Check Engine Light to illuminate before taking action.

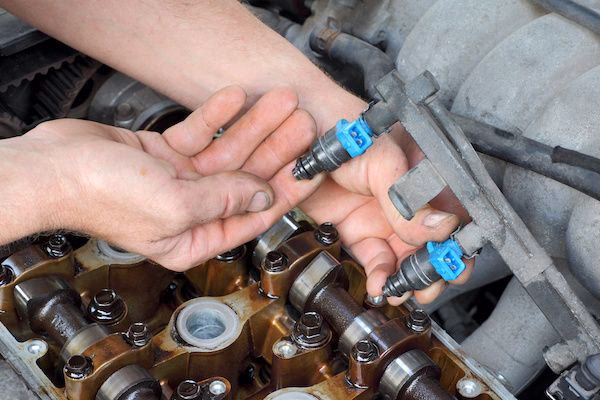

Professional Replacement and OEM Parts

When it comes to replacing fuel injectors, it's crucial to use quality, OEM (Original Equipment Manufacturer) or equivalent parts to ensure proper fit and function. Cheap aftermarket injectors might not meet the precise flow rates or spray patterns required by your engine's ECU, leading to ongoing performance issues or even damage. Consult with a professional mechanic or refer to your vehicle's manual for guidance on selecting the right injectors for your car. Proper installation is absolutely essential to prevent leaks, ensure correct electrical connections, and guarantee optimal performance. This often requires specialised tools and knowledge, so it's best left to experienced technicians.

DIY Maintenance with Cleaning Kits

Moreover, consider investing in a fuel injector cleaning kit for DIY maintenance tasks, if you are comfortable with such procedures. These kits typically include cleaning solutions and tools for thorough injector cleaning. However, it's important to differentiate between 'on-car' cleaning kits (which still require some technical knowledge) and 'off-car' ultrasonic cleaning and flow testing, which is a professional service. Regularly using good quality in-tank cleaners can help prevent buildup and maintain injector efficiency, but they are not a substitute for professional diagnosis and cleaning if significant problems arise.

Overall Fuel System Health

Lastly, pay attention to the overall health of your vehicle's fuel system, including fuel filters and fuel lines. A well-maintained fuel system is crucial for the proper functioning of fuel injectors. Replace fuel filters as recommended by your vehicle's manufacturer; this is a relatively inexpensive part that plays a huge role in protecting your injectors. Inspect fuel lines for any signs of damage, cracks, or leaks, as these can lead to pressure drops and introduce contaminants into the system. Ensuring a clean and consistent fuel supply is the best way to extend the life of your fuel injectors.

By following these repair and maintenance tips, you can ensure that your fuel injectors operate efficiently and contribute to the overall performance of your vehicle. Remember, proper care and attention to your fuel system can go a long way in preventing costly repairs and keeping your engine running smoothly for many years to come.

Frequently Asked Questions About Fuel Injectors

What are the common symptoms of fuel injector problems?

Common symptoms of fuel injector issues include engine misfires, which manifest as a rough or shaky engine, particularly during idle or acceleration. You might also notice a significant decrease in acceleration and overall engine power. Increased fuel consumption is another strong indicator, as faulty injectors can cause the engine to run inefficiently. A strong fuel smell, especially near the engine, could indicate a leaking injector. Finally, the illumination of your car's Check Engine Light, often accompanied by specific diagnostic trouble codes (DTCs) related to misfires or fuel trim issues, is a common sign.

How do fuel injectors work in a vehicle?

Fuel injectors are precision electromechanical valves controlled by the vehicle's Engine Control Unit (ECU). Their primary function is to atomise and deliver the precise amount of fuel into the engine cylinders at the right time. When the ECU sends an electrical signal, a solenoid within the injector opens, allowing highly pressurised fuel to spray through a tiny nozzle. This spray atomises the fuel into a fine mist, which then mixes with air for efficient combustion. This precise control ensures optimal fuel economy, power output, and reduced emissions.

What diagnostic tools are used to identify fuel injector problems?

Several tools are used to diagnose fuel injector issues. A fuel pressure tester is used to measure the fuel supply pressure to the injectors, identifying issues with the fuel pump or filter. An OBD-II scan tool is essential for reading diagnostic trouble codes (DTCs), monitoring live data such as fuel trims and misfire counts, and performing injector balance tests. A mechanic's stethoscope can help listen for the distinct clicking sound of each injector to determine if it's actuating. A multimeter is used to test the electrical resistance of the injector's coil to check for electrical faults. In professional settings, an ultrasonic cleaner and flow bench can accurately test and clean injectors off the vehicle.

How can I maintain my fuel injectors for optimal performance?

To ensure the longevity and efficiency of fuel injectors, regular maintenance is essential. This includes consistently using high-quality fuel, ideally from reputable stations, as these often contain detergent additives that help prevent deposits. Consider using an aftermarket fuel system cleaner additive every few thousand miles, as recommended by the product manufacturer. Following your vehicle's manufacturer-recommended service intervals for fuel filter replacement is also crucial, as a clean fuel filter protects the injectors from contaminants. Lastly, addressing any early symptoms of fuel system issues promptly can prevent minor problems from escalating into costly repairs.

Can I clean fuel injectors myself, or do I need a professional?

For minor build-up, using a high-quality, 'pour-in-tank' fuel system cleaner can be effective. These are generally safe and easy to use for DIY enthusiasts. However, for significant clogging or if you suspect a leaking or malfunctioning injector, professional cleaning or replacement is highly recommended. Professionals often use an 'on-car' fuel system cleaning machine that delivers a concentrated cleaning solution directly to the fuel rail, or they may remove the injectors for 'off-car' ultrasonic cleaning and flow testing, which is far more thorough. Attempting complex repairs without the right tools and knowledge can cause further damage.

How much does it cost to replace a fuel injector in the UK?

The cost of replacing a fuel injector in the UK can vary significantly depending on the vehicle's make, model, engine type (e.g., petrol vs. diesel, port injection vs. direct injection), and whether you're replacing one or all injectors. The cost typically ranges from £150 to £400 per injector for the part itself, plus labour charges, which can add another £100 to £300 per injector, or more if access is difficult. Direct injection injectors, in particular, tend to be more expensive. It's always advisable to get a detailed quote from a reputable garage.
