Mastering Shader Bump Maps

Introduction to Shader Bump Maps

In the realm of 3D graphics, achieving a sense of realism and intricate detail is paramount for creating visually compelling scenes. While high-polygon models can certainly contribute to this, a more efficient and often more flexible approach involves the use of shaders and their associated texture maps. Among these, bump maps play a crucial role in simulating surface imperfections, giving the illusion of depth and texture without actually altering the geometry of your model. This article will delve into the fundamental concepts of bump mapping within shader creation, offering practical guidance and troubleshooting tips for both beginners and experienced users.

What is a Bump Map?

At its core, a bump map is a grayscale image that is used to simulate surface relief. It works by interpreting the varying shades of gray as height differences. Lighter shades typically represent areas that are raised, while darker shades represent areas that are indented. When applied to a shader, this information is used to perturb the surface normals. This perturbation tricks the lighting engine into thinking that the surface has actual bumps, ridges, or depressions, even though the underlying geometry remains perfectly smooth. This technique is incredibly efficient as it avoids the computational cost of adding millions of extra polygons to a model.

Bump Maps vs. Normal Maps: A Key Distinction

A common point of confusion for newcomers to 3D texturing is the difference between bump maps and normal maps. While both achieve a similar goal of simulating surface detail, they do so in fundamentally different ways:

In essence, a bump map tells the shader "how high" to make a point, whereas a normal map tells the shader "which way" the surface is facing at that point. For detailed work, especially with fine details like scratches or intricate patterns, normal maps are often preferred due to their ability to capture more complex surface orientations. However, for simpler height variations like subtle dents or overall texture, bump maps can be perfectly adequate and sometimes easier to create.

Adding a Bump to Your Shader

The process of incorporating a bump map into your shader can vary slightly depending on the specific 3D software or render engine you are using. However, the general workflow remains consistent. Let's consider a common scenario using a node-based shader editor, such as those found in Blender or similar applications.

Step 1: Prepare Your Bump Map

First, you'll need a suitable bump map. This is typically a grayscale image. You can create these yourself using image editing software like Photoshop or GIMP, or you can find them readily available online. When creating your own, remember that pure white will be the highest point, pure black the lowest, and shades of gray will represent intermediate heights.

Step 2: Import and Apply the Bump Map in Your Shader Editor

Within your shader editor, you'll need to add an image texture node and load your prepared bump map. This node will then be connected to a specific input on your shader node that handles displacement or bump information.

Consider the following common setup:

• Image Texture Node: Load your bump map here. Ensure it's set to 'Non-Color' data if your software distinguishes between color and data textures.
• Bump Node (or similar): Many shader systems provide a dedicated 'Bump' node. This node takes the grayscale image as an input (usually connected to its 'Height' or 'Factor' input) and outputs a normal vector.
• Principled Shader / Material Output: The output of the Bump node (which is a normal vector) is then connected to the 'Normal' input of your main shader node (e.g., the Principled BSDF in Blender) or directly to the material output.

Step 3: Adjusting Bump Parameters

Once connected, you'll likely have options to control the strength and, in some cases, the mid-level of the bump effect. Experimenting with these values is key to achieving the desired level of detail. Too little strength, and the effect will be barely noticeable; too much, and it can look unnatural and "spiky."

Key Parameters to Consider:

• Strength: Controls the intensity of the bump effect.
• Distance (or Scale): In some nodes, this might influence how the height data is interpreted, effectively scaling the perceived depth.
• Mid-level: This parameter, often found in more advanced displacement setups, defines the gray value that represents zero displacement.

Troubleshooting Common Bump Mapping Issues

It's not uncommon to encounter difficulties when first implementing bump maps. Here are some frequently asked questions and their solutions:

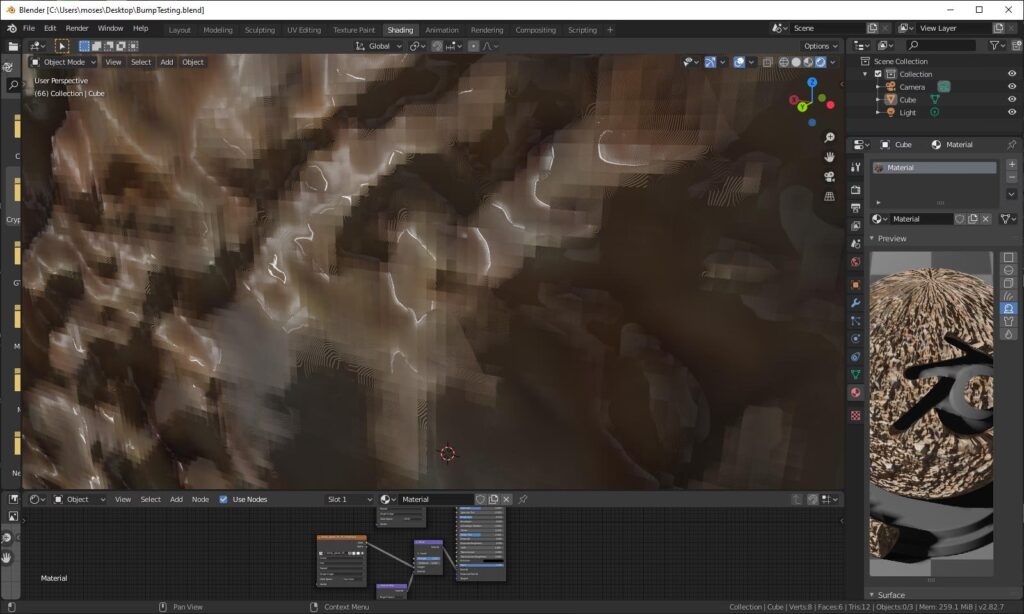

Q1: My bump map isn't affecting the surface at all. What could be wrong?

There are several potential reasons for this:

• Incorrect Connection: Ensure your bump map's output is correctly connected to the 'Normal' input of your shader. If you're using a dedicated Bump node, make sure the image texture is plugged into its 'Height' input and the Bump node's output is plugged into the shader's 'Normal'.
• Incorrect Texture Data Type: Many renderers require grayscale textures used for displacement or bump to be set to 'Non-Color' data. If it's interpreted as color data, the values will be incorrect.
• Bump Strength Too Low: The 'Strength' parameter on the Bump node might be set too low. Try increasing it to see if the effect becomes visible.
• UV Mapping Issues: If your model doesn't have proper UV unwrapping, the texture (and therefore the bump map) won't be applied correctly to the surface. Check your UVs.
• Shader Node Setup: Double-check that you haven't inadvertently overridden the normal input with another node. Sometimes, a "Clearcoat Normal" or similar input can interfere if not intended.

Q2: My bump map looks strange or distorted.

Distortion often points to issues with how the texture is being applied:

• UV Mapping: As mentioned above, incorrect or overlapping UVs are a prime suspect. Ensure your model has clean UVs.
• Texture Coordinates: Verify that the texture is using the correct texture coordinates (usually 'UV').
• Image Format: While less common, some image formats might handle grayscale data differently. Try saving your bump map as a lossless format like PNG or TIFF.

Q3: Is a normal map a bump map? (Revisited)

As we discussed, no, they are not the same, although they serve a similar purpose. If you're trying to use a normal map where a bump map is expected, you'll need to convert it. This usually involves using a 'Normal Map' node (or equivalent) which takes the RGB normal map and interprets it correctly to modify the shader's normals. Plugging a normal map directly into a bump node's height input will lead to unpredictable and incorrect results.

Q4: How can I combine multiple textures for bump?

You can indeed layer multiple bump effects. This is often done by:

• Applying each texture to a separate Bump node.
• Using a 'Mix RGB' node (or similar) to blend the outputs of multiple Bump nodes. You can control the mix factor to determine how much of each effect is present.
• Alternatively, you can mix the grayscale height maps before they go into a single Bump node, using the 'Mix RGB' node.

Experiment with different blending modes (Add, Multiply, Mix) on the 'Mix RGB' node to achieve various combinations of surface details. For example, adding a fine noise texture to a larger bump pattern can create more realistic micro-surface detail.

Advanced Techniques and Considerations

Procedural Bump Mapping

Beyond using image textures, many 3D applications allow for procedural generation of bump maps using noise functions like Noise, Musgrave, Voronoi, etc. These procedural textures can be generated mathematically and offer infinite variation without the need for external image files. You can then feed these procedural noise outputs directly into a Bump node.

Benefits of Procedural Bump:

• Scalability: Easily adjust the scale and detail without resolution loss.
• Memory Efficiency: No large image files to load.
• Infinite Variation: Generate unique patterns on the fly.

Displacement vs. Bump Mapping

While bump mapping simulates surface detail by altering normals, displacement mapping actually modifies the geometry of the mesh during rendering. This is a more computationally intensive process but can produce much more convincing results for significant surface changes, like deep carvings or intricate relief. Displacement maps are typically also grayscale height maps, but they are fed into a different shader input (often labeled 'Displacement') and require specific render settings to function correctly.

Combining Noise, Musgrave, and Color Ramps

As alluded to in the initial prompt, combining different noise patterns and using Color Ramps to control their intensity and contrast is a powerful way to create custom bump effects. A Noise texture might provide general surface roughness, while a Musgrave texture could add more crystalline or fractal patterns. A Color Ramp node allows you to precisely control the range of values from these textures, effectively sharpening or softening the transitions and thus the perceived bump.

For instance:

1. Generate a base bump with a Noise texture.
2. Add finer details with a Musgrave texture.
3. Use a Color Ramp to refine the output of the Musgrave texture, perhaps making sharper ridges.
4. Mix the refined Musgrave output with the Noise output using a Mix node.
5. Connect the final mixed output to a Bump node.

Conclusion

Mastering shader bump maps is a fundamental skill for anyone looking to add depth and realism to their 3D creations. By understanding how bump maps work, differentiating them from normal maps, and learning the practical steps for implementation and troubleshooting, you can significantly enhance the visual fidelity of your models. Don't be afraid to experiment with different textures, procedural methods, and parameter adjustments. The journey of discovering what works best often involves trial and error, but the results are well worth the effort. Happy shading!
