04/03/2005
When it comes to bicycle braking systems, Shimano has long been a name synonymous with reliability and performance. For riders seeking a dependable and budget-friendly hydraulic disc brake setup, the Shimano BL-MT201 lever paired with the BR-UR300 calliper often comes into consideration. But are they a truly good choice for your bike? This article aims to provide a comprehensive overview, dissecting their performance, value, and suitability for various cycling disciplines.
Understanding the Shimano BL-MT201/BR-UR300 Combination
The Shimano BL-MT201 is an entry-level hydraulic disc brake lever, typically designed for recreational or general-purpose cycling. It's often found on hybrids, entry-level mountain bikes, and some touring bikes. The lever itself is known for its comfortable ergonomics and straightforward operation.
The BR-UR300 is a widely used hydraulic disc brake calliper that complements the MT201 lever. It's a 2-piston design, which is standard for most non-downhill mountain biking applications. This combination is designed to offer a noticeable upgrade over mechanical disc brakes or rim brakes, providing better stopping power and modulation.
Performance Characteristics
The primary appeal of hydraulic disc brakes lies in their superior performance compared to their mechanical counterparts. The BL-MT201/BR-UR300 setup is no exception:
- Stopping Power: While not the most powerful brakes on the market, the MT201/UR300 offers a significant improvement in stopping force over cable-actuated systems. They are generally sufficient for most everyday riding, including commuting and light trail use.
- Modulation: This refers to the fine control you have over the braking force. The MT201 levers provide decent modulation, allowing riders to gradually increase or decrease braking pressure. This is crucial for maintaining control on descents and in varied terrain.
- Consistency: Hydraulic systems are less susceptible to contamination from dirt and water than mechanical brakes, leading to more consistent performance over time.
- Lever Feel: The BL-MT201 lever is designed for comfort, with a relatively wide lever blade that can be operated with one or two fingers. The feel is generally smooth and progressive.
Key Features and Technologies
Shimano often incorporates trickle-down technology from its higher-end groupsets into its more affordable offerings. While the MT201/UR300 might not boast the advanced features of XTR or XT, they still benefit from Shimano's engineering:
- Shimano Hydraulic Fluid: These brakes use Shimano's proprietary mineral oil. This fluid is non-corrosive and less hygroscopic than DOT fluid, meaning it doesn't absorb water as readily, contributing to longer service intervals and more stable performance.
- Two-Piston Design: The BR-UR300 calliper features two opposing pistons that push the brake pads against the rotor. This is a standard and effective design for most cycling applications.
- Easy Bleed System: Shimano's bleeding process is generally considered straightforward. A fully bled lever and calliper means that all air has been removed from the hydraulic system, ensuring optimal braking performance. Air in the lines can lead to a spongy lever feel and reduced stopping power.
Cost and Value Proposition
One of the most attractive aspects of the Shimano BL-MT201/BR-UR300 is its affordability. These brakes are positioned as an entry-level option, making them an accessible upgrade for many cyclists.
How much does a Shimano BL-MT201 brake lever cost?
The price of a single Shimano BL-MT201 brake lever can vary depending on the retailer and whether it's purchased as part of a set or individually. Typically, you might expect to pay anywhere from £20 to £40 for a single lever. Complete front or rear brake sets (lever, hose, and calliper) often retail between £50 and £90, depending on the included rotor and adapter.
Value Comparison:
When compared to other entry-level hydraulic disc brakes from brands like SRAM or Tektro, Shimano's offerings often represent a strong balance of price, performance, and reliability. While more expensive options offer greater power and finer modulation, the MT201/UR300 provides a solid foundation for those looking to transition to hydraulic disc brakes without breaking the bank.
| Feature | Shimano BL-MT201/BR-UR300 | Entry-Level Competitor (e.g., Tektro M275) | Mid-Range Option (e.g., Shimano MT400 Series) |
|---|---|---|---|
| Price Point | £ | £ | ££ |
| Stopping Power | Good | Fair to Good | Very Good |
| Modulation | Fair | Fair | Good |
| Lever Ergonomics | Comfortable | Standard | Improved |
| Build Quality | Good | Good | Very Good |
| Ideal Use | Commuting, Recreational, Light Trails | Commuting, Recreational | Trail Riding, All-Mountain |
Installation and Maintenance
Installing hydraulic disc brakes involves a few more steps than mechanical brakes, primarily related to routing the hydraulic hose and potentially bleeding the system.
- Hose Routing: Ensure the hydraulic hose is routed cleanly and securely through your bike frame. Measure and cut the hose to the correct length, using the appropriate fittings (olives and barbs).
- Calliper Mounting: The BR-UR300 calliper typically uses the standard Post Mount or IS Mount (with an adapter). Ensure it's correctly aligned with the rotor.
- Bleeding: As mentioned, a fully bled system is crucial. If the brakes come pre-bled (which is common for complete sets), you may only need to perform a bleed if you cut the hose or if air has entered the system. The process involves using a bleed kit, Shimano mineral oil, and a syringe to push fluid through the system, expelling air.

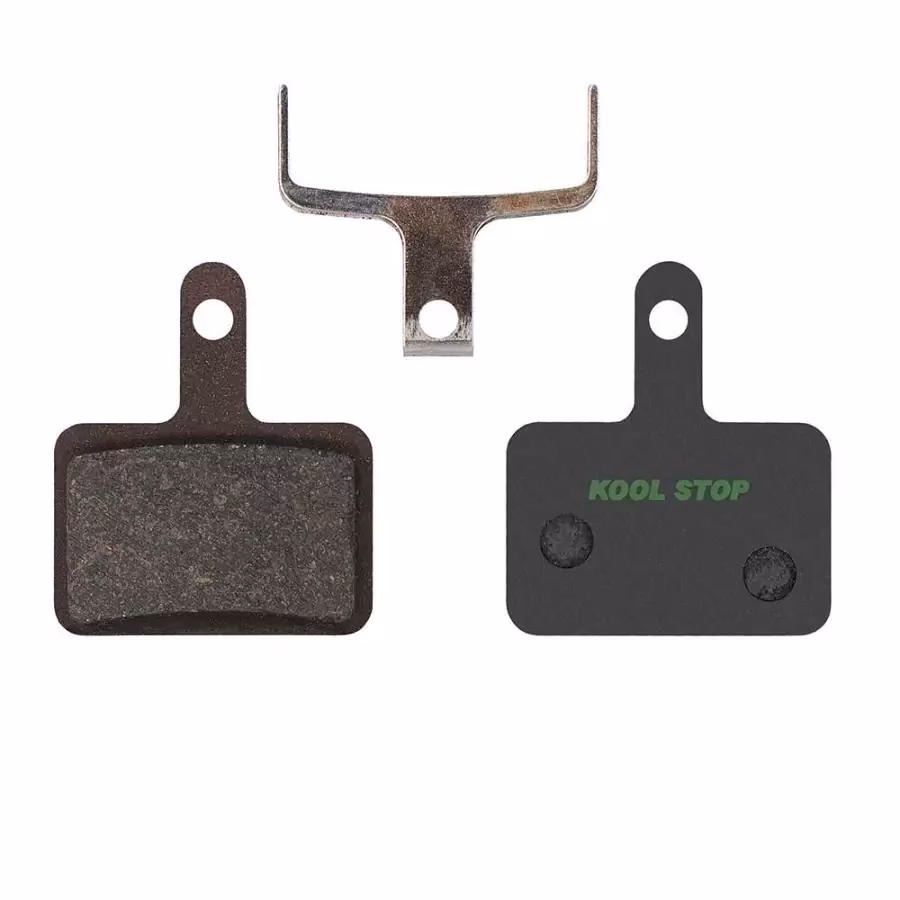

- Pad Replacement: Shimano uses resin (organic) brake pads as standard with the MT201/UR300. These offer good initial bite and quiet operation but can wear faster and fade under heavy use compared to metallic (sintered) pads. Replacement is usually a simple process of removing a pin or bolt and sliding the old pads out.
Are BL-MT201/BR-UR300 Brakes a Good Choice?
Yes, the Shimano BL-MT201/BR-UR300 brakes are generally a good choice for:
- Cyclists upgrading from mechanical disc brakes or rim brakes.
- Commuters and recreational riders who need reliable stopping power.
- Budget-conscious buyers looking for a dependable hydraulic system.
- Those building or upgrading entry-level to mid-range bikes.
They offer a solid performance upgrade at an accessible price point. However, if you are a more aggressive rider, frequently tackle steep descents, or participate in demanding off-road riding, you might consider Shimano's higher-tier offerings (like the Deore M6100 series or SLX M7100 series) for increased power, better heat management, and superior modulation.
Frequently Asked Questions (FAQs)
Q1: Can I use different rotors with the BR-UR300 calliper?
A1: Yes, the BR-UR300 calliper is compatible with standard Shimano rotors (like RT10, RT26, RT30, RT54, RT56, RT64, RT66, RT70) and most other brands that use the standard 6-bolt or Center Lock mounting system, provided the rotor size is compatible with your frame and fork.
Q2: What kind of brake pads do the BR-UR300 brakes use?
A2: They typically come with Shimano B05S resin (organic) pads. You can also use metallic (B05S-MX) pads for increased durability and performance in wet conditions, though they may produce more noise.
Q3: Are these brakes suitable for mountain biking?
A3: For light trail riding, cross-country, and general off-road use, they are suitable. For more demanding enduro, downhill, or even aggressive trail riding, you would benefit from more powerful and robust brake systems.
Q4: How do I know if my brakes need bleeding?
A4: Symptoms of needing a bleed include a spongy or soft lever feel, reduced braking power, or if the brake lever reaches the handlebar before significant braking force is applied. If you've recently cut the hose or replaced a component, bleeding is usually necessary.
Q5: Can I mix and match Shimano levers and callipers from different series?
A5: Generally, yes, as long as they both use Shimano mineral oil. For example, an MT201 lever can usually be paired with an MT400 or MT500 calliper, and vice versa. However, it's always best to check compatibility charts or consult with a bike shop if unsure, as lever feel and power output can vary.
In conclusion, the Shimano BL-MT201/BR-UR300 brake set offers an excellent entry point into the world of hydraulic disc braking. They provide a reliable, consistent, and significantly improved stopping experience over older brake technologies, making them a smart choice for a wide range of cyclists.
