The Humble Bicycle Brake Cable Explained

Every cyclist knows the importance of reliable brakes. Whether you're navigating busy city streets, descending a steep country lane, or simply coming to a gentle halt, the ability to stop safely and effectively is paramount. At the heart of most mechanical braking systems on bicycles lies a surprisingly simple yet incredibly vital component: the brake cable. Often overlooked, this unassuming cable is the crucial link between your hand on the lever and the brake mechanism at your wheel, translating your intent to stop into physical action. Understanding what a brake cable is, how it functions, and how to maintain it, is not just about keeping your bike in good working order; it's fundamental to your safety and enjoyment on two wheels.

What Exactly is a Bicycle Brake Cable?

In essence, a bicycle brake cable is a flexible, multi-strand steel wire designed to transmit force from the brake lever, located on the handlebars, to the brake caliper or mechanism at the wheel. Unlike hydraulic braking systems which use fluid pressure, mechanical brakes rely on this direct pulling action. The cable itself consists of two main parts: an inner wire and an outer casing, often referred to as housing. Together, these components create a low-friction conduit that allows the rider to precisely control their speed and stop their bicycle.

The design of a bicycle brake cable is a marvel of engineering simplicity. It needs to be strong enough to withstand significant tension, flexible enough to navigate bends in the bike frame, and smooth enough to operate with minimal effort. This seemingly straightforward component is critical for converting the rider's squeeze on the brake lever into the clamping force required to slow or stop the wheels. Without a properly functioning brake cable, the most sophisticated brake calipers are rendered useless, highlighting its indispensable role in cycling safety.

The Anatomy of a Brake Cable System

To truly appreciate the brake cable, it's helpful to break down its constituent parts and understand how they interact within the larger braking system.

The Inner Wire

This is the core of the brake cable system, a multi-strand steel wire that runs from the brake lever to the brake caliper. At one end, it features a small, mushroom-shaped or cylindrical "head" (also known as a nipple or barrel end) that slots into a specific recess within the brake lever. This head prevents the cable from pulling through the lever. The other end of the cable is typically clamped by a bolt on the brake caliper, allowing tension to be applied. Inner wires are designed for strength and minimal stretch, ensuring that the force applied at the lever is efficiently transferred to the brake mechanism. The quality of the inner wire significantly impacts braking performance and longevity.

The Outer Casing (Housing)

The outer casing, or housing, acts as a protective sleeve and a crucial guide for the inner wire. It's essentially a rigid, incompressible conduit that allows the inner wire to pull freely within it, even when routed around bends in the bike frame. Brake housing is constructed from a coiled steel wire or parallel steel strands, reinforced with plastic or Kevlar, and then covered in a protective PVC outer layer. This construction ensures that when you pull the brake lever, the housing doesn't compress or shorten, which would negate the pulling action on the inner wire. Instead, the force is directed entirely to pulling the inner wire, thus activating the brakes. Housing is pre-lubricated internally to reduce friction and allow for smooth cable movement.

Ferrules and Cable End Caps

Small but significant, ferrules are metal or plastic caps that fit over the ends of the outer casing. Their purpose is twofold: they prevent the housing from fraying and provide a smooth, precise fit into the various cable stops on the bike frame and brake components. This ensures that the housing seats correctly and doesn't compress unevenly, which could lead to spongy brake feel. Cable end caps, or crimps, are small metal caps crimped onto the very end of the inner wire after it has been cut to length. They prevent the individual strands of the inner wire from fraying, which not only looks tidier but also makes future maintenance easier and prevents the sharp strands from causing injury.

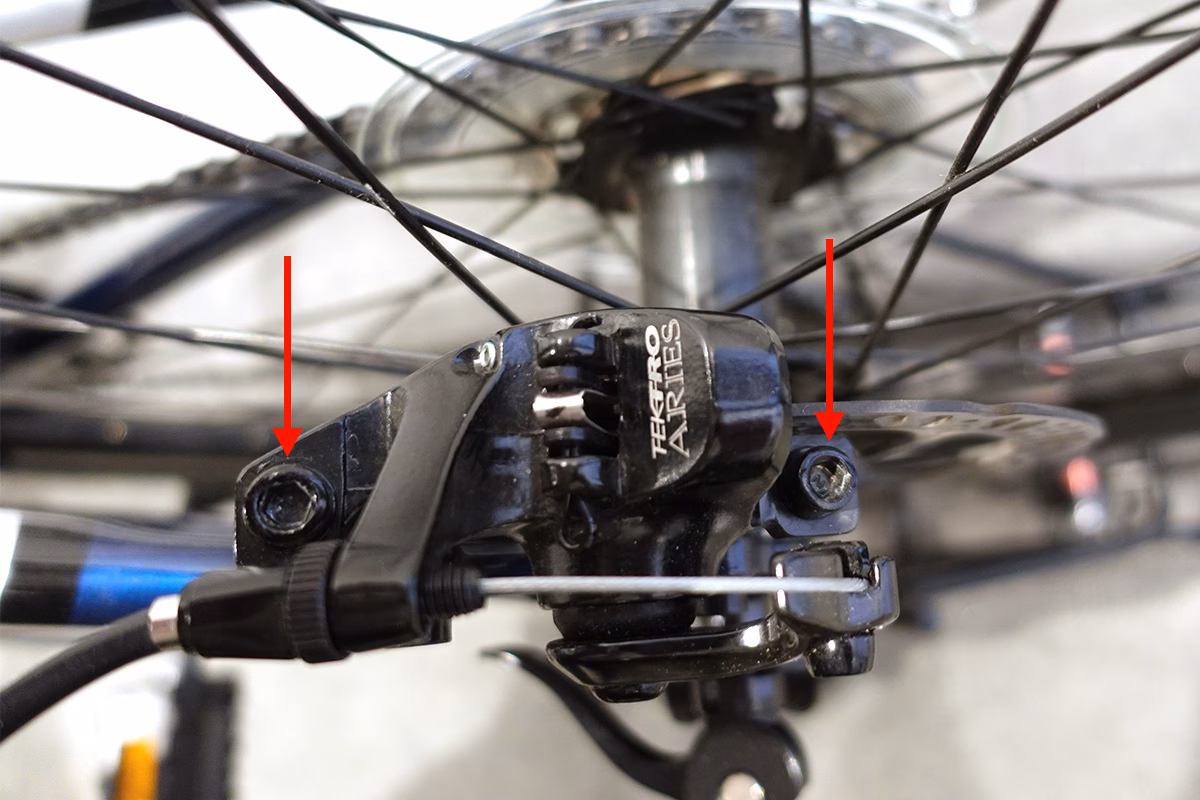

Brake Levers and Calipers

While not strictly part of the cable itself, the brake levers and calipers are integral to the cable's function. The brake lever, mounted on the handlebars, provides the mechanical advantage for the rider to pull the cable with sufficient force. When squeezed, it pulls the inner wire. The brake caliper, whether a rim brake (like V-brakes or calliper brakes) or a mechanical disc brake, is the component that receives the cable's tension. This tension causes the brake pads to move, clamping onto the wheel rim or rotor, thereby creating friction to slow or stop the bicycle.

How Brake Cables Deliver Stopping Power

The operation of a brake cable system is a classic example of simple machines working in harmony. When a cyclist squeezes the brake lever, the lever pivots, effectively shortening the distance between its pivot point and the cable attachment point. This action pulls the inner brake cable. Because the outer housing is fixed at various points along the bike frame and at the brake caliper, and because it is designed to be incompressible, the pulling force exerted on the inner wire is transmitted directly to the brake caliper. The caliper then converts this linear pulling motion into a clamping force that presses the brake pads against the wheel's rim or disc rotor, generating the friction necessary to slow or stop the bike.

This system relies on the principle of mechanical advantage. The design of the brake lever amplifies the relatively small force exerted by the rider's hand into a much greater force at the brake pads. The smooth, low-friction movement of the inner cable within its housing is critical for this process to be efficient and for the rider to have precise control over their braking. Any stickiness, fraying, or contamination within the cable system can significantly reduce braking performance and feel, making stopping less effective and potentially dangerous.

Decoding Different Types of Brake Cables

While the fundamental principle remains the same, brake cables come in various types, primarily distinguished by their head shape, material, and coatings, each tailored for specific bicycle applications and performance characteristics.

Road vs. Mountain Bike Cables

The most common distinction lies in the cable head (or nipple). Road bike brake cables typically feature a smaller, cylindrical head (often called a "pear" or "barrel" nipple) designed to fit into road brake levers. Mountain bike (MTB) brake cables, on the other hand, usually have a larger, mushroom-shaped head. Some universal cables feature both heads, allowing you to snip off the one you don't need. It's crucial to use the correct type of cable for your brake levers, as an ill-fitting head can slip out, leading to immediate brake failure.

Material Matters: Galvanised vs. Stainless Steel

• Galvanised Steel: These are the most basic and economical cables. They are made from steel wires that have been coated with zinc (galvanised) to provide some corrosion resistance. While functional, they tend to be rougher and can stretch more over time compared to stainless steel, leading to a less smooth brake feel and requiring more frequent adjustment.
• Stainless Steel: A step up in quality, stainless steel cables offer superior corrosion resistance and are generally smoother and stronger than galvanised options. They provide a crisper brake feel and require less maintenance due to their inherent resistance to rust and lower stretch. Stainless steel cables are the most common choice for reliable performance.

The Rise of Coated Cables

For premium braking performance, many cyclists opt for coated cables. These are typically stainless steel cables that have an additional layer of coating applied to the inner wire to further reduce friction. Common coatings include:

• PTFE (Teflon): Polytetrafluoroethylene coatings create an incredibly slick surface, significantly reducing friction between the inner wire and the housing. This results in an exceptionally light and smooth brake lever feel, making braking effortless and precise. They are particularly popular for high-performance bikes.
• Slick Polymer: Similar to PTFE, these are proprietary polymer coatings designed to achieve ultra-low friction. Brands like Shimano's OptiSlick or SRAM's SlickWire offer similar benefits to PTFE, providing a noticeable improvement in braking modulation and responsiveness.

While coated cables offer superior performance, they can be more expensive and sometimes require specific housing designed to work with their delicate coatings, as some coatings can wear off if used with standard housing, leading to reduced performance over time.

Essential Maintenance for Optimal Braking

Proper maintenance of your brake cables is vital for safety and performance. Neglected cables can lead to sluggish braking, increased effort at the lever, or even complete brake failure.

Recognising Signs of Wear and Tear

Regular inspection of your brake cables is a must. Look for:

• Fraying: Especially near the cable ends at the lever or caliper, or where the cable exits the housing. Fraying indicates the cable is weakening and could snap.
• Rust or Corrosion: A common issue, particularly with galvanised cables or in wet environments. Rust increases friction and reduces cable strength.
• Sluggish or Sticky Feel: If your brake lever doesn't snap back quickly or feels rough when pulled, it's likely due to friction within the cable system, often from dirt ingress or lack of lubrication.
• Excessive Stretch: While all cables stretch slightly when new, persistent need for adjustment might indicate an old, stretched cable or housing compression issues.
• Damaged Housing: Cracks, kinks, or worn spots in the outer housing can compromise its integrity and lead to increased friction or cable binding.

Cleaning, Lubrication, and Adjustment

Keeping your cables clean and lubricated will extend their life and improve performance. Periodically, you can unhook your brake calipers, slide the housing away from the cable stops, and apply a light lubricant (like a dry PTFE-based lubricant) to the inner wire. Wipe away any excess. Ensure the housing ends and ferrules are clean. Cable tension adjustment is also crucial. As cables bed in or stretch slightly, you may need to adjust the barrel adjusters on your levers or calipers to take up slack and maintain proper brake pad clearance. Aim for a firm lever feel with good responsiveness and no excessive free play before the pads engage.

When to Replace Your Cables and Housing

While cables can last a long time with good maintenance, they don't last forever. It's generally recommended to replace brake cables and housing at least once a year, or more frequently if you ride in harsh conditions (wet, muddy, dusty) or notice any of the severe signs of wear mentioned above. Replacing both the inner wire and the outer housing simultaneously is always best practice. This ensures a completely clean, low-friction system, restoring your brakes to their optimal performance and ensuring your safety. The cost is minimal compared to the enhanced braking performance and peace of mind it provides.

Troubleshooting Common Brake Cable Issues

Understanding how to diagnose common problems can save you a trip to the bike shop.

Spongy or Ineffective Brakes

If your brake lever pulls all the way to the handlebar without much stopping power, or feels "spongy," it's often due to excessive slack in the cable, worn brake pads, or air in hydraulic systems (though this article focuses on mechanical). For cable systems, first check cable tension. Adjust barrel adjusters to remove slack. If that doesn't work, the cable or housing might be excessively stretched or compressed, indicating a need for replacement. Also, ensure your brake pads are not worn down and are properly aligned with the rim or rotor.

Sticky or Sluggish Cable Action

This is a classic sign of friction within the system. It can be caused by dirt and grime ingress into the housing, lack of lubrication, internal rust, or kinks in the housing. Try lubricating the cable first. If the problem persists, the cable and housing likely need to be replaced. Ensure that the housing runs smoothly without sharp bends or kinks, which can impede cable movement.

The Dreaded Cable Snap

A cable snapping while riding is a serious safety concern, immediately rendering that brake useless. This usually happens due to severe fraying, often at the lever end where the cable head sits, or at the caliper end where it's clamped. Regular inspection for fraying, especially in these high-stress areas, is the best preventative measure. If you see even a few broken strands, replace the cable immediately. This highlights the importance of timely replacement for overall system longevity and rider safety.

Comparative Table: Brake Cable Types

Here’s a quick overview of common brake cable types to help you choose the right one for your needs:

Frequently Asked Questions (FAQs)

Q: Can I use road brake cables on a mountain bike?

A: Not usually, due to the different cable head shapes. Road brake levers require a cylindrical "pear" or "barrel" shaped head, while mountain bike levers typically use a larger, mushroom-shaped head. Using the wrong type will result in the cable not seating correctly and being unsafe. Some "universal" cables come with both heads, allowing you to snip off the one you don't need.

Q: How often should I replace my bicycle brake cables?

A: It's generally recommended to replace both the inner cable and outer housing at least once a year, or every 3,000-5,000 miles, whichever comes first. If you ride frequently in wet, muddy, or dusty conditions, or if you notice signs of fraying, rust, or sluggish operation, replace them more often. Regular inspection is key.

Q: What's the difference between brake and gear cables?

A: While both are cables, they are not interchangeable. Brake cables are thicker (typically 1.5-1.6mm diameter) and stronger, designed to withstand the higher tension required for braking. Gear cables are thinner (typically 1.1-1.2mm diameter) and more flexible, designed for precise shifting. They also have different head shapes. Using a gear cable for brakes is extremely dangerous as it may snap under braking force.

Q: Do I need to lubricate my brake cables?

A: Yes, regular lubrication of the inner wire (especially where it passes through the housing) can significantly reduce friction, improve brake feel, and extend the life of your cables. Use a light, dry lubricant like a PTFE-based spray. Many modern housings come with an internal lubricant, but an occasional top-up is beneficial.

Q: My brakes feel spongy after replacing the cable. What's wrong?

A: A spongy feel usually indicates too much slack in the cable or that the cable and housing haven't fully "seated" yet. First, ensure the cable is properly tensioned at the caliper and that there's no excessive slack. Use the barrel adjusters to fine-tune. Sometimes, taking the bike for a short ride and applying the brakes firmly a few times will help the cables and housing settle, after which you might need to adjust tension again. If the problem persists, double-check that all ferrules are seated correctly and that the housing isn't kinked.

Q: Can I cut brake cable housing with regular wire cutters?

A: It's highly recommended to use dedicated cable cutters (often called "cable housing cutters" or "bike cable cutters"). Regular wire cutters will often crush and deform the housing, especially the coiled steel strands, leading to a poor fit, increased friction, and reduced performance. Proper cable cutters make a clean, square cut, essential for optimal braking.

Conclusion: The Unsung Hero of Cycling Safety

The bicycle brake cable, despite its unassuming appearance, is a cornerstone of cycling safety and performance. It's the critical link that translates your intent into action, providing the stopping power essential for navigating the world on two wheels. While often out of sight, a well-maintained brake cable system ensures crisp, responsive braking, instilling confidence and enhancing your overall riding experience. Neglecting this vital component can lead to degraded performance, increased effort, and, most importantly, compromised safety. By understanding its components, how it works, and embracing regular inspection and maintenance, you'll not only extend the life of your bike's braking system but also ensure that every ride is as safe and enjoyable as possible. So, next time you pull that brake lever, take a moment to appreciate the humble yet powerful brake cable working tirelessly beneath your fingertips.
