Understanding Caliper Brakes for Your Ride

When you’re out on your bike, whether it’s a leisurely ride through the countryside or a thrilling descent down a challenging trail, one thing remains paramount: your ability to stop safely and effectively. At the heart of your bicycle’s stopping power lies the braking system, and for many riders, this means understanding the intricacies of caliper brakes. These essential components are designed to create friction, converting your kinetic energy into heat and bringing your bike to a controlled halt. From the classic designs found on road bikes to the powerful systems on modern mountain bikes, caliper brakes are a diverse and crucial part of cycling.

What Exactly Are Caliper Brakes?

In essence, a caliper brake system consists of a mechanism that ‘clamps’ or squeezes brake pads against a moving surface – either the rim of your wheel or a dedicated brake rotor – to generate the friction needed for deceleration. This squeezing action is typically actuated by a lever on your handlebars, which pulls a cable or pushes hydraulic fluid, transferring the force to the caliper. The design and operation of these calipers vary significantly, leading to different performance characteristics, maintenance requirements, and suitability for various cycling disciplines.

How Caliper Brakes Work: The Fundamental Principle

The core principle behind all caliper brakes is surprisingly simple: friction. When you pull your brake lever, this action is translated through a cable or hydraulic fluid to the brake caliper. The caliper, a mechanical assembly, then forces two brake pads to press against a rotating surface. This contact generates friction, which slows down or stops the wheel. The harder you squeeze the lever, the greater the pressure applied by the pads, and consequently, the stronger the braking force. Understanding this basic mechanism is key to appreciating the variations and advancements in caliper brake technology.

Exploring the Different Types of Caliper Brakes

Caliper brakes are broadly categorised by the surface they act upon: the wheel rim or a dedicated disc rotor. Within these categories, several distinct designs offer unique advantages and are suited to different cycling applications.

Rim Caliper Brakes

Rim brakes, as the name suggests, apply braking force directly to the wheel's rim. They are lightweight, relatively simple, and have been a staple on bicycles for decades. However, their performance can be compromised in wet or muddy conditions, as water and grit can reduce friction and accelerate rim wear.

Side-Pull Calipers

Commonly found on road bikes, side-pull calipers are characterised by their arms pivoting around a central bolt. When the brake lever is pulled, a single cable pulls one arm, which in turn pulls the other arm, causing the pads to close in on the rim. There are two main variations:

• Single-Pivot Side-Pull: An older, simpler design where both arms pivot on a single point. They offer decent stopping power but can sometimes lack modulation (the ability to finely control braking force).
• Dual-Pivot Side-Pull: A more modern and common design, where each arm pivots independently but is linked. This design provides significantly more power and improved modulation, making them the standard for contemporary road bikes. They offer a more progressive feel and are generally more efficient.

Cantilever Brakes

Once ubiquitous on mountain bikes, touring bikes, and cyclocross bikes, cantilever brakes feature two separate arms that pivot on bosses attached to the fork or seat stays. A cable pulls a straddle wire that connects the two arms, causing them to spread outwards and press pads against the rim. They offer good mud clearance and are robust, but can be tricky to set up correctly.

V-Brakes (Direct-Pull Cantilevers)

An evolution of the cantilever, V-brakes are a specific type of direct-pull cantilever system. They use much longer arms than traditional cantilevers, with the brake cable attaching to one arm and routing through the other. This design offers immense stopping power with less lever effort, making them very popular on mountain bikes and hybrid bikes before the widespread adoption of disc brakes. They are easier to set up than traditional cantilevers and provide excellent modulation.

U-Brakes

Less common today, U-brakes feature pivots mounted directly above or below the rim, often found on BMX bikes or older mountain bikes. The brake arms wrap around the tyre, offering a very compact design and good clearance, but can be less powerful and more prone to mud build-up than V-brakes.

Disc Caliper Brakes

Disc brakes have become the dominant braking system on mountain bikes and are increasingly popular on road bikes, gravel bikes, and city bikes. Instead of braking on the rim, a disc caliper clamps pads onto a separate rotor (or disc) mounted to the wheel hub. This separation from the rim means they are far less affected by adverse weather conditions, offer consistent performance, and eliminate rim wear.

Mechanical Disc Brakes

These systems use a traditional brake cable to actuate the caliper. When the lever is pulled, the cable pulls an arm on the caliper, which in turn pushes one or both pads against the rotor. While an improvement over rim brakes in wet conditions, they typically offer less power and modulation than hydraulic systems and can suffer from cable stretch over time.

Hydraulic Disc Brakes

The pinnacle of bicycle braking technology, hydraulic disc brakes use a sealed system of fluid (mineral oil or DOT fluid) to transfer force from the lever to the caliper. When the lever is squeezed, a master cylinder pushes fluid through a hose to the caliper, where pistons then push the pads against the rotor. This system provides incredible stopping power, superb modulation, and consistent performance in all conditions, with minimal maintenance beyond occasional pad replacement and fluid bleeding.

Key Components of a Caliper Brake System

Regardless of the type, several common components work in unison to provide your bike’s stopping power:

• Brake Lever: Mounted on the handlebars, this is your primary interface for applying braking force.
• Brake Cable/Hose: Transmits the force from the lever to the caliper. Cables are used for mechanical systems, while hoses carry hydraulic fluid.
• Caliper Body: The main housing that contains the brake pads and the mechanism (pivots, pistons) that moves them.

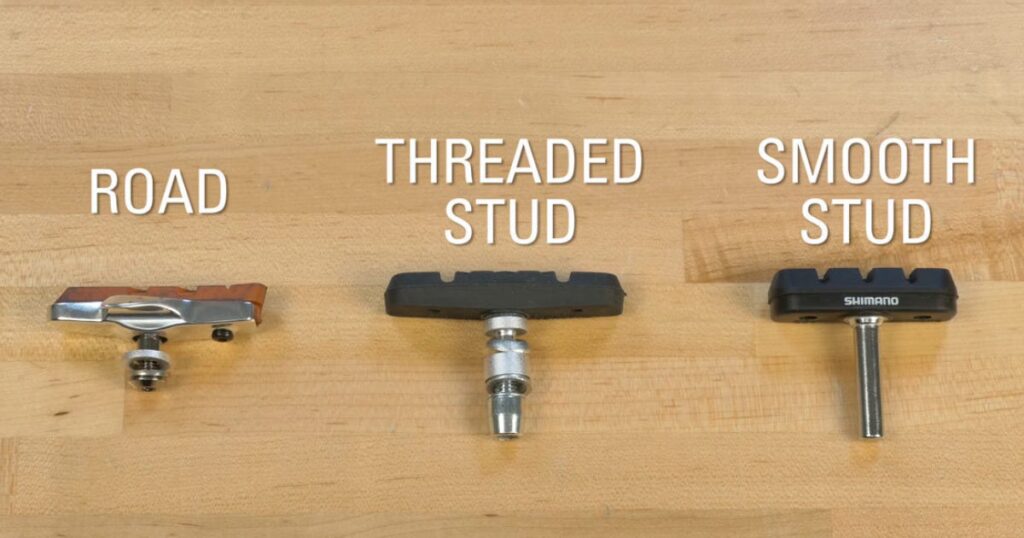

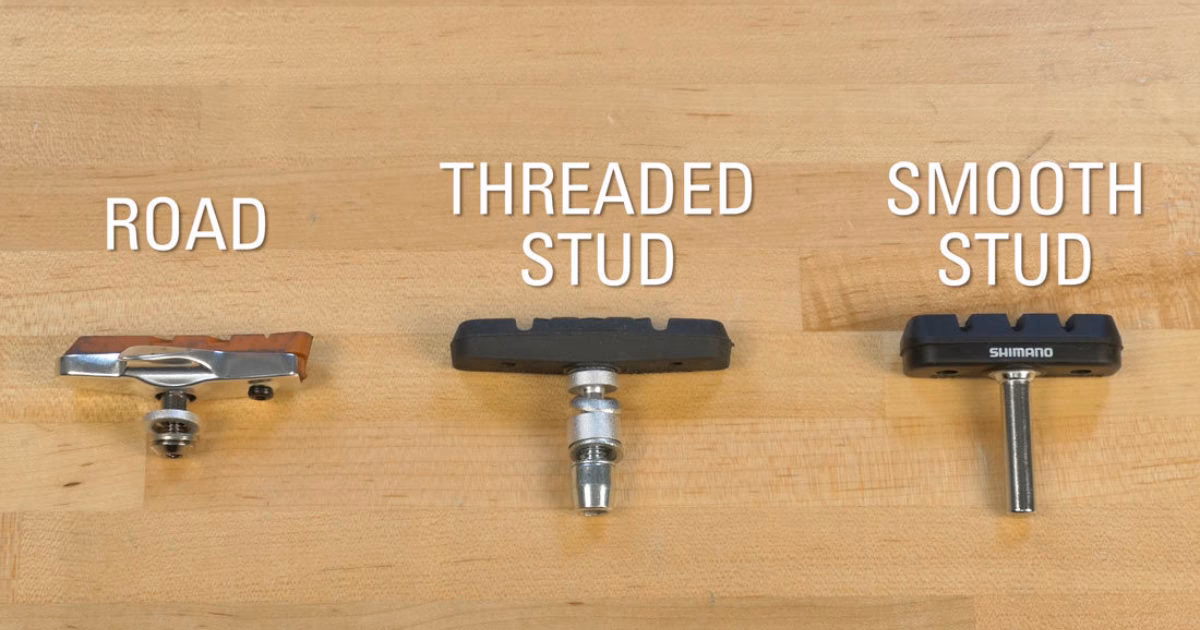

• Brake Pads: The consumable components that make direct contact with the rim or rotor. Pad compounds vary for different conditions and materials (e.g., rubber for rims, organic, metallic, or semi-metallic for discs).
• Brake Surface: This is either the wheel rim (for rim brakes) or a dedicated brake rotor (for disc brakes), against which the pads press.

Advantages and Disadvantages of Caliper Brake Systems

Each type of caliper brake comes with its own set of pros and cons, influencing their suitability for different riders and riding styles.

Rim Brake Pros:

• Lightweight: Generally lighter than disc brake systems.
• Simplicity: Easier to understand and often simpler to maintain for basic repairs.
• Cost-Effective: Typically less expensive to purchase and maintain.
• Aerodynamics: Can be more aerodynamic on road bikes.

Rim Brake Cons:

• Weather Dependent: Performance significantly degrades in wet or muddy conditions.
• Rim Wear: Constant braking wears down the wheel rim over time, eventually requiring wheel replacement.
• Heat Build-up: Prolonged braking on long descents can cause rims to overheat, potentially leading to tyre blowouts.
• Limited Power: Generally offer less absolute stopping power than disc brakes.

Disc Brake Pros:

• Consistent Performance: Unaffected by wet weather, mud, or bent rims.
• Superior Power & Modulation: Offer immense stopping power with fine control.
• No Rim Wear: Preserves the life of your wheel rims.
• Heat Dissipation: Rotors are designed to dissipate heat more effectively.

Disc Brake Cons:

• Heavier: The calipers, rotors, and associated hardware add weight.
• More Complex Maintenance: Hydraulic systems require bleeding, and mechanical systems can still be more intricate than rim brakes.
• Cost: Generally more expensive to buy and maintain.
• Rotor Rub/Noise: Can be prone to noise if rotors are bent or pads are misaligned.

Essential Maintenance Tips for Your Caliper Brakes

Regular maintenance is crucial for ensuring your brakes remain reliable and safe. Here are some key tips:

• Pad Inspection and Replacement: Regularly check your brake pads for wear. Rim brake pads have wear lines, and disc brake pads should be replaced before the friction material is too thin. Replace them promptly to maintain braking performance and prevent damage to rims or rotors.
• Cable Lubrication and Replacement: For mechanical systems, lubricate cables periodically to ensure smooth operation. If cables become frayed or sticky, replace them.
• Caliper Alignment: Ensure your caliper is centred over the rim or rotor and that both pads engage simultaneously and evenly. Misalignment can lead to uneven wear and reduced performance.
• Rotor Cleaning: For disc brakes, keep your rotors clean and free of grease or oil. Use a dedicated disc brake cleaner. Contaminated rotors can cause squealing and significantly reduce braking power.
• Hydraulic Bleeding: For hydraulic disc brakes, the fluid can degrade or become contaminated with air bubbles over time. Bleeding the system (replacing the fluid and removing air) is essential for maintaining consistent lever feel and stopping power. This is a more advanced task often best left to a professional mechanic.
• Lever Feel: Pay attention to how your brake levers feel. Spongy levers on hydraulic systems indicate air in the lines, while excessive slack in mechanical systems suggests cable stretch or adjustment needed.

Choosing the Right Caliper Brake for Your Needs

The best caliper brake system for you depends heavily on your riding style, terrain, and personal preferences.

• Road Cycling: For traditional road bikes, dual-pivot rim brakes offer good performance and lightweight benefits. However, modern road bikes are increasingly adopting hydraulic disc brakes for their superior all-weather performance and greater stopping power, especially beneficial in competitive or hilly terrain.
• Mountain Biking: Hydraulic disc brakes are the undisputed standard for mountain biking due to their power, modulation, and reliability in challenging, dirty, and wet conditions.
• Commuting/City Riding: Both V-brakes and mechanical disc brakes are common and effective. Disc brakes offer an advantage in urban environments with frequent stops and varying weather.
• Touring/Gravel Riding: Disc brakes (mechanical or hydraulic) are highly recommended for the added stopping power and reliability, especially when carrying luggage or riding off-road.

Caliper Brake Comparison: Rim vs. Disc

Here's a quick comparison to highlight the key differences between the two main categories of caliper brakes:

Frequently Asked Questions About Caliper Brakes

What's the difference between mechanical and hydraulic disc brakes?

The primary difference lies in how the force from the lever is transmitted to the caliper. Mechanical disc brakes use a traditional steel cable, similar to rim brakes. Hydraulic disc brakes use a sealed system of fluid (like brake fluid in a car) to transfer this force. Hydraulic systems offer superior power, better modulation (finer control over braking force), and require less hand effort, but are more complex to maintain.

How often should I replace my brake pads?

The lifespan of brake pads varies greatly depending on your riding style, terrain, weather conditions, and pad material. For rim brake pads, look for wear indicator lines; replace them when they are no longer visible. For disc brake pads, replace them when the friction material is worn down to approximately 0.5mm or less, or if they become contaminated with oil. Regularly inspect them, especially after riding in wet or gritty conditions.

Can I convert my bike from rim brakes to disc brakes?

In most cases, a direct conversion is not feasible or economical. Bikes designed for rim brakes do not have the necessary mounts on the fork or frame for disc brake calipers, nor do their wheels have disc brake rotors or compatible hubs. Attempting to modify a frame or fork for disc brakes is dangerous and not recommended. It's usually more practical to purchase a bike specifically designed for disc brakes if you wish to upgrade.

Why are my brakes squealing?

Brake squeal is a common issue with several potential causes. For rim brakes, it could be due to contaminated pads, worn pads, misaligned pads (not toed-in correctly), or a dirty rim. For disc brakes, common culprits include contaminated pads or rotors (often from grease or oil), misaligned calipers, loose bolts, or the pads needing to be bedded in (a process of gradual braking to transfer pad material to the rotor). Often, a thorough clean and realignment can solve the problem, but sometimes new pads or a new rotor are required.

What is brake 'fade'?

Brake fade refers to the reduction in braking power that occurs due to excessive heat build-up. This is more common in rim brakes during long, sustained descents, where continuous friction causes the rim and pads to overheat, reducing their ability to generate friction. Disc brakes are generally more resistant to fade due to better heat dissipation, but it can still occur under extreme conditions, especially with smaller rotors or specific pad compounds.

Understanding caliper brakes is fundamental to confident and safe cycling. By knowing the different types, how they work, and how to maintain them, you can ensure your bike is always ready to stop when you need it most. Regular checks and timely maintenance will not only extend the life of your components but, more importantly, keep you safe on every ride. Ride safely and brake with confidence!
