Fixing Brake Rub: A UK Cyclist's Essential Guide

Have you ever had one of those frustrating dreams where you're pedalling with all your might, but your bike just isn't speeding up? It's a common nightmare, and for many cyclists, it's a reality when their bike brakes start to rub. That incessant friction, the grating sound, and the noticeable drag can turn a joyful ride into a laborious chore. But beyond the annoyance, a rubbing brake can significantly impact your speed, efficiency, and most importantly, your safety.

A perfectly functioning braking system is your most crucial safety net on the road. Without brakes that engage and disengage cleanly, you're not just gambling with your performance; you're putting your well-being at risk. The good news is that brake rub is a common issue, and more often than not, it's something you can fix yourself with a few basic tools and a bit of patience. So, if you're ready to silence that irritating rub and restore your bike's smooth performance, let's get started.

Understanding the Nuisance of Brake Rub

Brake rub, whether it's a subtle hiss or a grinding groan, is more than just an auditory irritation. It creates constant friction between your brake pads and the wheel rim or disc rotor, which translates directly into wasted energy. Imagine trying to cycle up a hill with a constant, gentle pressure on your brakes – that's essentially what brake rub feels like. It slows you down, makes pedalling harder, and can even cause premature wear on your brake pads, rims, or rotors.

Ignoring brake rub isn't just inefficient; it can also be detrimental to your bike's components. Continuous friction generates heat, which can warp disc rotors or wear down rim braking surfaces unevenly. Pads can wear out faster on one side, leading to more complex alignment issues down the line. Addressing the problem promptly is key to maintaining your bike's longevity and ensuring a consistently enjoyable ride.

Common Causes of Brake Rub

Brake rub typically stems from a few core issues, which vary slightly depending on whether you have rim brakes or disc brakes. Generally, the problem boils down to either a component being out of alignment, or there being incorrect tension in the system. Let's delve into how to diagnose and rectify these issues for both common brake types.

Tools You'll Need

Before you begin, gather these essential tools:

• Hex keys (Allen keys): Typically 4mm, 5mm, or 6mm for most bolts.
• Torx wrench (T25): Common for newer disc brake calipers.
• Adjustable wrench or a dedicated rotor truing tool: For disc brakes.
• Piston press tool or a clean plastic tyre lever: For disc brakes.
• Bike repair stand (highly recommended) or a sturdy friend to hold the bike.
• Clean rags and rubbing alcohol (for disc brakes).
• Flashlight (optional, but helpful for visual inspection).

Fixing Rim Brake Rub: Caliper and Cantilever Systems

Rim brakes, including caliper brakes (common on road bikes) and cantilever/V-brakes (often found on mountain and hybrid bikes), work by pressing rubber pads against the wheel rim to create friction and slow you down. Rubbing in these systems usually indicates an issue with pad alignment, cable tension, or the caliper's centering.

Step-by-Step Guide: Caliper & Cantilever Brakes

Here’s how to diagnose and fix the rub on your rim brakes:

1. Inspect Your Brake Pads

The first point of inspection should always be the brake pads themselves. Look closely at the rubber pads on each side of the wheel. Are they excessively worn? If the grooves on the pad surface are smooth or completely gone, or if you see any metal backing exposed, it's time for new pads. Also, check for any debris (small stones, grit) embedded in the pads, as this can cause friction and damage your rim.

2. Check Pad Grip and Alignment

With your bike securely in a stand or held steady, spin the affected wheel. Observe where the brake pads are in relation to the rim. Are they touching the rim even when you're not squeezing the brake lever? If so, the pads are likely not centred correctly. When you spin the wheel and gently apply the brake, the pads should make even contact with the centre of the rim's braking surface. Repeat this for both the front and rear brakes.

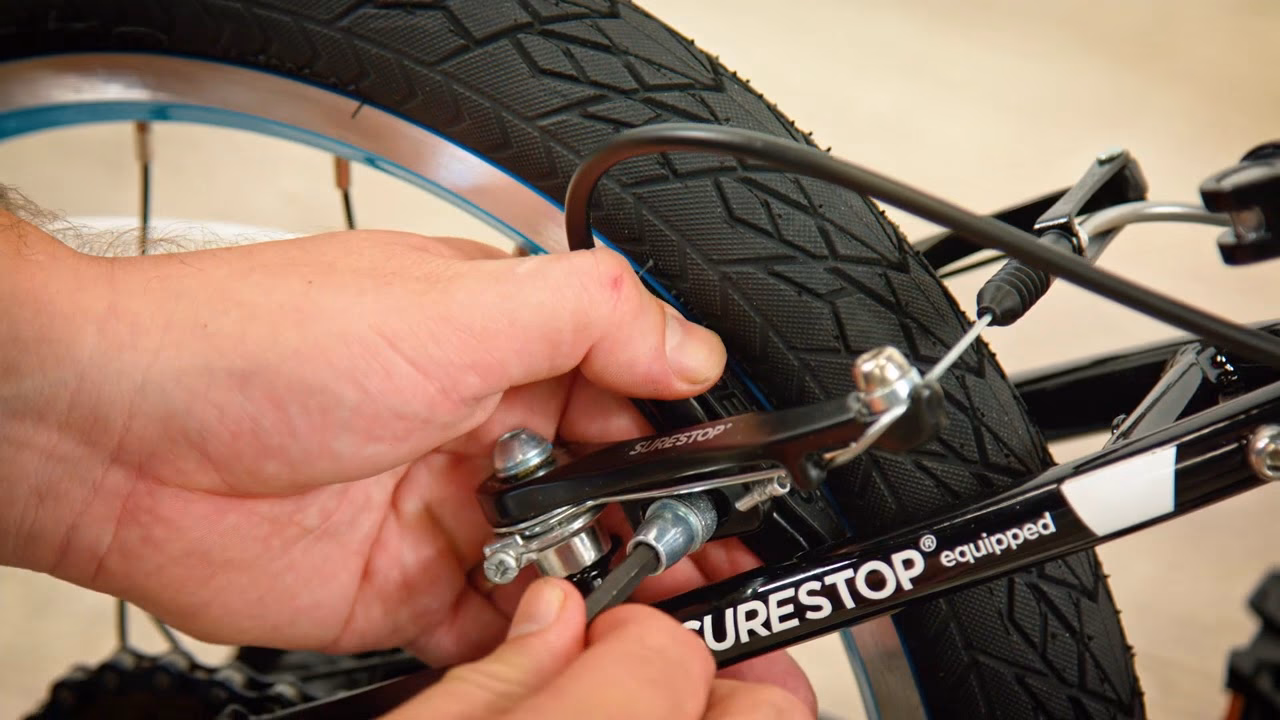

3. Centre Your Brake Pads

If your brake pads are rubbing on one side, or both, they need to be re-centred. For most caliper brakes, there's a single bolt that secures the caliper to the bike frame or fork. For V-brakes, each arm has a pivot bolt on the frame.

• For Caliper Brakes: Locate the main mounting bolt that holds the caliper to your bike. Loosen this bolt just enough to allow the caliper to wiggle freely. Now, visually align the caliper so that both brake pads have an equal gap between them and the rim. Alternatively, you can gently squeeze the brake lever a few times to help the pads self-centre against the rim. While holding the caliper in its centred position (or holding the brake lever if self-centring), carefully tighten the mounting bolt. Make sure not to overtighten, but ensure it's secure enough to prevent the caliper from shifting.

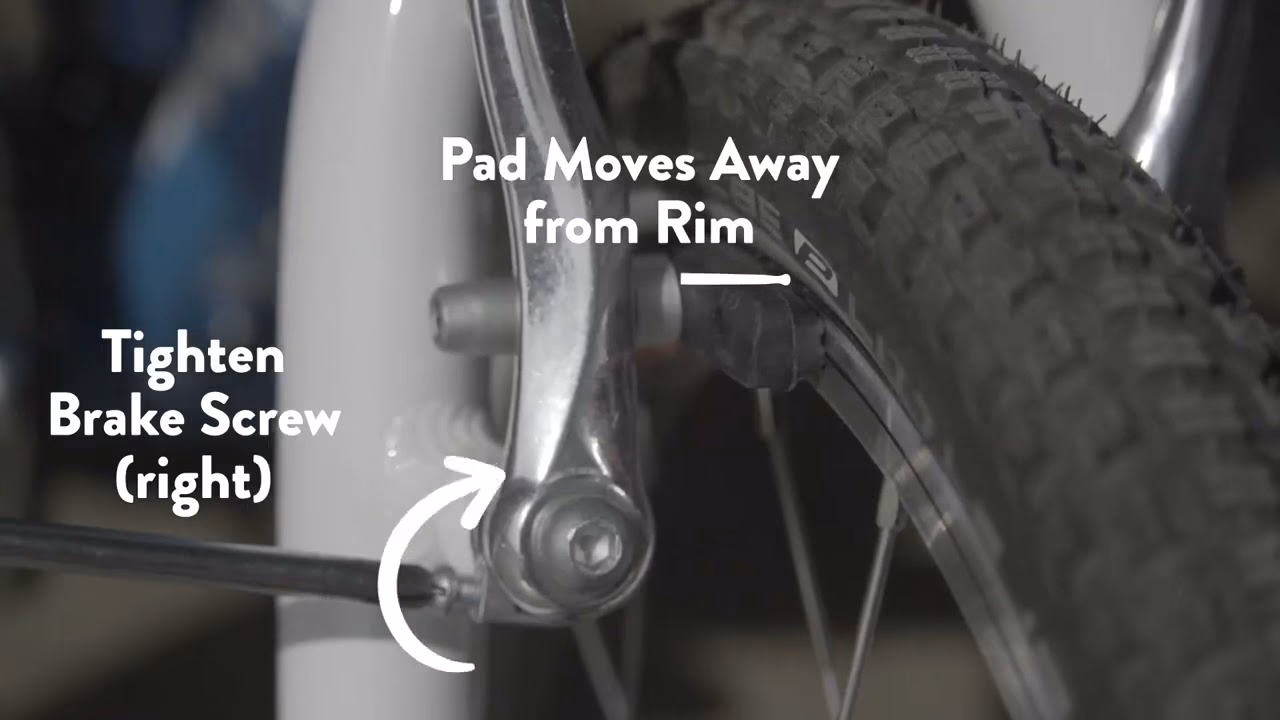

• For Cantilever/V-Brakes: These brakes often have small spring tension adjustment screws on each arm, near the pivot points. If one pad is rubbing, you'll need to adjust these screws. Turn the screw on the arm that is rubbing inwards (clockwise) to pull the pad away from the rim, or turn the screw on the opposite arm outwards (anti-clockwise) to push that pad closer to the rim, thereby centring the whole system. Adjust incrementally until both pads have an even gap.

4. Inspect Brake Cables for Tension

After centring the pads, check your brake cable tension. Squeeze the brake lever on your handlebar. How far does it travel before the pads engage the rim? If the lever pulls almost all the way to the handlebar grip, your cable tension is too loose. If the lever feels very stiff and the pads are constantly close to or touching the rim even when not applied, the cable tension might be too tight.

A good rule of thumb is that there should be about 2-3 cm (around 1 inch) of space between the lever and the handlebar grip when the brake is fully engaged. Too much slack will mean a delayed and weak braking response; too little means constant rubbing.

5. Adjust Brake Cable Tension

Most brake levers and calipers have a 'barrel adjuster' – a small, knurled cylinder where the cable enters the lever body or the caliper. This is your primary tool for fine-tuning cable tension.

• To increase tension (make brakes feel tighter, reduce lever travel): Turn the barrel adjuster anti-clockwise (outwards).
• To decrease tension (make brakes feel looser, increase lever travel): Turn the barrel adjuster clockwise (inwards).

Make small adjustments, then squeeze the lever to test. If the barrel adjuster is already fully extended and you still have too much slack, you may need to loosen the main cable anchor bolt on the caliper, pull more cable through, and then re-tighten the anchor bolt. This is a more significant adjustment, so always check pad alignment again afterwards.

6. Check and Adjust Brake Calipers (Spring Tension)

Sometimes, even after centring the pads and adjusting cable tension, one side of the caliper might still be sticking or moving unevenly. This can be due to the internal spring mechanism becoming misaligned or damaged, particularly on older or well-used brakes.

For caliper brakes, if one arm isn't returning correctly, you might need to gently lubricate the pivot points or ensure the main mounting bolt isn't overtightened, which can bind the caliper. For V-brakes, revisit the spring tension screws mentioned in Step 3 to ensure they are balanced.

Important Note: If your rim is visibly warped or bent, no amount of brake adjustment will completely eliminate rub. A warped rim will cause intermittent rubbing. In such cases, the rim may need to be 'trued' (straightened) by a bike mechanic, or potentially replaced if severely damaged.

Fixing Disc Brake Rub: Hydraulic and Cable Systems

Disc brakes, whether hydraulic (using fluid) or cable-actuated (mechanical), offer powerful stopping and are less affected by wet weather or warped wheels. However, they are still prone to rubbing, usually due to caliper misalignment, a bent rotor, or over-advanced pistons.

Step-by-Step Guide: Disc Brakes

Here’s how to get your disc brakes running rub-free:

1. Identify the Source of the Rub

With your bike in a stand, spin the affected wheel. Listen carefully and observe the rotor as it passes through the caliper. Is the rub constant, or is it intermittent (e.g., rubbing at one specific spot on the rotor)?

• Constant rub: This usually points to a misaligned brake caliper.
• Intermittent rub: This indicates a bent or warped brake rotor.

2. Aligning Disc Brake Calipers

Caliper alignment is the most common fix for disc brake rub. This process aims to centre the caliper perfectly over the rotor, ensuring an even gap between both brake pads and the rotor.

• Locate the two mounting bolts that secure the brake caliper to your bike's frame or fork. These are typically 5mm hex bolts or T25 Torx bolts.
• Loosen these bolts just enough so that the caliper can move freely from side to side, but not so loose that it flops around.
• Now, firmly squeeze the brake lever for that wheel and hold it down. This action causes the brake pads to compress against the rotor, effectively self-centring the caliper.
• While still holding the brake lever, carefully tighten the two mounting bolts. It's crucial to tighten them incrementally and alternately – tighten one bolt a little, then the other a little, and repeat until both are fully secure. This prevents the caliper from shifting out of alignment as you tighten.
• Release the brake lever and spin the wheel. If done correctly, the rub should be gone. If there's still a slight rub, you can repeat the process, or make tiny manual adjustments. For manual adjustment, loosen the bolts slightly and use a flashlight to peer directly through the caliper, visually centring the rotor between the pads before re-tightening.

3. Truing a Bent Brake Rotor

If your rub is intermittent, your rotor is likely bent. Rotors can warp from impacts, crashes, or even extreme heat during prolonged braking. You'll need an adjustable wrench (with clean jaws to avoid contaminating the rotor) or a dedicated rotor truing tool.

• Spin the wheel slowly and observe where the rotor rubs against a pad. Mark this spot mentally or with a piece of tape.
• Identify which direction the rotor is bent. If it's rubbing against the inner pad, the rotor is bent towards the frame; if it's rubbing the outer pad, it's bent away.
• Using your truing tool or wrench, gently grasp the rotor at the point of the bend. Apply light, controlled pressure to bend the rotor in the opposite direction of the rub. Think of it like trying to straighten a slightly warped record.
• Spin the wheel again and re-evaluate. This process requires patience and small adjustments. It's better to make many small bends than one large, aggressive bend that could over-correct or permanently damage the rotor.
• If a rotor is severely bent, especially from a crash, it might be impossible to true perfectly and may require replacement.

4. Addressing Over-Advanced Pistons

Sometimes, especially after changing brake pads or if you've accidentally squeezed the brake lever with the wheel removed, the brake pistons (which push the pads) can extend too far. This leaves no room for the rotor and causes rub.

• Remove the wheel from your bike.
• Look into the brake caliper; you'll see the brake pads.
• Using a dedicated piston press tool or a clean plastic tyre lever, gently wedge it between the brake pads. Slowly and firmly push the pads apart. This will push the pistons back into the caliper body. Be careful not to damage the pads or the pistons. Ensure your tool is spotless to avoid contaminating the pads with oil or grease.
• Once the pistons are fully retracted, reinstall your wheel.
• Pump the brake lever a few times until the pads re-engage the rotor. This resets their position. You may need to realign the caliper afterwards (as per Step 2).

Preventative Measures and When to Seek Professional Help

Regular maintenance is your best defence against brake rub. Routinely check your brake pads for wear and cleanliness. Keep your bike clean, especially around the brake calipers and rotors, to prevent debris build-up. Store your bike carefully to avoid impacts that could bend rotors or misalign calipers.

While many brake rub issues can be resolved at home, there are times when professional help is advisable:

• If you've followed these steps and the rub persists.
• If your rim is severely warped and requires truing.
• If your disc brake rotor is badly bent or damaged.
• If you suspect internal issues with hydraulic brakes, such as air in the system (requiring a 'bleed') or sticky pistons that won't retract.
• If you're uncomfortable performing any of these adjustments yourself.

A good bike mechanic has specialised tools and expertise to tackle more complex issues, ensuring your brakes are not only rub-free but also optimally safe.

FAQs About Brake Rub

Q: Can brake rub cause damage to my bike?

A: Yes, persistent brake rub can cause premature wear on your brake pads, and in the case of rim brakes, the rim itself. For disc brakes, it can lead to uneven pad wear and potentially overheat or warp the rotor further, reducing braking efficiency and potentially requiring costly replacements.

Q: How often should I check my bike brakes?

A: It's good practice to give your brakes a quick visual check before every ride. A more thorough inspection, including pad wear and alignment, should be done monthly or every few hundred miles, especially if you ride frequently or in challenging conditions.

Q: Is it normal for new brakes to rub?

A: Sometimes, yes. New disc brakes, in particular, may rub slightly until the pads 'bed in' to the rotor, which involves a few hard stops to transfer material from the pad to the rotor surface. New rim brakes might also need a few rides for the pads to settle. However, persistent or loud rubbing should always be addressed.

Q: What's the difference between mechanical and hydraulic brakes for rubbing issues?

A: The principles of fixing rub (caliper alignment, rotor truing) are similar for both. However, mechanical (cable-actuated) brakes rely on cable tension, which is adjusted via barrel adjusters and cable anchor bolts. Hydraulic brakes use fluid pressure, so issues like spongy levers or sticky pistons often point to air in the system or contaminated fluid, requiring a 'bleed' which is a more complex procedure best left to a professional unless you have the specific tools and experience.

Q: Can I ignore minor brake rub?

A: It's generally not recommended to ignore any brake rub, even if it seems minor. What starts as a small rub can worsen over time, leading to accelerated wear, reduced performance, and increased frustration. It's always best to address the issue as soon as you notice it.

Final Verdict

If you've been cycling for any length of time, you'll know how irritating and debilitating brake rub can be. It's not just an annoyance; it's a performance drain and, more importantly, a potential safety hazard. As a conscious cyclist, performing regular inspections on your bike, especially your braking system, is paramount. Better safe than sorry, as the saying goes!

By understanding the different types of brake systems and following the step-by-step guides outlined here, you're now equipped to tackle most common brake rubbing issues on your own. With a bit of patience and the right tools, you can restore your bike's smooth, efficient, and safe ride. Stay safe out there!
