The Mystery of the Shifting Brake Pad
It's a common frustration for cyclists: your bike's rim brakes, which once offered reliable stopping power, now seem to have a mind of their own, consistently drifting to one side. This off-centering leads to one brake pad sitting closer to the rim than the other, often resulting in annoying rubbing and reduced braking efficiency. Reader Larry English perfectly encapsulates this issue: "Why do road bike brakes get off-centered? It seems like I have to re-center mine about every other month. What is it that makes them move?" Larry's question delves into a fundamental aspect of bicycle brake mechanics, particularly concerning the ubiquitous sidepull caliper brakes found on most road bikes.
The primary reason a rim brake shifts off-center is often a simple, yet significant, mechanical event: a bump. Think about it – leaning your bike against a wall, a friendly nudge from a fellow rider, or even a minor mishap during transport can impart enough force to knock the brake assembly out of its precise alignment. This vulnerability stems from the brake's mounting system. Most sidepull caliper brakes are attached to the bicycle's frame or fork via a single, central bolt. This single point of contact allows the brake to pivot. When an external force is applied, it can easily rotate the brake around this central bolt, causing one side to move closer to the rim.
Understanding Sidepull and Centerpull Brakes
To fully grasp why brakes shift, it's helpful to understand the two main types of rim brakes: sidepull and centerpull. The majority of modern road bikes are equipped with sidepull caliper brakes. They earn their name from the way the brake cable is routed, pulling from one side of the brake mechanism to actuate the arms. While you might hear them referred to as "dual pivot" brakes, "sidepull" remains the descriptive and generic term. In contrast, centerpull brakes feature a cable routing that pulls from the center of the brake, offering a different mechanical advantage and often a more symmetrical action.
However, the issue of shifting is most prevalent with sidepull brakes due to their single-bolt mounting. This single mounting bolt, passing through the fork on the front and the frame's brake bosses on the rear, is the pivot point. When a sidepull brake is subjected to an impact, this bolt allows the entire brake assembly to rotate, disrupting the delicate balance that keeps the brake pads equidistant from the rim.
The Crucial Role of Centering Springs
Here's where the brilliance of bicycle engineering comes into play. Every well-designed sidepull brake is equipped with centering springs. These springs are the unsung heroes, designed to automatically return the brake arms to a neutral, centered position. The intention is simple: if your brake gets bumped and momentarily shifts, the very first time you apply the brakes, the springs should engage, pull the arms back into alignment, and ensure both pads hit the rim simultaneously. This self-centering action is a fundamental design feature meant to compensate for minor jolts and impacts.
So, if your brakes, like Larry's, consistently drift off-center and require manual adjustment every few months, it's a strong indication that the self-centering mechanism is being compromised. The fact that a bump causes a permanent shift, rather than a temporary one that the springs correct, points directly to a deeper issue: the brake itself is not securely fastened to the frame.
The Culprit: A Loose Brake Mount
When a brake moves from a bump in the way Larry describes, it signifies that the brake's mounting bolt is not sufficiently tightened. In such a scenario, a bump doesn't just momentarily misalign a pad; it actually pivots the entire brake assembly around the loose central bolt. This rotation doesn't just shift the brake arms; it also rotates the entire brake caliper relative to the frame. Crucially, this rotation misaligns the centering springs. Once these springs are out of their intended orientation, they lose their ability to effectively re-center the brake arms when you apply the brakes. The result is a brake that stays off-center until manually adjusted, only to drift again after the next bump.
The Solution: Secure the Brake for Self-Centering
Fortunately, rectifying this common problem is usually a straightforward process. The fix for Larry's persistent brake-centering issue, and for many others experiencing the same, lies in properly tightening the brake to the frame or fork. A securely mounted brake will resist pivoting from minor impacts, and if it does get nudged, the inherent centering springs will do their job effectively.
Here’s how to tackle it:
Step-by-Step Tightening Procedure:
- Locate the Mounting Bolt Nut: On the rear of the fork (for front brakes) or frame (for rear brakes), you'll find a nut that secures the brake's central bolt. This is often a recessed 5mm Allen nut. It might be hidden deep within the fork crown or frame, requiring a bit of probing with a 5mm Allen key to find its hexagonal recess. A flashlight can be helpful here.
- Loosen Slightly (Optional but Recommended): With the 5mm Allen key inserted into the nut, turn it counter-clockwise (to the left) to loosen the brake. You want to loosen it just enough so that you can manually pivot the entire brake assembly with your hand. This allows you to properly align the brake before tightening.

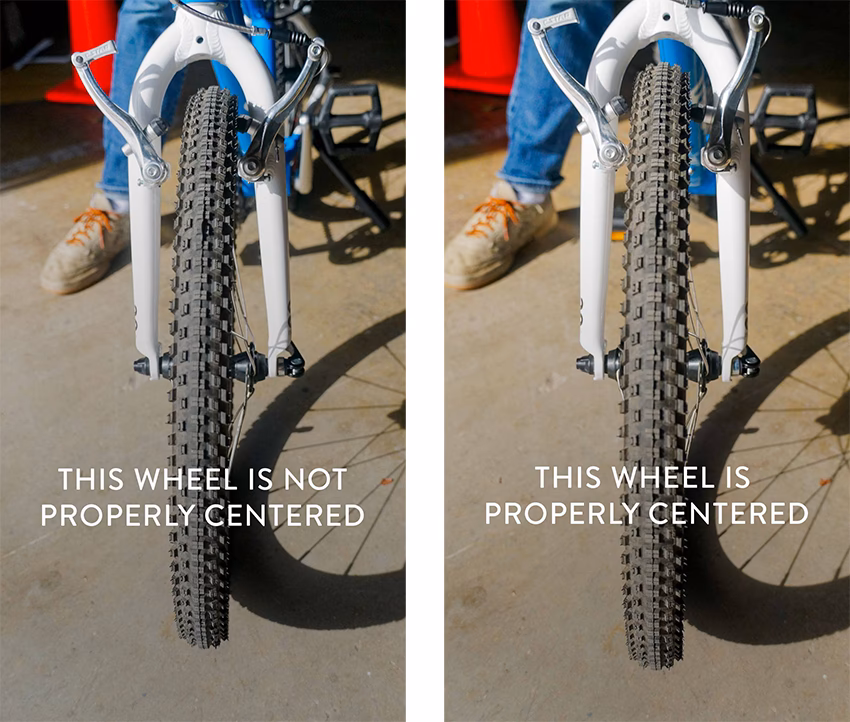

- Check Wheel Seating: Before proceeding, it's vital to ensure your wheel is correctly seated in the dropouts. An improperly seated wheel can mimic brake alignment issues. Place the bike on the ground, apply weight to the handlebars, and then firmly tighten the quick-release skewer or axle nuts. This helps to ensure the wheel is centered.
- Align the Brake: With the brake mounting nut slightly loosened, you can now manually adjust the brake's position. The goal is to have the brake arms equidistant from the rim. You can often use the flats on the brake mounting bolt itself (if accessible) with a thin spanner to make fine adjustments. Alternatively, you can use the Allen key in the nut to nudge the brake into position.
- Tighten the Brake Securely: Once the brake is aligned, hold it firmly in place. If you have a torque wrench, the mounting nut should be tightened to approximately 8-9 Nm. If you don't have a torque wrench, tighten the nut firmly clockwise (to the right) with the Allen key. The key is to make it snug enough that the brake cannot be easily rotated by hand.
Testing the Self-Centering Action:
After tightening, test your work. Squeeze the brake lever. The brake should move smoothly and center itself. Now, gently try to nudge the brake caliper with your finger. It should feel solid and resistant to movement. If you can easily shift the entire brake assembly, it's still too loose.
Common Pitfalls and Troubleshooting
While the tightening procedure is generally effective, here are a few extra points to consider:
| Symptom | Likely Cause | Solution |
|---|---|---|
| Brake pads rub on one side, but the brake caliper itself doesn't appear to be loose. | Bent brake arms or misaligned brake pads. | Carefully inspect the brake arms for any visible bends. Misaligned pads can often be adjusted via the pad mounting bolts. |
| Brake lever feels spongy or pulls all the way to the handlebar. | Low brake cable tension or worn brake pads. | Adjust the brake cable barrel adjuster or re-tension the cable at the caliper pinch bolt. Check pad wear and replace if necessary. |
| Centering springs feel weak or are damaged. | Worn or damaged centering springs. | Centering springs can sometimes be adjusted or replaced, but this is often a more involved repair that may require a bike mechanic. |
| Wheel is not centered in the frame, causing brake rub. | Improper wheel installation or frame alignment issues. | Ensure the wheel is fully seated in the dropouts. If the frame itself is misaligned, it's a more serious issue requiring professional assessment. |
Frequently Asked Questions
Q1: Can a spring truly self-center a brake pad?
Yes, the internal centering springs are specifically designed to do this. When the brake is properly mounted, these springs provide the necessary tension to return the brake arms to a central position, ensuring even contact with the rim.
Q2: My brake still shifts even after tightening. What else could it be?
If the brake mounting bolt and nut are securely tightened, and the wheel is properly seated, the issue might be with worn or damaged centering springs. In some cases, the brake caliper itself might be slightly warped, or there could be play in the pivot mechanism. These issues might require replacement of brake components or a visit to a bike shop.
Q3: How do I know if my brake pads are hitting the rim?
The most obvious sign is an audible rubbing sound as you pedal or coast. You might also see wear marks on the rim's braking surface that are unevenly distributed. If you can visually see one pad closer to the rim than the other when the brakes are not applied, that's another indicator.
Q4: Is there a special tool for aligning rim brakes?
While not strictly necessary for basic alignment, some mechanics use a thin spanner to grip the flats on the brake mounting bolt. For disc brakes, specialized tools exist to help true rotors and align calipers, but for rim brakes, careful visual alignment and manual adjustment are usually sufficient.
By ensuring your brake caliper is securely mounted to the frame, you empower the built-in centering springs to do their job, leading to more reliable braking and a smoother, quieter ride. Larry's problem, and many like it, can often be resolved with a simple tightening of a bolt, restoring the intended self-centering functionality of his bike's brakes.
