Unravelling Your Bike's Stiff Brakes: A UK Guide

While a properly functioning bicycle brake should feel firm and responsive, providing immediate and reliable stopping power, what often causes concern for cyclists is when a brake becomes 'stiff' in the sense of being difficult to operate or unresponsive. This problematic stiffness can turn a pleasant ride into a stressful and potentially dangerous experience. Understanding the difference between a desired firm brake feel and an undesirable stiff brake mechanism is crucial for every rider. This article will delve into why your bike's brakes might feel problematic, how to diagnose and fix these issues, and ultimately, how to maintain a brake system that is both responsive and safe for the road.

Effective brakes are paramount for safe cycling, offering the critical ability to slow down, navigate obstacles, and stop promptly. A stiff brake system means your brake lever isn't connecting with your brake mechanism properly, directly impacting your control over the bicycle. This not only puts your safety at risk but can also lead to increased wear on other bike components and a significantly less enjoyable cycling experience. Let's explore the intricacies of your bike's braking system to help you identify, address, and prevent brake stiffness.

Understanding Your Bike's Brake System

Before you can effectively diagnose and fix a stiff brake, it's essential to know what type of braking system your bicycle employs. Different systems have unique components and operational principles, which influence how stiffness might manifest and how it's best addressed.

Types of Bicycle Brakes:

There are three primary types of bicycle brakes commonly found on bikes in the UK:

1. Rim Brakes:

• How they work: Brake pads apply force directly to the rim of the wheel, creating friction to slow and stop the bike.
• Activation: Activated by a handlebar lever, typically via a cable.
• Characteristics: Cost-effective, relatively easy to maintain, but require regular attention to pad wear and cable tension. Performance can be affected by wet weather.
• Common types: Caliper brakes (centre-pull and side-pull), V-brakes, U-brakes, cantilever brakes, rod brakes, delta brakes.

2. Disc Brakes:

• How they work: A metal disc (rotor) mounted on the wheel's hub is squeezed by two brake pads within a caliper, slowing and stopping the bicycle.
• Activation: Activated by a handlebar lever, either mechanically (via cable) or hydraulically (via fluid in a sealed line).
• Characteristics: Offer excellent stopping power and modulation, especially in wet conditions. Require less frequent maintenance than rim brakes but can be more complex to service.
• Common types: Mechanical disc brakes (cable-actuated) and hydraulic disc brakes (fluid-actuated). Commonly found on hybrid and mountain bikes.

3. Drum Brakes:

• How they work: Internal brake shoes press against the inside surface of a drum located within the wheel hub, slowing the wheel.
• Activation: Activated by a handlebar lever, usually through cables and rods.
• Characteristics: Low maintenance, robust, and perform well in all weather conditions as they are sealed from the elements. Heavier than other brake types.
• Common types: Often found on commuter and utility bicycles.

Diagnosing a Stiff Bike Brake

The first indication of stiffness or other issues in your brake system is often how your brake lever feels. If it's too loose, it will easily touch the handlebars. If it's too tight, you can barely squeeze it. Ideally, your brake lever should squeeze about 3-4 cm before the brake engages firmly. A brake that feels 'stiff' in operation means it's hard to pull the lever, or the brake itself doesn't move freely.

To pinpoint the problem, a simple squeeze test can be performed. Compare the feel of your front brake lever to your rear one. Often, one will feel different. If the cable feels limp when you squeeze the lever, the lever itself is likely fine, and the issue lies further down the line. If the lever is hard to move, it might be jammed or damaged.

Common Causes of a Stiff Bike Brake

Stiffness in your bike's brakes can stem from several issues, affecting all brake types to varying degrees. Here are the most common culprits:

1. Poor Cable Routing

For cable-actuated brakes (rim brakes, mechanical disc brakes, drum brakes), the brake cable runs from the lever, through housing, to the brake mechanism. If this cable is not routed correctly – perhaps it's too long, has tight bends, kinks, or twists – it can create excessive friction and prevent smooth operation. Even new bicycles can suffer from this if the initial setup wasn't meticulous.

2. Damaged Housing

The cable housing protects the inner brake cable from dirt, moisture, and physical damage. If the housing is rusty, cracked, or otherwise damaged, it can prevent the cable from moving freely inside. This internal friction can cause the cable to fray and the brake system to become stiff and unresponsive.

3. Jammed Levers

The brake lever itself can become stuck or jammed due to dirt, corrosion, or physical damage. When the lever's pivot point isn't moving smoothly, it restricts the movement of the cable and other brake parts, leading to a stiff and difficult-to-operate feel at the handlebars.

4. Friction in the Cables & Lever

This is often a clear sign that the inner brake cable and its casing have corroded or accumulated grime. You can often feel this friction by detaching the cable from the caliper and sliding it back and forth through the housing. Excessive friction indicates a need for cleaning, lubrication, or replacement. The brake lever's pivot points can also develop friction if they are dry or corroded.

5. Adjustment/Lubrication Issues

Incorrect cable tension or poor lubrication are frequent causes of stiffness. If the cables are not properly tensioned, the transmission of force from the lever to the brake mechanism will be inefficient, leading to a spongy or stiff feel. Lack of proper lubrication can cause the lever, cables, and brake parts to dry out, corrode, and become hard to function. This is especially true for pivot points on calipers and levers.

The Perils of Stiff Brakes on Bicycle Performance and Experience

Ignoring a stiff brake system is not just an inconvenience; it poses significant risks and negatively impacts your cycling experience:

1. Accidents & Injuries

A stiff brake massively increases the chances of an accident. When your bike cannot slow down or stop at your command, you lose crucial control, especially in traffic, crowded areas, or on busy roads. This puts not only yourself but also innocent pedestrians and other road users at severe risk of injury.

2. Increased Wear & Tear

A malfunctioning brake system can put an extra burden on other parts of your bicycle. For instance, if you're forced to rely on alternative stopping methods or if the brake is constantly dragging, it can accelerate wear and tear on your tyres, rims, and even the drivetrain.

3. Restricted Speed and Enjoyment

Your smooth cycling experience is significantly diminished. You'll have to exert extra energy and effort to slow and stop, which reduces the speed at which you can comfortably cycle. It might force you to rely on your legs or other unsafe methods to slow down, wasting time and turning an otherwise enjoyable ride into a stressful burden. A bike with a stiff brake is simply not fun to ride.

Fixing a Stiff Bike Brake: A Step-by-Step Guide

It's important to know basic methods for determining where the stiffness is originating from in your brake system and how to repair the damaged or affected parts to regain proper and full control over your bike brakes. Here's some practical repair advice:

STEP 1: Initial Inspection and Lever Check

Carefully check the rear brake and compare its feel to the front. Squeeze the brake lever on the handlebar and observe if the cable goes limp. If it does, the brake lever itself is likely fine. If not, the lever mechanism may be jammed or damaged. Inspect the entire route of the cable and check for any visible damage or rust in the cable housing. Rusty housing is a common culprit for jamming cables.

STEP 2: Isolate Components to Pinpoint Friction

To determine where the problem lies, you need to isolate the calipers (or brake mechanism), levers, and cables. Detach the cable from the caliper (or brake arm). Squeeze the brake lever to check its movement – it should feel smooth and free. Then, slide the cable back and forth through the housing to determine how easily it passes. Any significant friction here points to issues with the cable or housing.

STEP 3: Consider Cable Replacement

Often, the simplest and most effective solution for stiff cables is replacement. If your cables are frayed, damaged, or heavily corroded internally, no amount of lubrication will fully restore their performance. Fresh cables and housing provide the lowest friction and best feel.

STEP 4: Thorough Lubrication of Cables and Housing

If the cables are still in good condition but show signs of dryness or light corrosion, they must be lubricated thoroughly. Before feeding them back through the housing, rub off any corrosion from the cable with a cloth and apply a light bicycle-specific lubricant. Also, lubricate the inside of the cable housing before reassembly. This is a critical step for smooth brake operation.

STEP 5: Lubricate Brake Pivot Points

While the cable is being cleaned or replaced, take the opportunity to flex the brake arms by hand to determine how much friction they have. Lubricate all the pivot points of the brake mechanism (calipers, V-brake arms, cantilever pivots) to ease up any stiffness. Many brakes allow you to adjust the tension of the pivot point through a bolt or set screw; ensure these are not overtightened, which can cause stiffness.

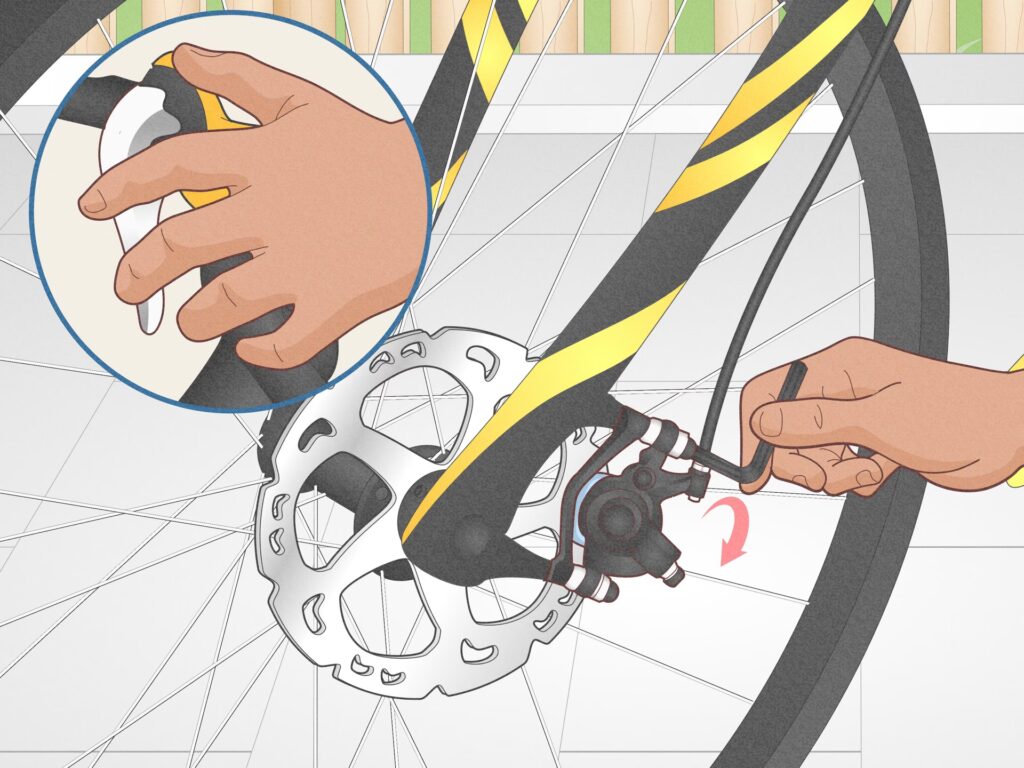

STEP 6: Specific Adjustments for Hydraulic Levers

For hydraulic disc brakes, direct adjustment of pads is generally not needed as they have a built-in feature that automatically adjusts piston position as pads wear. However, if you've squeezed the lever without a disc present, the pads can move too far in, preventing the disc from fitting. In such cases, you might need to gently push the pads back into the caliper using a plastic tyre lever or specific pad spreader tool. If the hydraulic lever itself feels stiff, the issue could be with the master cylinder piston. The best option is to remove the master cylinder piston (a job often best left to experienced mechanics or a bike shop). This involves removing the brake lever, draining the brake fluid, disassembling the lever, and then carefully removing the piston and its rubber seals. If the piston is binding, fine emery paper can be used very gently to reduce its diameter slightly until it slides freely in the cylinder. Clean everything thoroughly before re-assembling and re-bleeding the brakes.

Preventing Brake Stiffness: Proactive Maintenance

Now that you understand the possible causes of a stiff brake and how to fix them, here's some advice on how to maintain your brake system to prevent stiffness from recurring:

1. Regular Lubrication: Always ensure that your brake system is properly lubricated. This includes cables, lever pivot points, and any moving parts on the calipers or brake arms. Use a light, bicycle-specific lubricant. This is key for long-term smooth operation.

2. Constant Brake Pad Checks: Your brake pads directly affect how effective your brake system is. They are easily susceptible to wear and tear and should be checked frequently and replaced when the friction material is low (typically a few millimetres for rim brake pads, or below manufacturer specifications like 0.9mm for disc brake pads).

3. Protect Rotors from Contamination: For disc brakes, always protect your rotors from contamination (e.g., oil, grease) and make sure to clean them frequently with a dedicated disc brake cleaner. Replace them if there are signs of deep contamination that cannot be cleaned, as this can lead to reduced braking power and squealing.

4. Proper Caliper Alignment: If your brakes are rubbing or making squeaky noises, this can lead to premature wear of your brake pads and rotor, and can also contribute to a stiff feel. This is usually caused by bad caliper alignment. Regularly check and properly align your calipers so that the brake pads are centred over the rim or rotor and make even contact.

5. Understanding Hydraulic Brake Self-Adjustment: Pretty much all hydraulic brakes have a built-in feature that adjusts the position of the pistons as the pads wear down, so in theory, you never need to adjust them. This self-adjustment keeps the lever throw consistent. However, as mentioned, if you squeeze the lever without a disc present (e.g., when the wheel is out), the pads can move in too far. If this happens, gently push the pads back into the caliper before re-inserting the wheel and rotor.

Frequently Asked Questions (FAQs)

How do I know if my bike brake is too stiff?

A good indicator is if your brake lever is difficult to pull, or if it doesn't return smoothly after being squeezed. Ideally, your brake lever should squeeze about 3-4 cm before tightening up. If it's harder than that, or the brake mechanism struggles to move, it's likely too stiff.

Do hydraulic brake pads need to be adjusted?

In theory, no. Most hydraulic brakes have a built-in self-adjusting feature that compensates for pad wear. However, if you squeeze the lever without the disc present, the pistons can extend too far, and the disc won't fit. In this case, you'll need to gently push the pads back into the caliper.

Can I fix a stiff bike brake myself?

Yes, many common causes of stiff brakes, such as poor lubrication, rusty cables, or minor alignment issues, can be fixed with basic tools and patience. More complex issues, especially with hydraulic systems, might require professional help or specific tools.

What spare parts should I have on hand for brake maintenance?

It's always wise to keep spare brake pads, inner brake cables, and cable end caps. For cable-actuated systems, having some spare cable housing can also be beneficial for quick repairs.

How often should I lubricate my bike brakes?

The frequency depends on your riding conditions and how often you ride. For regular riders, lubricating cables and pivot points every few months, or after riding in wet or muddy conditions, is a good practice. Listen to your bike; if the levers start feeling less smooth, it's time for lubrication.

The most common thing people do when they experience stiffness in their brake is to return to the manufacturers or the bike shop. While it is good to leave complex repair issues to professionals, you could also save yourself a lot of time, energy, and money by resolving some issues yourself, especially if it's something relatively simple like a stiff brake or lever. By understanding the type of brake system on your bike and following these recommendations to resolve stiffness issues, you'll learn a lot more about your bicycle, how to make simple repairs, and keep your bike in good, efficient condition for many rides to come.
