DIY Bike Brake Adjustment: A UK Rider's Guide

For many cyclists across the UK, the thought of adjusting their own bike brakes can seem daunting, often leading to regular, costly trips to the local bike shop. I used to be one of them, shelling out good money every couple of months just to have someone tweak my brakes. It seemed like a constant drain, especially when decent bikes shouldn't demand such frequent, professional intervention. Then, a simple thought struck me: how difficult could it really be to handle this myself? As it turns out, with a bit of patience and the right know-how, adjusting your bike's brakes is surprisingly straightforward, empowering you to maintain your ride and save a significant amount of cash. This guide aims to demystify the process, sharing everything you need to confidently tackle brake adjustments yourself.

Understanding Your Bike's Braking System

Before diving into adjustments, it’s crucial to understand the key components of your bike's braking mechanism. Knowing what each part does will make the adjustment process far more intuitive and less intimidating.

Brake Pads

Perhaps the most critical elements of your braking system are the brake pads. These small, yet mighty, components are typically made from a soft, heat-resistant metal compound. Their primary function is to create friction against the wheel's rim, which in turn slows or stops your bike. When you engage the brake lever on your handlebars, the pads are pressed firmly against the rim, converting kinetic energy into heat and bringing your bike to a halt. Over time, these pads will wear down, necessitating either adjustment or replacement.

Barrel Adjusters and Brake Wire

The brake wire, often a black cable, runs from your handlebar levers down to the brake calipers. Its purpose is to transmit the force from your hand to the brake pads, tightening them against the rim. Along this wire, you'll find small, silver bolts known as barrel adjusters. These ingenious devices allow for quick, on-the-fly adjustments to the brake cable tension without needing to dismantle the entire mechanism. Think of them as a fine-tuning knob for your brakes, offering a temporary yet highly effective solution for minor slackness or tightness.

Brake Calipers

The brake calipers are the robust metal clamps that form the backbone of your braking mechanism. They are responsible for holding both the brake wire and the brake pads securely in position. When the brake lever is pulled, the calipers pivot, drawing the brake pads inwards to make contact with the wheel rim. Proper alignment and functioning of the calipers are paramount for efficient and safe braking.

Diagnosing Brake Issues: When Do They Need Adjustment?

Regularly checking your bike's brakes should become a habit, whether you're commuting through the city or tackling challenging mountain trails. There are a few tell-tale signs that indicate your brakes are crying out for attention, whether it's a simple adjustment or a full replacement.

• Squealing Sounds: A high-pitched squeal from your brakes often suggests that the brake pads are making only partial or uneven contact with the rim. This can be caused by misalignment or worn pads and is a clear indicator that adjustment or replacement is due.
• Spongy or "Weak" Feel: If your brake lever feels soft, spongy, or pulls too far back towards the handlebar before engaging, it's usually a sign of inadequate cable tension. The brake pads might be too far from the rim, requiring the lever to travel a greater distance to initiate braking.
• Vibration During Braking: Any noticeable vibration when you apply the brakes could point to a more serious issue within the mechanism. This might range from minor misalignments that can be corrected with adjustment to damaged or worn parts requiring replacement.
• Brake Pads Rubbing: If you hear a constant rubbing sound or feel resistance when cycling, it's likely your brake pads are too close to the rim and are making continuous contact, even when the brakes aren't applied.

Step-by-Step Guide to Brake Adjustment

Now that you're familiar with the components and symptoms, let’s get down to the practical steps of adjusting your bike brakes. You'll primarily need an Allen wrench for most adjustments.

1. Initial Inspection: Checking Brake Pad Condition and Alignment

Before grabbing your tools, a thorough visual inspection is crucial. The worst-case scenario is significantly worn brake pads. Many good quality brake pads feature a wear line indicator, a small groove or marking that tells you when it's time for a full replacement rather than just an adjustment. If no wear line is present, look for markings on the sides of the pads. If the wear has reached these indicators, new pads are essential for safety and performance.

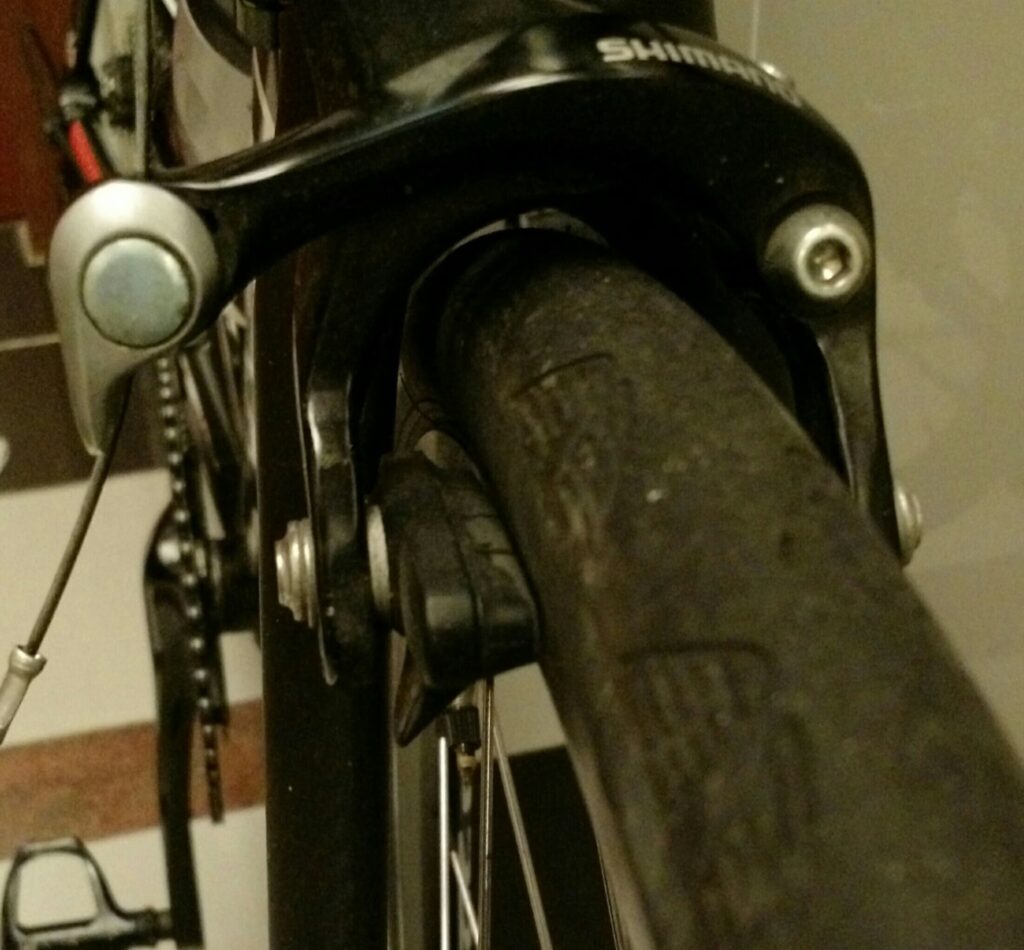

Assuming your pads are in good condition, the next step is to check their alignment relative to the wheel's rim. This will confirm if they are too close, causing rubbing, or too far, leading to that spongy lever feel. To do this, gently squeeze your brake lever and observe how the pads engage with the rim. Don't just look for horizontal distance; vertical alignment is equally important. The pads must make full, even contact with the rim's braking surface, not the tyre or the wheel's spokes.

• If the pad touches the tyre, it's too high.
• If it touches the spokes, it's too low.
• If it rubs the rim constantly, it's too close.
• If you have to pull the lever too far, it's too far away.

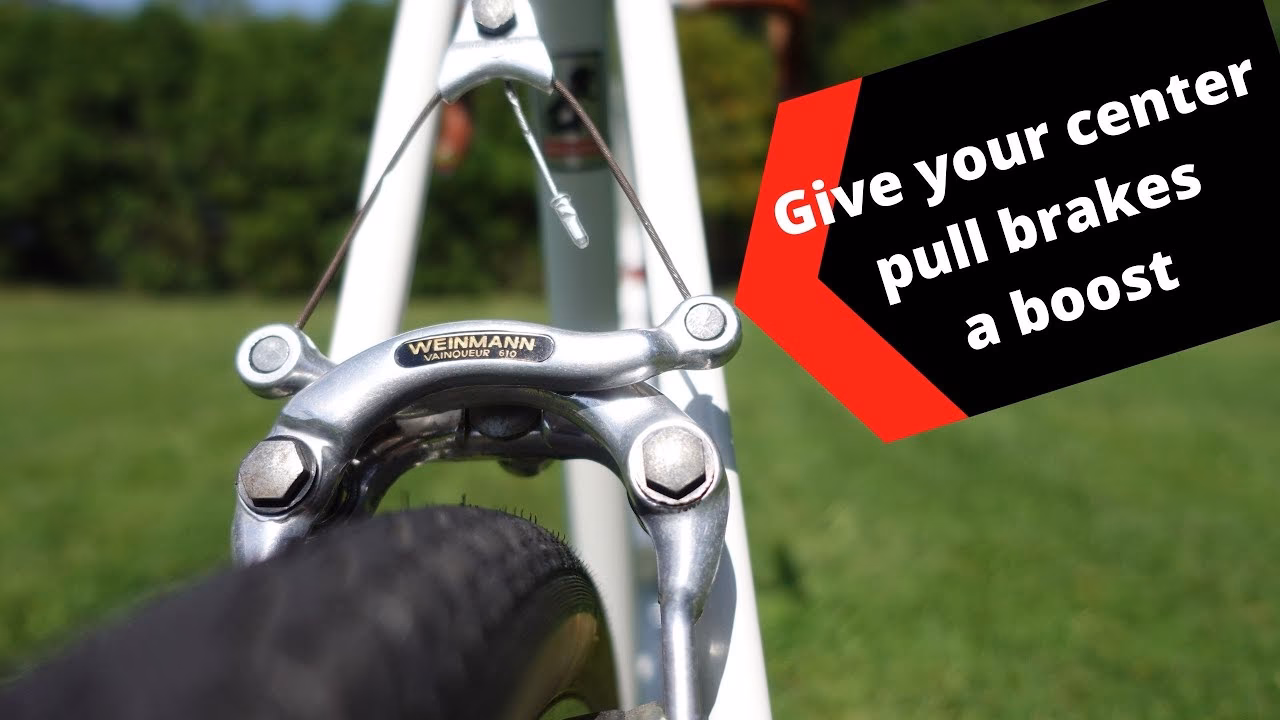

2. Adjusting Brake Pad Alignment

Many people shy away from mechanical work, but adjusting brake pads is surprisingly simple, primarily requiring just an Allen wrench. Locate the bolt that secures the brake pad to the caliper. Use your Allen wrench to turn this bolt counter-clockwise, just enough to loosen the pad so it can be moved by hand. Be careful not to unscrew the bolt entirely, as the pad could fall out.

Adjusting Vertical Alignment

With the bolt slightly loosened, you can now easily slide the brake pad up or down to re-centre it with the rim's braking surface. Ensure the entire surface of the pad will make contact with the rim, avoiding the tyre or spokes. If you encounter resistance, loosen the bolt a tiny bit more. Once you've found the ideal vertical position, apply gentle pressure with your thumb and fingers to hold the pad in place, ensuring it doesn't tilt when you tighten the bolt.

Adjusting Horizontal Alignment

While still holding the pad in its correct vertical position, use your Allen wrench to tighten the bolt clockwise. As you tighten, pay close attention to the horizontal distance between the brake pad and the rim. For most modern bikes, a gap of approximately 3 millimetres or one-eighth of an inch (1/8 inch) between the pad and the rim is considered the sweet spot. This distance allows for efficient braking without constant rubbing. Once tightened, give the wheel a spin to ensure no rubbing occurs.

3. Fine-Tuning Brake Cable Tension

Even if your brake pads are perfectly aligned, incorrect cable tension can lead to a spongy feel or a lack of stopping power. This is where the brake cable adjustment comes into play.

Testing Brake Tension

To assess the current tension, pull each brake lever towards the handlebar. Ideally, the brake lever should stop approximately 1.5 inches (or about 3.8 cm) away from the handlebar grip when fully pulled. If the lever touches the grip, the cable is too loose. If you can barely pull the lever, the cable is too tight, which can unnecessarily stress the braking mechanism and reduce modulation.

Using Barrel Adjusters

Barrel adjusters are your first port of call for minor cable tension adjustments. To tighten the brake cable (and thus bring the pads closer to the rim), turn the barrel adjuster counter-clockwise. This might seem counter-intuitive, but due to the threading, turning it out increases cable tension. Turn it a quarter or half turn at a time, then re-test the lever tension. If the lever still feels too loose after fully extending the barrel adjuster, you'll need to adjust the cable at the caliper.

Adjusting via Caliper Bolt

If the barrel adjusters aren't sufficient, you'll need to adjust the cable directly at the caliper. Locate the caliper bolt that clamps the brake cable in place. Using your Allen wrench, loosen this bolt by turning it counter-clockwise a few turns – again, don't remove it completely. With the bolt loosened, you can now manually pull the brake cable through the caliper to increase tension. As you pull, observe the brake pads moving closer to the rim. The goal is to find a balance: tight enough to engage the brakes effectively but loose enough that the wheel spins freely without resistance when the brakes are disengaged. Once satisfied with the tension, hold the cable firmly and re-tighten the caliper bolt securely with your Allen wrench.

Sealing the Barrel Adjuster and Final Test

Now that the brake cable has been tightened from the caliper's end, you can screw the barrel adjusters back in, perhaps fully clockwise. Then, slowly turn them counter-clockwise (outwards) again to fine-tune the tension until the brake lever sits approximately 1.5 inches from the handlebar when fully pulled. Spin the wheel to ensure it rotates freely without any rubbing. Apply the brakes firmly to ensure they engage smoothly and stop the wheel effectively. A quick test ride in a safe area is always recommended to confirm your adjustments.

Troubleshooting Common Brake Issues

Even with a good adjustment, sometimes issues persist. Here’s a quick guide to common problems and their solutions.

How do I stop my bike brakes from rubbing?

If your bike brakes start rubbing mid-ride, a quick fix is to use your barrel adjusters. Turn them clockwise (inwards) a quarter or half turn to slightly loosen the cable tension, which will move the pads a fraction further from the rim. For more persistent rubbing, you'll need to re-adjust the horizontal alignment of the brake pads at the caliper, ensuring that 3mm gap.

Why are my bike brakes sticking?

Brakes can stick for a couple of reasons. Firstly, the brake mechanism might lack lubrication. A small amount of bicycle-specific lubricant on the caliper pivots can often resolve this. Secondly, the brake calipers themselves might be misaligned or seized. If a caliper arm isn't releasing fully after you let go of the lever, it will cause the pads to stick to the rim. This might require re-aligning the caliper or, in older bikes, a more thorough service or replacement if parts are rusted or worn.

What causes a brake caliper not to release?

A brake caliper's inability to release is usually due to one of two primary reasons: age and wear, or worn brake pads. Older calipers can succumb to rust and grime, causing the pivot points to seize. Regular cleaning and lubrication can mitigate this, but sometimes replacement is the only solution. Additionally, if brake pads are excessively worn down, even if the caliper technically releases, there might not be enough material left on the pads to create the necessary gap from the rim, effectively making them "stick" through constant contact.

Can you ride a bike with a bad brake caliper?

Riding a bike with a faulty brake caliper is highly dangerous and strongly discouraged. A malfunctioning caliper compromises your ability to stop safely and effectively, putting you at significant risk of accidents. While minor adjustments might temporarily alleviate some symptoms, any issue that prevents a caliper from releasing or engaging properly should be addressed immediately. Prioritise your safety and repair or replace faulty components before riding.

Brake Troubleshooting Quick Reference

Final Checks and Pro Tips

You’ve now equipped yourself with the knowledge to diagnose and fix your bike's brakes, saving you both time and money. Always remember to do a final check after any adjustment: spin the wheels to ensure they turn freely, pull the brake levers to confirm solid engagement, and take a short, slow test ride in a safe environment before heading out on a longer journey.

Regular maintenance is key. Make it a habit to quickly check your brakes before each ride. A few seconds of inspection can prevent bigger issues down the line. With practice, these adjustments will become second nature, giving you greater confidence and control over your ride. No more paying someone else for what you can easily do yourself!
