Bicycle Brake Pads: Your Guide to Stopping Power

When you’re hurtling down a hill or navigating busy city streets, the one thing standing between you and potential disaster is your bicycle's braking system. At the very heart of this system are the brake pads – unassuming components that shoulder the immense responsibility of bringing your ride to a safe, controlled halt. Far from being a simple piece of rubber, brake pads are engineered for specific conditions and bike types, and understanding their composition and function is paramount for any cyclist looking to maintain optimal performance and safety.

This comprehensive guide delves into the fascinating world of bicycle brake pads, exploring the materials they are crafted from, their varied designs, and how they integrate with different braking systems. We’ll also touch upon the broader context of bicycle brakes, ensuring you have a holistic understanding of how your bike achieves its crucial stopping power.

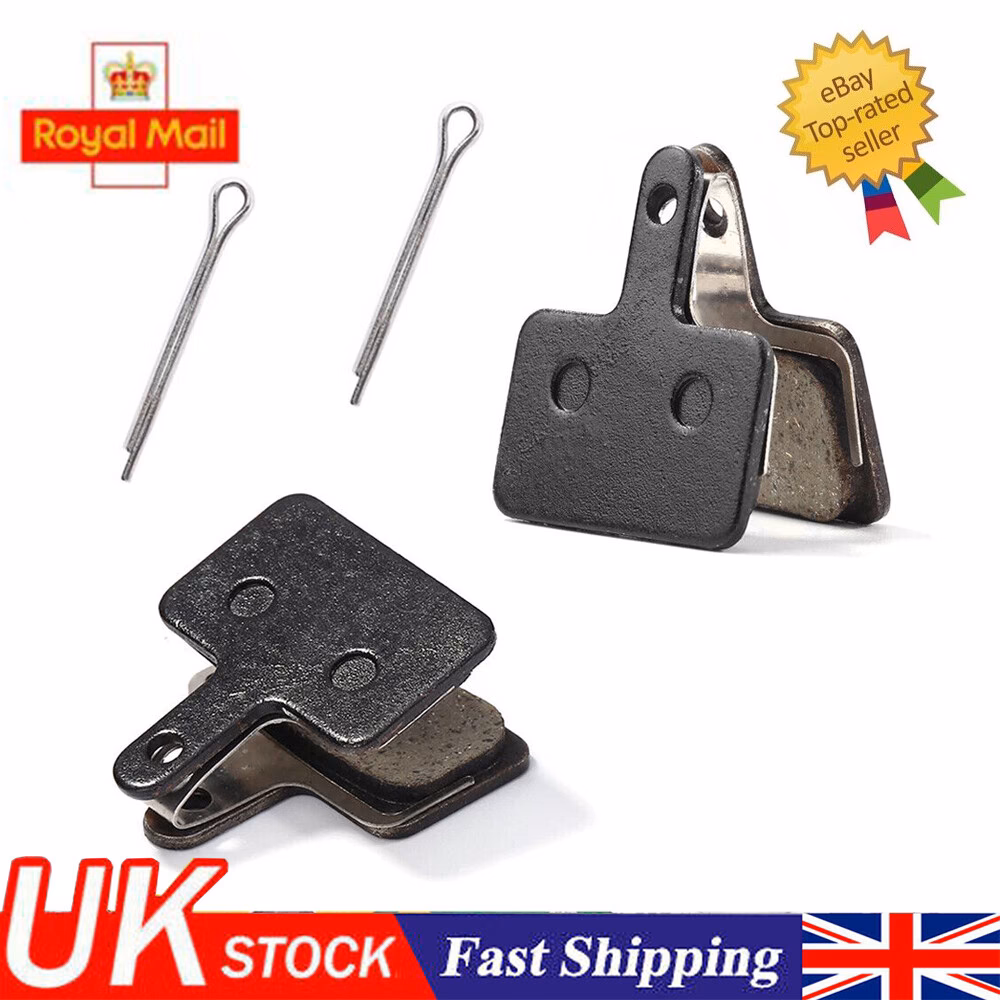

The Fundamental Makeup: What Are Bicycle Brake Pads Made Of?

At their most basic, bicycle brake pads are designed to create friction against a rotating surface, converting kinetic energy into thermal energy to slow or stop the bike. The materials used are crucial to this process, influencing performance, durability, and suitability for various riding conditions.

The vast majority of pads typically feature a replaceable rubber pad set within a brake shoe-like mount. This design allows for easy replacement once the pad wears down. However, some manufacturers produce single-piece pads where the braking material is moulded directly, often as a cost-cutting measure.

Key Materials and Their Characteristics:

• Standard Rubber Compounds: These are the most common and versatile, typically found on bikes with aluminium rims. They provide good all-round performance in dry conditions.
• Ceramic-Specific Compounds: For bicycles fitted with ceramic rims, specialised ceramic brake pads are essential. These pads pack tons of chromium-based compounds, making them exceptionally resilient to the high heat generated at the pad-rim contact area. Using standard rubber pads on ceramic rims can lead to excessive heat build-up and significantly reduced braking performance, especially in wet weather.
• Iron (III) Oxide for Wet Weather: When riding in damp or outright wet conditions with aluminium rims, standard rubber pads can struggle to provide adequate friction. This is where pads made from materials like iron (iii) oxide come into their own. Brands like Kool-Stop are renowned for producing these types of pads, which offer significantly more friction on wet aluminium rims than conventional rubber compounds, ensuring reliable braking when you need it most.

Beyond material, the physical characteristics of brake pads also vary. Most are rectangular, though some are curved and longer to accommodate the rim’s radius more effectively. Generally, larger brake pads tend to wear slower than smaller pads of the same thickness. However, it's important to note that a larger pad doesn't automatically equate to superior braking power; the material composition plays a more significant role in that regard.

The Balancing Act: Soft vs. Hard Brake Pads

One of the crucial considerations when selecting or understanding brake pads is the balance between their hardness and their performance characteristics. This choice often involves a trade-off:

Softer brake pads offer superior braking power because they can deform slightly to create a larger contact patch and generate more friction. However, this comes at the cost of quicker wear, meaning they need more frequent replacement. Conversely, harder brake pads provide less friction, which translates to reduced braking power, but their increased durability means they will last significantly longer. The ideal brake pad strikes a decent mix of both braking performance and longevity, catering to the specific needs of the cyclist and their riding environment.

Matching Pads to Rims: A Critical Compatibility Guide

Incorrectly pairing brake pads with your bicycle's rims can lead to suboptimal braking, premature wear of components, and potentially hazardous situations. Different rim materials demand specific pad compositions to ensure both safety and longevity.

• Carbon Fibre Rims: These high-performance rims require brake pads specifically designed for carbon. Pads that are too abrasive can quickly damage the delicate carbon surface. Always check manufacturer recommendations for carbon rim brake pads.
• Ceramic Rims: As previously mentioned, ceramic rims, with their incredibly hard and heat-resistant surface, necessitate ceramic brake pads. These pads are formulated to handle the high temperatures generated and prevent the rapid wear and reduced wet weather performance that standard pads would exhibit.
• Aluminium Rims: The most common type, aluminium rims are generally compatible with standard rubber brake pads. However, for improved performance in wet conditions, pads containing iron (iii) oxide are highly recommended due to their enhanced friction properties on wet surfaces.

Always ensure mounting compatibility between your chosen pads and your brake system. While a brake can generally accommodate various pad types, the specific fit is crucial for proper function.

Brake Pads Across Common Bicycle Brake Types

While the core function of brake pads remains consistent, their design and specific performance characteristics are tailored to the different braking systems they serve. Let's look at how pads integrate with the four most common bicycle brake types:

Cantilever Bicycle Brakes

Often found on cyclocross and touring bikes, cantilever brakes are known for providing ample clearance for wide tyres and fenders, making them excellent for muddy conditions. These brakes typically use cartridge-style pads, which are relatively easy to replace. When the pads wear out, you simply remove a holding bolt or pin, slide out the old pad, and insert a new one, making maintenance straightforward.

V-Brakes (Linear-Pull Brakes)

Popular on mountain, hybrid, and touring bikes, V-brakes offer strong braking power. Similar to cantilevers, the majority of V-brakes also utilise cartridge-style pads. This simplifies pad replacement significantly: remove the bolt/pin, swap the worn pad, and slide in the new one. A minor cable adjustment might be necessary afterwards to fine-tune the braking feel. Shimano pioneered the term 'V-brakes,' though other manufacturers might call them direct-pull or linear-pull brakes.

Caliper Bicycle Brakes

The most common brake type on youth and road bikes, caliper brakes are a form of rim brake. They work by pressing pads directly against the bike's rim to create friction. Caliper brakes offer a sleek, lightweight, and aerodynamic design. While the text doesn't specify pad material for calipers, it implies standard rim brake pads (likely rubber-based for aluminium rims). Direct-mount calipers, with their two mounting points, provide greater stiffness and often increased braking power due to more consistent pad contact.

Disc Bicycle Brakes (Mechanical & Hydraulic)

Disc brakes represent a significant departure from rim brakes. Instead of pressing against the rim, their pads press against a metal rotor fixed to the wheel hub. This design offers superior braking power, especially in adverse conditions like mud or wet weather, and requires less force to actuate. Disc brake pads are generally much harder compared to their non-disc counterparts. A key advantage of disc brake pads is their design, which inherently prevents the accumulation of mud, sand, debris, and dust, ensuring consistent performance even in demanding off-road scenarios.

There are two main types of disc brakes:

• Mechanical Disc Brakes: These use a cable to actuate the caliper. They are simpler and cheaper than hydraulic systems but require more frequent adjustments to compensate for cable stretch and brake pad wear.
• Hydraulic Disc Brakes: Considered the 'holy grail' by many cyclists, these systems use an incompressible fluid within a hose to transmit force from the lever to the caliper's pistons. They offer immense stopping power, superior modulation, and consistent performance across various conditions, making them ideal for challenging descents and aggressive riding. Their ability to manage heat dissipation is also a major advantage, preventing issues like tire blowouts from rim overheating.

The Anatomy of a Bicycle Brake and How It Works

Understanding the brake pads is just one piece of the puzzle. The entire braking system is a marvel of mechanical efficiency, converting your input into controlled deceleration. A typical bicycle brake consists of three main parts:

1. The Actuation Mechanism: This is where the rider initiates braking force, primarily through brake levers on the handlebars or, in some cases, pedals (like coaster brakes).
2. The Relay Mechanism: This component transmits the braking instructions from the actuation point to the stopping mechanism. This can involve steel cables (for mechanical systems), hydraulic hoses containing fluid (for hydraulic systems), or even rods and the bike chain in older or less common designs.
3. The Stopping Mechanism: This is the part that directly creates the friction to slow the bike. It could be a caliper pressing pads against a rim or a rotor, or a drum brake mechanism. The pressing together of these surfaces converts the bike's kinetic energy and the rider's momentum into thermal energy, which is then dissipated, bringing the bike to a halt or slowing it down.

Mastering the Art of Braking: Technique and Safety

Even with the best brake pads and braking system, effective braking ultimately depends on the rider's technique. Knowing how to apply your brakes correctly is crucial for safety and control, particularly in challenging riding conditions.

Front vs. Rear Brake Application:

• Front Brake: When you pull the front brake lever, your weight shifts forward over the front wheel, increasing traction. Applying the front brake too hard or too suddenly, especially at speed, can lead to an 'endo' or 'OTB' (Over The Bars) situation, where you're sent flying over the handlebars. While the front brake offers the most powerful stopping force due to weight transfer, it requires careful modulation.
• Rear Brake: Applying the rear brake typically results in some degree of skidding, which can be subtle or pronounced depending on the force applied. While a rear-wheel skid might not immediately send you over the bars, excessive skidding can lead to a loss of control, especially if combined with front braking.

Mastering the balance between front and rear braking is key. On a bike with a normal wheelbase, applying both brakes simultaneously, with a slight bias towards the front (around 60-70% front, 30-40% rear), often provides the most efficient and controlled deceleration. However, bikes with super-long wheelbases, like tandem bikes, are less prone to OTB incidents.

Key Braking Tips for Cyclists:

1. Test Your Brakes: Always test the responsiveness and required lever squeeze on a new or rental bike before a ride.
2. Brake Before the Turn: Initiate braking well before entering a turn or berm to control your speed, then release the brakes as you lean into the turn.
3. Slippery Surfaces: On wet pavement, mud, snow, or loose gravel, primarily use your rear brake. Apply gentle pressure to avoid skidding and maintain control. Avoid aggressive front braking on these surfaces.
4. Extreme Loose Terrain: In very loose gravel or dirt, locking out the rear wheel completely might be the best way to slow down and maintain control, though this causes a skid.
5. Steep Descents: On extremely steep hills, locking out the rear wheel can lead to reduced control. Instead, use the rear brake to slow down without stopping the wheel's rotation entirely. A front-wheel skid on a steep descent is highly dangerous and should be avoided.
6. Long, Gentle Descents: To prevent hand fatigue and brake overheating, alternate between the front and rear brakes. This distributes the work and helps manage heat build-up, preventing issues like tire blowouts or hydraulic fluid boiling.
7. Front Tire Flat: If you get a front tyre flat, dismount immediately. Never use the front brake on a flat tyre, as this can cause the tyre to detach from the rim, leading to a crash.

Maintaining Your Brake Pads: Simple Steps for Longevity

While the provided information doesn't offer an in-depth maintenance guide, it highlights that cartridge-style pads (found on V-brakes and cantilevers) are "pretty simple and easy" to change. For mechanical disc brakes, it notes the need to "make brake adjustments to counter... brake pad wear." This implies that regular inspection and timely replacement of worn pads are crucial for consistent braking performance. Always ensure that pads are correctly aligned with the rim or rotor and that cables (for mechanical systems) are properly tensioned to optimise braking efficiency and extend pad life.

Frequently Asked Questions About Bicycle Brake Pads

Q1: How often should I replace my bicycle brake pads?

A1: The lifespan of brake pads varies significantly based on material, riding style, terrain, and weather conditions. Softer pads wear faster than harder ones. Regular inspection for wear indicators and reduced braking performance is key. If your pads appear thin, or you notice a decrease in stopping power, it's time to replace them.

Q2: Can I use any brake pad with any rim?

A2: No, it's crucial to match brake pads with your rim material. Using abrasive pads on carbon fibre rims can cause damage, and standard pads on ceramic rims will perform poorly and overheat. Always use ceramic-specific pads for ceramic rims and consider iron oxide pads for wet aluminium rim conditions.

Q3: Do disc brake pads last longer than rim brake pads?

A3: Disc brake pads are generally made from harder compounds and are less exposed to road grit than rim brake pads, which press directly against the often-dirty rim surface. While their rotor contact is different, disc brake pads are designed for high performance and durability in varied conditions, and their operation doesn't wear out the rim itself, leading to longer rim life.

Q4: Why are my brakes squealing after replacing the pads?

A4: Squealing can be caused by several factors, including incorrect alignment of the pads (toe-in for rim brakes can help), contamination of the pad or rim/rotor surface (oil, grease), or worn-out pads. Ensure the pads are clean, correctly installed, and properly aligned. If it persists, the rim or rotor might need cleaning or minor adjustment.

Q5: Is it better to use soft or hard brake pads?

A5: Neither is universally 'better'; it depends on your priorities. Softer pads offer greater stopping power but wear faster. Harder pads last longer but provide less friction. The best choice often involves finding a pad that offers a good balance of both performance and durability for your specific riding needs and conditions.

In Conclusion

Bicycle brake pads are small components with a monumental task. Their material, design, and compatibility with your bike's rims and braking system are critical factors influencing your safety and riding experience. From the common rubber pads for aluminium rims to advanced ceramic compounds and robust disc brake pads, each type is engineered for specific performance. Understanding these nuances, coupled with mastering proper braking techniques, empowers you to ride with confidence, knowing you have reliable stopping power at your fingertips.
