Caliper Brakes for MTBs: A Wise Choice?

When it comes to mountain biking, the thrill of tackling challenging trails, descending steep slopes, and navigating technical terrain is paramount. But equally crucial, if not more so, is the ability to stop safely and effectively. Brakes are your ultimate safety net, the component that gives you the confidence to push your limits. The question of which brake system is best for a mountain bike often arises, and specifically, whether traditional caliper brakes are a suitable choice. While caliper brakes have served cyclists well for decades, the demands of off-road riding present unique challenges that warrant a closer look at their suitability for modern mountain bikes.

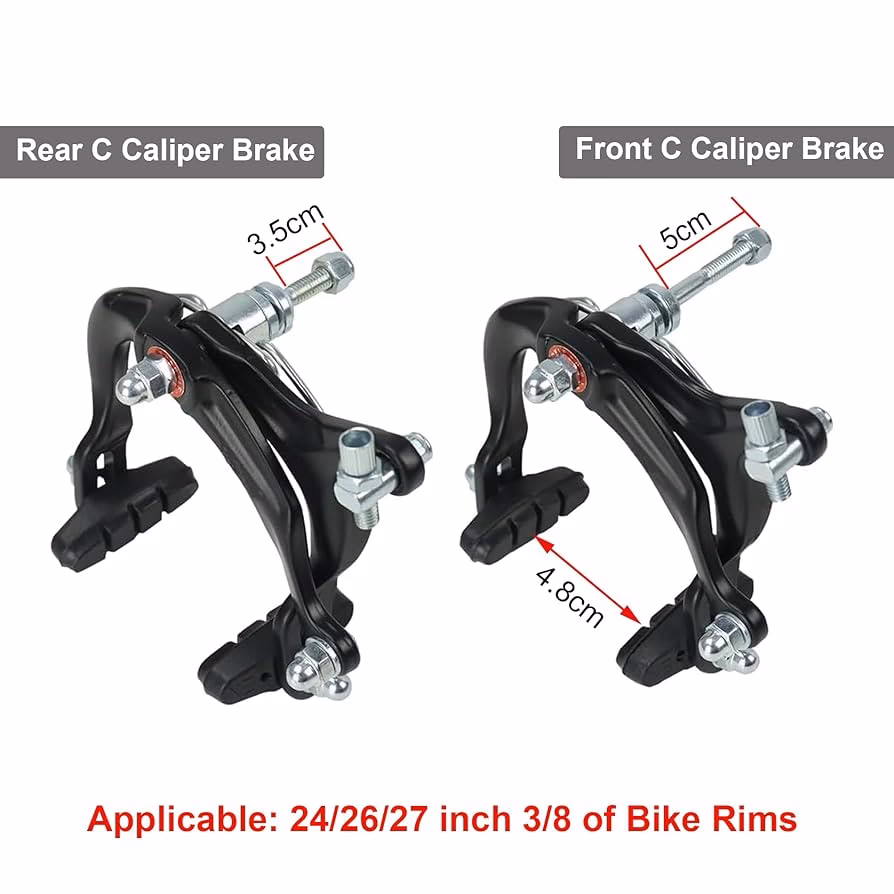

Understanding Caliper Brakes: The Basics

Caliper brakes, often referred to as rim brakes, operate by squeezing brake pads against the rim of the wheel. This friction between the pads and the rim generates the stopping force. They are a classic and widely understood braking system, commonly found on road bikes, hybrid bikes, and older mountain bikes. There are several types of caliper brakes, including V-brakes (or direct-pull cantilevers), cantilever brakes, and side-pull calipers (more common on road bikes). For mountain bikes, V-brakes were the most prevalent form of rim brake due to their greater stopping power and easier setup compared to traditional cantilevers.

The mechanism is relatively simple: when you pull the brake lever, a cable pulls arms that bring the brake pads into contact with the rim. The harder you pull, the more pressure is applied, and the faster you slow down. They are generally lightweight, easy to maintain, and often less expensive to manufacture and purchase than disc brake systems.

The Rise of Disc Brakes in Mountain Biking

In stark contrast to rim brakes, disc brakes operate by clamping brake pads onto a metal rotor that is attached to the wheel hub. This means the braking surface is separate from the wheel rim. Disc brakes can be either mechanical (cable-actuated) or hydraulic (fluid-actuated). Hydraulic disc brakes are the dominant choice for modern mountain bikes due to their superior performance characteristics.

The shift from rim brakes to disc brakes in mountain biking began in the late 1990s and has since become almost universal for any serious off-road riding. This transition wasn't just a fad; it was a fundamental evolution driven by the need for better stopping power, improved modulation, and more consistent performance in challenging conditions. Today, if you purchase a new mountain bike, especially one designed for trail, enduro, or downhill riding, it will almost certainly come equipped with hydraulic disc brakes.

Why Caliper Brakes Fall Short for Mountain Biking

While caliper brakes have their place, they possess several inherent limitations that make them ill-suited for the rigours of mountain biking:

• Reduced Stopping Power: On steep descents or in emergency braking situations, rim brakes simply cannot generate the same level of stopping force as disc brakes. The contact area between the pad and the rim is smaller, and the leverage is less effective compared to a disc system.
• Inconsistent Performance in Wet and Muddy Conditions: This is perhaps the most significant disadvantage. When rims get wet or covered in mud, the friction between the pads and the rim drastically decreases. This leads to a significant loss of braking performance, often accompanied by a horrible squealing noise. Mud and grit can also get trapped between the pad and rim, accelerating wear on both components.
• Poor Modulation: Modulation refers to the ability to control the braking force precisely, from a gentle slowdown to a full stop. Rim brakes tend to be more 'on-off' in their feel, making it harder to feather the brakes for subtle speed adjustments, especially on loose terrain where locking up a wheel can lead to a loss of control.
• Rim Wear and Damage: Over time, the constant friction from rim brake pads wears down the rim's braking surface. Eventually, this wear can compromise the integrity of the wheel, leading to potential rim failure. A damaged rim can be an expensive replacement.
• Heat Buildup: On long, sustained descents, rim brakes can generate significant heat, especially in the rim itself. This heat can cause tyre blowouts due to increased air pressure and can also lead to brake fade, where the braking performance diminishes as the system overheats.
• Clearance Issues: Mud and debris can easily pack into the brake arms and between the pads and the rim, leading to blockages and further impairing braking performance.

Where Disc Brakes Excel on the Trails

Conversely, disc brakes address all the shortcomings of rim brakes for off-road use:

• Superior Stopping Power: Disc brakes offer immense braking power, allowing riders to slow down or stop quickly and confidently, even at high speeds or on steep gradients.
• Consistent Performance in All Conditions: Rain, mud, snow, or dry trails – disc brakes maintain their performance remarkably well. The rotor is less susceptible to contamination than a rim, and the enclosed caliper design offers better protection from the elements.
• Excellent Modulation: Hydraulic disc brakes, in particular, provide incredibly precise control over braking force. This modulation allows riders to maintain traction, control their speed, and navigate technical sections with greater finesse.
• No Rim Wear: Since the braking occurs on a separate rotor, your wheel rims are preserved, extending their lifespan significantly.
• Better Heat Dissipation: Disc rotors and calipers are designed to dissipate heat more effectively, preventing fade on long descents and reducing the risk of tyre issues.
• Improved Tyre Clearance: With no brake callipers around the rim, there's more space for wider tyres, which are beneficial for traction and comfort on mountain bike trails.

Caliper Brakes vs. Disc Brakes for Mountain Biking: A Comparative Table

To summarise the key differences, here's a side-by-side comparison:

When Might Caliper Brakes Be Considered (and why it's usually not for MTBs)

Realistically, the only scenarios where you might consider caliper brakes for a mountain bike are:

• Restoring an Old Bike: If you're restoring a vintage mountain bike to its original specification, then V-brakes or cantilever brakes would be period-correct. However, this is for aesthetic or collector purposes, not for modern trail riding.
• Budget Constraints on a Very Old Frame: If you have an exceptionally old mountain bike frame that isn't disc-brake compatible (lacks disc brake mounts on the frame and fork), and your budget is extremely limited, then sticking with rim brakes might be your only option. But again, this bike would be severely limited in its off-road capabilities.
• Casual, Flat Path Riding: For someone using a mountain bike purely for light exercise on paved paths or very flat, dry gravel trails, where speed and technical challenges are minimal, rim brakes *could* suffice. However, even in these scenarios, disc brakes offer a significant upgrade in safety and confidence.

It is crucial to understand that if you plan to ride on any actual mountain bike trails – even relatively easy ones with modest descents or unpredictable weather – disc brakes are not just a recommendation; they are a fundamental safety requirement. Attempting to ride technical trails with rim brakes can be dangerous, leading to inadequate stopping power, loss of control, and increased risk of accidents.

Upgrading Your Mountain Bike's Braking System

If you own an older mountain bike with rim brakes and are considering upgrading, the feasibility largely depends on your frame and fork. Modern mountain bike frames and forks are designed with disc brake mounts (usually Post Mount or Flat Mount) and often lack the necessary studs for V-brakes. If your frame and fork have disc brake mounts, then upgrading to disc brakes involves purchasing new disc brake calipers, rotors, levers, and potentially new wheels (as older wheels might not have disc-compatible hubs).

If your frame and fork do not have disc brake mounts, then a full upgrade to disc brakes would necessitate purchasing a new frame and fork, which effectively means buying a new bike. This highlights how integral disc brakes have become to the design and performance of modern mountain bikes.

Maintenance Considerations for Braking Systems

While disc brakes offer superior performance, they do require specific maintenance. Hydraulic systems occasionally need bleeding to remove air bubbles from the fluid lines, and pads need regular inspection and replacement. Rotors can also become warped or contaminated. However, the benefits in performance and safety far outweigh the slightly more involved maintenance compared to rim brakes.

Rim brakes, while seemingly simpler, also require consistent attention. Pads wear down and need frequent replacement, especially in gritty conditions. Rims themselves need cleaning to maintain braking performance, and over time, the rim's braking surface will wear out, necessitating wheel replacement.

Frequently Asked Questions

Q1: Are V-brakes considered caliper brakes?

Yes, V-brakes are a type of rim brake, which fall under the broader category of caliper brakes or direct-pull cantilevers. They operate by pulling the brake pads directly onto the rim.

Q2: Can I put disc brakes on any mountain bike?

No, not all mountain bikes can be converted to disc brakes. Your frame and fork must have specific mounting points for disc brake calipers (often called 'disc tabs' or 'disc mounts'). Additionally, your wheel hubs must be compatible with disc rotors, meaning they must have a mounting interface for the rotor (usually 6-bolt or Centerlock). If your bike lacks these, a conversion is generally not feasible or safe without significant, often cost-prohibitive, modifications.

Q3: How often should I replace my brake pads?

The lifespan of brake pads varies greatly depending on riding conditions, frequency of braking, and the type of pads. For rim brakes, visual inspection of the pad wear lines is key. For disc brakes, check the pad thickness; most manufacturers recommend replacement when the pad material is less than 0.5mm to 1mm thick, or when the spring is almost touching the rotor. Always replace pads before they wear down to the backing plate to avoid damaging your rotors or rims.

Q4: What is brake fade?

Brake fade is the reduction in braking power that occurs due to overheating of the braking system. This is more common with rim brakes on long, steep descents where continuous braking generates excessive heat in the rim. While less common with disc brakes, severe and prolonged braking can still cause fade if the system's heat dissipation limits are exceeded.

Q5: Is it safe to mix brake types (e.g., disc front, rim rear)?

While technically possible if your bike supports it, mixing brake types is generally not recommended for mountain biking. Your front brake provides the majority of your stopping power, but having a consistent feel and performance across both brakes is crucial for predictable and safe handling, especially in challenging terrain. It's always best to have a matching set of brakes for optimal performance.

Conclusion: The Verdict for Mountain Bikes

To directly answer the question: should you buy a caliper brake set for a mountain bike? For almost all modern mountain biking applications, the unequivocal answer is no. While caliper brakes are a cost-effective and perfectly adequate solution for less demanding cycling disciplines, they simply do not meet the safety and performance requirements of off-road riding.

The superior stopping power, modulation, and all-weather reliability of disc brakes make them the only sensible choice for anyone serious about riding mountain bike trails. Investing in a bike with a good set of disc brakes is an investment in your safety, confidence, and enjoyment on the trails. If your current mountain bike still relies on rim brakes and you plan to tackle anything beyond very gentle paths, consider upgrading to a bike equipped with modern disc brakes. Your safety and riding experience will be profoundly improved.
