Stick Welding Rod Size: The Essential Guide

Choosing the correct size of stick welding electrode, or rod, is a fundamental step towards achieving strong and aesthetically pleasing welds. Many aspiring welders follow a simple rule of thumb: select a rod slightly smaller than the base metal's thickness. While this often serves as a reasonable starting point, it's crucial to understand that this guideline doesn't always guarantee optimal results and can sometimes lead to disappointing outcomes. The diameter of your welding rod significantly influences various aspects of the Stick Metal Arc Welding (SMAW) process, from heat input and penetration to welding speed and puddle control. Understanding these relationships is key to mastering this versatile welding technique.

The Impact of Rod Diameter on Stick Welding (SMAW)

The diameter of a stick welding electrode is not merely a physical dimension; it's a critical variable that dictates the performance characteristics of the welding arc and the resulting weld. Thicker electrodes, for instance, demand higher amperage settings to establish and maintain a stable arc. This increased amperage translates directly into greater heat input, faster travel speeds, deeper penetration into the base metals, and a larger molten weld puddle. These attributes make larger diameter rods ideal for welding thicker materials where substantial heat and rapid deposition are beneficial. Conversely, smaller diameter electrodes operate at lower amperages. This results in a less intense arc, shallower penetration, and a more manageable, smaller weld puddle. Smaller rods are therefore the preferred choice for welding thinner materials, or when precision and a finer weld bead are required. For example, if you need to create a 1/8" (3.2 mm) fillet weld on material that is 1/2" (12.7 mm) thick, selecting a 5/32" (4 mm) electrode would be an error. Instead, you should opt for the largest diameter electrode that will allow you to achieve the desired 1/8" fillet weld without over-penetrating or creating an excessively large bead.

Understanding Electrode Measurement

A common point of confusion for beginners is how welding rod diameter is measured. It's essential to know that the stated diameter of a stick electrode refers to the diameter of its metal core, not the overall diameter including the flux coating. The flux coating's thickness can vary significantly between different electrode types, even if they share the same core diameter. For instance, a 1/8" (3.2 mm) 7018 electrode will typically have a thicker flux coating and thus a larger outer diameter than a 1/8" 7011 electrode. Similarly, a 1/8" 7024 electrode will have an even larger outer diameter. All these electrodes are classified as 1/8" (3.2 mm) stick electrodes because their metal cores measure 1/8" in diameter.

The Consequences of Incorrect Rod Size Selection

Selecting the wrong electrode size can lead to a cascade of problems, resulting in frustration, subpar welds, and potentially the irreparable damage of your workpiece. Often, poor electrode size choices necessitate costly rework. Fortunately, these issues are entirely avoidable with a thorough understanding of the impact of rod size and careful consideration of the project's requirements.

Problems Associated with Small-Diameter Electrodes

While smaller diameter electrodes are valuable for specific applications, using them inappropriately can cause significant issues. The primary consequence of using an electrode that is too small is reduced penetration and a lack of fusion. Smaller electrodes require lower amperages, which generate less heat. This reduced heat makes it difficult for the arc to sufficiently melt the base metals, leading to a weak or incomplete bond. Furthermore, the smaller weld bead produced by these rods means that multiple passes will be necessary to achieve the desired weld size, increasing the overall time and effort required. Another challenge with very small electrodes, such as 1/16" (1.6 mm) or 5/64" (2 mm), is their tendency to vibrate during welding. Maintaining a consistent arc and directing the electrode tip precisely into the root of the weld joint can be exceptionally difficult, even for experienced welders. These ultra-fine electrodes are best suited for materials less than 1/8" (3.2 mm) thick, but stick welding itself is generally not recommended for materials thinner than this unless the welder possesses a high degree of skill and experience. Additionally, lower amperages required for small rods can make it harder for some welding machines to maintain a stable arc, leading to the electrode sticking to the workpiece.

Issues with Oversized Electrodes

Conversely, using an electrode that is too large for the task at hand introduces its own set of problems. The excessive heat generated by larger electrodes can cause significant distortion of the base metal. There's also a heightened risk of the arc melting completely through the base metal, creating an unintended hole. The weld beads produced by oversized electrodes are typically wider and more fluid. This fluidity can trap slag within the weld joint, resulting in slag inclusions, which compromise the weld's integrity. Moreover, depending on the joint configuration, a larger electrode might not fit adequately into the joint, preventing the arc from reaching the root and leading to incomplete penetration.

The Crucial Role of Base Metal Thickness

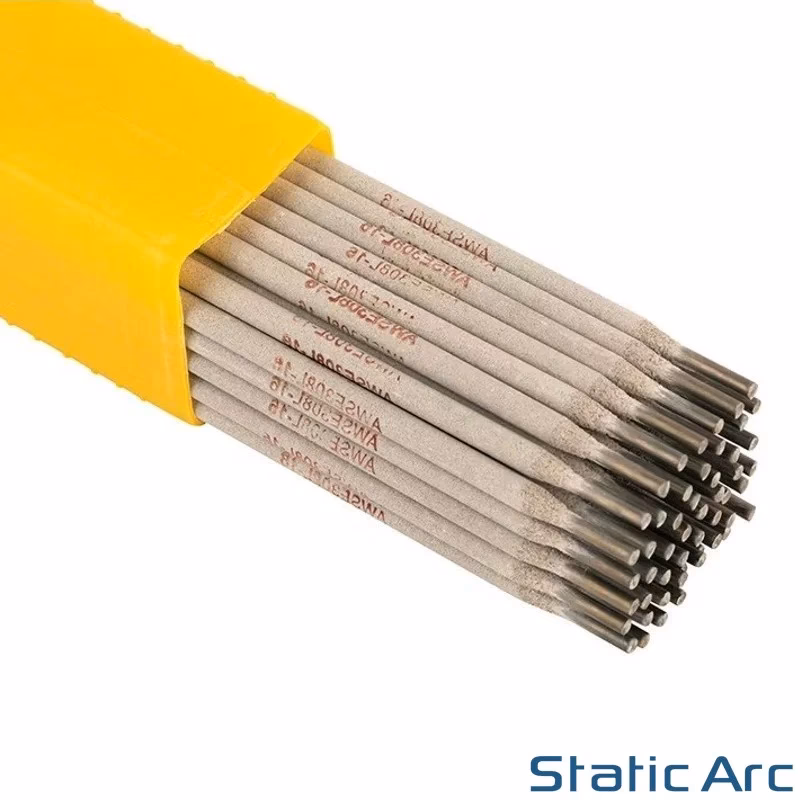

When selecting an electrode diameter, the thickness of the base metal is arguably the most critical factor. The fundamental principle to adhere to is to always select a welding rod that is thinner than the base metal you are working with. There are very few, if any, justifiable reasons to use an electrode thicker than the material's thickness. For materials less than 3/16" (4.8 mm) thick, a good practice is to select an electrode that is one size smaller than the material thickness. For instance, if you're welding 1/8" (3.2 mm) thick metal, a 3/32" (2.4 mm) electrode is a suitable choice. You can generally use an electrode size that is half the material thickness without issue, but going significantly smaller than that can lead to the problems mentioned earlier. Once the base metal thickness exceeds 3/16" (4.8 mm), other factors come into play, including the welding position, the fit-up of the joint, and the desired final weld size. These variables necessitate a more nuanced approach to electrode selection.

Welding Position and its Influence on Rod Size

The position in which you are welding has a direct impact on the appropriate electrode size. In flat (1G) and horizontal (2G) welding positions, gravity assists in drawing the molten weld puddle into the joint. This allows for the use of larger diameter electrodes, as the molten metal can fill the joint and solidify without being pulled away. The greater heat and larger puddles associated with these rods are not problematic in these orientations. However, for vertical (3G) and overhead (4G) welding positions, smaller diameter electrodes are essential. These rods operate at lower amperages, resulting in a smaller, more controllable weld puddle that solidifies more quickly. This is crucial because, in out-of-position welding, gravity works against the welder, pulling the molten metal downwards and away from the joint. A smaller, faster-freezing puddle is less likely to sag or fall out, ensuring a more secure weld. The ease of control offered by smaller puddles is also a significant advantage when welding in these challenging positions.

Common Stick Electrode Sizes and Their Applications

Stick welding electrodes are available in a wide range of diameters, from 1/16" (1.6 mm) to 1/4" (6.35 mm). However, the most commonly encountered and versatile sizes for general fabrication are: * 3/32" (2.4 mm)* 1/8" (3.2 mm)* 5/32" (4.0 mm)Mastering the use of these three sizes will enable you to confidently tackle a vast majority of stick welding projects. As a general guideline: * For materials thinner than 1/8" (3.2 mm), a 3/32" (2.4 mm) rod is typically a good choice. * For materials up to 1/4" (6.35 mm) thick, a 1/8" (3.2 mm) electrode is often the most suitable. * For thicker materials, the 5/32" (4.0 mm) electrode becomes the preferred option. Below is a helpful chart providing a starting point for selecting the correct welding rod size based on base metal thickness and recommended amperage ranges. Remember, these are general guidelines, and minor adjustments may be necessary based on specific welding conditions.

The Challenges of Small-Diameter Rods Revisited

As previously mentioned, electrodes smaller than 1/8" (3.2 mm) present unique challenges. Their thinness can lead to arc instability and difficulty in maintaining electrode angle. This is particularly true when welding materials less than 1/8" thick, where stick welding is already a demanding process. The low amperages required can also make it difficult to sustain the arc, often resulting in the electrode sticking to the base metal.

Issues with Larger Diameter Rods Revisited

Electrodes with diameters exceeding 5/32" (4.0 mm) require more power. Standard 120V or 220V welding machines may not provide the necessary high current for these rods. Investing in a more powerful, possibly three-phase, welding machine with a high duty cycle is often necessary. The larger puddle size associated with these rods demands greater skill and practice to control effectively. Furthermore, the increased amperage generates more UV radiation, fumes, and heat, necessitating enhanced personal protective equipment and ventilation.

Practical Examples of Stick Electrode Size Selection

Let's illustrate electrode selection with a couple of common scenarios: Example 1: Welding 1/2" PlateFor joining two pieces of 1/2" (12.7 mm) plate, whether in a fillet or butt joint: * Flat or Horizontal Fillet Weld: A 5/32" (4.0 mm) electrode is a suitable choice for multi-pass welds. It's also appropriate for flat and horizontal butt welds, with the exception of the root pass, where a 1/8" (3.2 mm) 7024 electrode might be preferred for better penetration and control. * Vertical or Overhead Positions: For these out-of-position welds, it's advisable to reduce the electrode size to 1/8" (3.2 mm) for both fillet and butt joints. While welding overhead with a 5/32" rod is possible, the smaller, more manageable puddle from a 1/8" 7018 electrode offers significantly better control. Example 2: Welding 1/8" Sheet MetalWhen welding thin sheet metal, the goal is usually to complete the weld in a single pass, producing a bead that is adequately sized without compromising the base metal. * Sheet Metal (Flat/Horizontal): For materials around 1/8" (3.2 mm) thick, a 3/32" (2.4 mm) electrode, often a 6010 or 6011 type (known for their digging arc and suitability for thinner materials), is a good selection. I generally avoid 7018 for sheet metal due to its tendency to burn through. * Sheet Metal (Vertical Down): A vertical down technique with a 3/32" (2.4 mm) electrode is recommended. This technique helps control the puddle and minimize burn-through. * Sheet Metal (Overhead): For overhead welding on sheet metal, sticking with a 3/32" (2.4 mm) electrode is wise, but it's crucial to run it at the lower end of the recommended amperage range to maintain a small, controllable puddle.

Wrapping It Up

Selecting the correct stick electrode size can indeed be a nuanced process. The overarching advice remains consistent: always choose a rod thinner than the base metal. Beyond this fundamental rule, the best way to truly understand the capabilities and limitations of each electrode size is through hands-on practice. Experimenting with different electrode sizes on various material thicknesses will build your intuition and refine your technique, ultimately leading to more consistent and superior weld results. Remember, experience is your most valuable tool in mastering the art of stick welding.
